Sinemaster KDE21SS3 power generator - A very high-quality generator suitable for professional use, hospitals, and public buildings., Lahti

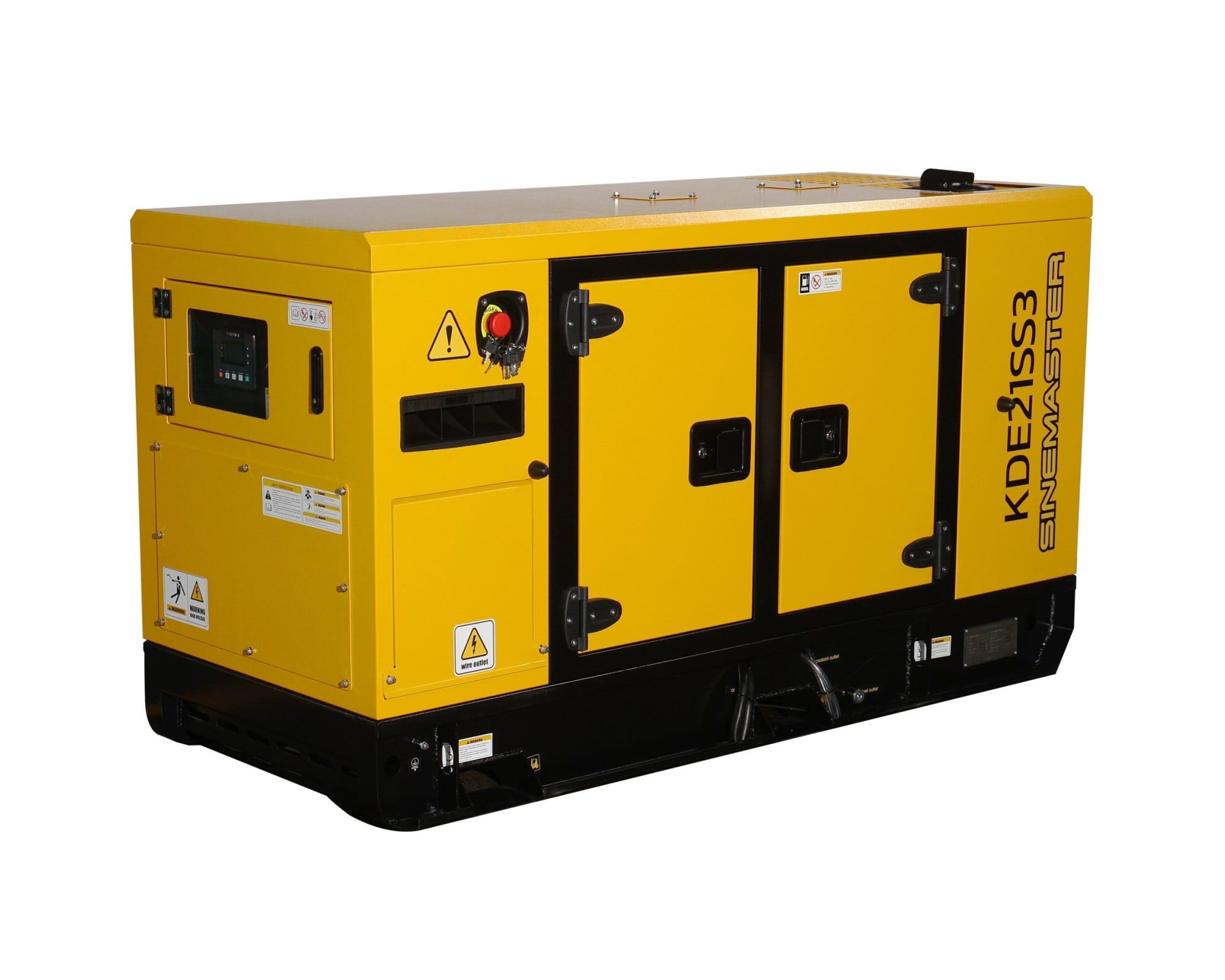

Sinemaster KDE21SS3 power generator

Super-silent power generator with 21 kVA output.

The generator currently in demand is new and unused, straight from stock!

A very high-quality power generator suitable for professional use, hospitals, and public buildings. In line with the latest emissions standards, this intelligent unit with electric start is reliable and long-lasting. It also features an hour meter, low oil protection and a large fuel tank. Thanks to its low-speed 1500 rpm engine, it is among the longest-lasting on the market. The machine's service life is up to four times longer compared with 3000 rpm power generators.

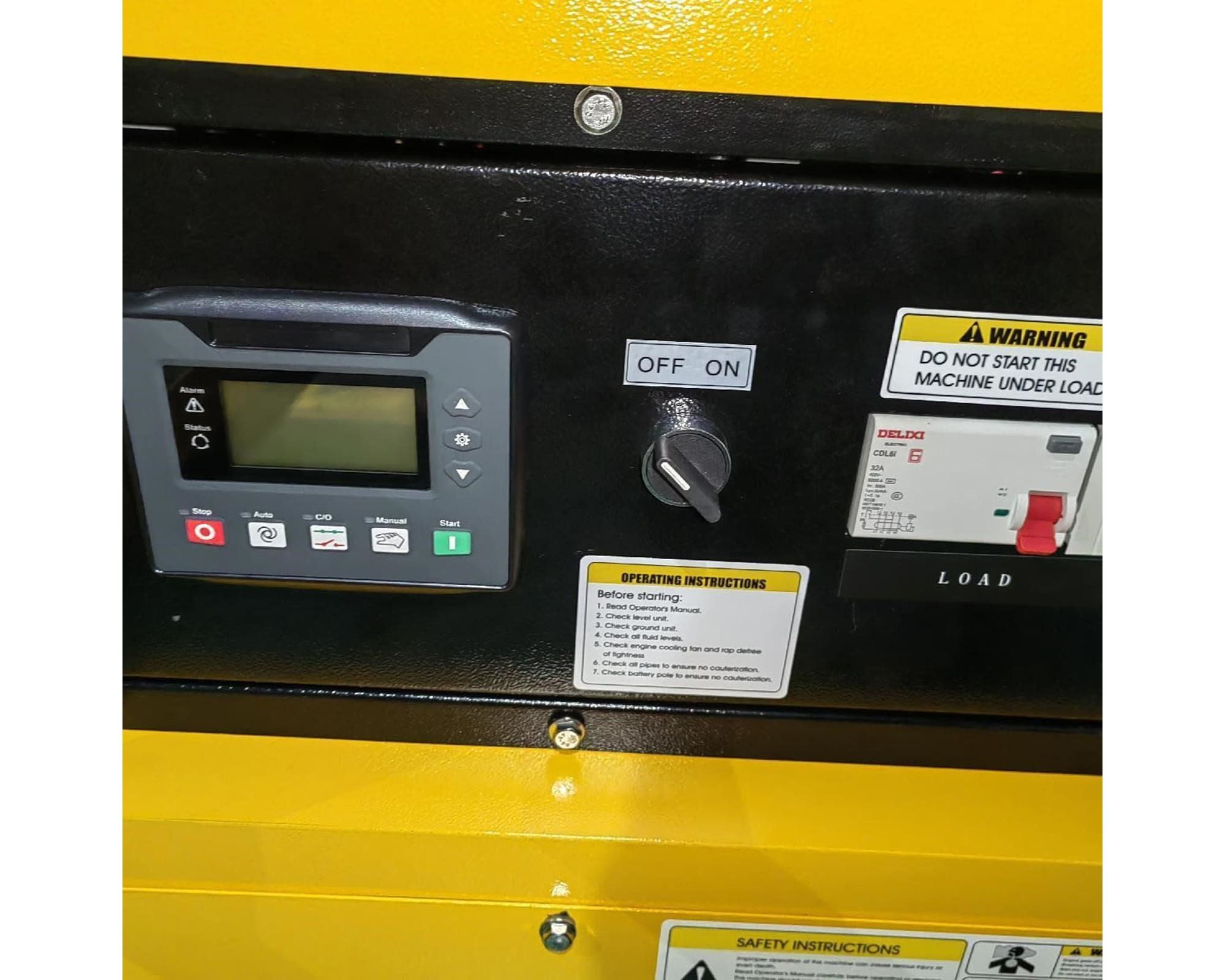

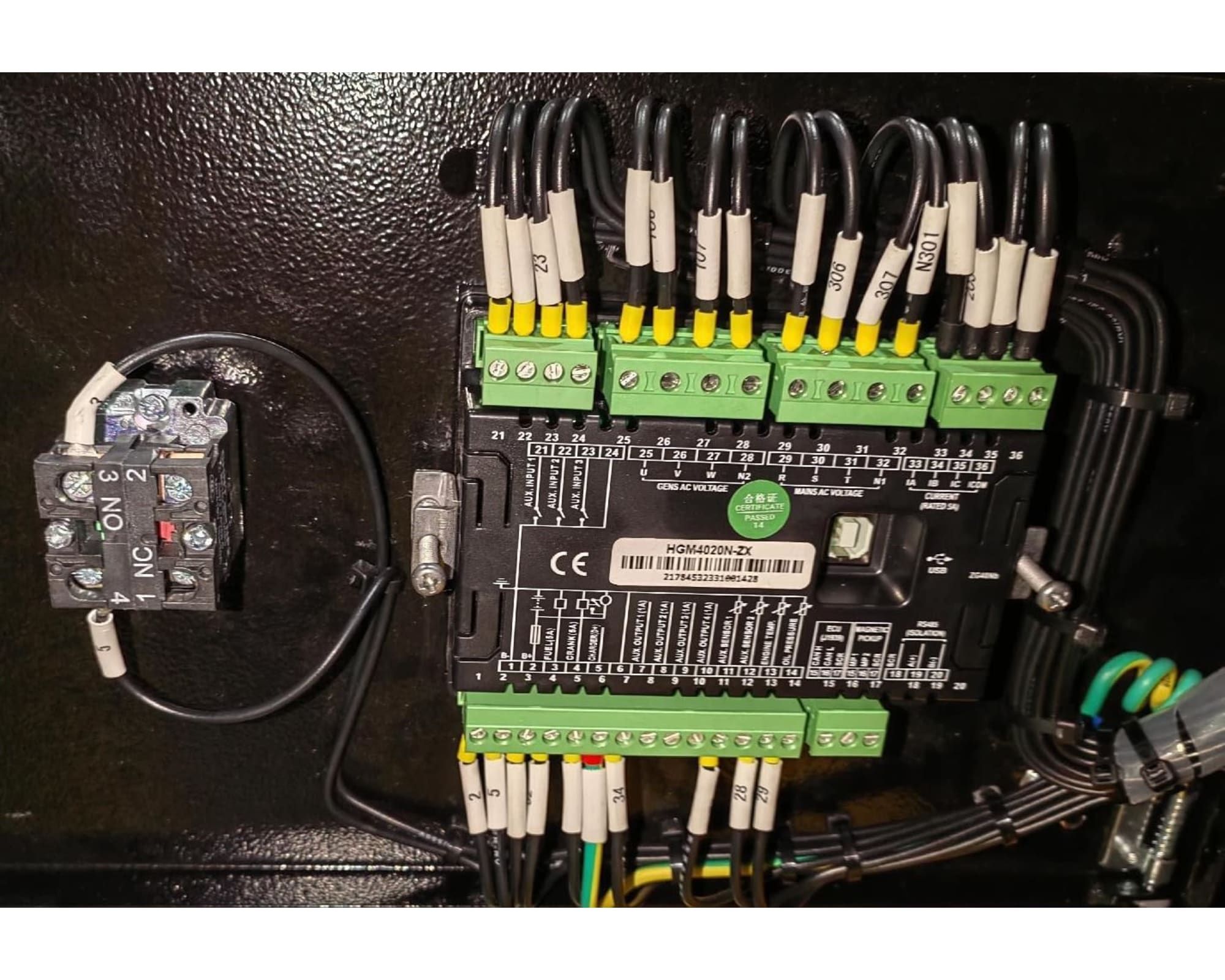

The backup power unit is equipped with the market's latest and smartest SmartGen 4020N control panel and a large 45 Ah battery. Sound-insulated steel housing with service hatches. Very high-quality AVR regulator, resulting in THD < 3%, i.e. sine-wave level.

Features:

• Safer power for sensitive electronics

• Sinemaster power generators run even larger electrical equipment with cleaner, safer and more stable power

• Easy maintenance and installation

• Functional service hatch ensures speed and the LED display provides the unit with full diagnostic functionality

Technical specifications:

• Engine: Yangdong EURO 5 2417 cc water-cooled, four-cylinder direct-injection diesel

• Number of cylinders: 4

• Operating speed: 1500 rpm

• Stroke: 90 x 95 mm

• Compression ratio: 18±0.5:1

• Voltage: 230 V / 400 V

• Frequency: 50 Hz

• Control panel: Digital display

• Continuous output: 15.2 kW / 19 kVA

• Max. output: 17 kW / 21 kVA

• Total output @ 1500 rpm: 19 kW

• Power factor COS φ: 0.8

• Equipped with a high-quality AVR regulator, THD: 1.92%

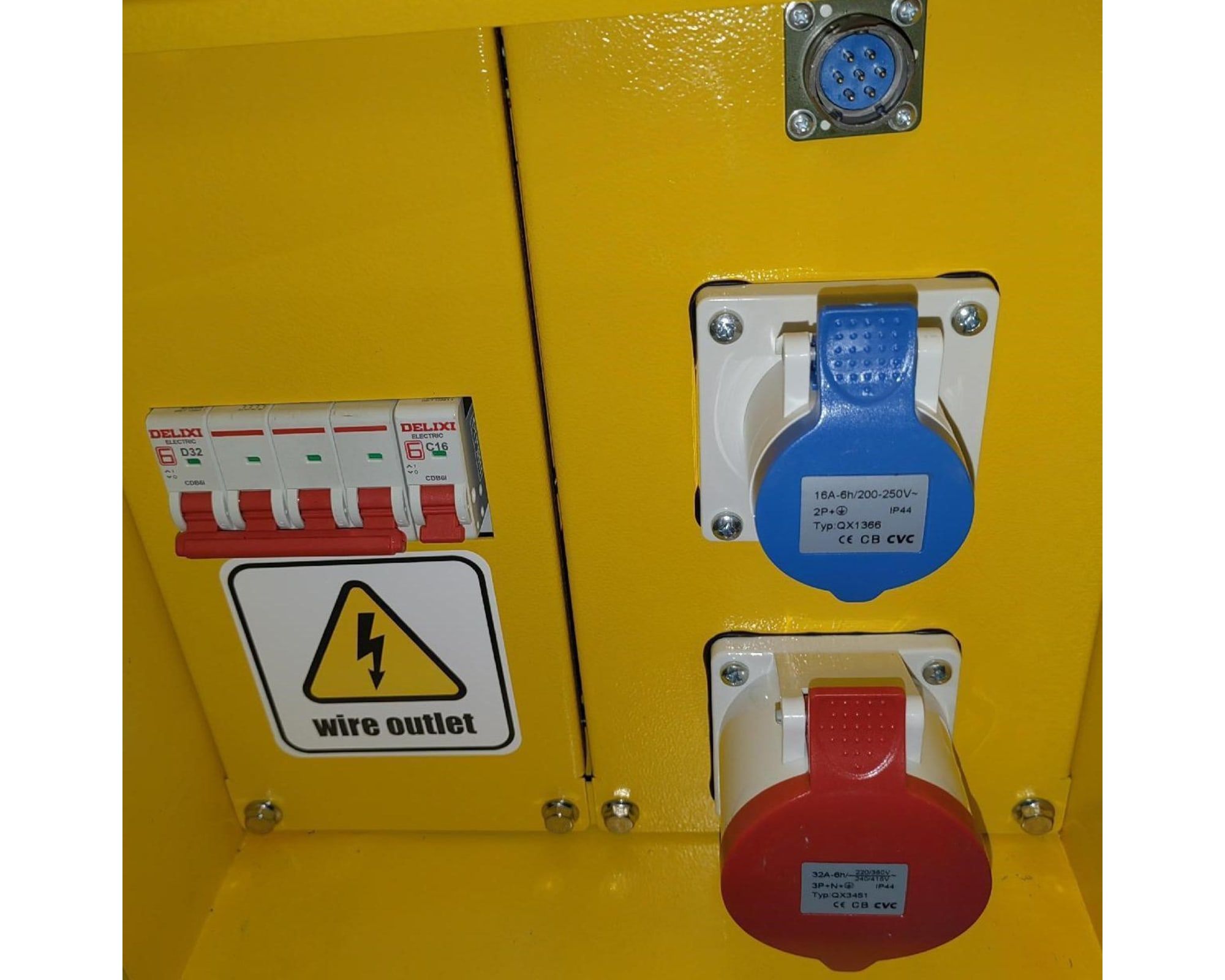

• Outputs 32 A 400 V 3-phase: 1 x CEE

• Outputs 16 A 230 V 1-phase: 1 x caravan socket CEE

• Unbalanced load: 400 V 2/3 power, 230 V 1/3 power

• Continuous output current: 27.4 A

• Electric start: 12 V

• Low oil protection: Yes

• Emergency stop switch: Yes

• Circuit breaker: 4P 32 A

• Automatic fuses: Yes

• Voltmeter: Yes

• Fuel tank capacity: 47 l

• Fuel pump: mechanical inline pump

• Running time per tank: 11 h / 100%

• Battery: CAMEL Group 45 Ah

• Engine oil capacity: 11 l

• Noise level (7 m): 67 dB

• Protection class: IP23

• Fuel consumption: ≤ 245 g/kW.h

• Packed dimensions (L x W x H): 177 x 76 x 100 cm

• Generator dimensions (L x W x H): 175 x 72 x 98 cm

• Central lifting point for easy moving

• Weight: 635 kg

• Warranty: 1 year

Accessories (not included in the sale): SINEMASTER ATS 40A automatic start unit
If power is interrupted in the monitored network, the ATS detects the voltage drop and sends a signal to the generator, which starts power production to the interrupted electrical system within a few seconds. The ATS monitors throughout the outage and, once it has confirmed that mains voltage has returned to an acceptable level, it transfers the electrical load back to the mains and shuts down the generator. In normal standby mode, the ATS supplies 12 V power from the mains to the generator starter battery to ensure it stays fully charged. Available separately.

Delivery: Home delivery. Collection not possible.
