Only this item! Sinemaster KDE7500SS3 400 V diesel generator - 7,500 W diesel power generator with ATS option. Silent series., Lahti

New and unused product sold directly from warehouse!

This product comes with a 1-year warranty!

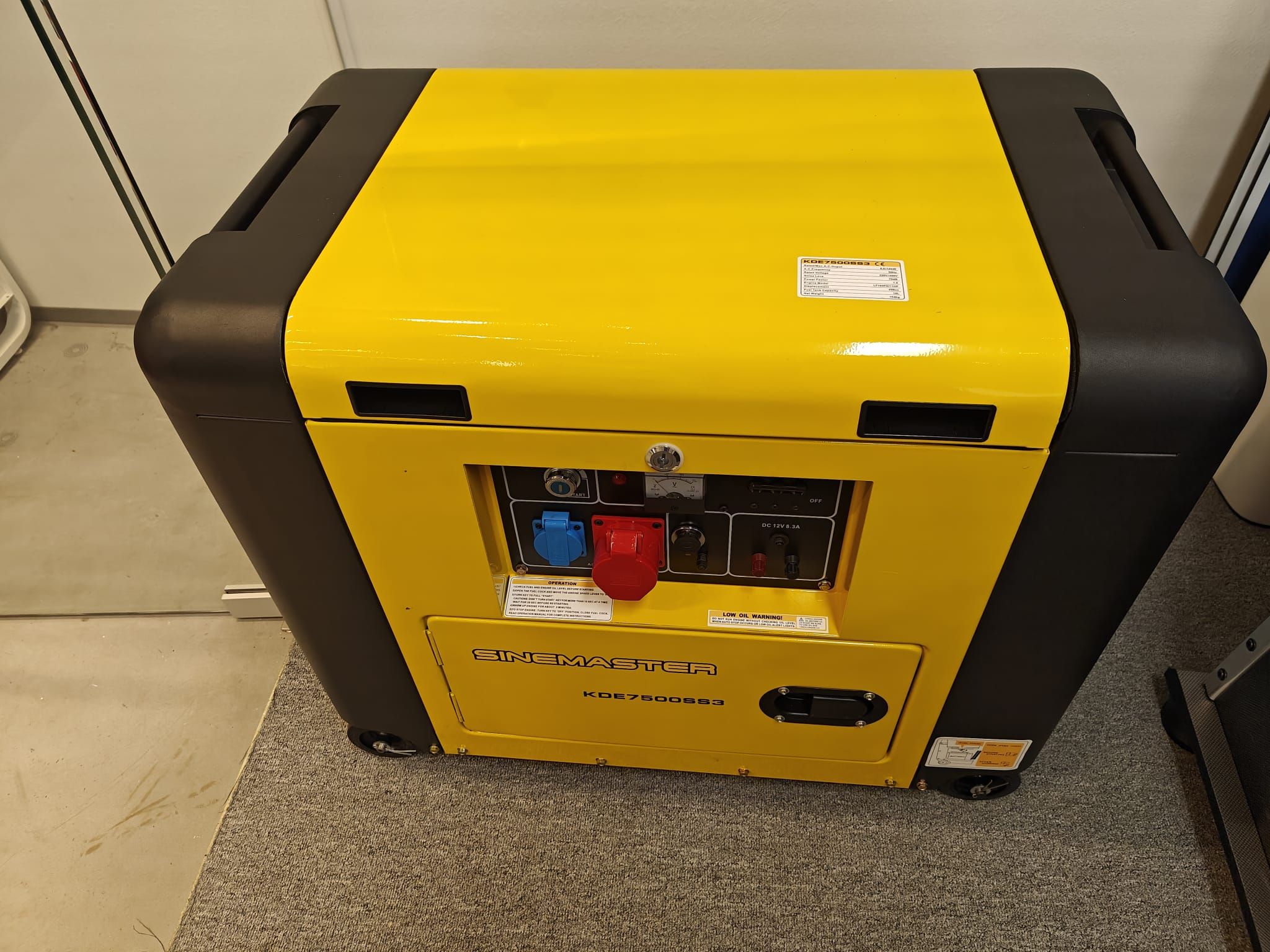

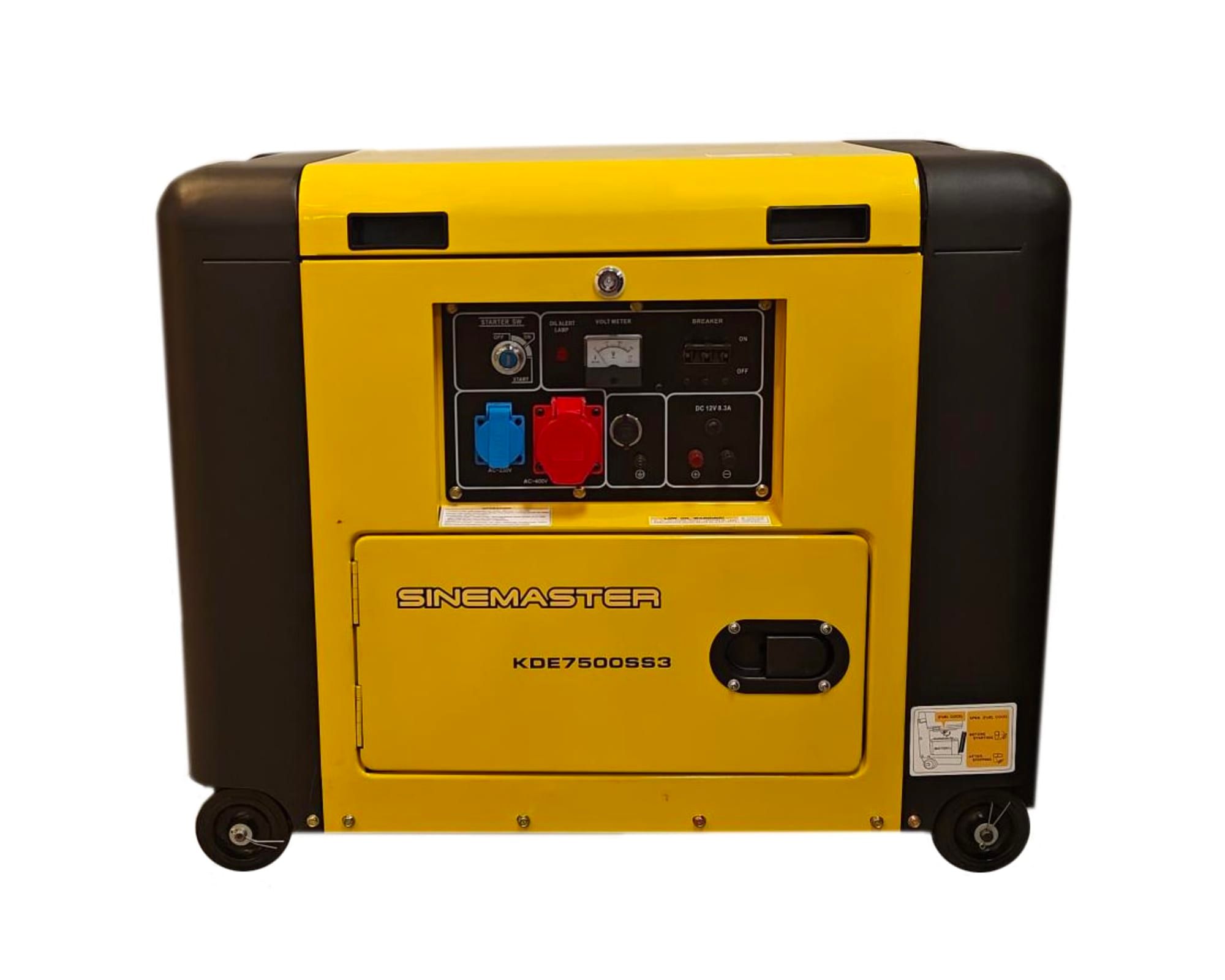

Sinemaster KDE7500SS3 400 V diesel generator

The Sinemaster KDE7500SS3 provides mains power for power cuts and for places with limited access to electricity.

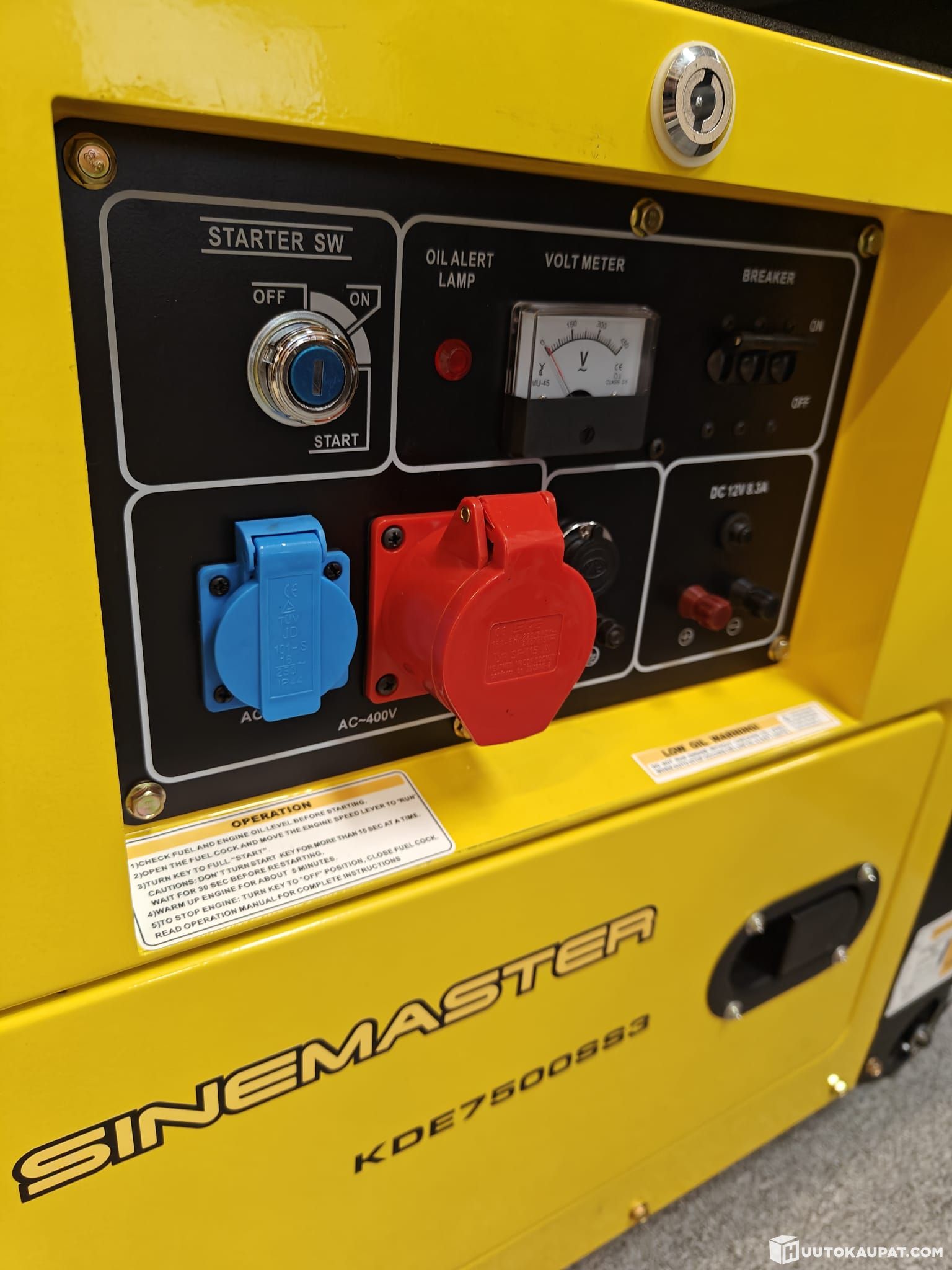

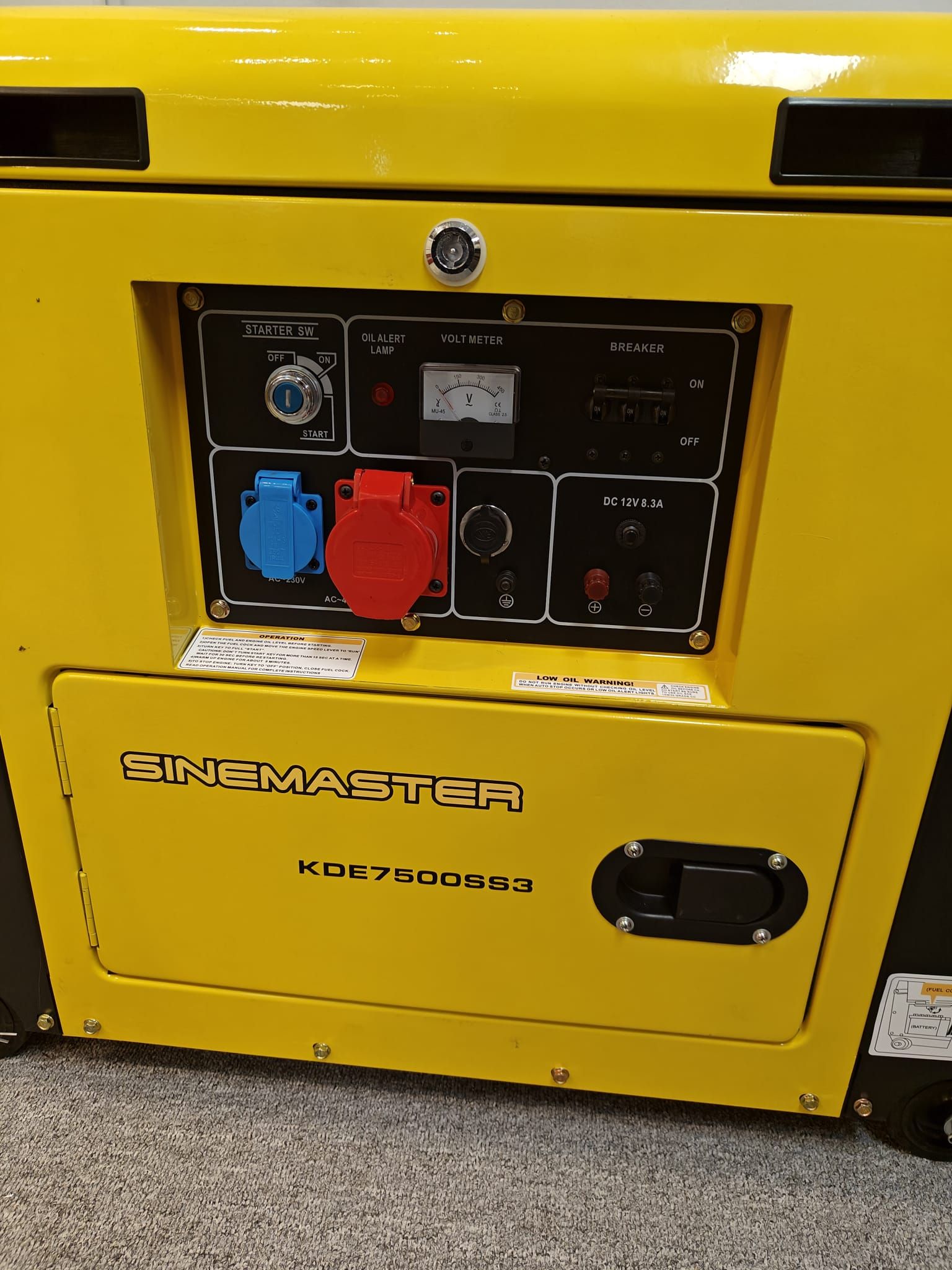

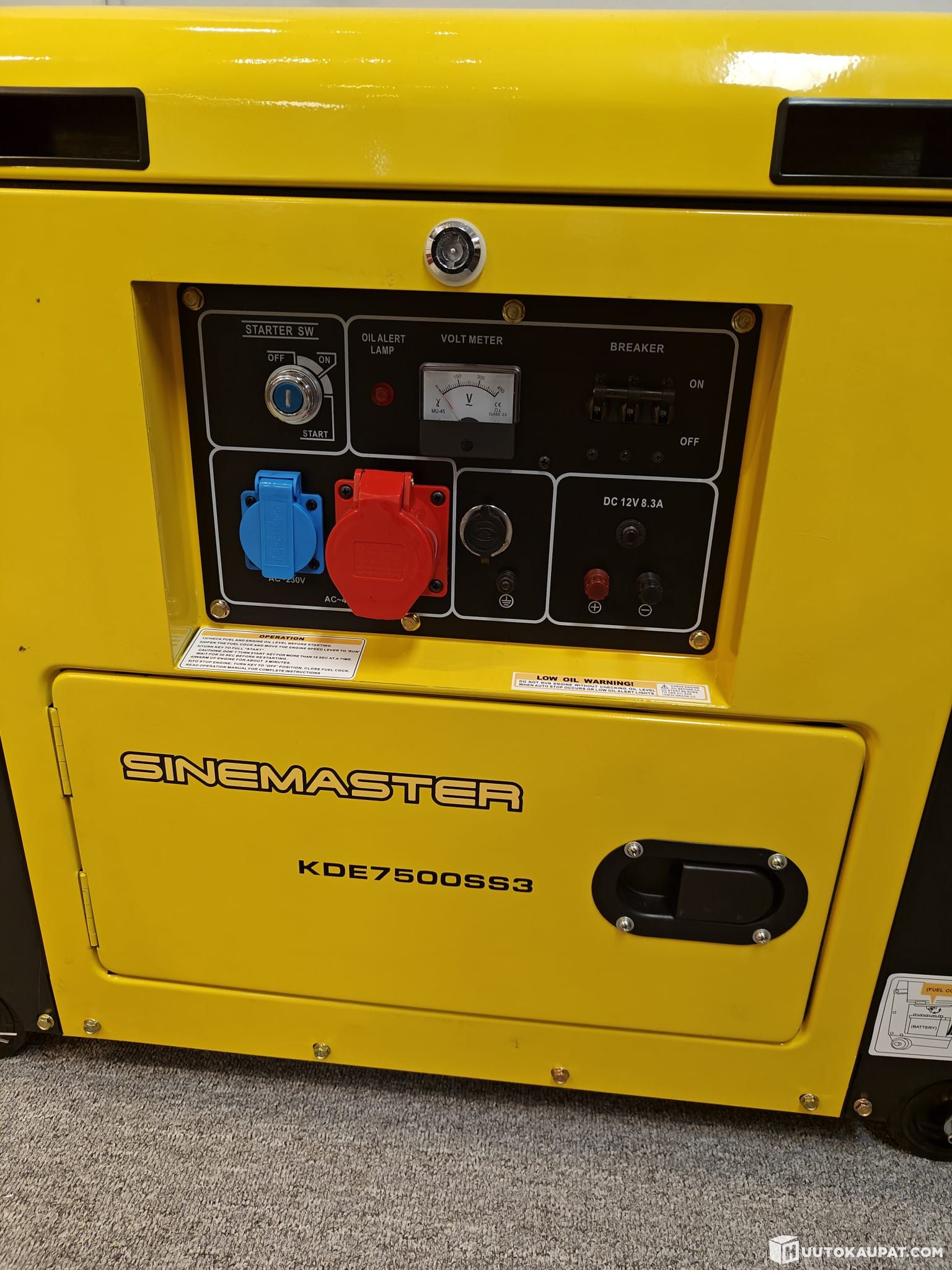

The 1-cylinder diesel engine produces electricity at 3,600 rpm and delivers a maximum output of about 7.5 kW. The generator has 3 outlets: one 230 V outlet, one 400 V outlet and one 12 V (8.3 A) outlet. Equipped with an ATS socket. The 170 kg generator is easy to move thanks to the wheels.

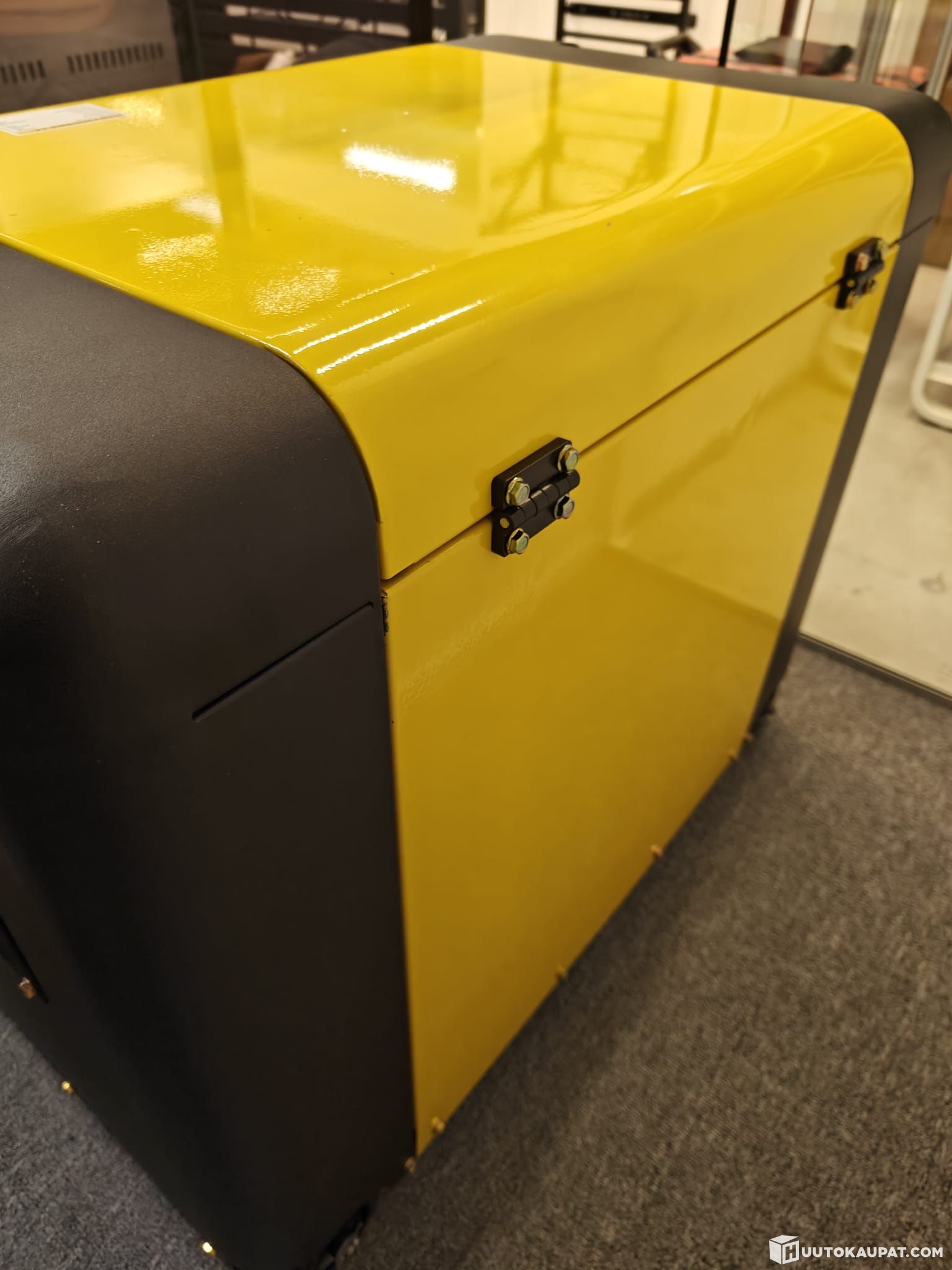

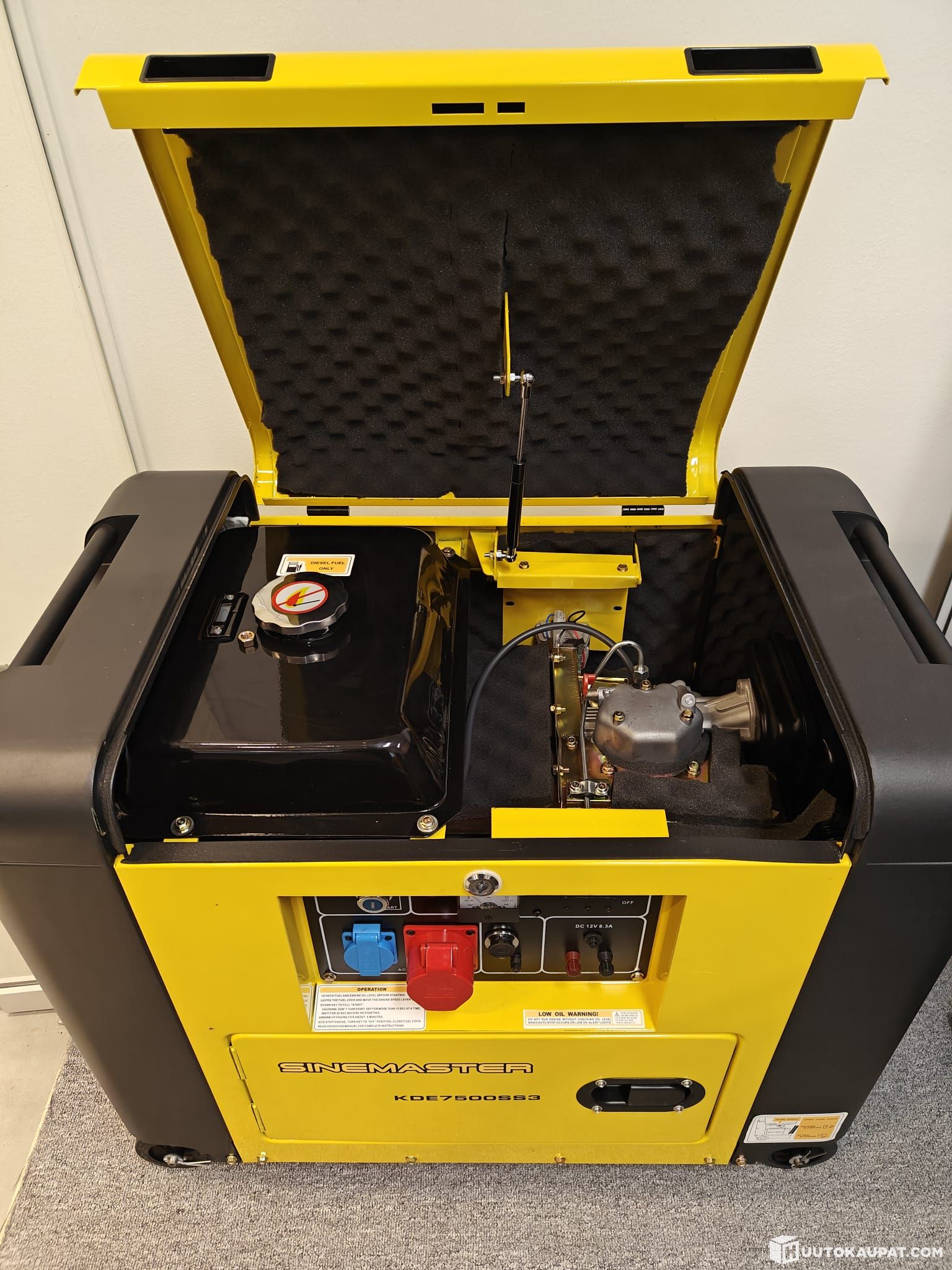

The generator is enclosed in a noise-reducing housing and has a silencer at the other end. The fuel tank holds 16 litres of diesel, which is enough to run this generator through the night.

Features:

• Silent model

• Battery-powered electric start for easy starting

• Voltmeter

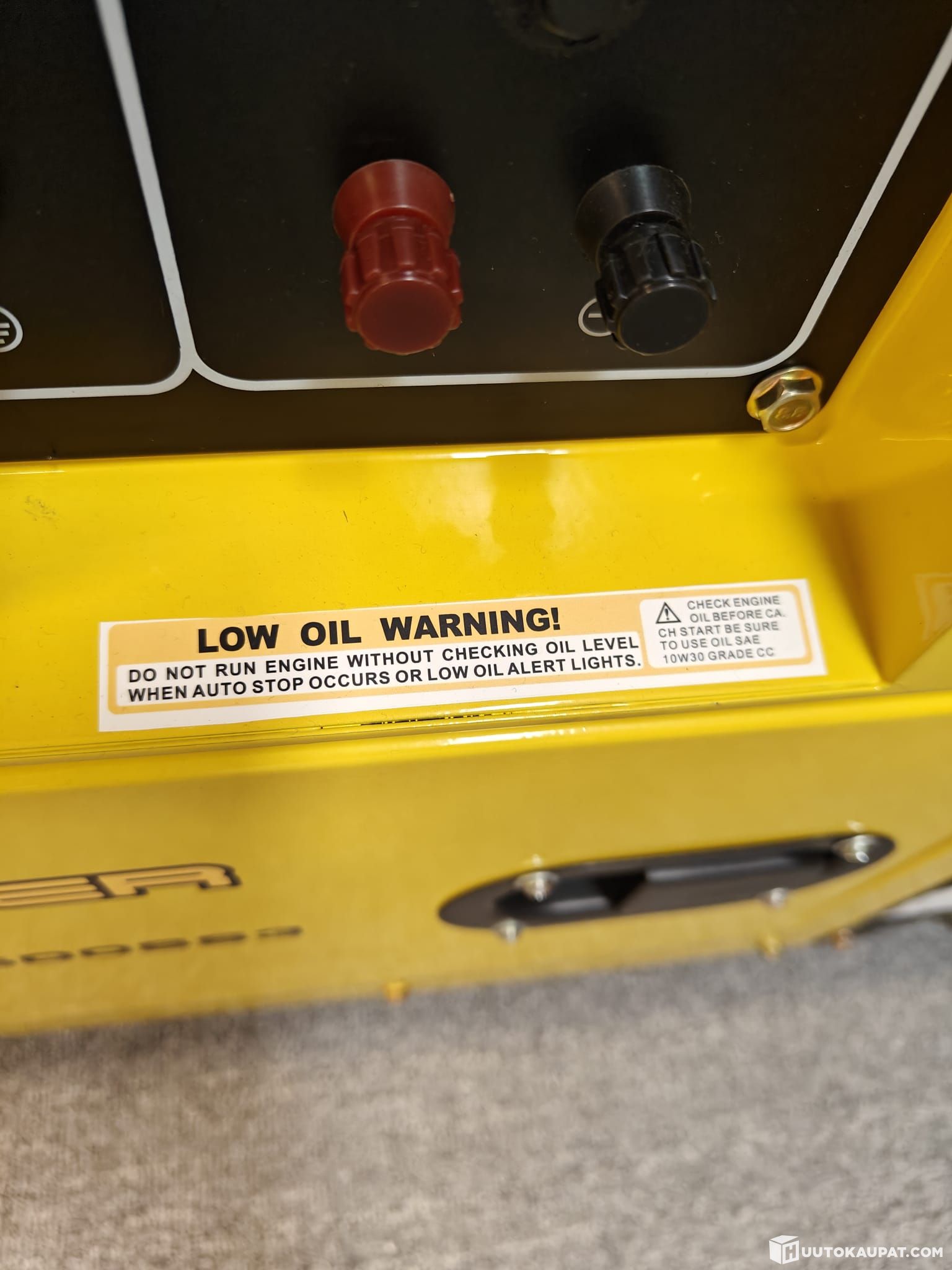

• Oil warning light

• Fuel gauge

• Equipped with AVR regulator

• Equipped with ATS socket

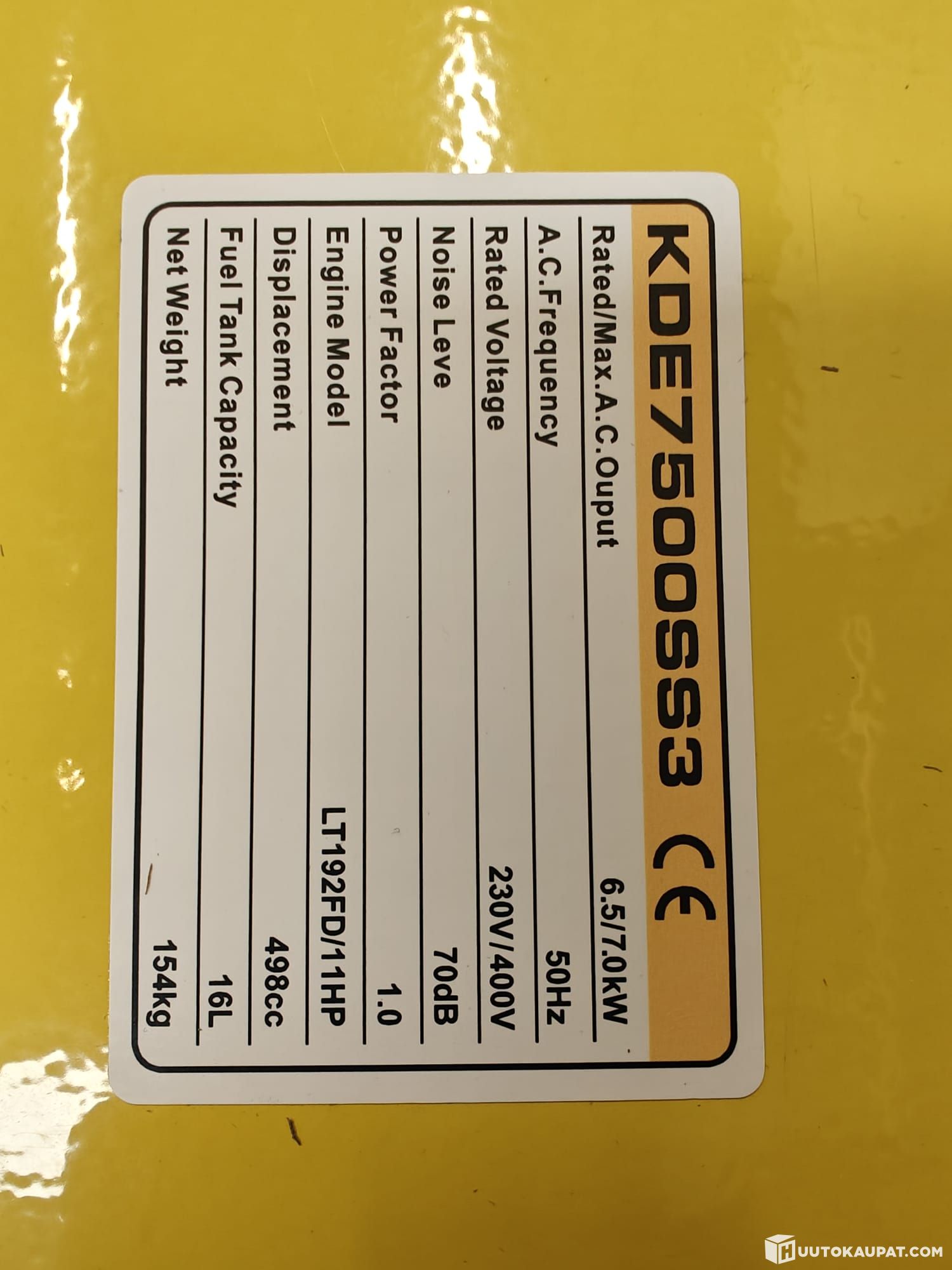

Technical details

• Fuel: Diesel

• Fuel consumption: 2.3 l/h at 100% load

• Operating time: 7 h at 100% load

• Phases: single-phase and three-phase

• Calculated maximum output: 7 kW

• Calculated continuous output: 6.5 kW

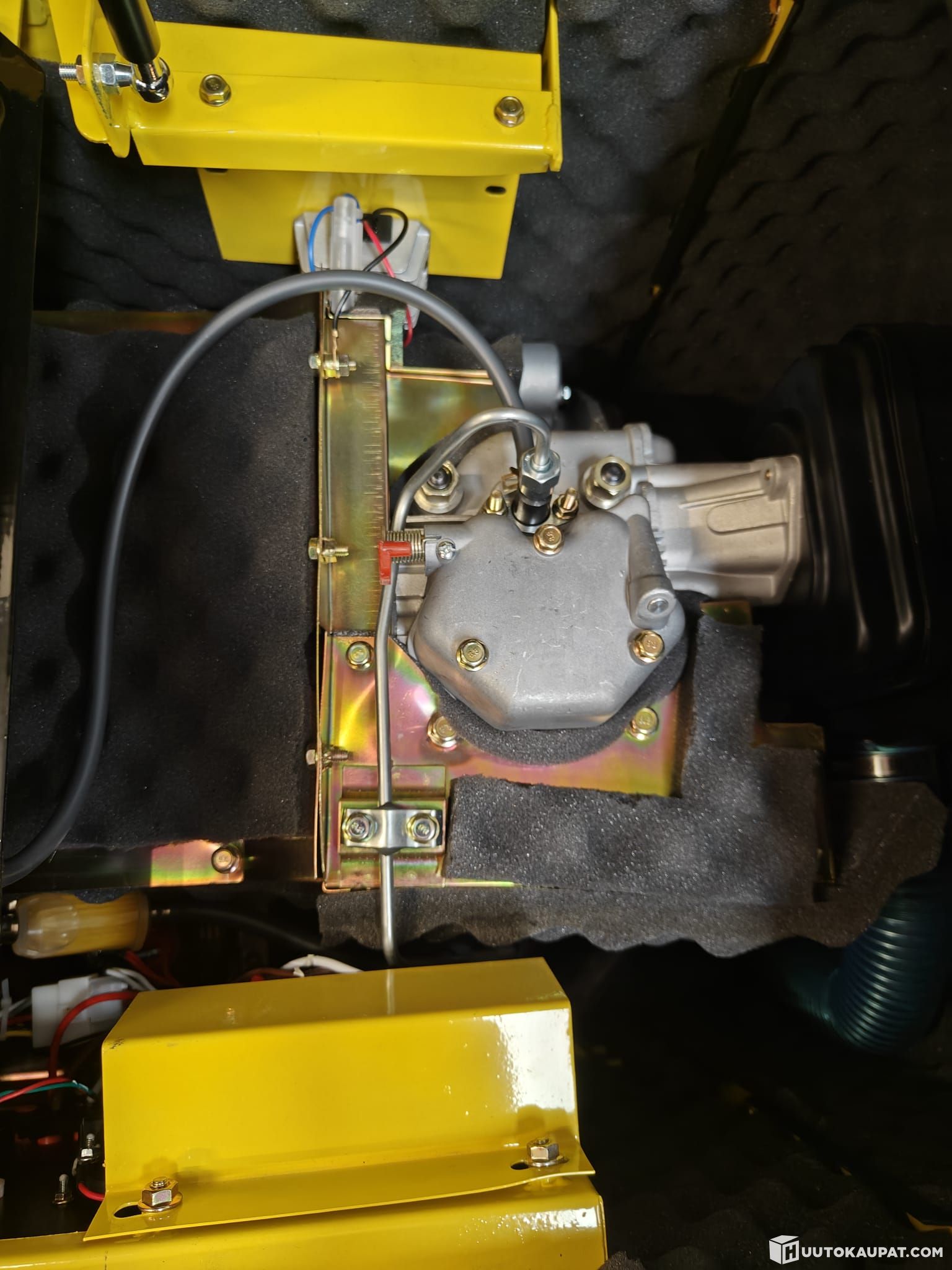

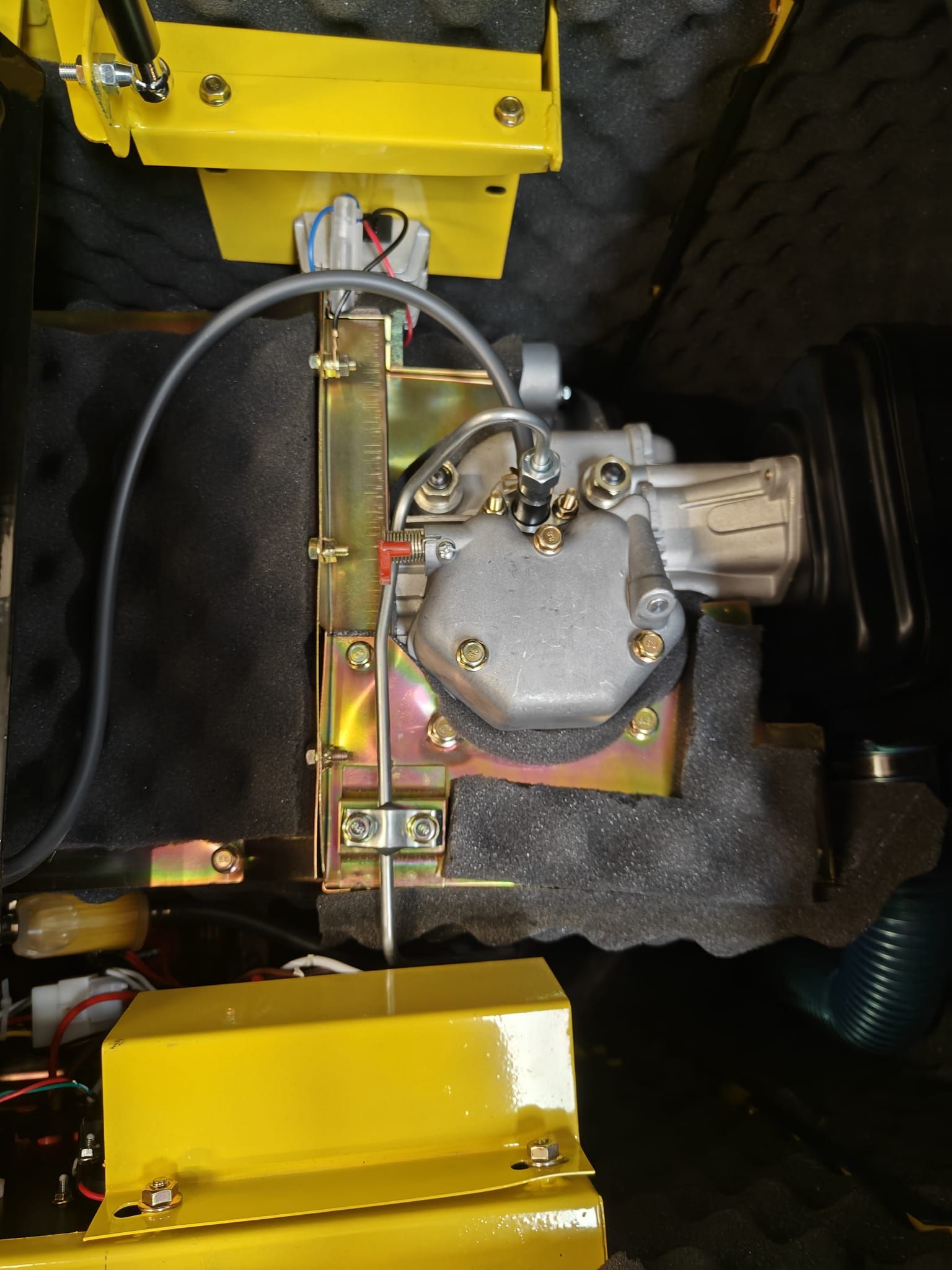

• Engine type: 192FD 498 cc

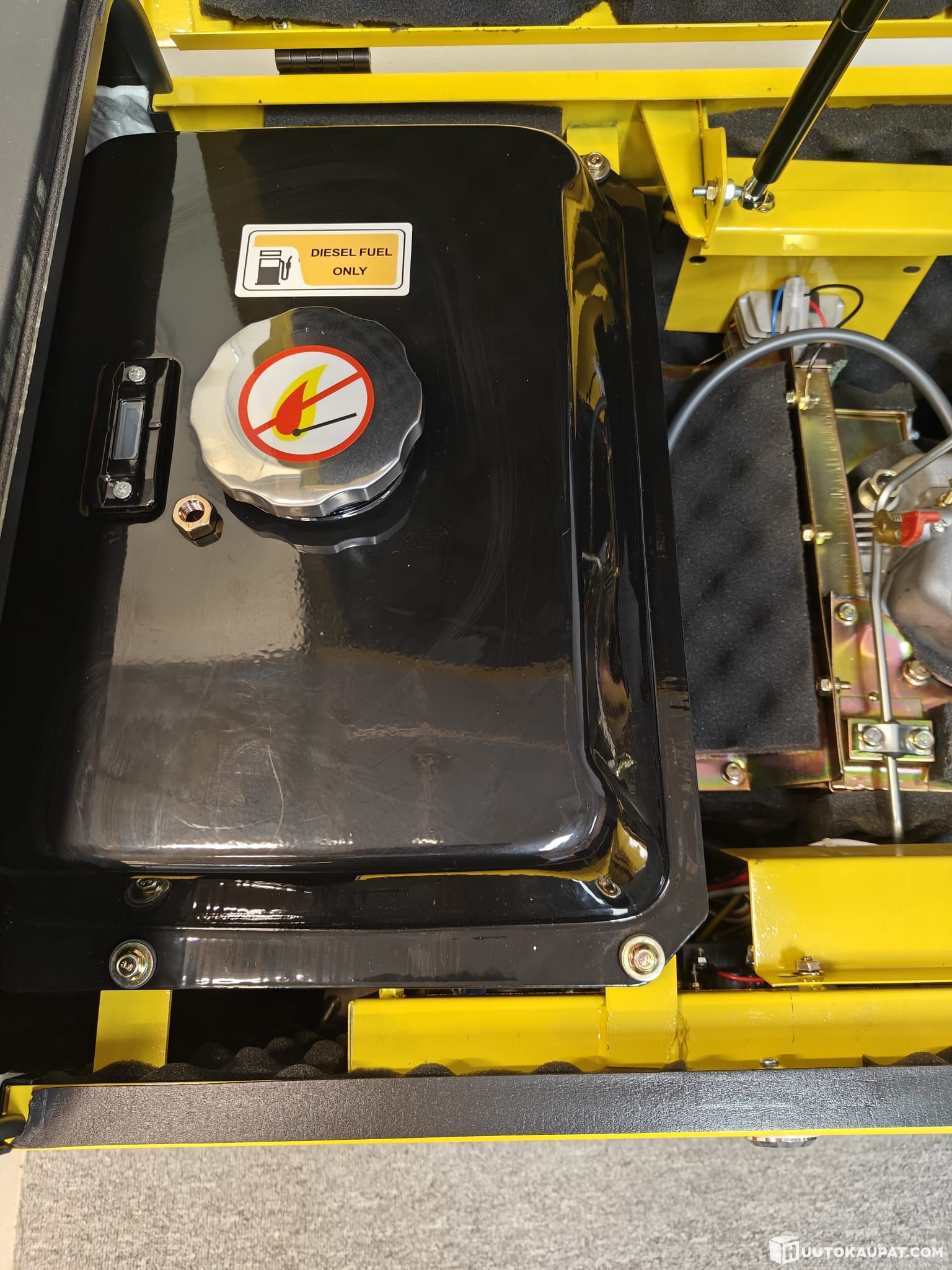

• Fuel tank: approx. 16 l

• AVR regulator: THD ≤ 20%

• 1 x 400 V power outlet

• 1 x 230 V outlet

• 1 x 12 V (8.3 A) outlet

• Electric start (20 Ah battery)

• Central lifting point: No, lift from handles

• ATS option: Yes

• Oil capacity: 1.65 l

• Recommended oil: 10W-30

• Noise level: 71 dB(A) (7 m)

• Dry weight: 170 kg

• Dimensions: 945 x 550 x 750 mm

• The output power of the 230 V outlet is 1/3 of the maximum power of the power outlet

• Warranty: 12 months

  Accessories (available separately): Sinemaster ATS light start unit
  In the event of a power failure in a monitored network, ATS detects the voltage drop and sends a signal to the generator, which starts supplying power to the interrupted electrical system within a few seconds. ATS monitors throughout the outage and, once it has confirmed that the mains voltage has returned to an acceptable level, ATS transfers the electrical load back to the mains and shuts down the generator.

Delivery: Home delivery. Collection not possible.
