Last item! Portable car lift 3500 kg 230 V – Lifting height 473 mm – The lifting units are easy to store indoors by hanging them on the garage wall!, Lahti

Motorwerk portable car lift 3500 kg 230 V

3500 kg portable car lift

The product is new and unused.

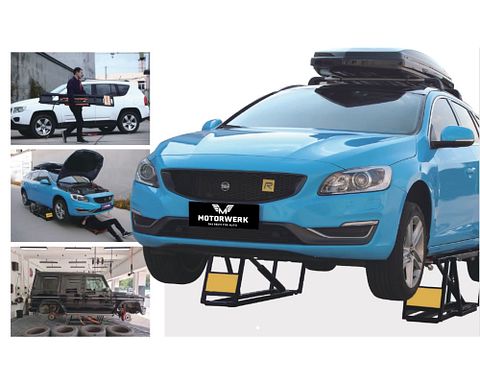

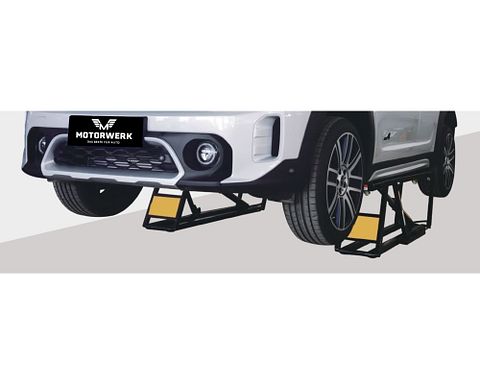

The Motorwerk car lift is an easy-to-use portable lift for locations without space for column lifts or where a lift is only needed occasionally. The lift consists of two lifting units and a hydraulic unit connected to a standard 230 V socket. Ideal for car enthusiasts and professionals, such as garages and tyre shops. The lift is easy to transport in a van or trailer, enabling repairs at remote locations.

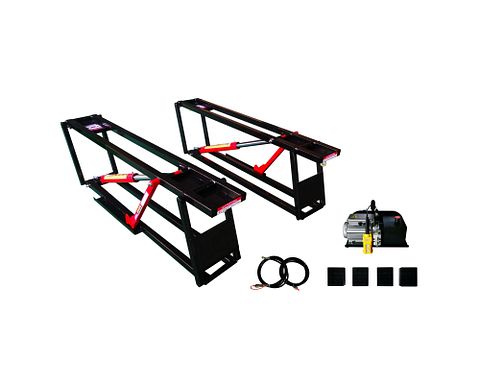

The unit requires a level surface, mains electricity and hydraulic oil. The two lifting units have wheels, making them easy for one person to move. There are no crossbars or similar between the lifting units, leaving the space under the car completely open and making many repairs easier and quicker. The 473 mm lifting height is ideal for changing tyres or carrying out brake repairs, as you can sit on a workshop stool and significantly reduce the strain of the work.

The hydraulic unit has a synchronisation system to ensure the lifting units operate evenly. Mechanical locking points ensure safe working.

The cylinders are waterproof, so the car lift is also suitable for occasional outdoor use. However, it must be stored indoors. The lifting units are easy to store indoors, for example by hanging them on the garage wall.

Technical specifications:

• Operating voltage: 230 V

• Lifting capacity: 3500 kg

• Maximum lifting height: 473 mm

• Minimum height: 88 mm

• Lifting unit length: 1746 mm

• Distance between lifting points: 1432 mm

• Lifting unit width: 320 mm

• Lifting unit weight: 43 kg

• Hydraulic unit weight: 22.6 kg

• Accessories weight: 7.5 kg

• Lifting speed (3500 kg): 40 s

• Lowering speed (3500 kg): 55 s

• Hydraulic oil tank capacity: 4 L (hydraulic oil 32 or 46)

• Product delivered in three cardboard boxes

Packaging information:

• Lifting units (2 pcs) Dimensions and weight of one package

  • Length: 181.5 cm

  • Width: 37.5 cm

  • Height: 11.5 cm

  • Weight: 45.5 kg

• Hydraulic unit (1 pc)

  • Length: 51 cm

  • Width: 41 cm

  • Height: 35 cm

  • Weight: 30 kg

Delivery: Home delivery. Collection is not possible.
