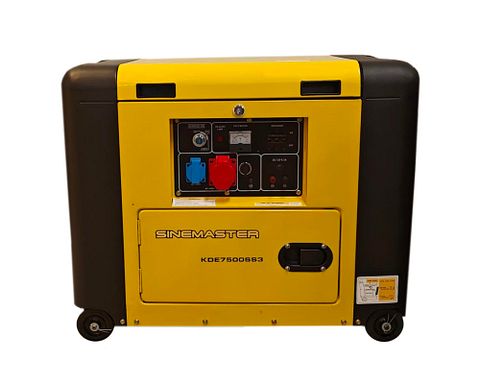

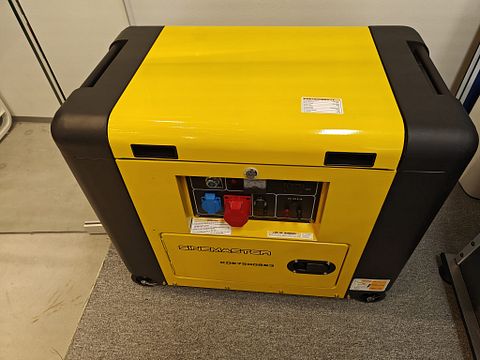

Sinemaster KDE7500SS3 400V diesel generator

Sinemaster KDE7500SS3 provides three-phase power for power cuts and locations with limited electricity availability.

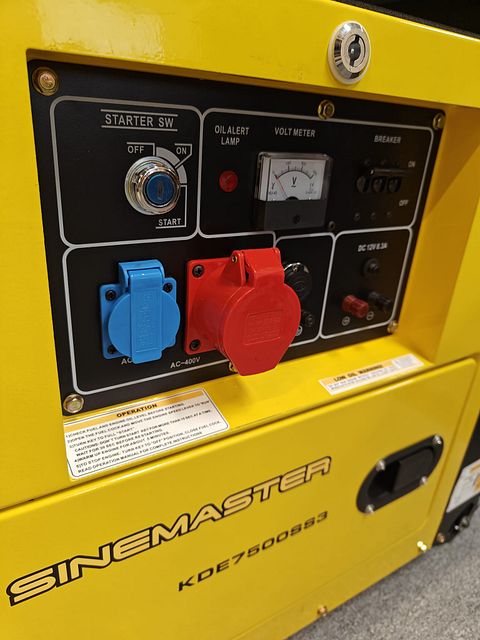

The 1-cylinder diesel engine generates electricity at 3,600 rpm and produces approximately 7.5 kW maximum output. The generator has 3 outputs: one 230V single-phase output, one 400V three-phase output and one 12V (8.3A) output. Equipped with an ATS socket. The 170kg generator is easy to move thanks to its wheels.

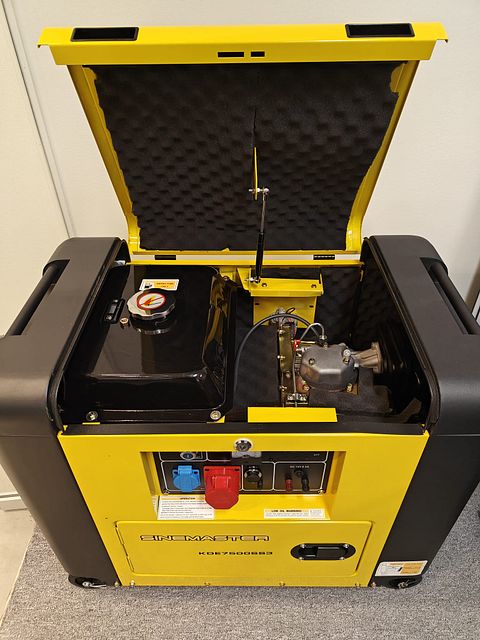

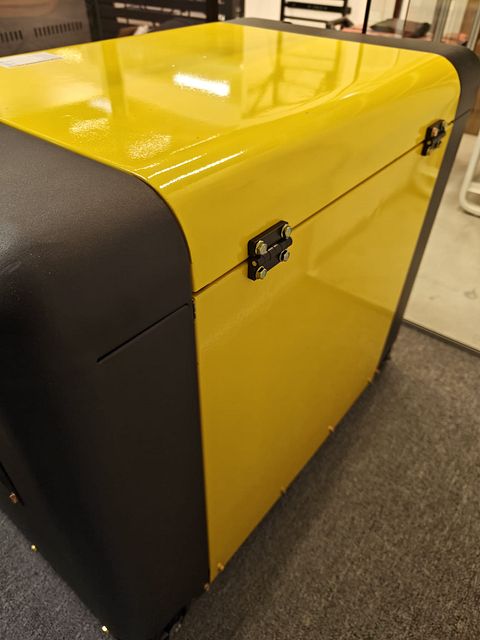

The generator is enclosed in a sound-reducing casing, with a silencer at one end. The fuel tank holds 16 litres of diesel, allowing the generator to run throughout the night.

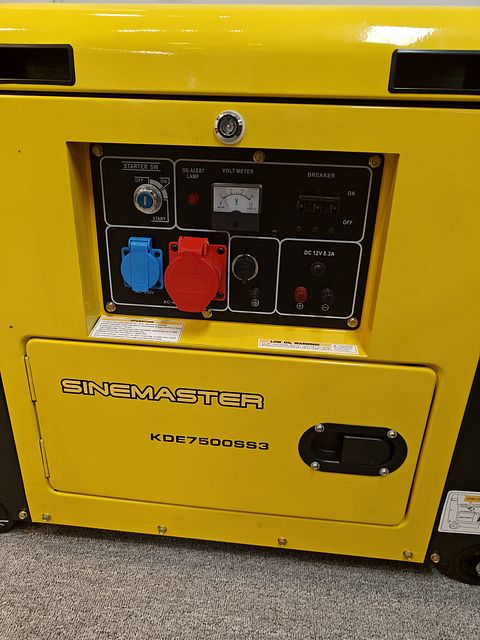

Equipment:

• Silent model

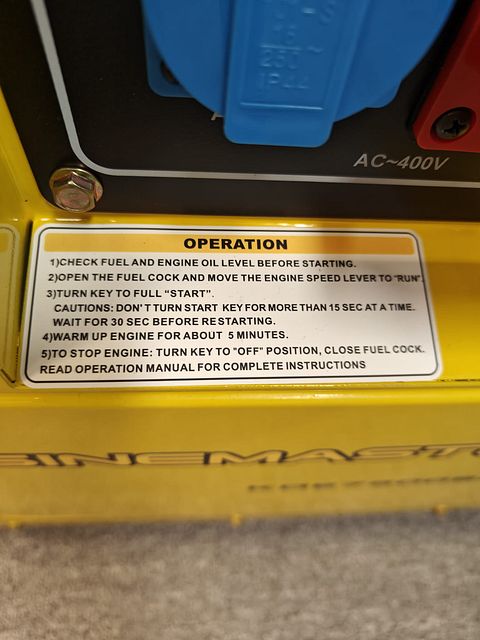

• Battery-powered electric start for easy starting

• Voltmeter

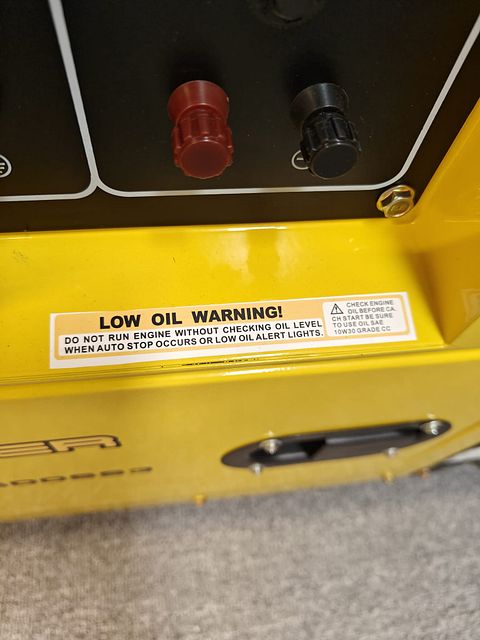

• Low-oil warning light

• Fuel gauge

• Equipped with an AVR regulator

• Equipped with an ATS socket

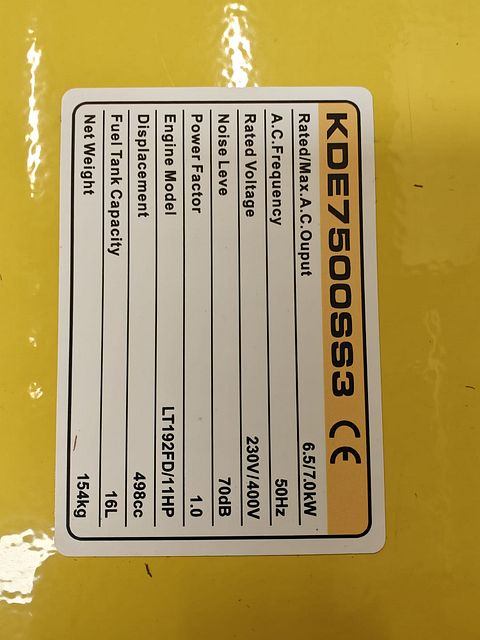

Technical specifications

• Fuel: Diesel

• Fuel consumption: 2.3 litres/hour at 100% load

• Runtime: 7 hours at 100% load

• Phases: single-phase and three-phase

• Calculated maximum output: 7 kW

• Calculated continuous output: 6.5 kW

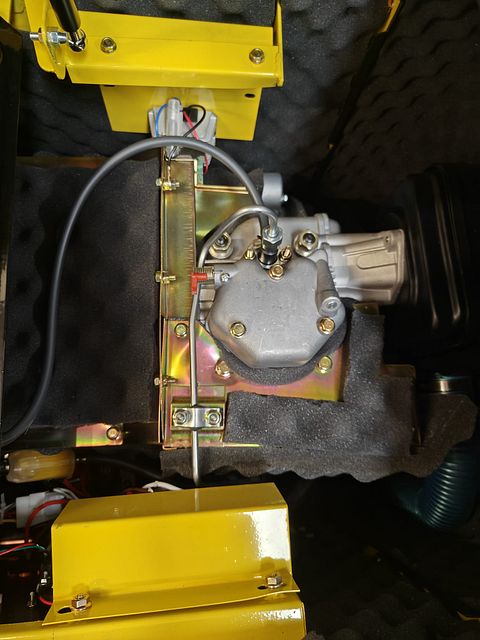

• Engine type: 192FD 498cc

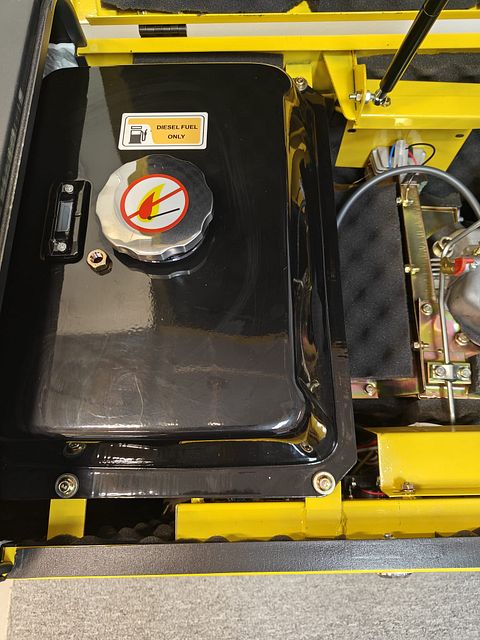

• Fuel tank: approx. 16 litres

• AVR regulator: THD ≤ 20%

• 1 x 400V three-phase output

• 1 x 230V single-phase output

• 1 x 12V (8.3A) output

• Electric start (20Ah battery)

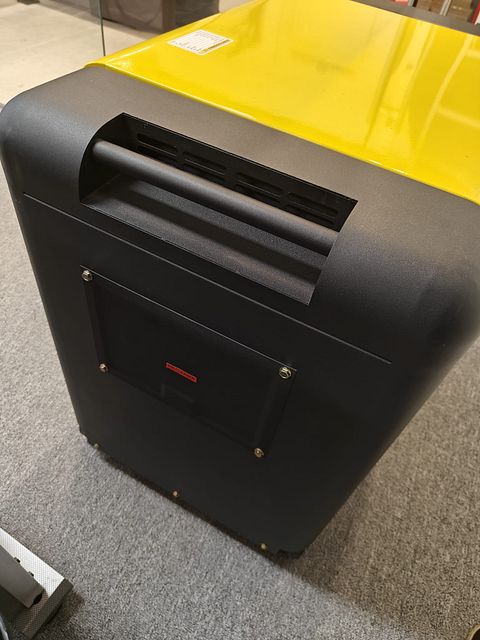

• Central lifting point: No, lifting by the handles

• ATS capability: Yes

• Oil capacity: 1.65 litres

• Recommended oil: 10W-30

• Noise level: 71 dB(A) (7m)

• Dry weight: 170kg

• Dimensions: 945 x 550 x 750mm

• The output power of the single-phase outlet is 1/3 of the maximum output of the three-phase outlet

• Warranty: 12 months

  Accessories (available separately): Sinemaster ATS light starting unit
  If the power fails in the monitored network, the ATS detects the voltage drop and sends a signal to the generator, which starts supplying power to the disconnected electrical system within a few seconds. The ATS monitors the entire outage and, once it has confirmed that the mains voltage has returned to an acceptable level, transfers the electrical load back to the mains and shuts down the generator.
