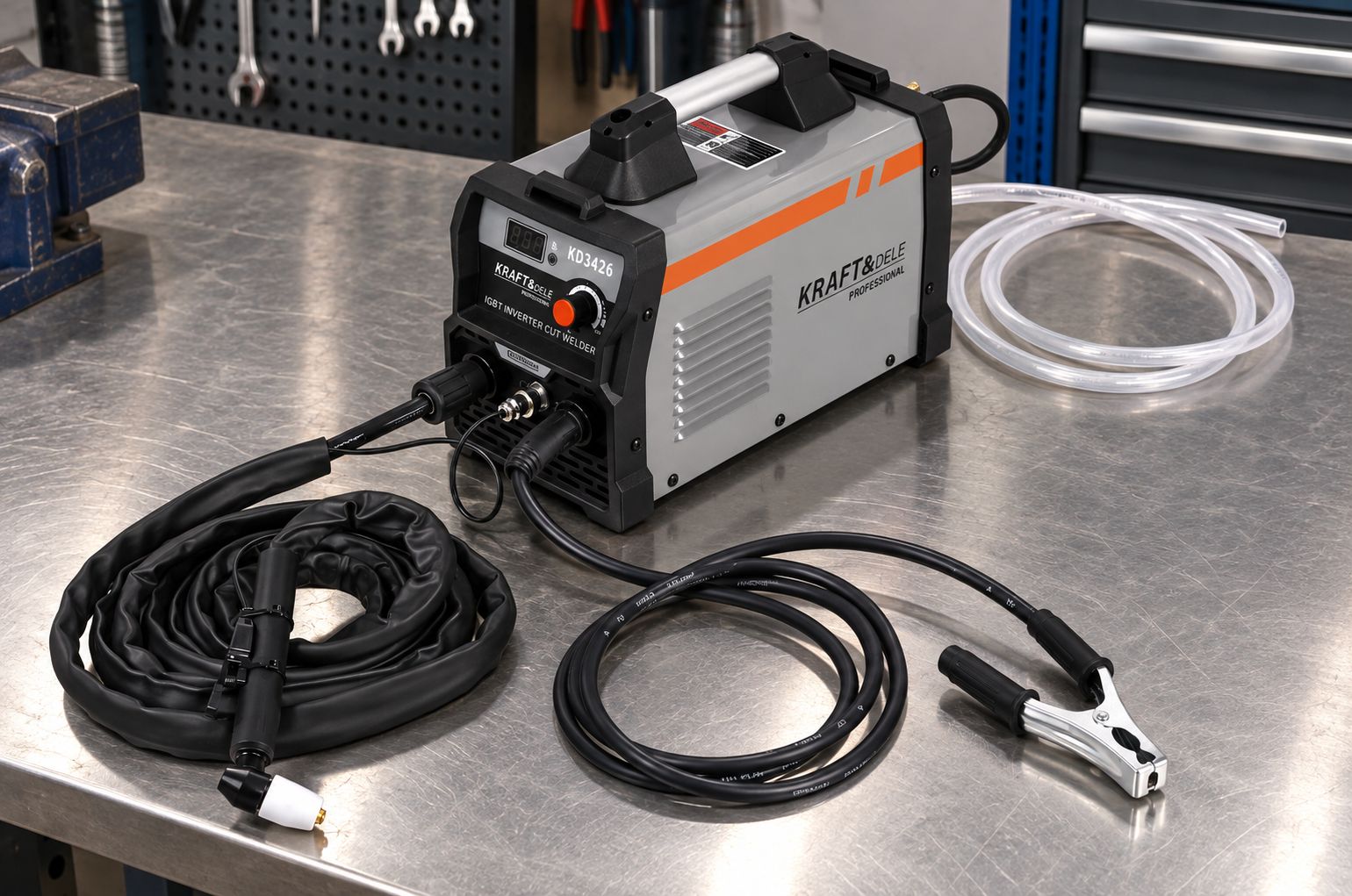

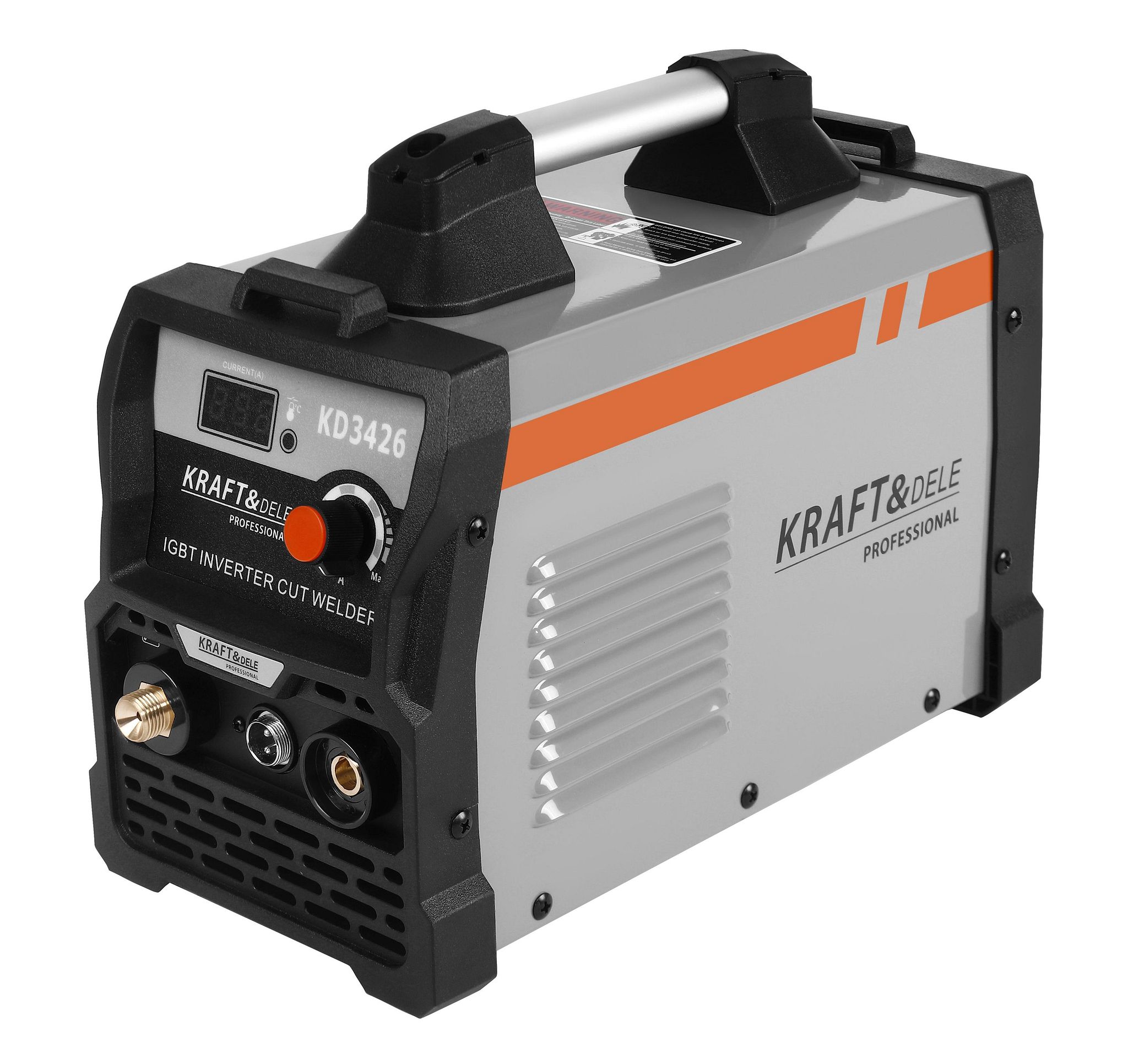

Plasma cutter 60 A 15 mm, Isokyrö

Very high-quality and efficient plasma cutter 60 A 15 mm!

A plasma cutter using IGBT technology, designed for fast and precise cutting of various metals. The use of an inverter-based pulsed power supply reduces the size and weight of the main transformer while increasing the device’s efficiency by 30%.

The model uses a high-frequency oscillating pilot arc system, which makes it easier to ignite and start the arc. The device has gas pre-start and delayed shut-off. Its high cutting speed and smoothness enable aesthetically pleasing edges without additional polishing. The cutter is suitable for cutting stainless steel, alloy steel, mild steel, copper and other non-ferrous metals.

PRODUCT FEATURES:

✅ IGBT technology ensures stable operation

✅ Designed for plasma cutting of metals

✅ Pilot arc system makes starting easier

✅ High-frequency oscillation HF

✅ Bypass and delayed gas shut-off function

✅ Fast and smooth cutting

✅ Ability to cut materials 1–15 mm thick

✅ Lightweight and compact inverter design

✅ Energy-saving and quiet operation

✅ Designed for stainless steel, alloy steel, mild steel, copper and other non-ferrous metals

TECHNICAL SPECIFICATIONS:

⚙️ Technology: IGBT transistor

⚙️ Power supply voltage: 220 V

⚙️ Input power: 13.8 kW

⚙️ No-load voltage: 254 V

⚙️ Output current: 60 A

⚙️ Output voltage: 96 V

⚙️ Duty cycle: 60% (60 A) / 100% (46 A)

⚙️ Pilot arc model: Oscillating HF

⚙️ Torch internal diameter: 0.8 mm

⚙️ Air compressor pressure: 4 kg

⚙️ Cutting thickness range: 1–15 mm

Fast delivery (Matkahuolto)
