Tos-Trencin SN 63 C, 2004, Kaarina

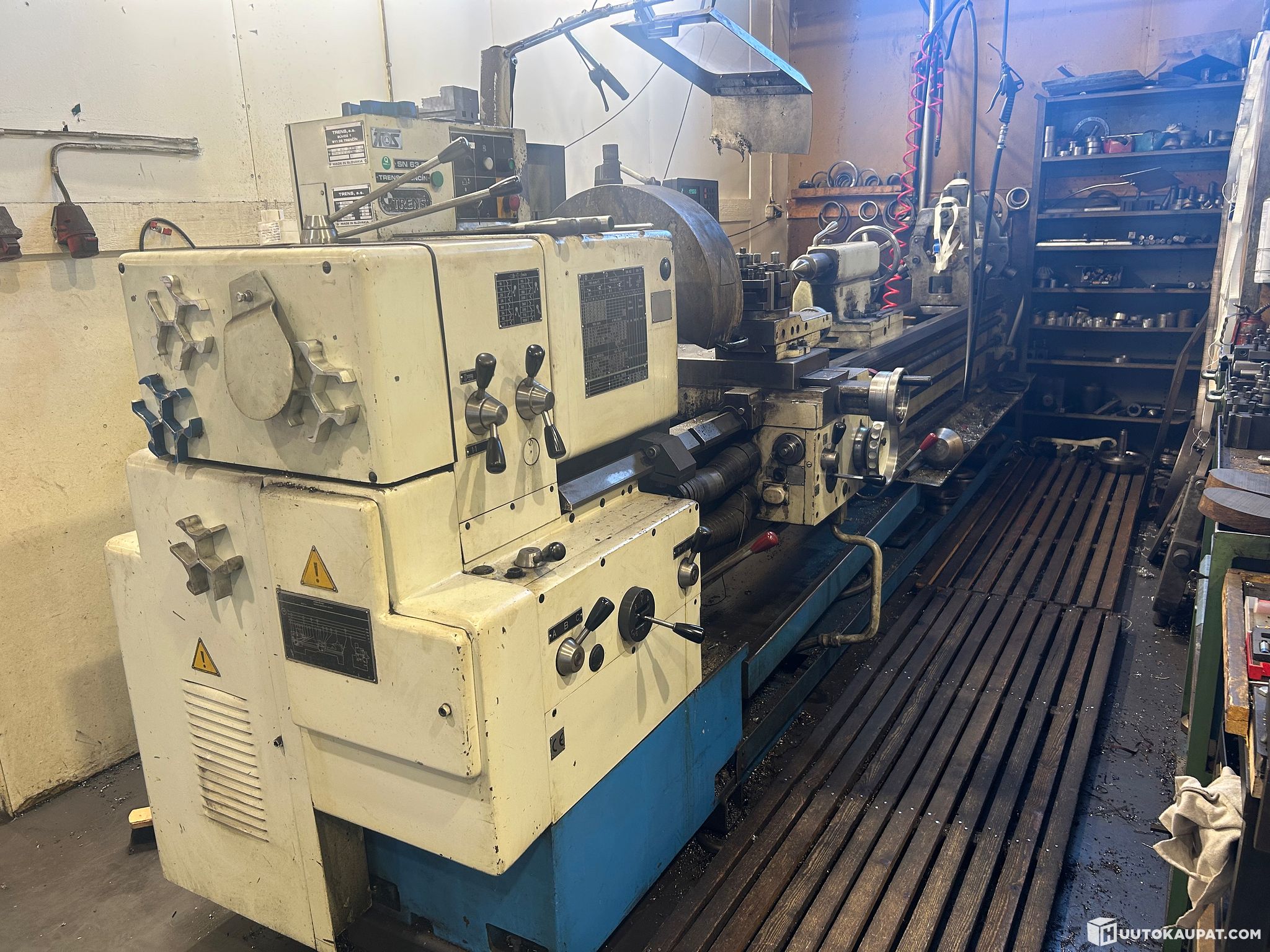

TOS SN 63 C – Heavy-duty industrial manual lathe

Top-class performance and accuracy for demanding machining!

A powerful and robust TOS SN 63 C manual lathe is being auctioned. This model is known for its exceptional rigidity and large swing, making it ideal for heavy industrial maintenance, large workpiece production and demanding teaching applications.

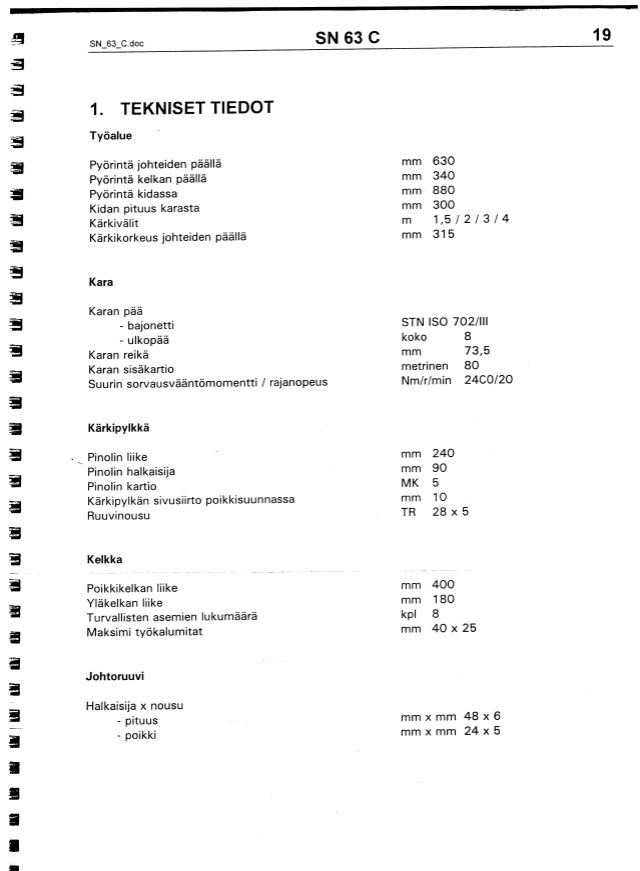

Main technical data (SN 63 C):

• Swing diameter:

  • Over guides: 630 mm




  • Over carriage: 340 mm




  • In gap: 880 mm (gap length 300 mm from spindle)




• Between centres: 3000 mm




• Spindle:

  • Spindle bore: 73.5 mm




  • Spindle nose: Size 8 (STN ISO 702/III bayonet)




  • Spindle speed range: 10–1000 rpm




  • Maximum torque: 2400 Nm




• Feeds and threads:

  • Number of feeds: 38




  • Threads: Metric (0.5–40 mm), imperial (1–80 tpi/1"), module and DP threads




• Tailstock: Morse taper 5 (MT 5), quill travel 240 mm




• Main motor power: 7.5 kW




• Weight: approx. 2960 kg (with 1500 mm between centres)




Equipment and features:

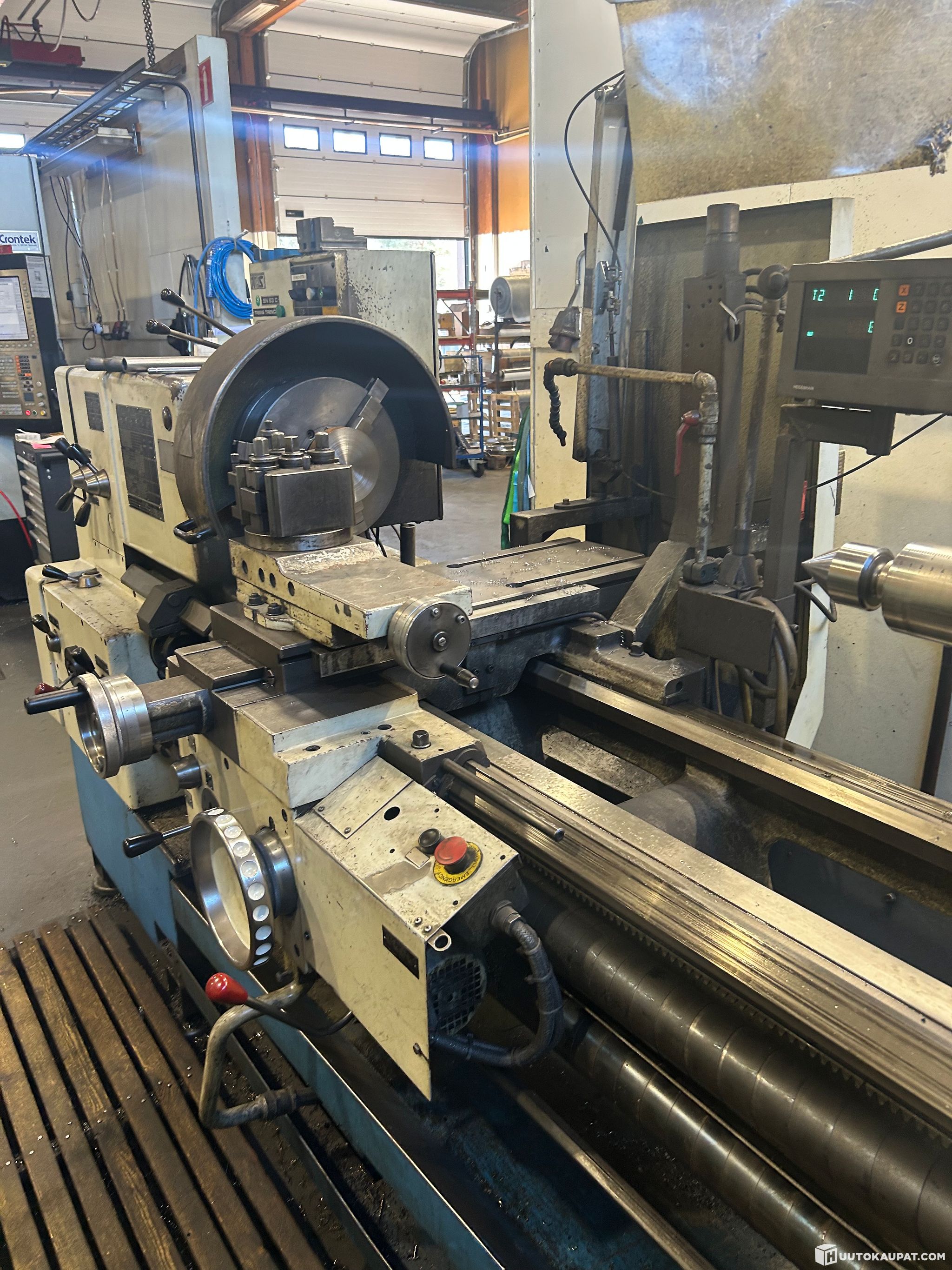

• Digital readout: Heidenhain DRO for X and Z axes.

• Tool holder: Multifix quick-change holder (max. tool size 40x25 mm).




• Included accessories: Drill chuck, centre and coolant unit.




• Construction: Bed and cast parts made of high-quality grey cast iron. Sliding surfaces on the carriage and tailstock are case-hardened (min. 400 HB) to ensure durability.




Condition and notes:

• Machining accuracy: Achievable accuracy IT7.




• Electrical connection: 400 V ±10%.




• The machine is fully operational and is sold directly from service.

• Capacity: The machine can carry workpieces of up to 1500 kg between centres.




• Noise level: Running noise is stable; A-weighted sound level approximately 80 dB(A).




Interested parties are encouraged to inspect the item on site. This lathe will provide value for decades to come!

Loading and lifting are included in the price!
