Slewing ring for heavy equipment — new, unused, Orimattila

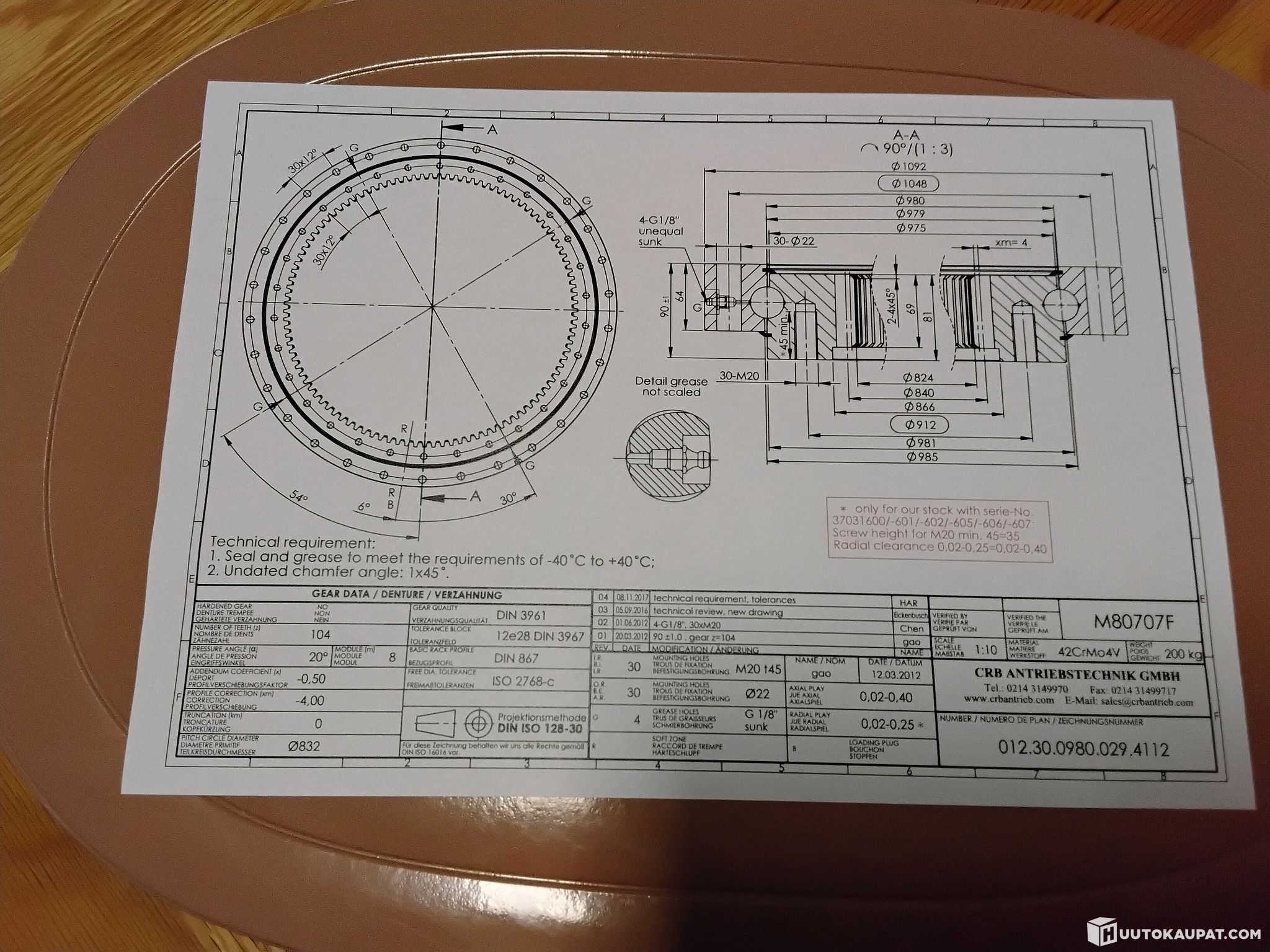

Stored in a warm warehouse, a slewing ring bearing. Made in Germany. Dimension drawing in the photos. Grease still in the housing.

42CrMo4V (material number 1.7225) is a very strong, hardenable alloy steel that belongs to the chromium‑molybdenum steels. It is one of the most commonly used structural steels in mechanical engineering, especially where good toughness, high fatigue strength and wear resistance are required. Rapid‑Protos +2'V' letter (42CrMo4V) generally indicates the material has been quenched and tempered to a specific strength level. Technical details: The product 012.30.0980.029.4112 is a slewing ring manufactured by the German company CRB Antriebstechnik GmbH. This particular model is typically a single-row ball slewing bearing with an external gear. Here are the main technical details based on the designation:

• Type: Single-row ball bearing.

• Gear: External gear.

• Dimensions:

  • Running track mean diameter (DL): 980 mm.

  • Total height: 80 mm.

• Material: Typically hardened steel (e.g. 42CrMo4 or equivalent alloy used for slewing rings).

• Applications: Suitable for light to medium loads, such as cranes and earthmoving machines.

• Estimated market price (March 2025) A new part in Finland typically falls in the following range:

  • Base price: €2,800–€4,200 (VAT 0%).

  • Delivery costs: Due to weight (approx. 110–130 kg) shipping from Germany or domestic stock typically adds about €150–€300.

  • Total: With tax (VAT 25.5%) the final amount is often €3,700–€5,500.

  • I added a little AI-generated information about the product.

  • Can be delivered within Finland if required.

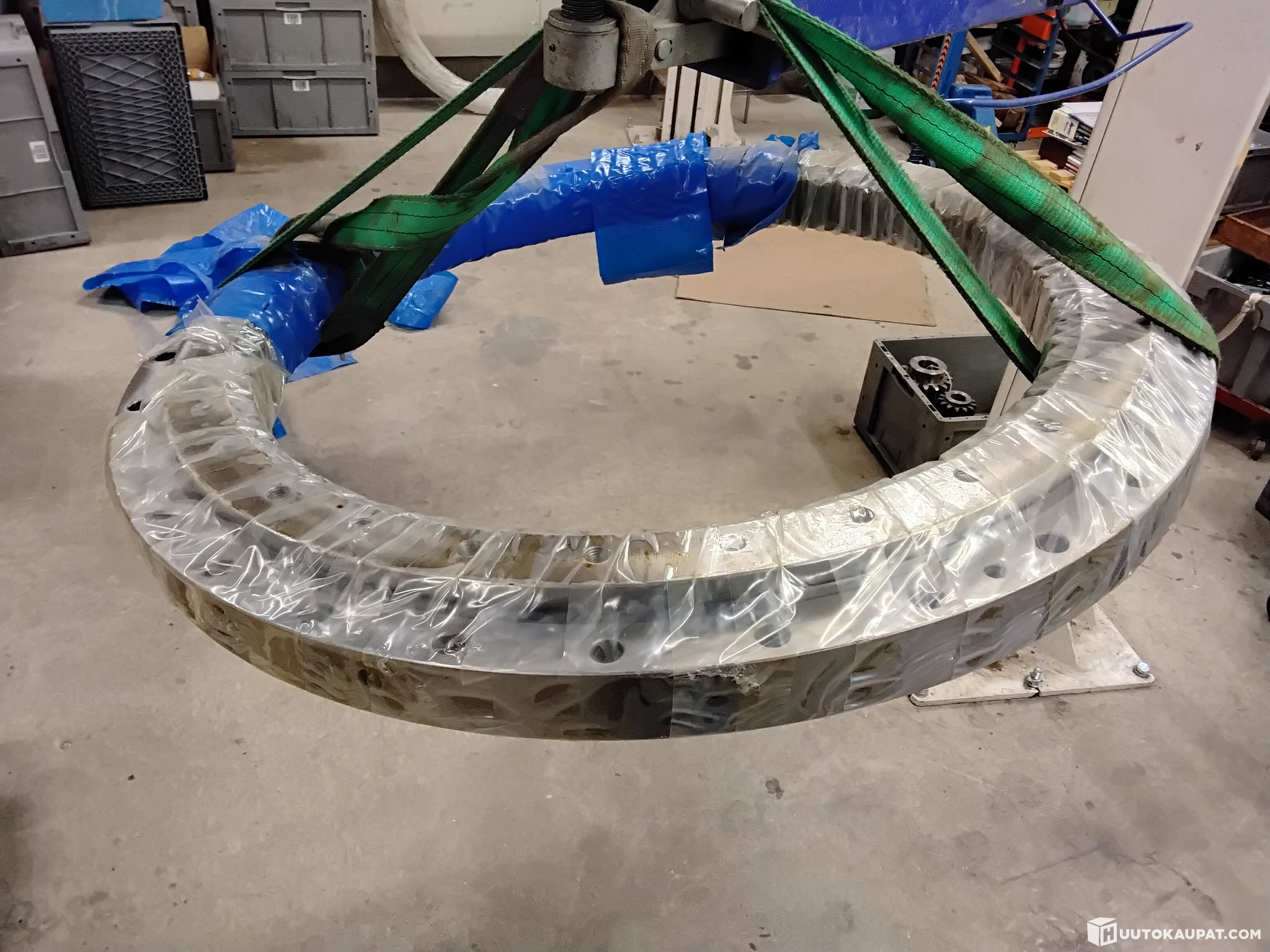

  • Run the product number through Google AI — this can, for example, find compatible excavators. JCB was one option. Today it was disassembled enough to reveal and photograph the nameplate. The product is a slewing bearing, meaning the inner and outer rings can rotate separately.

  • I will put two more slewing rings up for sale on Tuesday.
