Topping G5 Headphone Amplifier, Vantaa

Used but functional.

Portable performance
The Topping G5 is a USB DAC, Bluetooth receiver and powerful headphone amplifier in one.

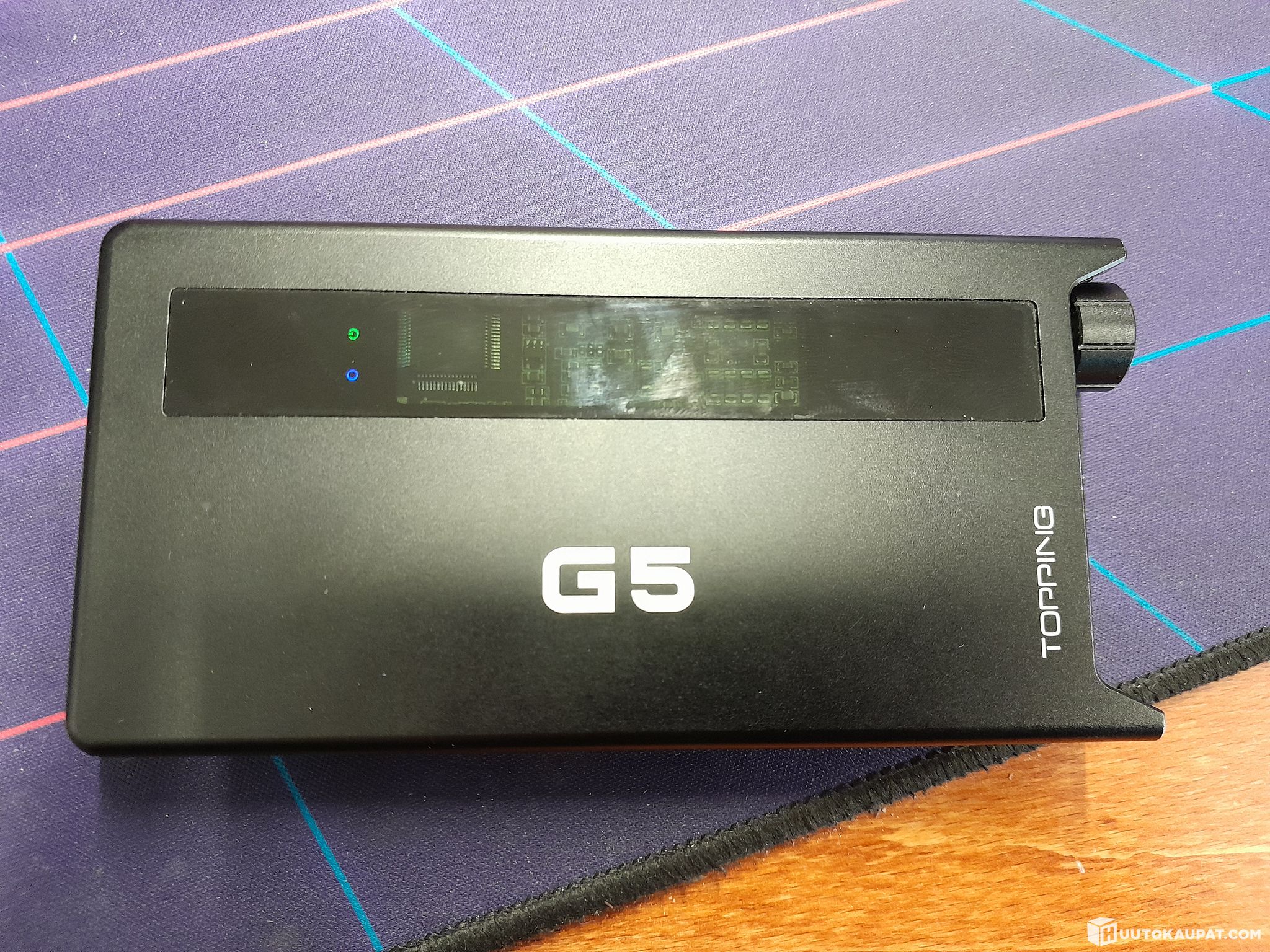

Compact, stylish aluminium case
The G5’s case is CNC-machined from aluminium, making it both light and durable. A faux‑leather base plate prevents the G5 from scratching devices stacked beneath it.

Easy setup
The Topping G5 is compatible with most modern operating systems: Windows 10 or later, macOS, Linux, iOS and Android are all supported. The device works plug‑and‑play without separate drivers. The G5 uses a second‑generation XMOS microcontroller and the USB input natively supports high sample rates such as PCM 32‑bit / 768 kHz and DSD512. Its built‑in 4000 mAh battery means the amplifier won’t drain your phone’s battery when used with a mobile device.

Bluetooth
The G5 is certified for Wireless Hi‑Res Audio and LDAC. It uses the QCC5125 chipset and supports LDAC/AAC/SBC/APTX/APTX LL/APTX HD and APTX Adaptive protocols.

Integrated NFCA headphone amplifier
The G5 uses a custom NFCA module optimised for portable use. NFCA provides high output power, low distortion and long battery life. It pairs well with both sensitive in‑ear monitors and power‑hungry, high‑impedance headphones.

Suitable for almost all headphones
The G5 has a 3‑step gain switch so it can be matched to both sensitive and insensitive headphones. Maximum output is 21 Vpp and the 175 mW output into 300 Ω easily drives high‑impedance headphones. An extremely low noise floor < 0.3 uVrms combined with < 0.1 Ω output impedance also makes it an excellent match for sensitive in‑ear monitors.

Durable design

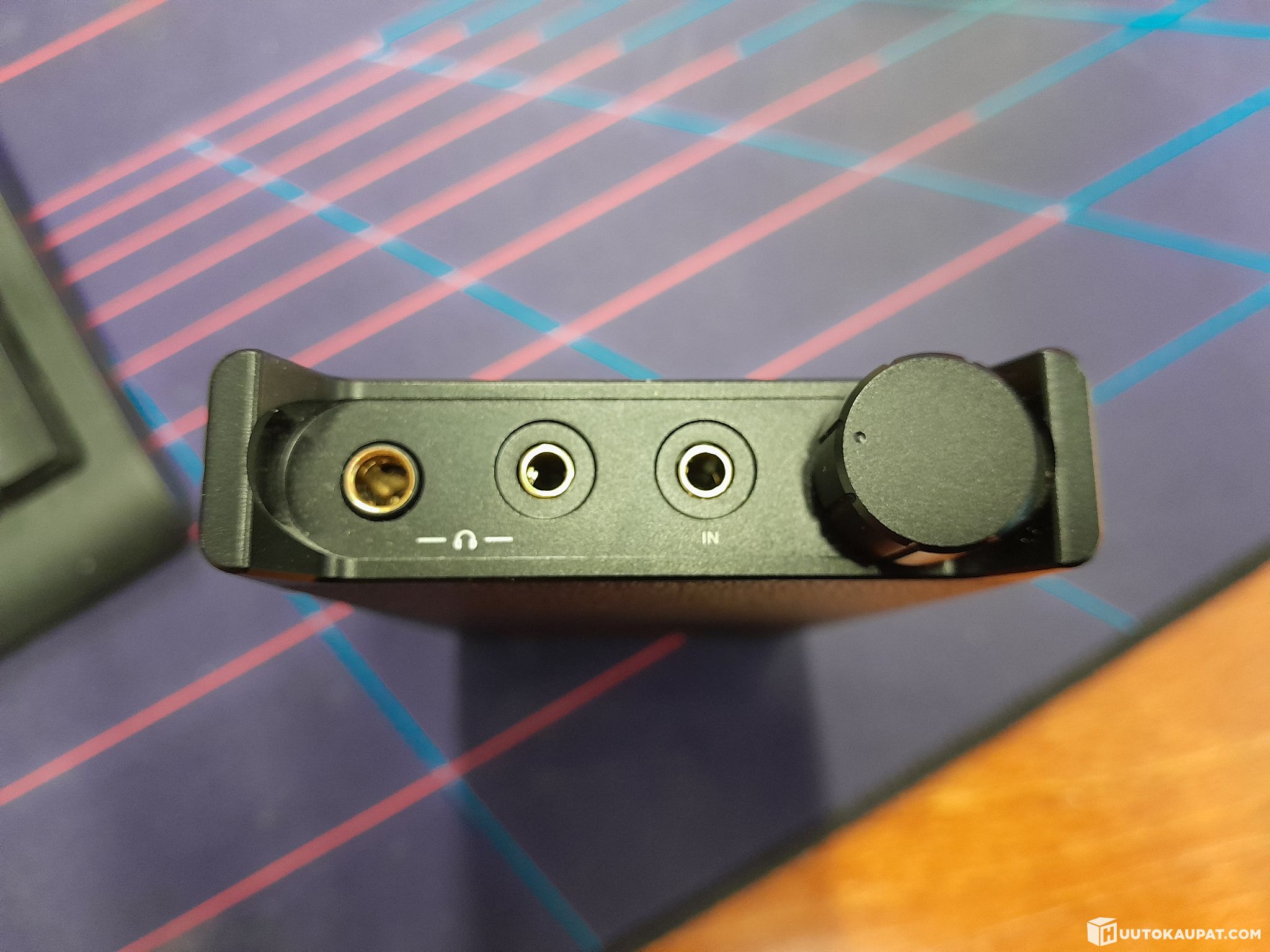

The front panel has protective guards to prevent accidental movement of the volume control and to keep the headphone jack safe from damage.

ES9068AS D/A chip
The built‑in ESS ES9068AS DAC is highly regarded and has been carefully tuned to perform well in a portable unit.

Long battery life
Thanks to careful optimisation the Topping G5 can reach up to 25 hours of battery life; in DAC mode the battery lasts about 9–10 hours between charges.

Technical specifications:

Signal formats
USB IN
PCM: 44.1 kHz – 768 kHz / 16 bit – 32 bit
DSD: (Native) DSD64 – DSD512
DSD: (DoP) DSD64 – DSD256
BT IN
AAC/SBC/APTX/APTX LL/APTX HD/APTX‑Adaptive/LDAC

G5 DAC specifications
THD+N @ 1 kHz (A‑weighted): <0.00009 %
THD @ 20 Hz – 20 kHz 90 kBw: <0.0002 %
Signal‑to‑noise ratio @ 1 kHz (A‑weighted): 124 dB
Dynamic range @ 1 kHz (A‑weighted): 124 dB
Frequency response: 20 Hz – 20 kHz (±0.1 dB)
Frequency response: 20 Hz – 40 kHz (±0.8 dB)
Output level: 2.1 Vrms @ 0 dBFS
Noise floor (A‑weighted): <1.3 uVrms
Crosstalk: -104 dB @ 1 kHz
Channel balance: 0.3 dB
Output impedance: 50 Ω

G5 headphone amplifier specifications (USB in @ 96 kHz)
THD+N @ 1 kHz (A‑weighted): <0.00010 % @ Output = 145 mW (32 Ω)
THD+N @ 1 kHz (A‑weighted): <0.00009 % @ Output = 15 mW (300 Ω)
THD @ 20 Hz – 20 kHz (90 kBW): <0.00080 % @ Output = 145 mW (32 Ω)
THD @ 20 Hz – 20 kHz (90 kBW): <0.00060 % @ Output = 15 mW (300 Ω)
Signal‑to‑noise ratio @ Max output 1 kHz (A‑weighted): 124 dB
Dynamic range @ 1 kHz (A‑weighted): 124 dB
Frequency response: 20 Hz – 20 kHz (±0.1 dB)
Frequency response: 20 Hz – 20 kHz (±0.4 dB)
Output level: 1.1 Vpp @ G=L
Output level: 6 Vpp @ G=M
Output level: 21 Vpp @ G=H
Noise floor (A‑weighted): <1.0 uVrms @ G=L
Noise floor (A‑weighted): <1.5 uVrms @ G=M
Noise floor (A‑weighted): <5.0 uVrms @ G=H
Channel crosstalk @ 1 kHz: -114 dB
Gain: -8 dB (Vrms/FS) G=L
Gain: 6.4 dB (Vrms/FS) G=M
Gain: 18.2 dB (Vrms/FS) G=H
Channel balance: 0.3 dB
Output impedance: <0.1 Ω
Output power: 1000 mW x 2 @ 16 Ω THD+N <0.1 %
Output power: 1200 mW x 2 @ 32 Ω THD+N <0.1 %
Output power: 720 mW x 2 @ 64 Ω THD+N <0.1 %
Output power: 175 mW x 2 @ 300 Ω THD+N <0.1 %
Output power: 90 mW x 2 @ 600 Ω THD+N <0.1 %
Load impedance: >8 Ω

G5 headphone amplifier specifications (LINE IN)
THD+N @ 1 kHz (A‑weighted): <0.00008 % @ Output = 185 mW (32 Ω)
THD+N @ 1 kHz (A‑weighted): <0.00007 % @ Output = 20 mW (300 Ω)
THD @ 20 Hz – 20 kHz (90 kBW): <0.0007 % @ Output = 185 mW (32 Ω)
THD @ 20 Hz – 20 kHz (90 kBW): <0.0005 % @ Output = 20 mW (300 Ω)
Signal‑to‑noise ratio @ Max output 1 kHz (A‑weighted): 135 dB
Signal‑to‑noise ratio @ 50 mV output 1 kHz (A‑weighted): 104 dB
Dynamic range @ 1 kHz (A‑weighted): 136 dB
Frequency response: 20 Hz – 40 kHz (±0.1 dB)
Output level: 2.8 Vpp @ G=L
Output level: 11 Vpp @ G=M
Output level: 21 Vpp @ G=H
Noise floor (A‑weighted): <0.7 uVrms @ G=L
Noise floor (A‑weighted): <0.7 uVrms @ G=M
Noise floor (A‑weighted): <1.5 uVrms @ G=H
True noise floor (A‑weighted): <0.3 uVrms @ G=L
True noise floor (A‑weighted): <0.3 uVrms @ G=M
True noise floor (A‑weighted): <0.9 uVrms @ G=H
Channel crosstalk @ 1 kHz: -84 dB
Input sensitivity: 5.8 Vrms @ G=L
Input sensitivity: 4 Vrms @ G=M
Input sensitivity: 1.9 Vrms @ G=H
Gain: -15 dB (Vrms/FS) G=L
Gain: -0.1 dB (Vrms/FS) G=M
Gain: 12 dB (Vrms/FS) G=H
Output impedance: <0.1 Ω
Output power: 1000 mW x 2 @ 16 Ω THD+N <0.1 %
Output power: 1200 mW x 2 @ 32 Ω THD+N <0.1 %
Output power: 720 mW x 2 @ 64 Ω THD+N <0.1 %
Output power: 175 mW x 2 @ 300 Ω THD+N <0.1 %
Output power: 90 mW x 2 @ 600 Ω THD+N <0.1 %
Load impedance: >8 Ω

Dimensions
Width: 7 cm
Height: 1.8 cm
Depth: 14 cm
Weight: 265 g
