Other make Lonking SPN1530, 2026, Hollola

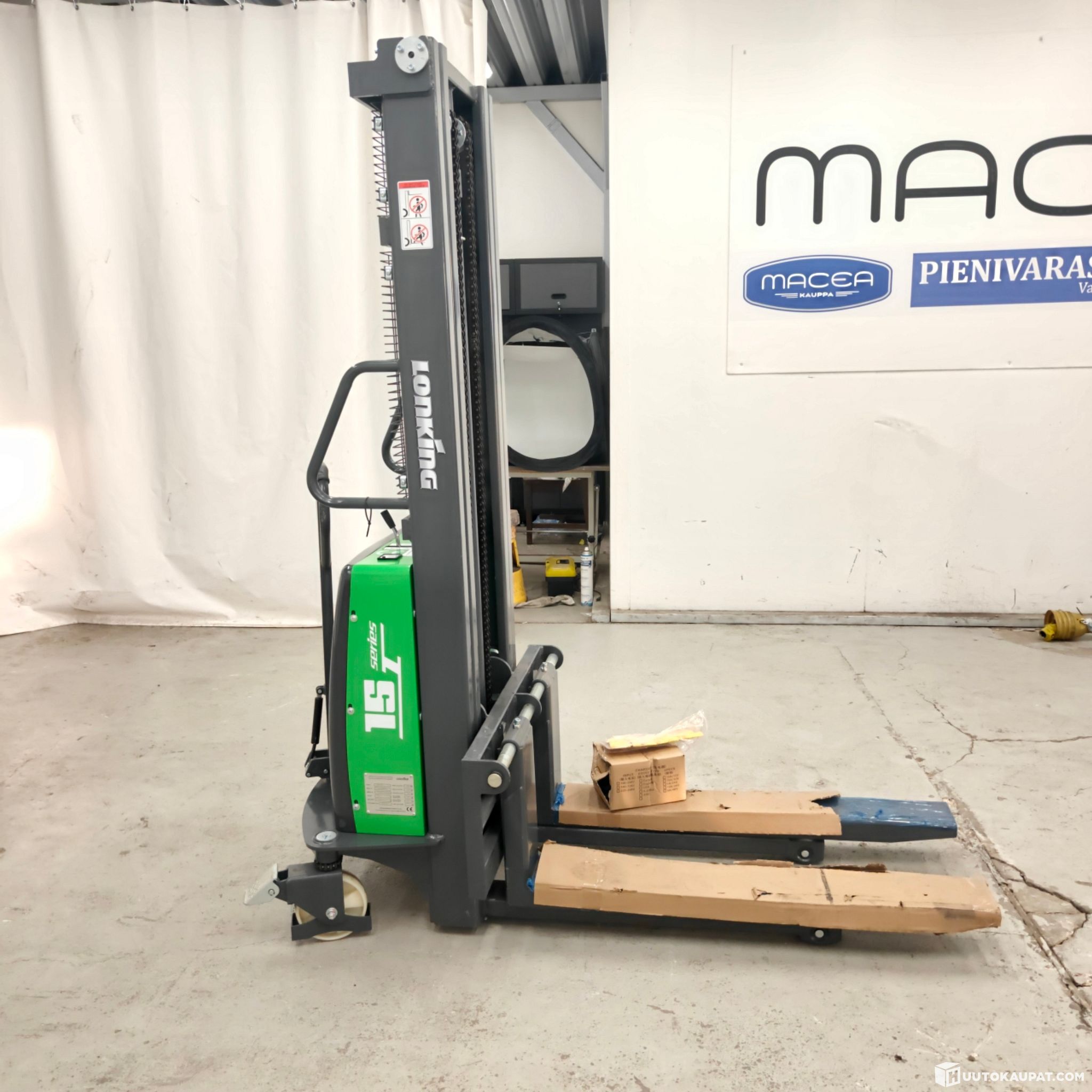

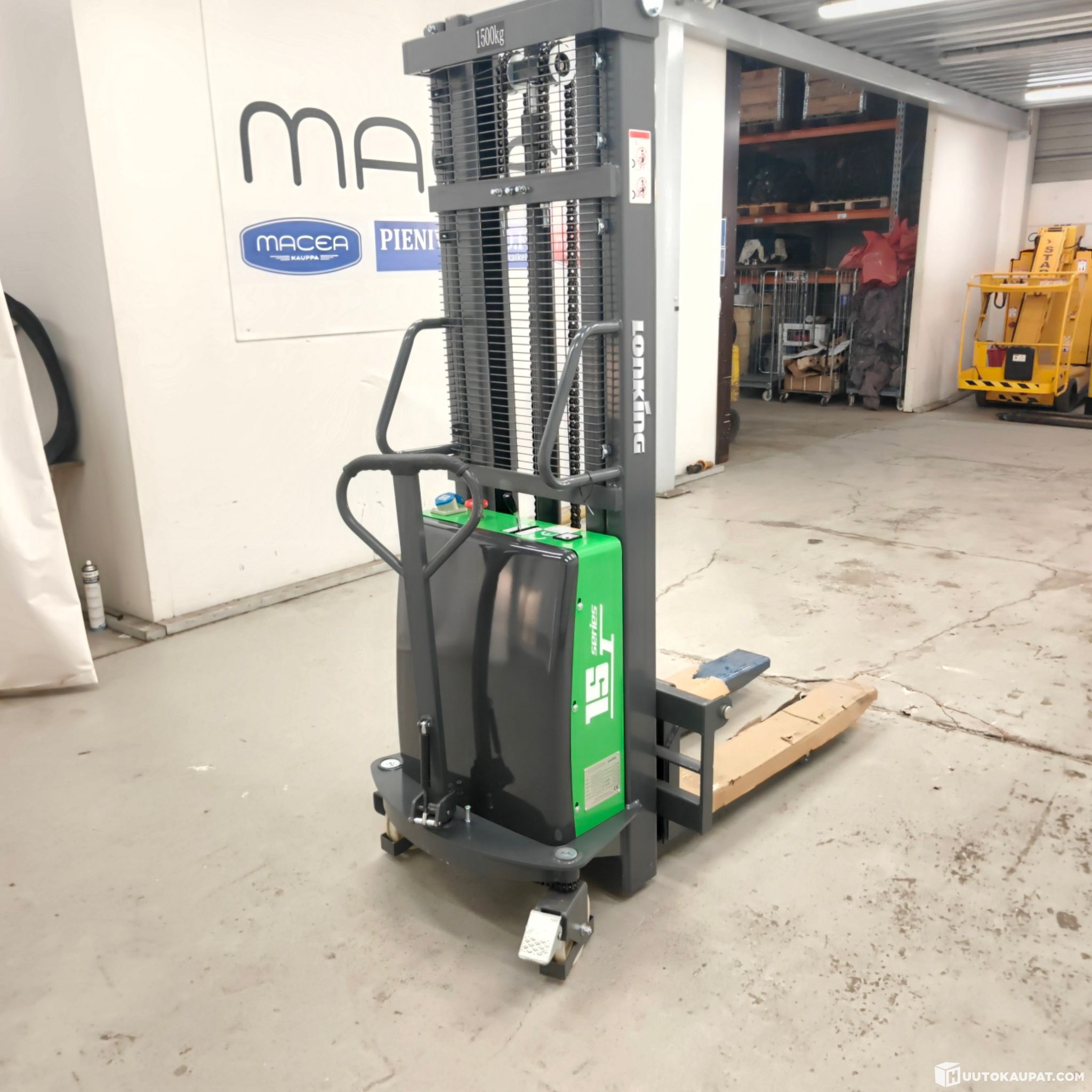

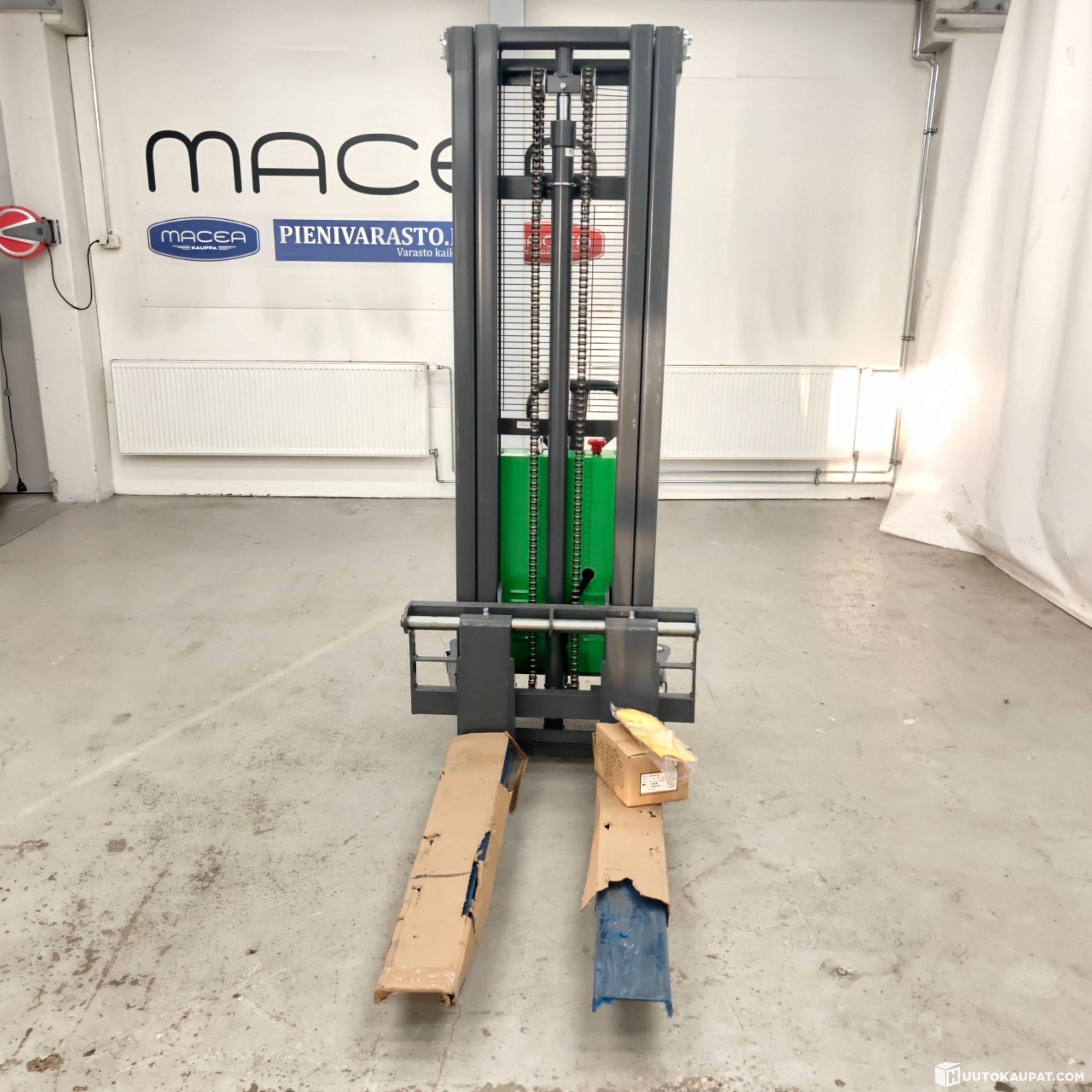

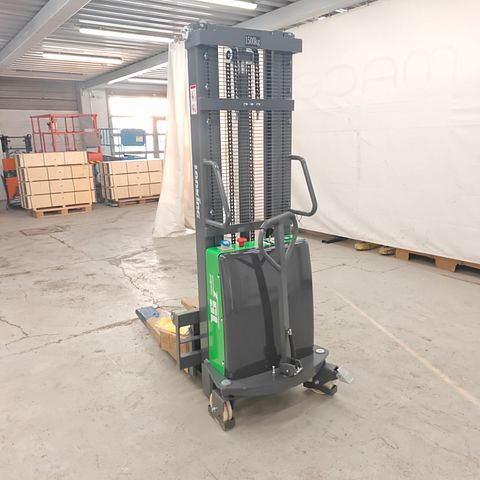

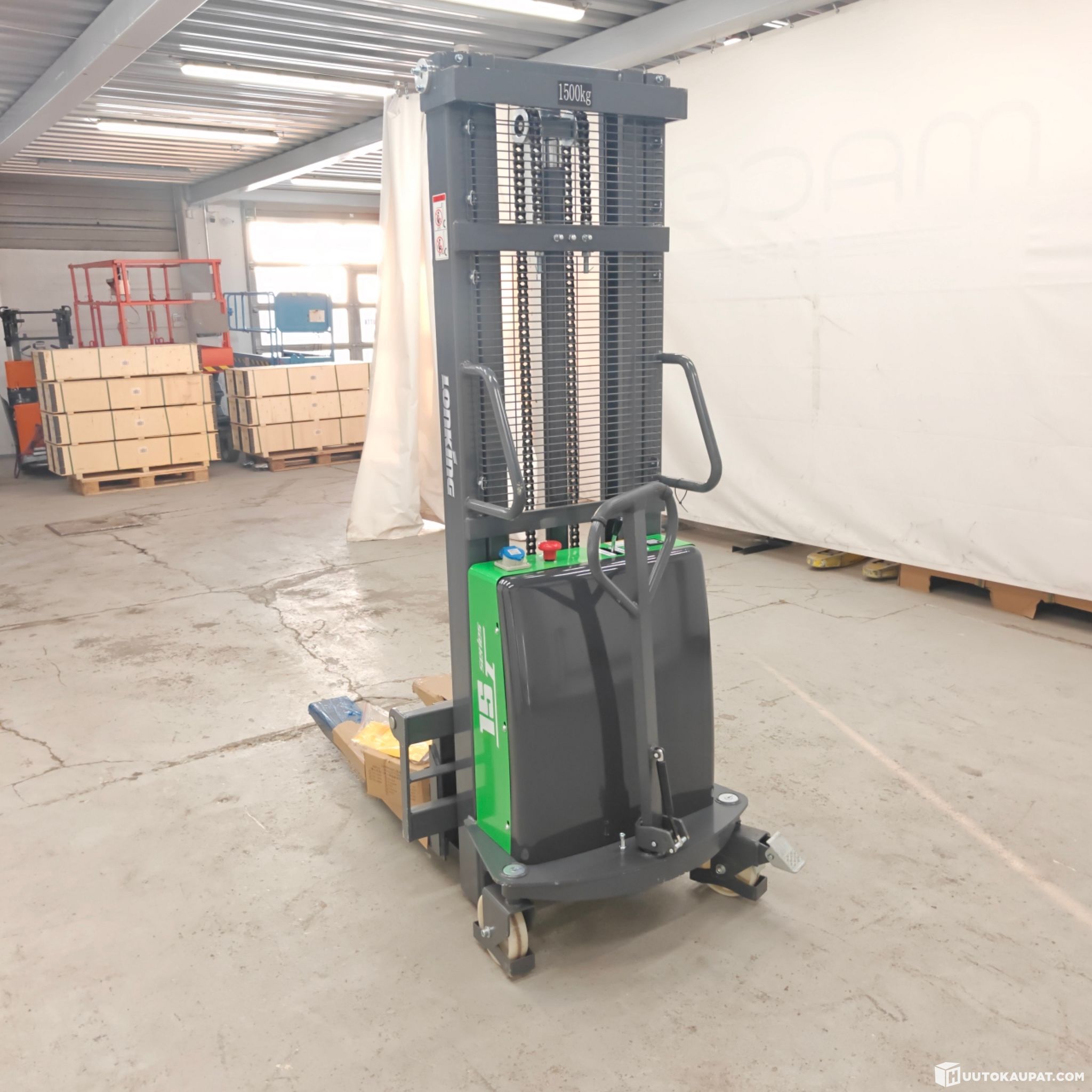

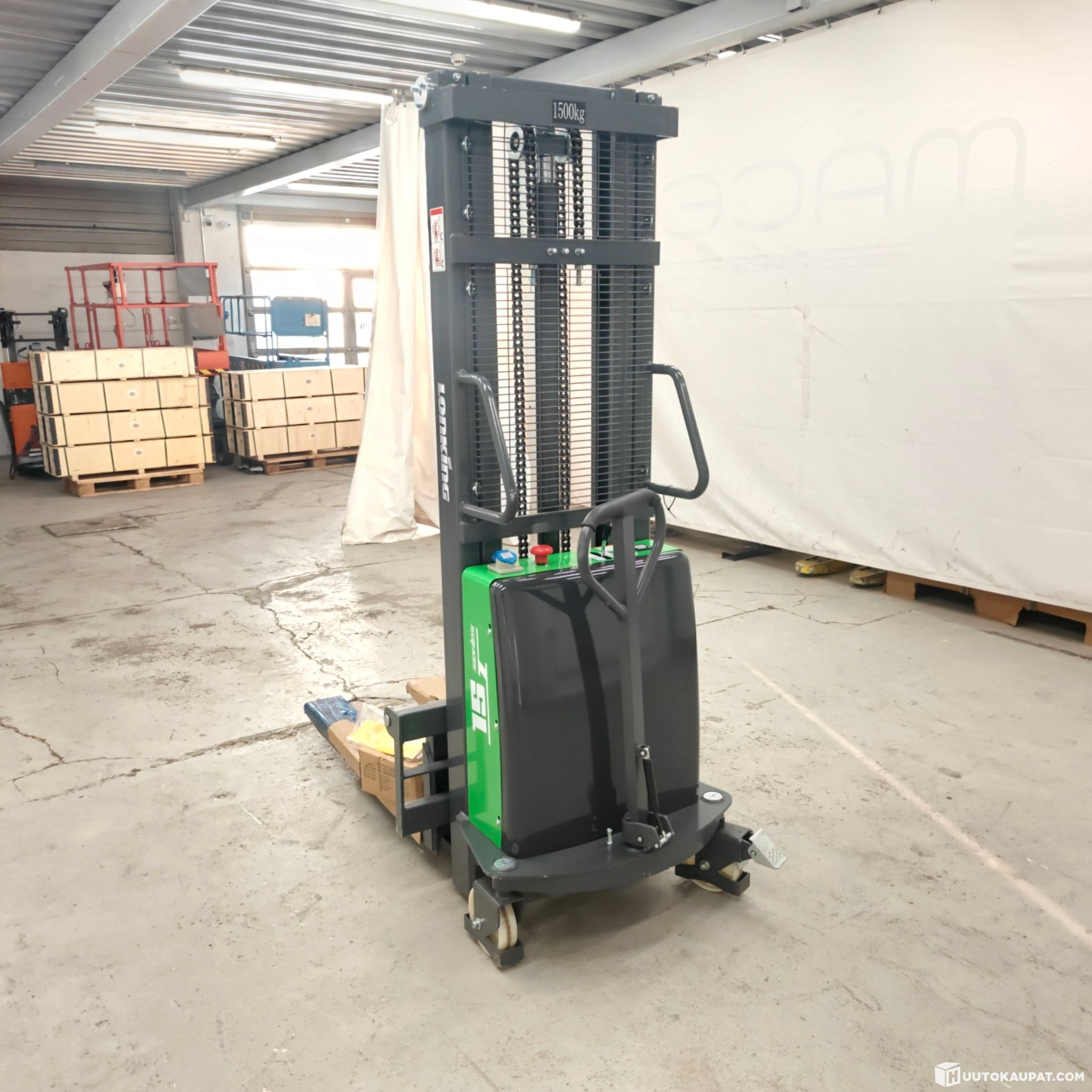

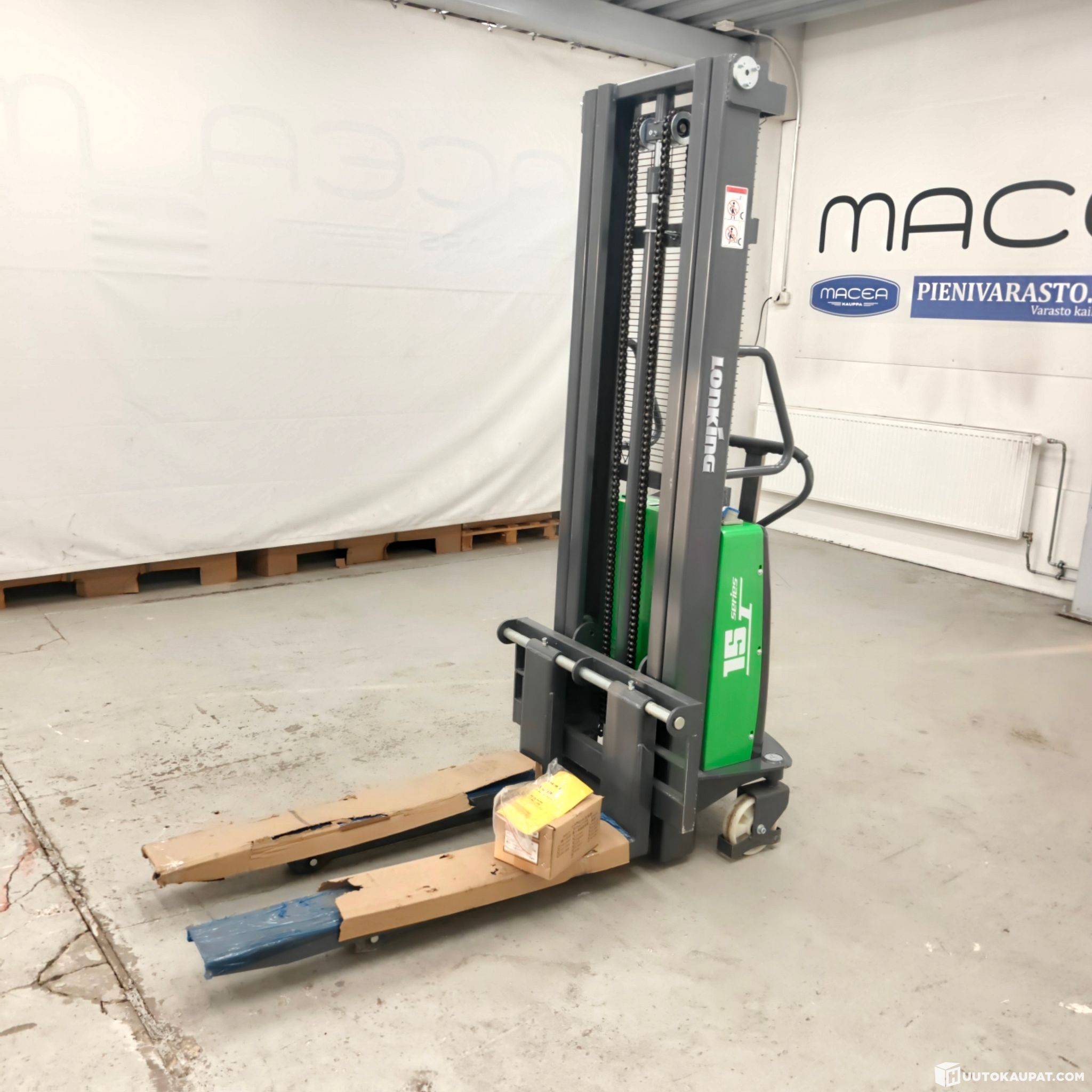

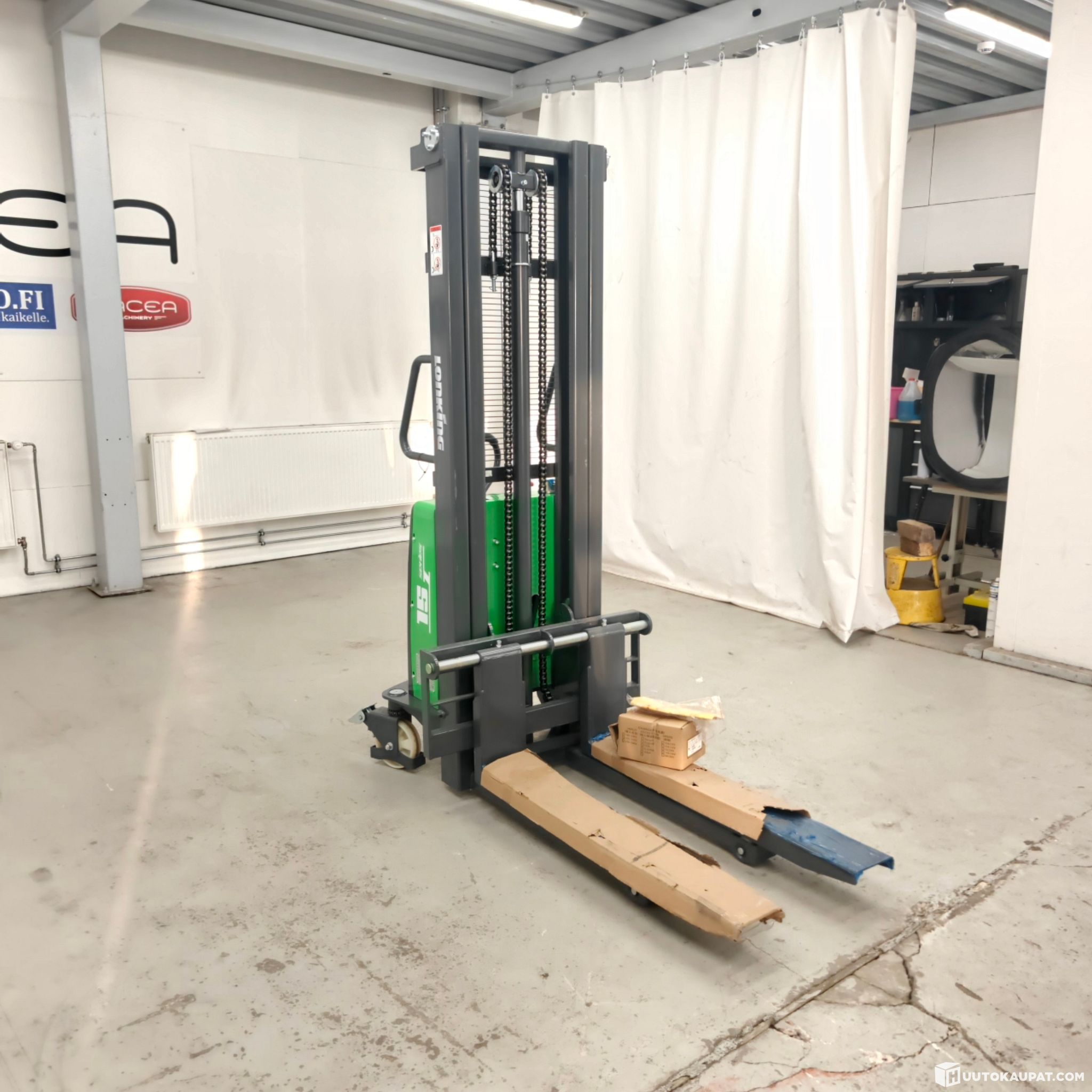

Manually manoeuvrable pedestrian stacker with electric lifting. This stacker is an easy-to-use, energy-efficient and environmentally friendly solution. It is suitable for factories, warehouses and logistics centres where goods and pallets need to be moved and individual pallets stacked. Its compact design, quiet operation and small turning radius enable smooth operation in narrow aisles, at different levels and in high warehouse racking.

The smooth-acting hydraulic unit provides strong lifting power; the lifting parameters can be adjusted as required. All models are equipped with a Tianneng battery and charger.

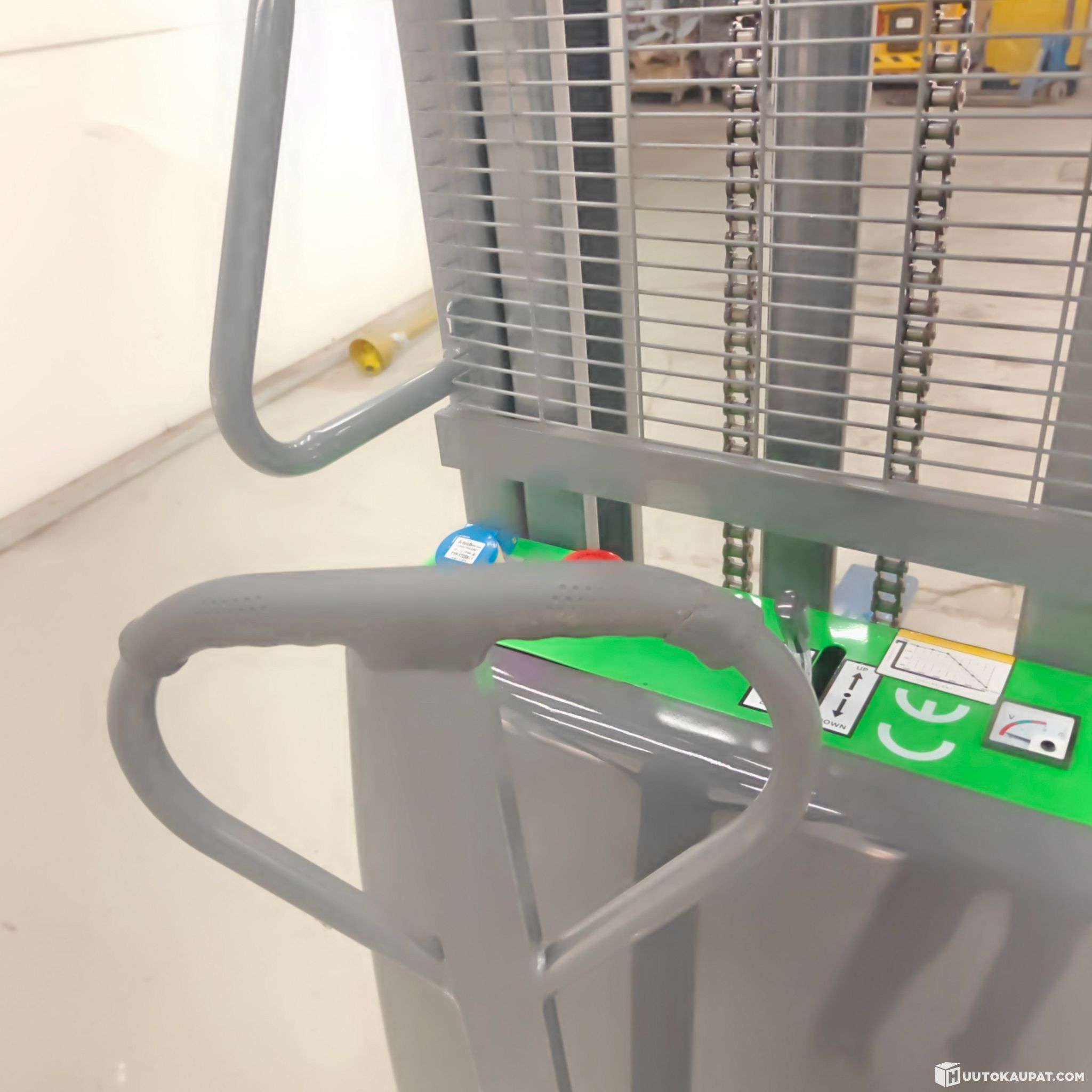

Movement of the steering handle is transmitted via the steering mechanism to the guide wheels on both sides, ensuring light and precise steering. The handle can be turned directly to the desired angle and is fitted with a pneumatic spring. The foot guard on the steering wheel prevents crush injuries, while the brake acts directly on the steering wheel for rapid stopping.

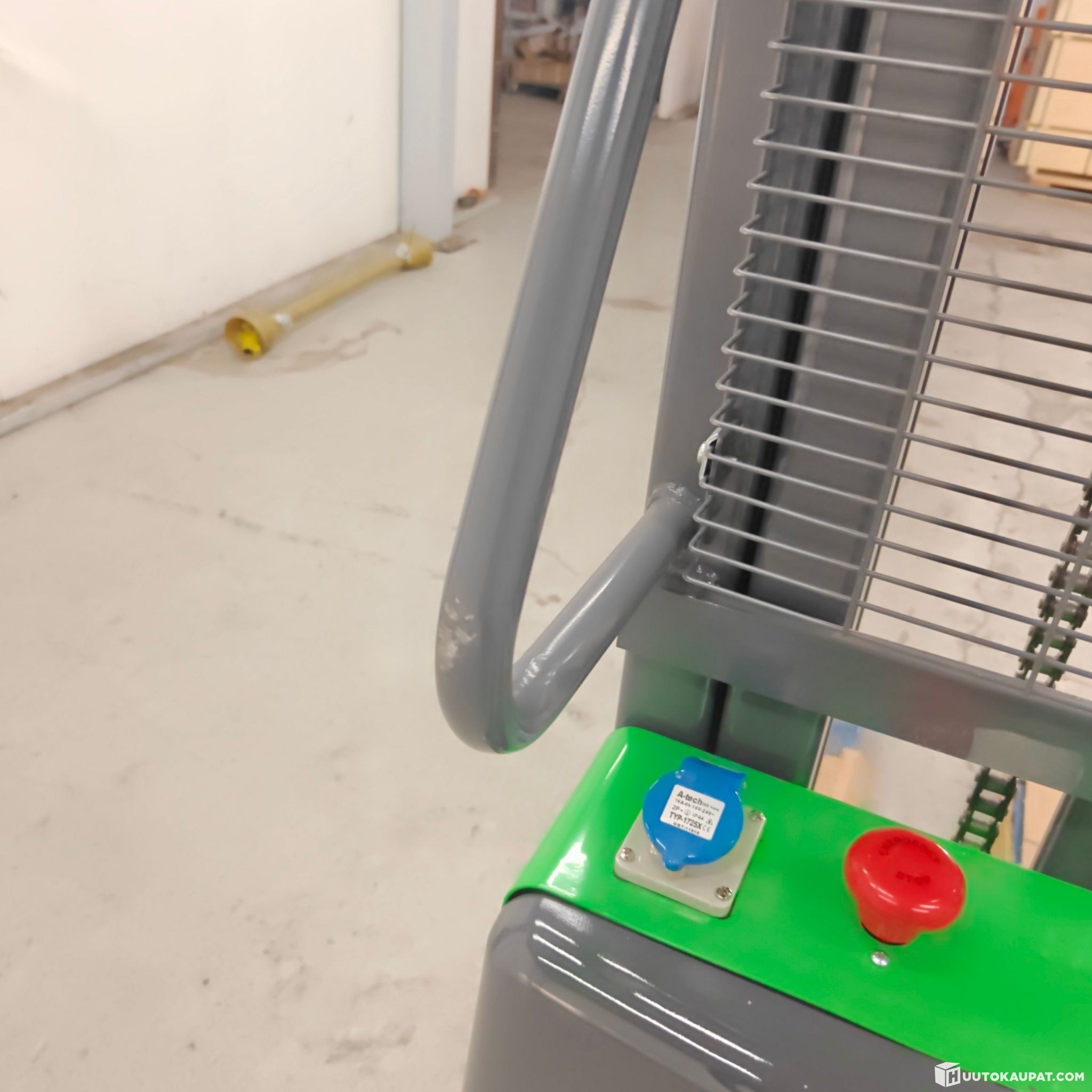

The standard emergency stop cuts the power in hazardous situations. The adjustment bolt at the rear allows the forks to be straightened after wear.

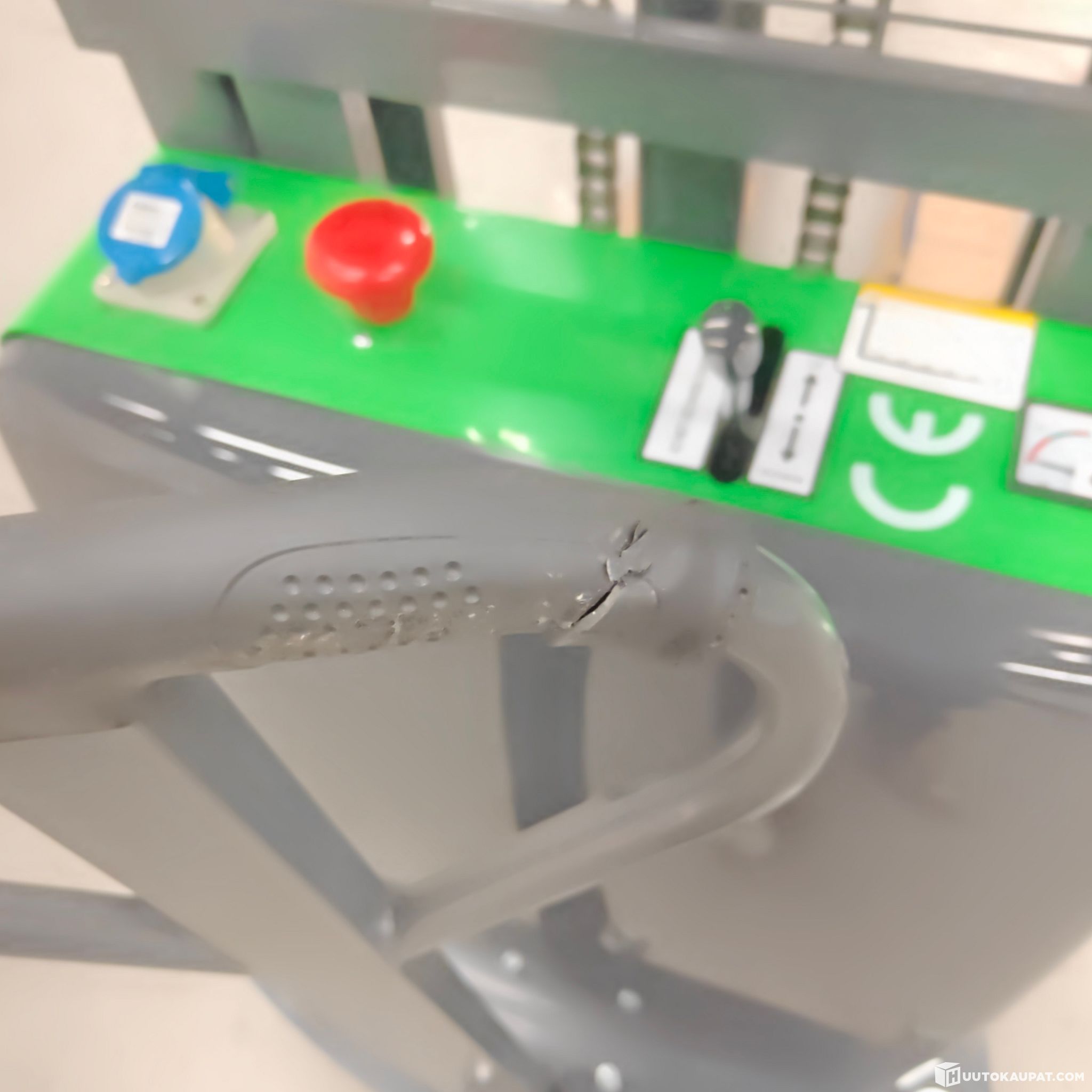

The machine has minor cosmetic transport damage!

Product specifications:

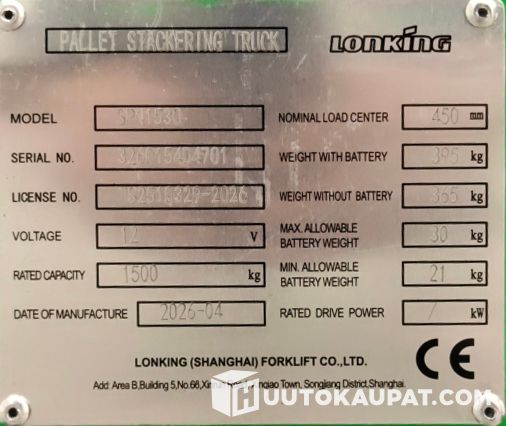

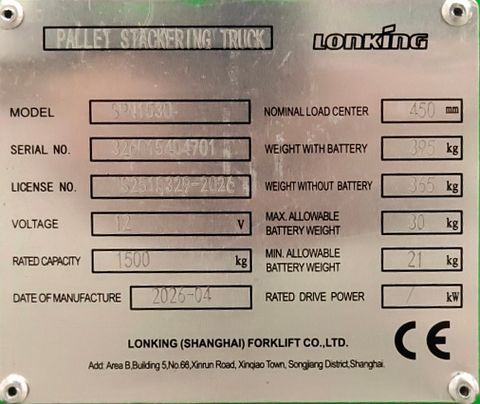

• Model: SPN1530

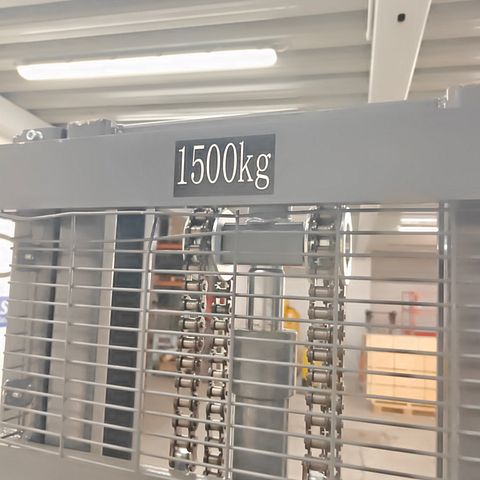

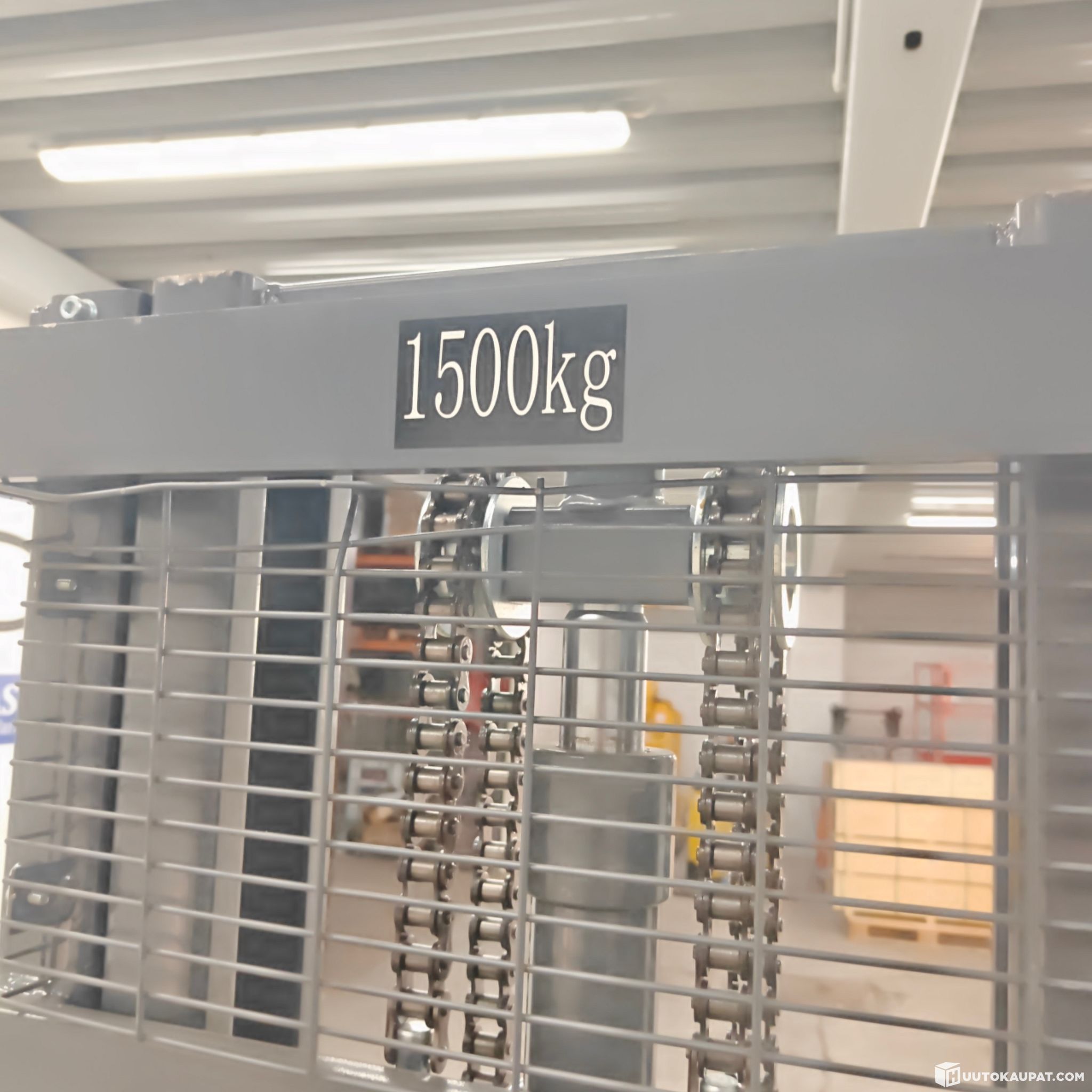

• Load capacity: 1,500 kg

• Lift height: 3,000 mm

• Load centre: 450 mm

• Fork length: 900 mm

• Individual fork width: 150 mm

• Minimum fork height: 85 mm

• Mast height lowered: 2,080 mm

• Aisle width for 1,000 × 1,200 mm pallets crosswise: 2,250 mm

• Aisle width for 800 × 1,200 mm pallets lengthwise: 2,040 mm

• Turning radius: 1,350 mm

• Lifting speed (mm/s):

  • unladen: 130

  • laden: 80

• Lowering speed (mm/s):

  • unladen: 0–190

  • laden: 0–420

• Battery: PRO-SPEC DCB1275-12 ET 12 V 150 Ah (20 h)/125 Ah (5 h)/25 A (290 min)/75 A (70 min)

• Lift motor: DC, 12 V, 1,500 W

• Weight: 395 kg
