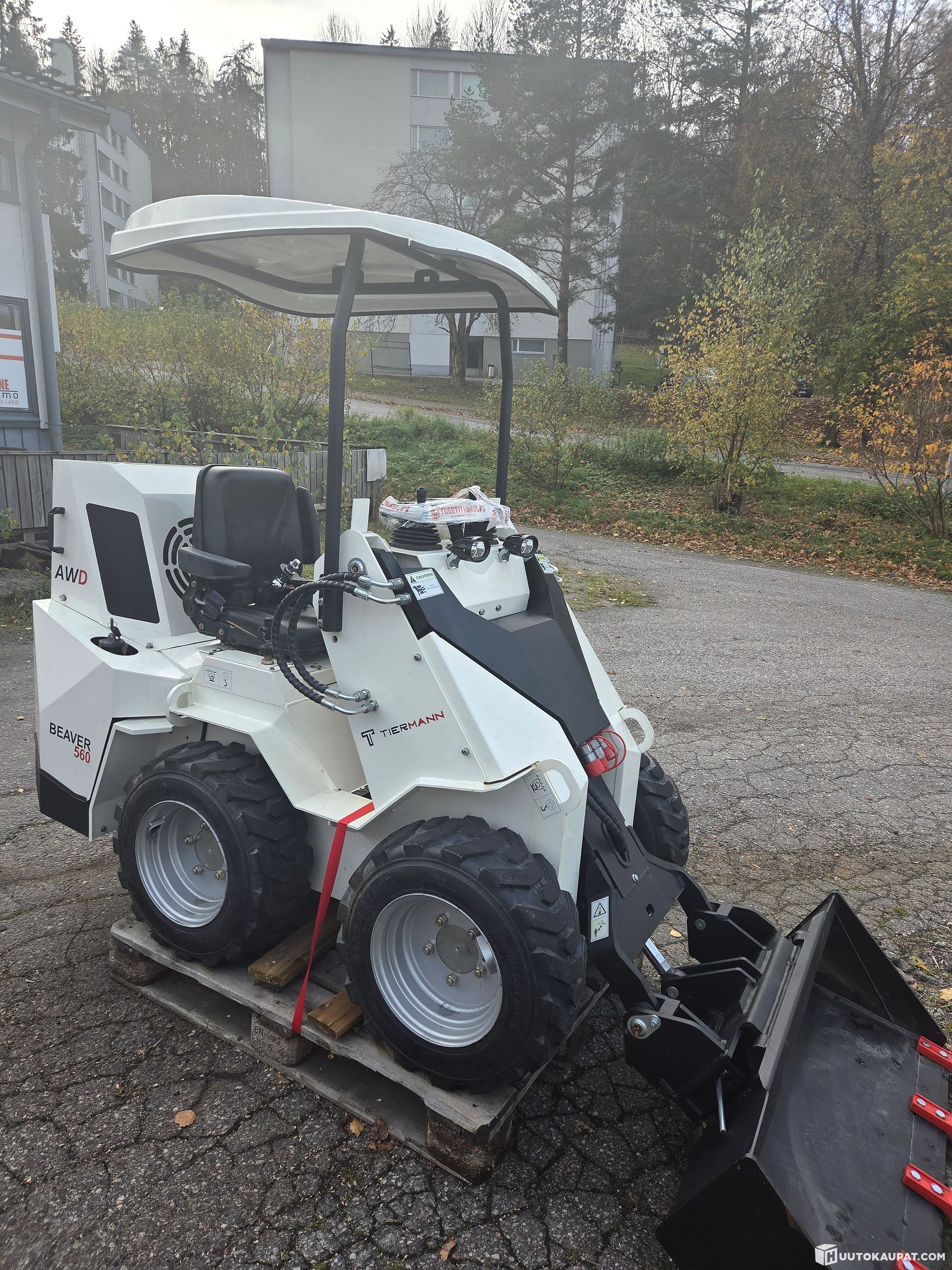

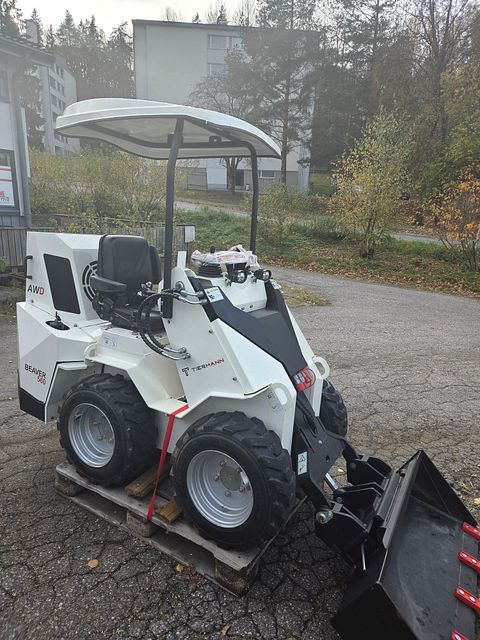

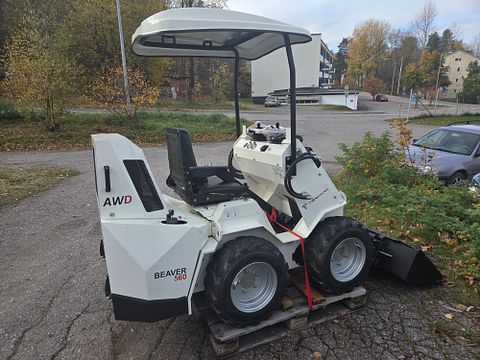

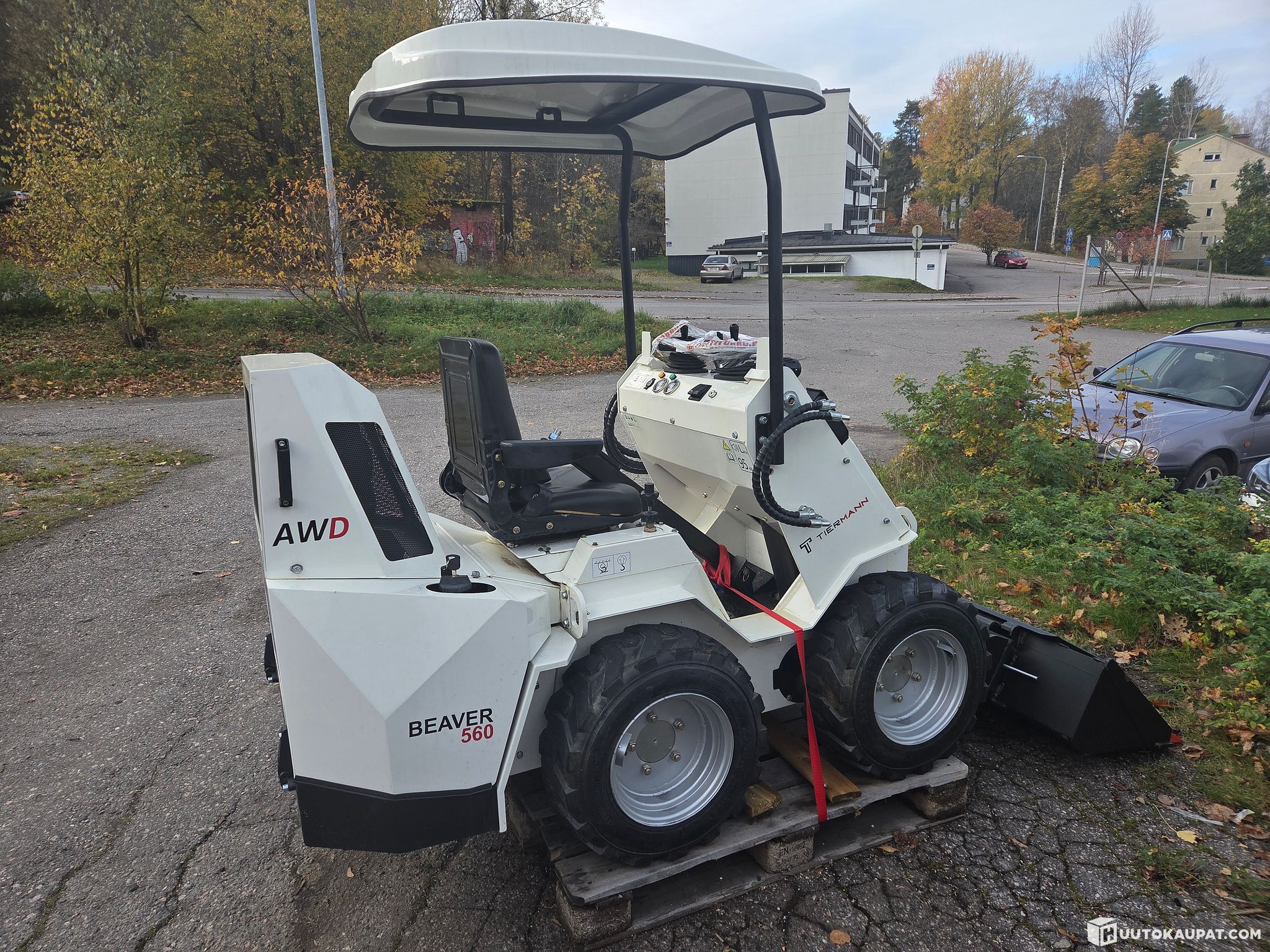

Tiermann Beaver 560 skid-steer compact loader with Avant-compatible attachment
Four-wheel-drive 23 hp skid-steer compact loader with an 800 kg lifting capacity and Avant-compatible quick coupler. Standard bucket included.
Warranty-serviced unit. Operating hours: 2 h!
The loader had a leak at the fuel gauge mounting flange.
This loader comes with a 1-year warranty!
The Tiermann Beaver 560 is a powerful skid-steer compact loader designed for demanding use, offering excellent performance on construction sites, farms and in grounds maintenance.
Its high lifting capacity, Avant-compatible quick coupler and 43.2 l/min auxiliary hydraulics ensure versatile operation.
Technical specifications:
Engine: RATO petrol engine
Maximum power: 23 hp (3,600 rpm)
Cooling: Air-cooled
Transmission: 4 × 4 hydraulic four-wheel drive
Fuel tank: 23 l
Travel speed: 4.3 km/h
Maximum load, boom lowered: 800 kg
Maximum load, boom raised: 350 kg
Auxiliary hydraulic flow: 43.2 l/min
Operating weight: 900 kg
Standard equipment and additional features:
Avant-compatible quick coupler
Hydraulic oil cooler
Safety bar
Front LED work lights
Beacon light
Electric start
Auxiliary hydraulics
Couplings: flat-face, 1/2" drip-free quick couplings
CE approved
Additional equipment available separately from us (ask for more information):
Hydraulic earth auger
Hydraulic digging attachment
Hydraulic universal grapple
Snow blower
Hydraulically swivelling snow plough/dozer blade
Forklift forks
Hydraulic collection broom
Collection from Lahti or home delivery. Ask our customer service for more information about collection.
We store the auctioned item for 7 days after payment or as agreed.
The loader had a leak at the fuel gauge mounting flange. During servicing, it was found that the mounting flange had been properly welded to the tank from the inside. The leak was located at the sealing surface between the gauge flange and the tank mounting flange. The original gasket had been flattened and did not protrude sufficiently from its groove to compress reliably between the flanges. The gasket thickness measured approximately 3.0–3.2 mm. There were deep grooves in the sealing surface of the gauge’s mating flange. The grooves could form leak paths and prevented a continuous sealing surface from forming.
The gauge flange sealing surface was ground flat and the deep grooves were removed. A suitably sized sealing ring was made from 4 mm-thick fuel-resistant rubber to replace the gasket. The 4 mm thickness was chosen so that the seal would protrude sufficiently from its groove and achieve clearly better compression between the flanges than the original 3.0–3.2 mm gasket.
The flange was reassembled with the sealing surfaces cleaned. The repair did not require any additional welding of the tank.
