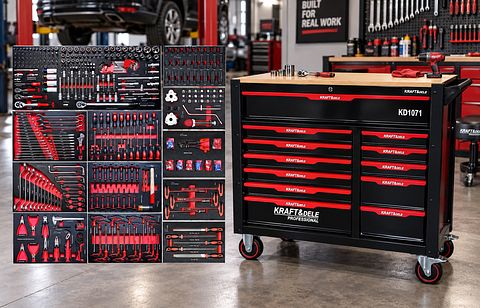

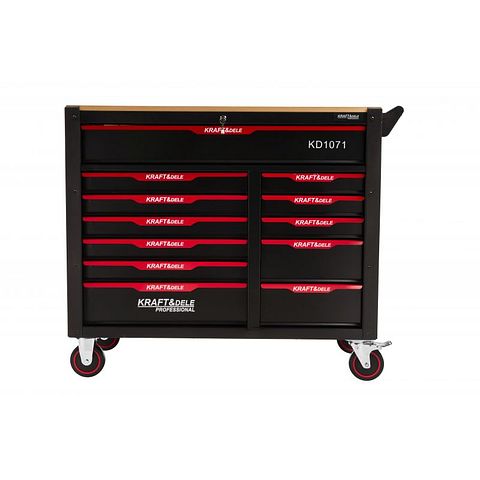

Tool trolley with tools, 541 pieces, for professional use, Isokyrö

Tool trolley with tools for professional use

Number of drawers: 12

Dimensions: 1120 x 480 x 995 mm

Weight: approx. 124 kg

PRODUCT DESCRIPTION AND FEATURES

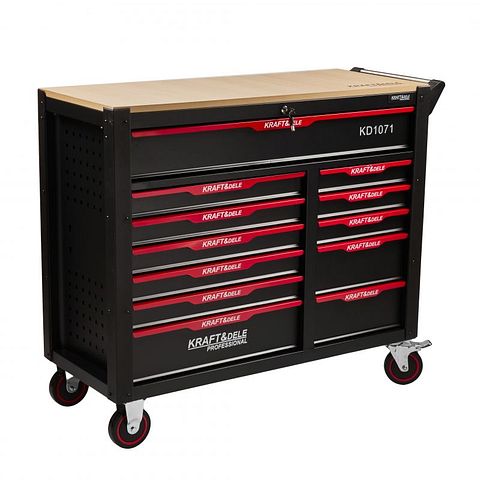

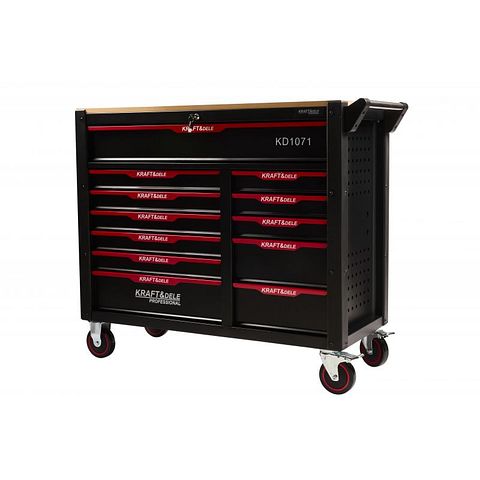

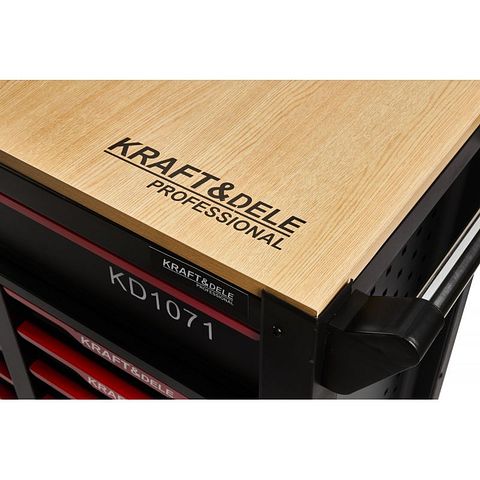

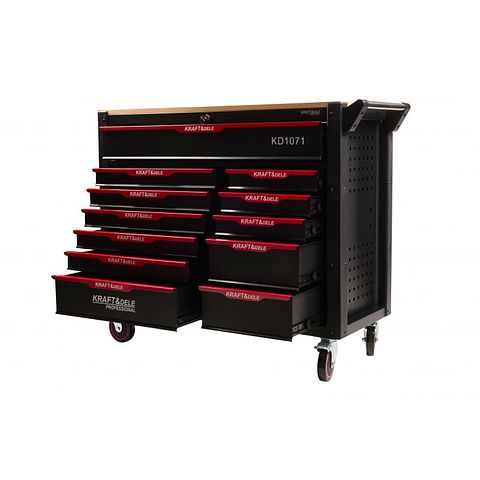

The Kraft&Dele tool cabinet KD1071 is an indispensable product in every car repair shop and workshop.
The cabinet is equipped with a tool set comprising 541 pieces.

The cabinet is equipped with a rubber bumper to prevent accidental damage to the vehicle body during work.

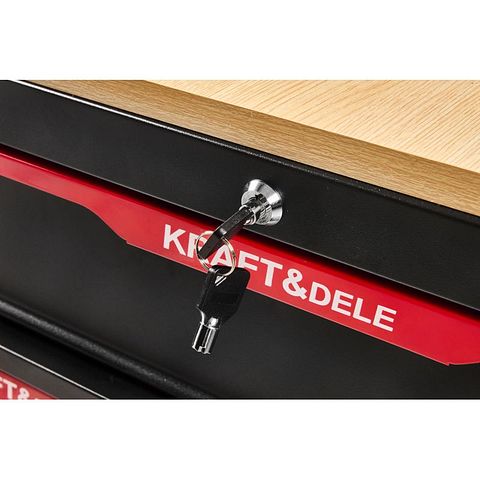

The drawer locking system allows only one drawer to be opened at a time.

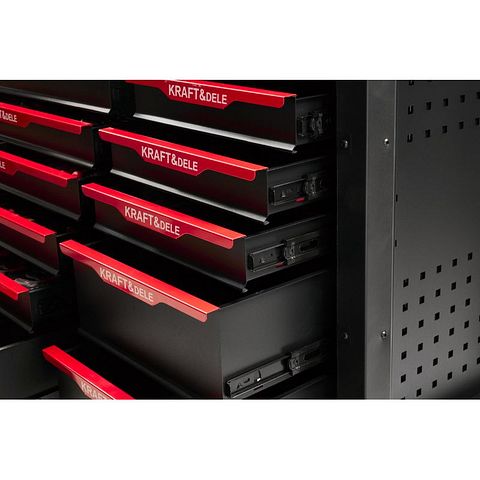

Each drawer is mounted on ball-bearing slides, making it smooth, quiet and durable to open.

All keys are made of CrV steel (chrome vanadium).

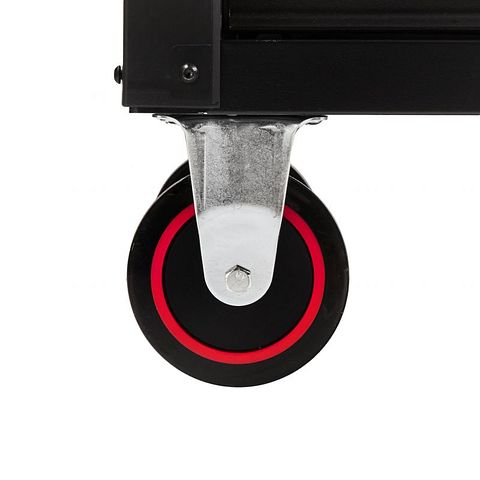

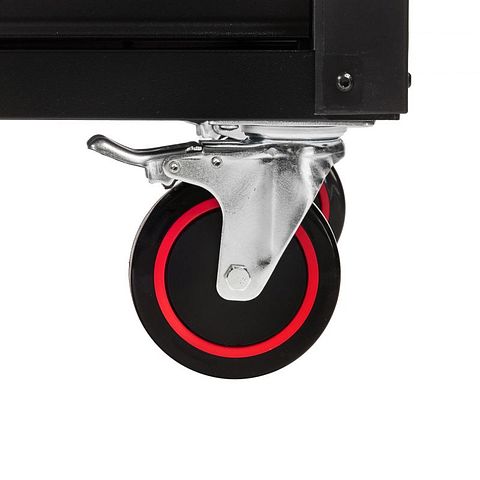

Large castors with automatic locks and brakes ensure safety when moving the cabinet, even on slight slopes.

DIMENSIONS:

Height: 112 cm

Height: 99 cm

Width: 48 cm

Weight: approx. 124 kg

Contents
Centre drawer 1

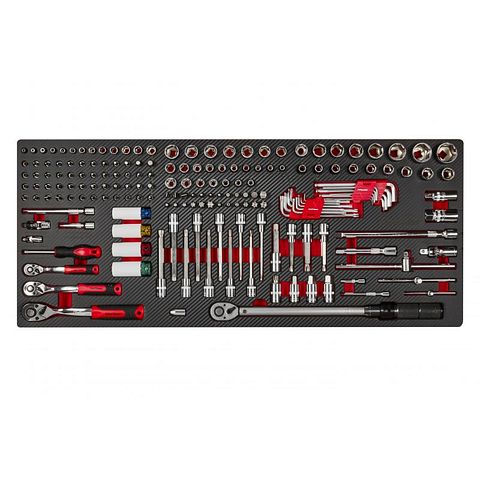

Socket and spanner set (186 pieces)

3 ratchets (72 teeth) - 1/4", 3/8", 1/2"
1/2" torque wrench 20-210 Nm (72 teeth)
1/4" hand screwdriver for sockets and bits
9 L-shaped hex keys - 1.5-2-2.5-3-4-5-6-8-10 mm
9 L-shaped TORX keys - T10-15-20-25-27-30-40-45-50
48 bits, 1/4" drive - SL4-5.5-6.5-7; PH0-1-2-3; PZ0-1-2-3; T8-9-10-15-20-25-27-30-40 TT8-9-10-15-20-25-27-30-40; TTS10-15-20-25-27-30-40-45-50; M8-10-12;
13 1/4" sockets - 4-4.5-5-5.5-6-7-8-9-10-11-12-13-14 mm
24 8 mm bits - SL8-10-12; PH3-4; PZ3-4; T40-45-50-55-60-70; H7-8-10-12-14; TT40-45-50-55-60-70
3/8" drive socket holder
17 3/8" sockets - 6-7-8-9-10-11-12-13-14-15-16-17-18-19-20-21-22 mm
7 3/8" TORX E sockets (star) - E10-11-12-14-16-18-20
2 3/8" spark plug sockets - 16 mm, 21 mm
18 bits, 1/2" drive - H14-H17-H19-M18*55L; R9-M9*100L; M16*100L; T80*100L; T40-T45-T50-T55-T60-T70*140L; R10*14; M10-M12-M14*140L
17 1/2" sockets - 10-11-12-13-14-15-16-17-18-19-20-21-22-24-27-30-32 mm
4 long impact sockets for alloy wheels - 17 mm, 19 mm, 21 mm, 22 mm
3 universal joints - 1/4", 3/8", 1/2"
6 extensions - 1/4"x50 mm, 1/4"x100 mm, 3/8"x75 mm, 3/8"x150 mm, 1/2"x125 mm, 1/2"x250 mm
3 sliding square-drive handles - 1/4", 3/8", 1/2"
1L - Left drawer 1

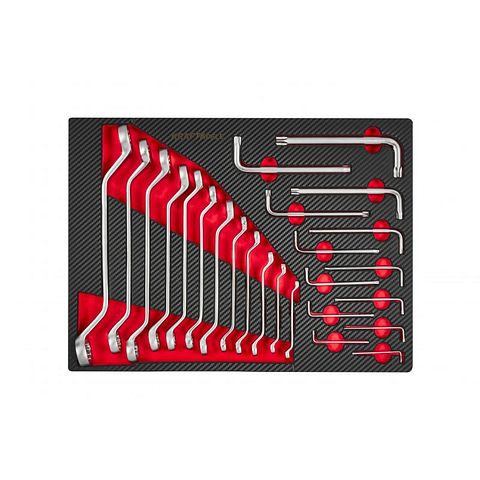

Spanner set (25 pieces)
12 bent ring spanners - 6 7 mm, 8 9 mm, 10 11 mm, 12 13 mm, 14 15 mm, 16 17 mm, 18 19 mm, 20 22 mm, 21 23 mm, 22 ​​24 mm, 24 27 mm, 30 32 mm
13 TORX keys - T8-10-15-20-25-27-30-40-45-50-55-60-70
2L - Left drawer 2

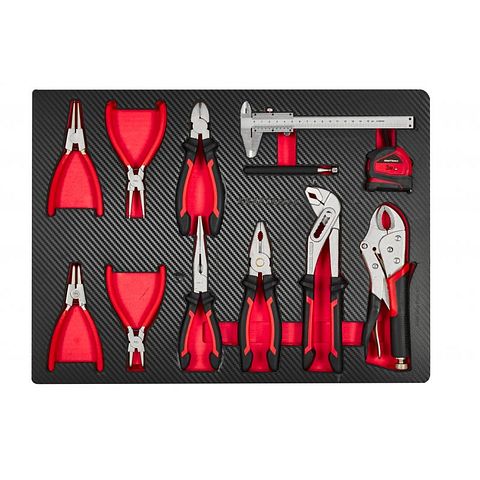

Pliers (12 pieces)

combination pliers 200 mm

straight, narrow half-round-nose pliers 200 mm

side cutters 190 mm

adjustable pliers 250 mm

Morse locking pliers 250 mm

hand caliper 0-150 mm

4 Seeger pliers 150 mm

telescopic magnetic pick-up tool

3 m tape measure

3L - Left drawer 3

Chisel and hammer set (20 pieces)

locksmith's hammer, 300 g, with wooden handle

40 mm sheet-metal hammer

set of cutters and punches with rubber coating (18 pieces)

4L - Left drawer 4

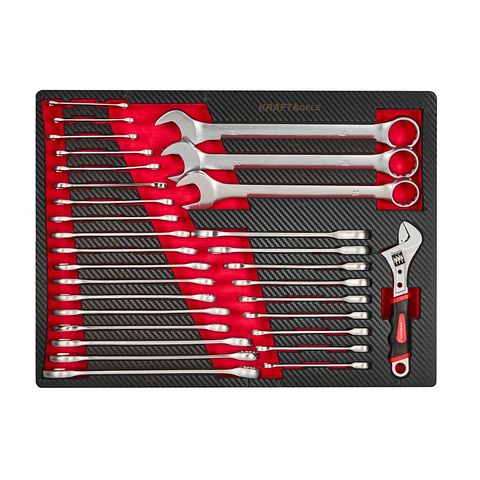

Spanner set (31 pieces)

•
  21 combination spanners - 6-7-8-9-10-11-12-13-14-15-16-17-18-19-20-21-22-24-27-30-32 mm


•
  9 ratcheting combination spanners - 8-9-10-11-12-13-14-17-19 mm


•
  adjustable spanner 8"


5L - Left drawer 5

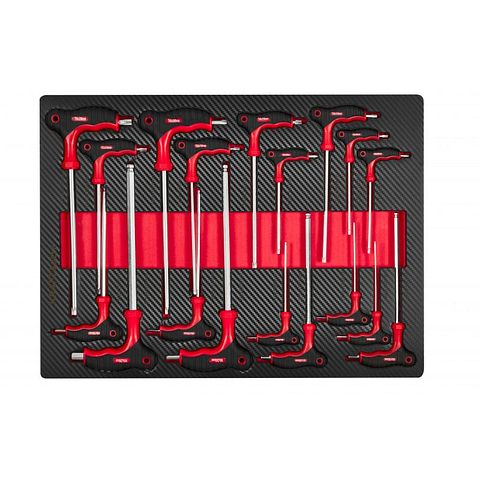

Spanner set with ergonomic T-handle (18 pieces)

•
  9 ball-end hex keys - H8x200, H7x150, H10x200, H6x150, H5x150, H4x150, H3x100, H2.5x100, H2x100


•
  9 TORX keys - T40x150, T45x200, T50x200, T10x100, T27x150, T15x100, T20x100, T25x150, T30x150


6L - Left drawer 6

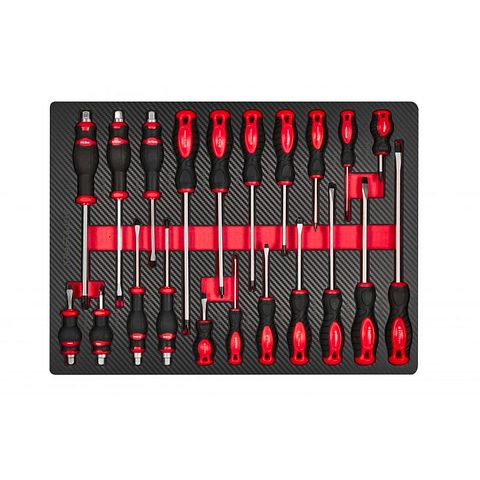

Screwdriver set (21 pieces)

•
  7 Phillips screwdrivers - PH2*38 mm, PH0*75 mm, PH1*75 mm, PH2*100 mm, PH2*125 mm, PH3*150 mm, PH3*175 mm


•
  7 flat-head screwdrivers - SL6*38 mm, SL3*75 mm, SL5*75 mm, SL6*100 mm, SL6*125 mm, SL8*150 mm, SL8*175 mm


•
  7 flat-head screwdrivers with hexagonal drive - SL6*38, PH2*38, SL5*100, PH1*100, SL6*100, SL6*150, PH3*150


•


1P - Right drawer 1

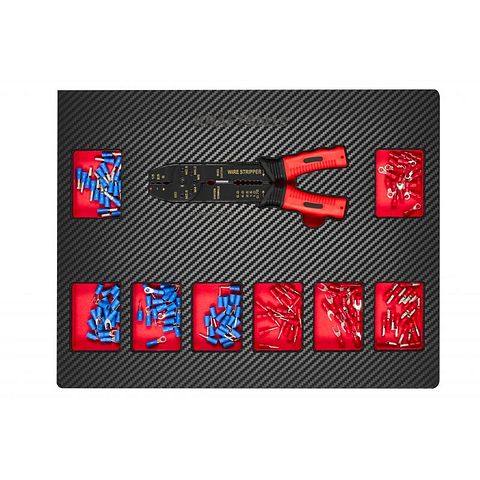

Crimping pliers and connectors

· Connector set (160 pieces)

· Cable insulation stripper and crimper

2P - Right drawer 2

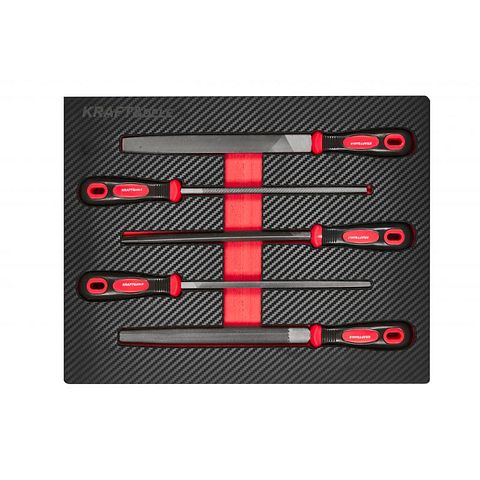

File set, 200 mm (5 pieces)

•
  tapered flat file


•
  tapered triangular file


•
  tapered half-round file


•
  tapered round file


•
  tapered square file


3P - Right drawer 3

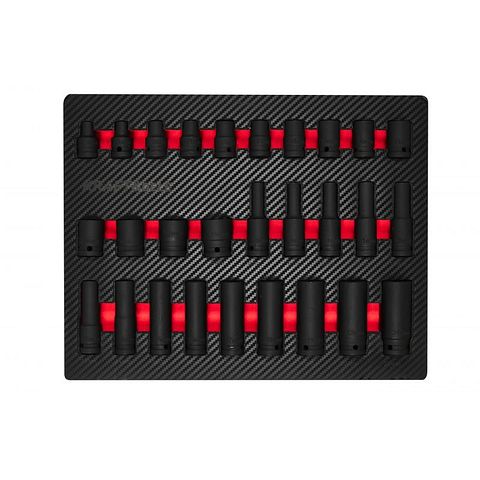

Impact socket set (28 pieces)

•
  14 short sockets - 8-9-10-11-12-13-14-15-16-17-19-21-22-24 mm


•
  14 long sockets - 8-9-10-11-12-13-14-15-16-17-19-21-22-24 mm


4P - Right drawer 4

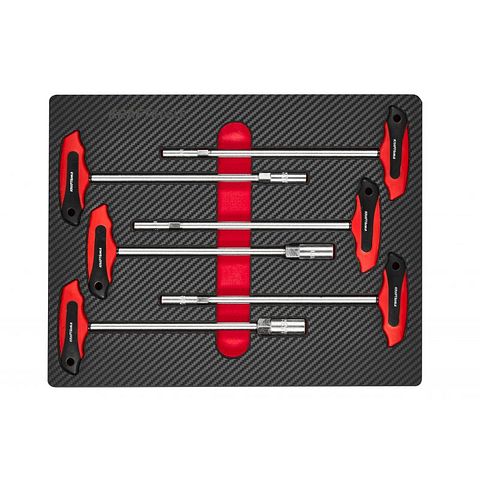

T-handle socket set

•
  6 socket wrenches – 6-7-8-10-13-14 mm


5P - Right drawer 5

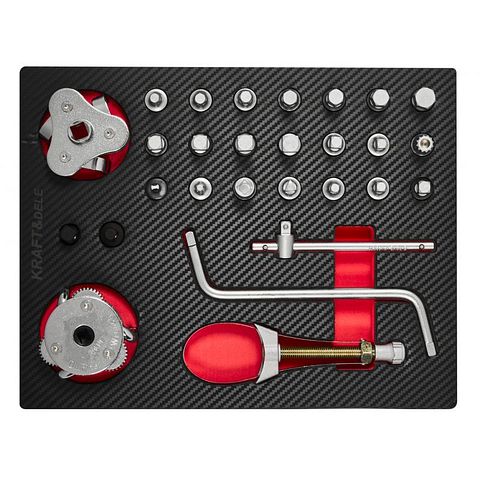

Oil service set

•
  3/8” oil drain keys – XT45-XT10-XS10-S7-S8-S10-S11-S12-S13-S14-S3/8-S5/16-M16-H8-H9-H10-H12-H13-H14 - H17


•
  3/8" sliding square-drive handle


•
  Claw wrench for oil filters, 58-110 mm, 3/8"


•
  Claw wrench for oil filters, 50-95 mm, three-arm, 1/2"


•
  Strap wrench for oil filters, 55-110 mm


•
  Reducer 1/2" > 3/8"


•
  Reducer 3/8" > 1/2"
