New 53 l/min hydraulic pump + multiplier gearbox for tractor PTO, Kempele

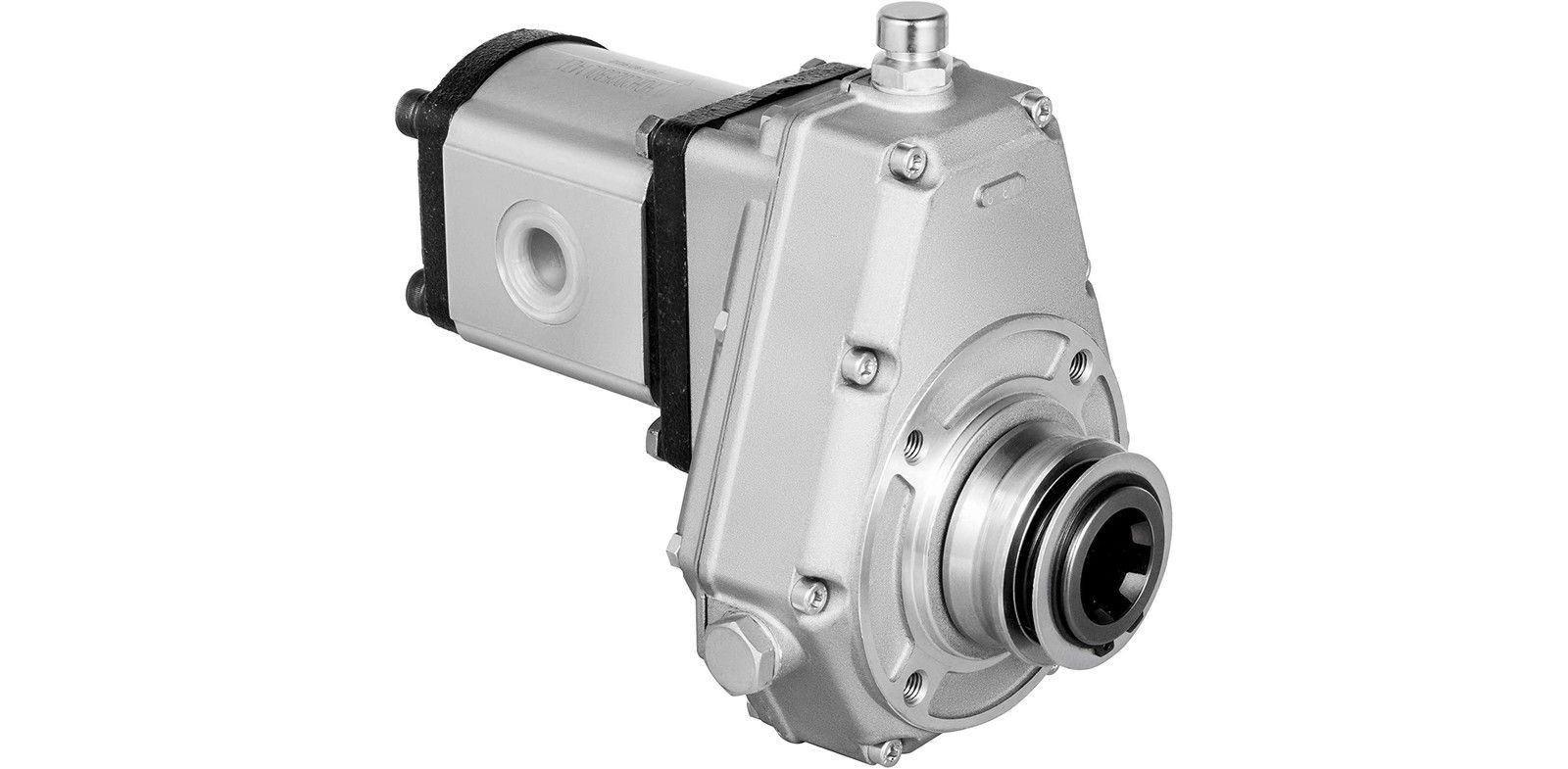

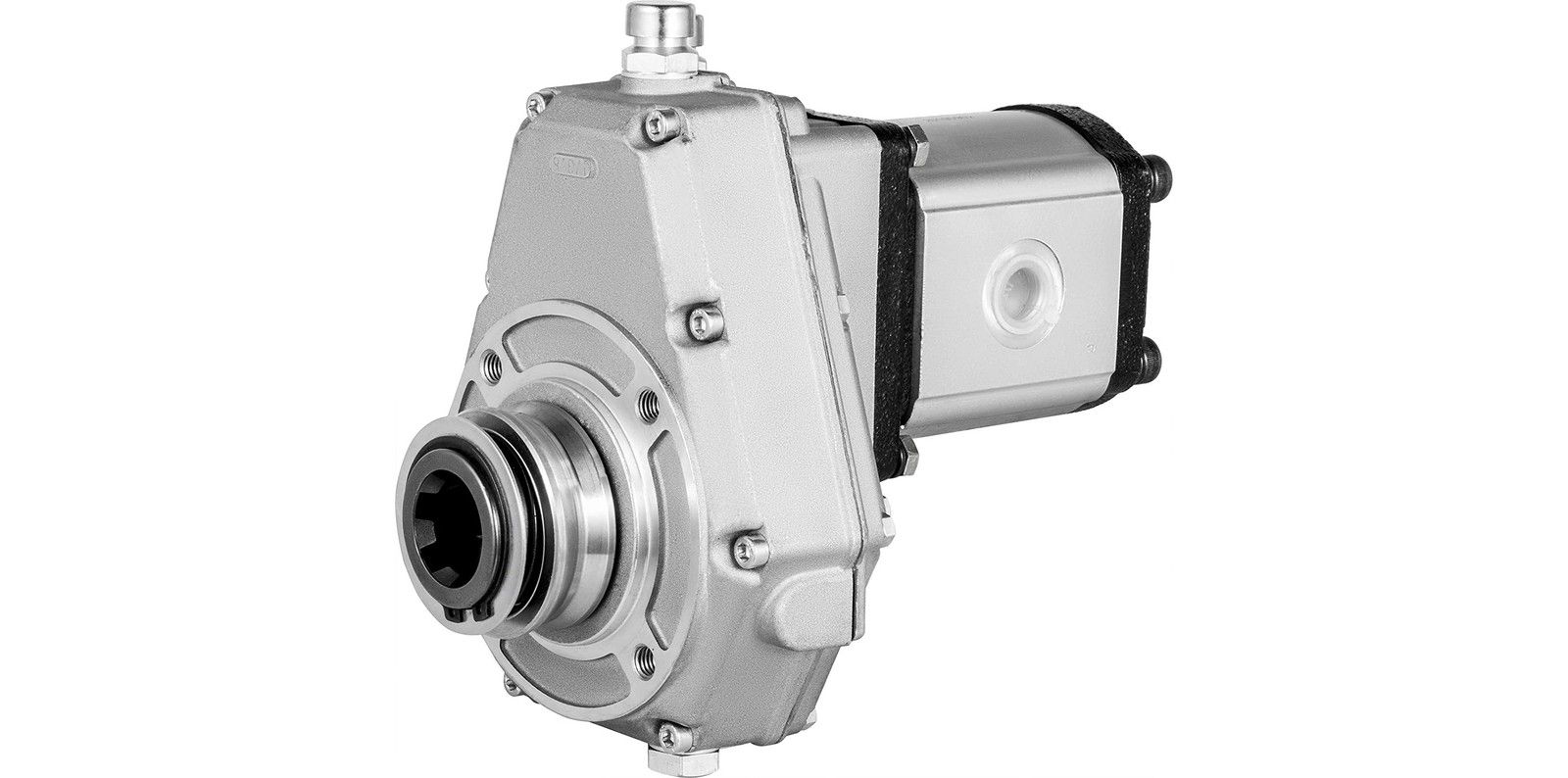

New hydraulic pump with multiplier gearbox for tractor PTO

Hydraulic pump and multiplier gearbox in one package.

Suitable for a tractor PTO for building auxiliary hydraulics

Starting price: €259 incl. VAT 25.5%
Delivery to mainland Finland: €19.90 incl. VAT
Total price for the buyer: highest accepted bid + shipping costs.

Item is new.

Technical specifications

Multiplier gearbox

• Gear ratio 1:3.8

• Quick release on female shaft

• Fits directly to tractor PTO shaft

• Suitable for Group 2 gear pump

• Delivered without oil

Hydraulic pump

• Group 2

• Displacement 25 cm³/r

• Max pressure 215 bar

• Suction port G3/4"

• Pressure port G1/2"

Output

Engine speed / Theoretical output

800 rpm / 21 l/min

1,200 rpm / 32 l/min

1,600 rpm / 43 l/min

2,000 rpm / 53 l/min

Contents

Delivery includes the hydraulic pump and the multiplier gearbox. Hoses, tank, valves, fittings and hydraulic oil are not included.

Commissioning

The multiplier gearbox is delivered without oil.

• Fill the gearbox with SAE 90 oil to the level of the sight glass before use.

• Change the oil for the first time after about 50 operating hours.

• After that, change the oil about once a year or according to operating conditions.

• Before use, make sure the hydraulic oil, tank, suction strainer and filter are clean.

• Bleed the pump, adjust the relief valve correctly and start the system without load first.

• Use suitable O-rings and correctly sized suction and pressure hoses.

• Check the relief valve setting with a pressure gauge.

• Do not apply prohibited axial or radial forces to the pump shaft.

Before bidding

Before making a binding bid, make sure that:

• the tractor PTO rotation direction is correct

• the PTO shaft and connections fit your application

• the hydraulic hoses, tank, filtration and relief valve are adequately sized

• you know which other hydraulic components you need for your system.

More information about hydraulic pumps and multiplier gearboxes: ismart.fi/tuotteet.html?id=77854/181
