NEXTGEAR KVS31 FIELD BANDSAW - Powerful field saw with capacity for logs up to 790 mm - Warranty - Home delivery, Lahti

Powerful field bandsaw with capacity to saw logs up to 790 mm in diameter.

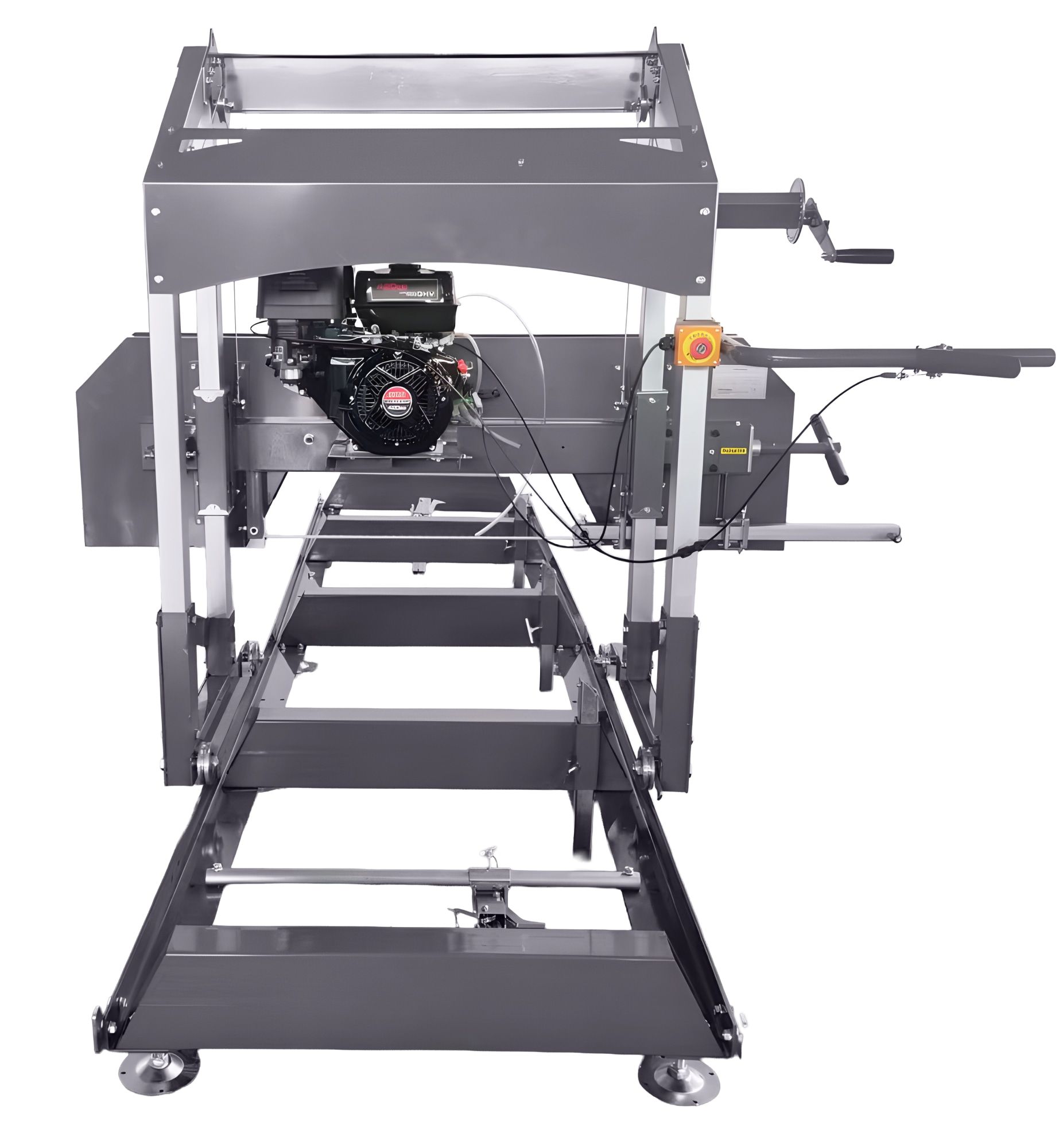

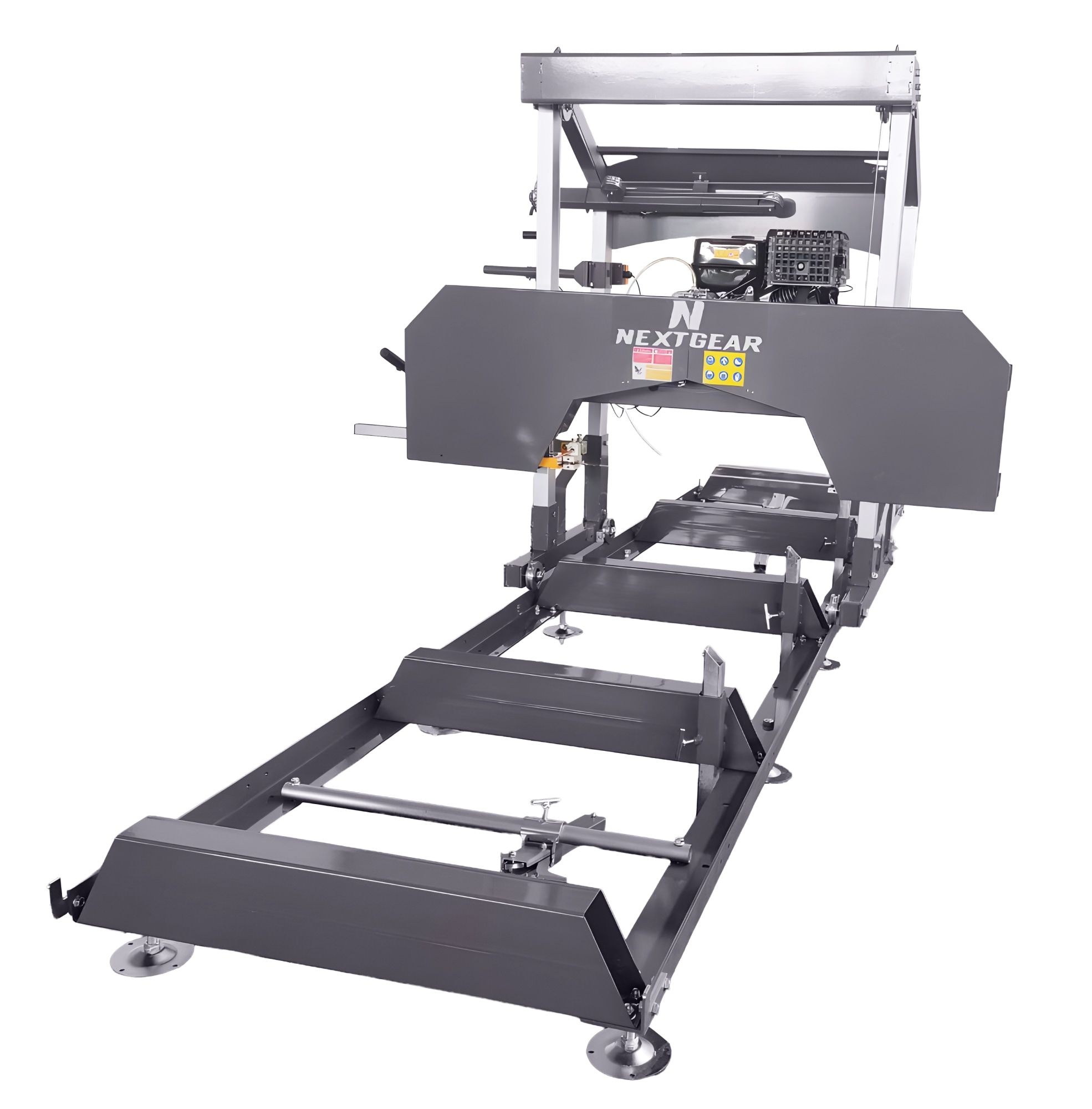

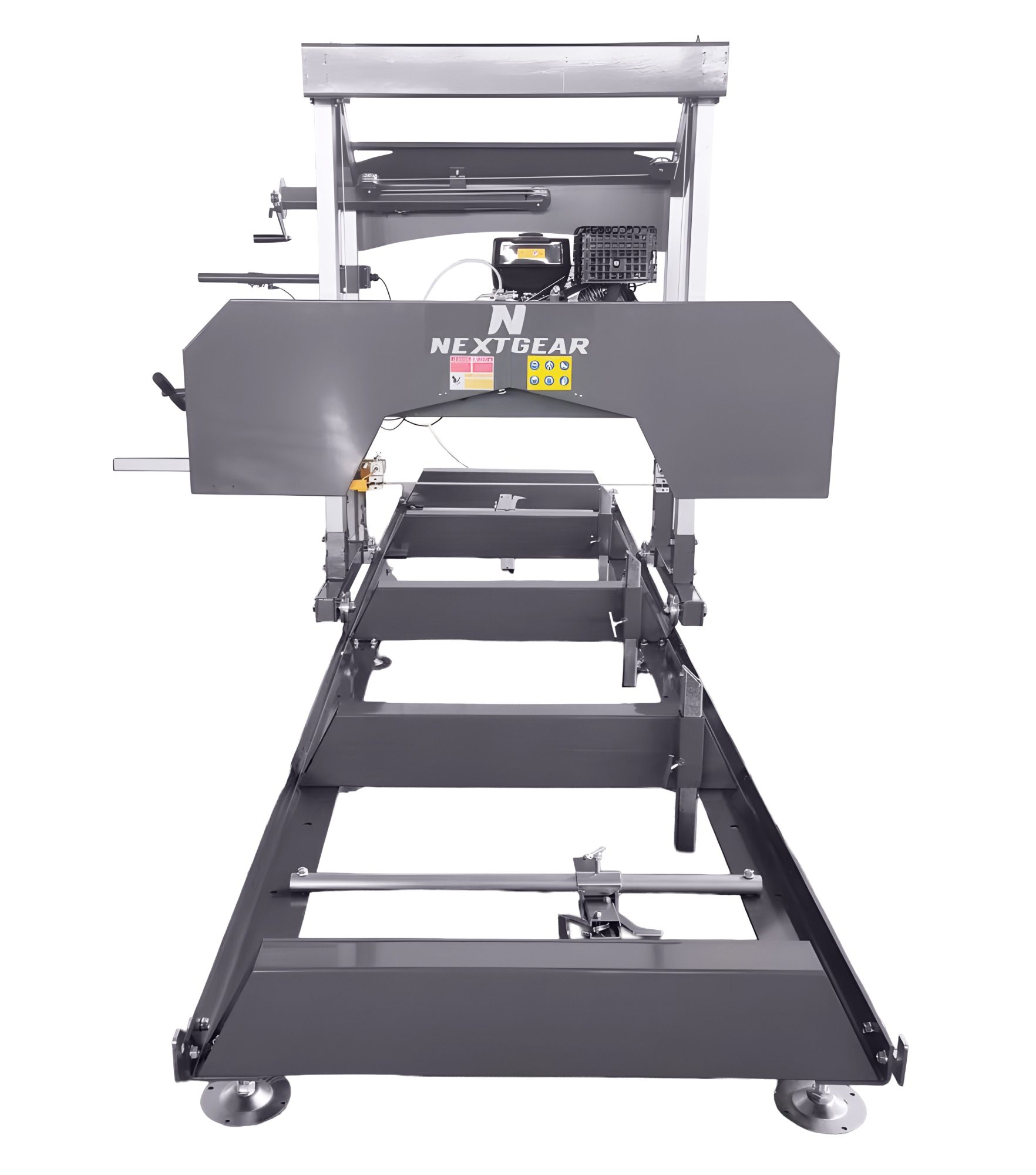

NEXTGEAR KVS31 FIELD BANDSAW

The product is new and unassembled. It comes with a 1-year warranty!

With this field bandsaw you can saw boards and planks to the desired size on-site. Fitted with a Ducar DH420 four-stroke engine.

This bandsaw can saw logs up to 31 in (≈790 mm) in diameter and about 4 m long using the standard sawing table. For longer logs, a separate extension is available that increases the log length to just under 6 m.

The sawmill can cut all wood species.

The top of the saw unit has a water tank for blade lubrication. Use water in summer and screenwash fluid in winter.

Features:

Sawing capacity for logs max.: 31 in / 790 mm ø

Frame: Consists of four rail sections, clamps and support legs

Blade size: 3,960 × 34 × 0.9 mm (approx. 1-1/4" W × 156" L × 0.035")

Blade tooth pitch: 22 mm

Blade speed: approx. 17 m/s

Cutting speed: 13–15 m/s

Rail size: 4,000 × 1,030 mm

Adjustable blade guide included as standard

Technical details:

Engine: Ducar DH420, 4-stroke

Engine oil: SAE 10W-30

Fluid tank capacity: 4.0 l

Machine dimensions (D × L × H): 4,060 × 1,800 × 1,770 mm

Package size: 2,150 × 570 × 830 mm

Weight gross/net: 355 kg / 315 kg

Accessories and consumables:

KVS31 2,000 mm extension table

KVS31 carbide spare blade

Ask our customer service for more information about accessories and consumables.

Delivery: Home delivery. Pickup not possible.
