MAX model with extras of the popular Komator TB20 360° excavator - Ducar 15 hp petrol engine - grapple thumb and two separate standard buckets, Lahti

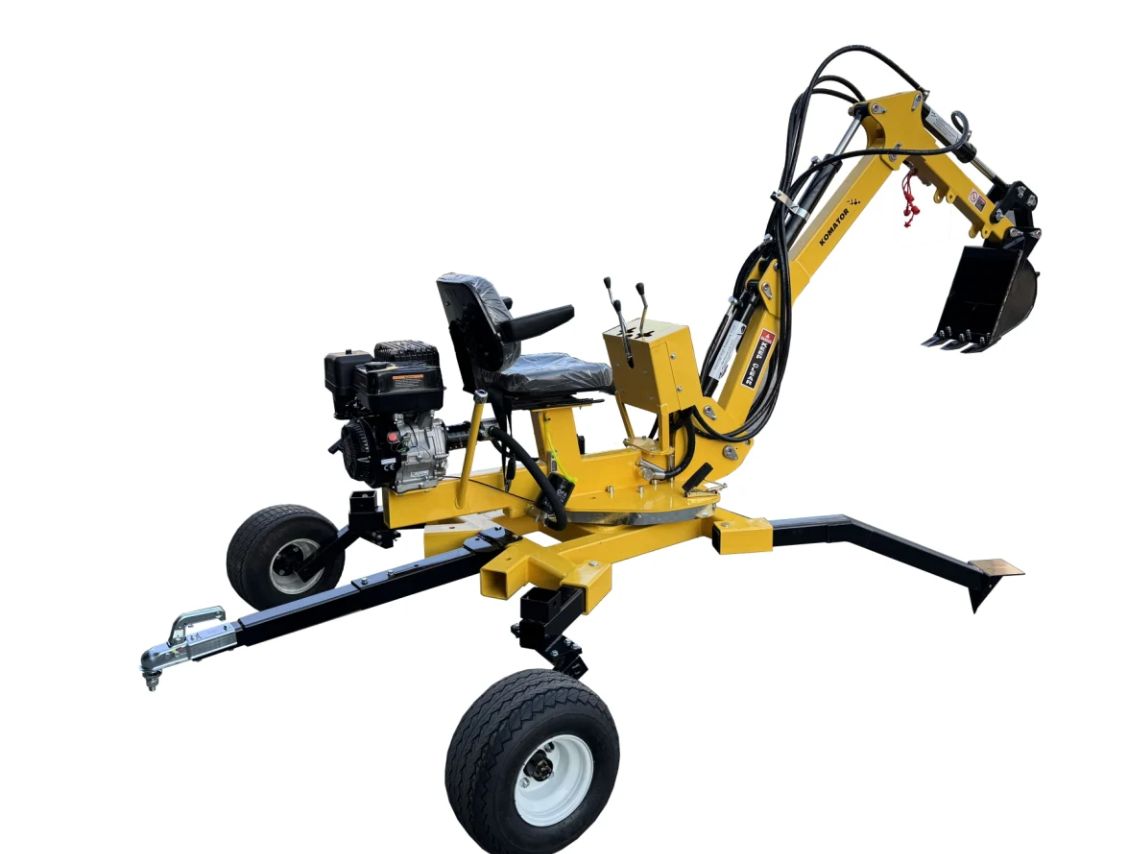

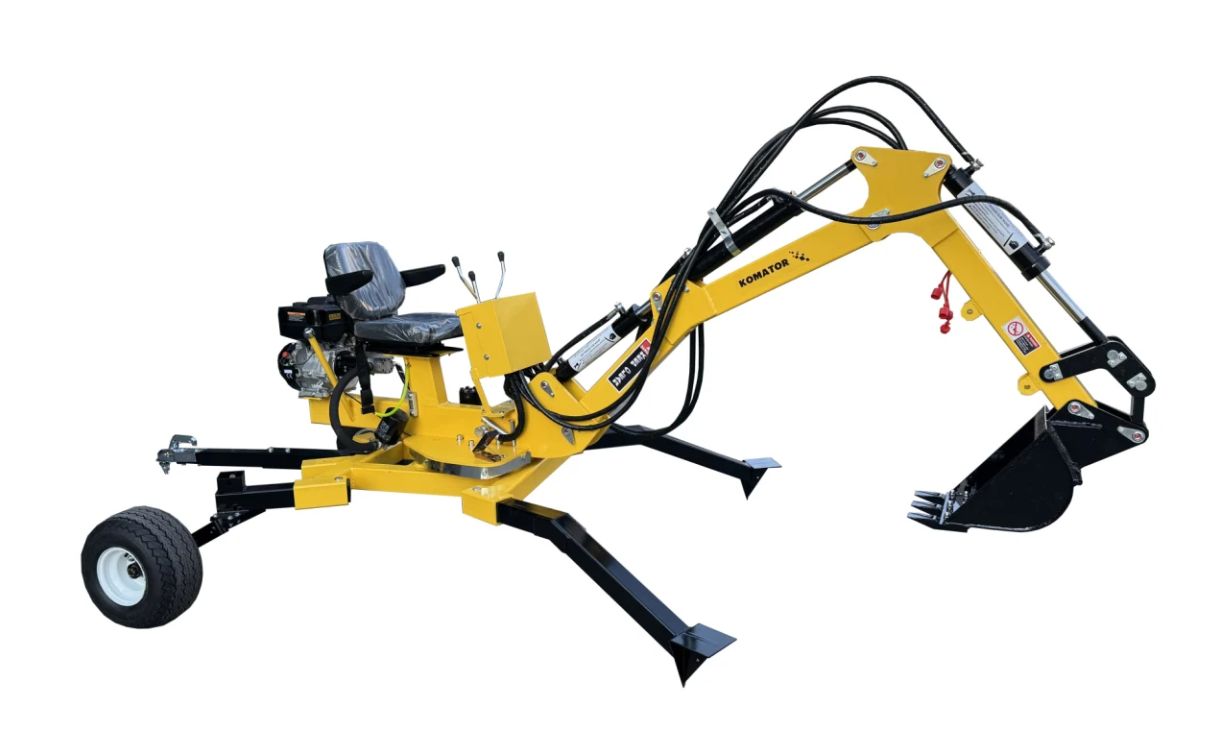

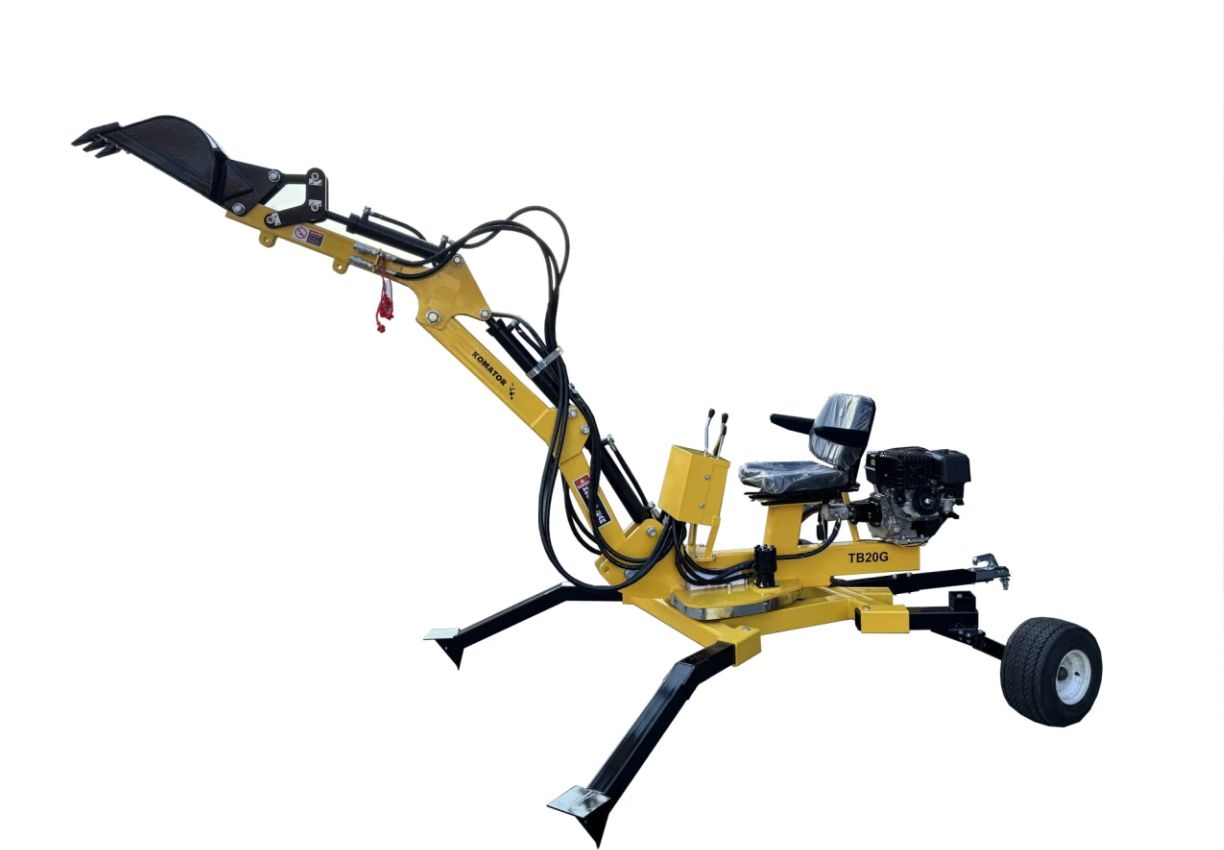

Komator TB20G Max excavator unit

MAX model with extras of the popular Komator TB20 360° excavator, powered by a reliable and efficient Ducar 15 hp petrol engine. The PRO model equipment includes a grapple thumb and two separate standard buckets: a 600 mm dozer bucket and a 400 mm toothed trench bucket. The model also has connections on the boom for hydraulic attachments such as an earth auger and grab. The unit has a fully rotating 360° design, which makes a wide range of groundworks agile and efficient.

The Komator TB20G MAX ATV excavator has a maximum digging depth of 2.10 m and a digging radius of 2.80 m. The unit can be transported by ATV, tractors or other vehicles equipped with a 50 mm towing eye. During transport the stabiliser legs are folded to the horizontal position and are fixed to the rear during operation. The PRO model includes additional fittings that allow the axle width to be narrowed to 1.50 m for easier trailer transport.

The unit is supplied with a boom thumb and two buckets and a wide range of versatile attachments is available, such as various buckets, earth auger, frost spike and hydraulic breaker.

Technical specifications:

• Weight: 570 kg

• Power: 15 hp (≈11.0 kW) petrol engine (DUCAR, pull start)

• Maximum digging depth: 2.1 m

• Maximum digging radius: 2.8 m

• Maximum digging height: 2.5 m

• Maximum loading height: 1.2 m

• Stabiliser leg width: 1.8 m

• Rotation: 360 degrees

• Bucket rotation angle: 160 degrees

• Dozer bucket width: 600 mm

• Trench bucket width: 400 mm

• Wheelbase in transport position: 1.5 m

• Dimensions: 2240 x 1000 x 850 mm

• Warranty: 12 months

  Delivered unassembled in a transport frame.

Delivery: Home delivery or collection from Lahti.

Please note that collection requires the bidder to have suitable transport equipment. Collection must also be arranged according to our warehouse schedule on weekdays. Loading is the responsibility of the buyer. You will receive collection instructions from our customer service. Our warehouse does not have separate customer service.
