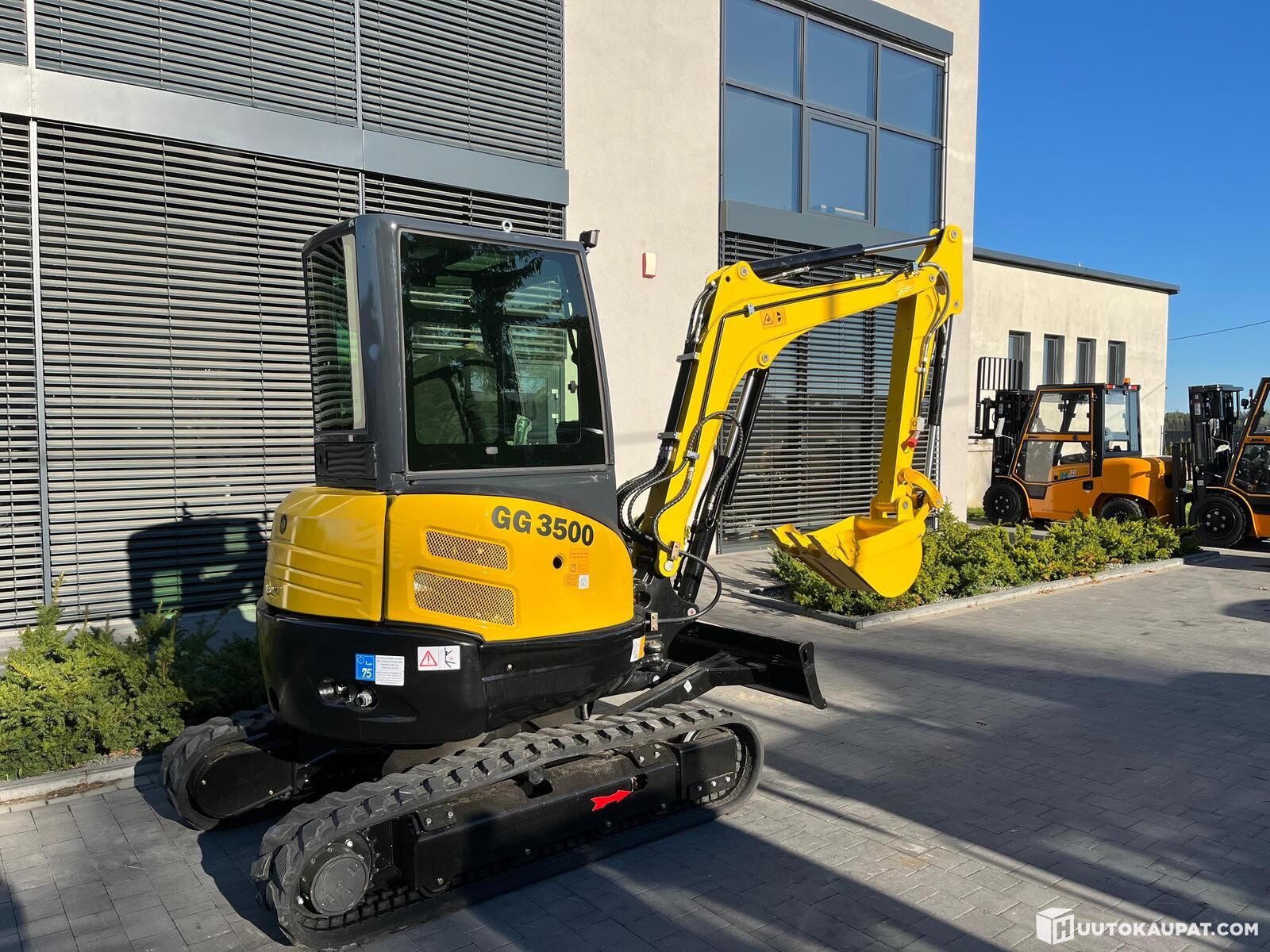

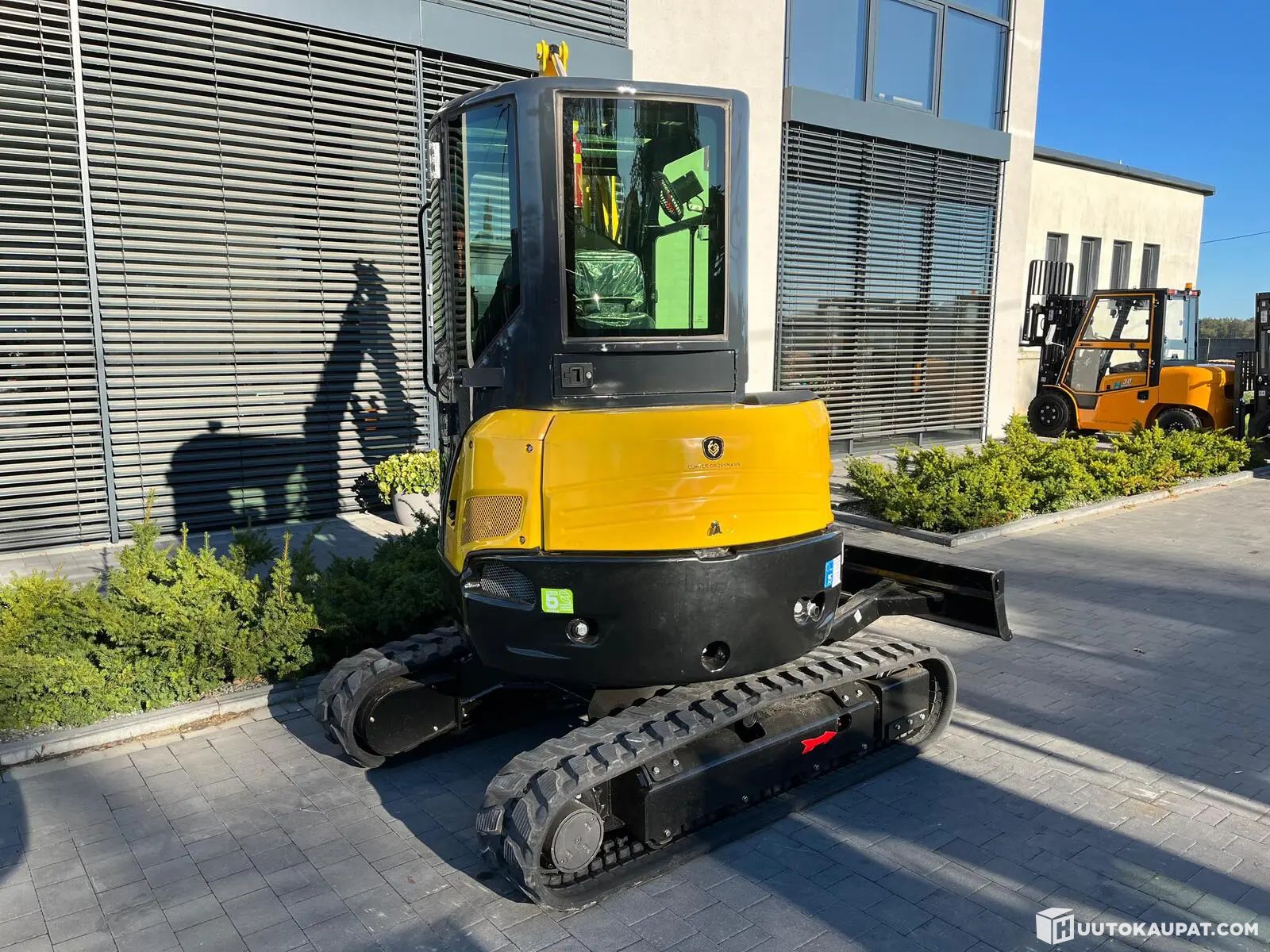

Other make GG3500, 2025, Porvoo

GG3500 stands out for its exceptional power. Its heart is an 18.5 kW engine. The 4-cylinder engine with a displacement of 1642 cm³ ensures both efficient operation and long-term reliability. This excavator distinguishes itself with impressive working parameters - maximum digging depth 2827 mm and digging height up to 4563 mm. With this excavator, work can be carried out very precisely and comfortably even in challenging conditions. Whether for construction, ground restoration or other tasks, the GG3500 excavator is a reliable partner that delivers top-level results.

• Brand: Günter Grossmann

• Engine model: KUBOTA V1505

• Operating weight: 3300 kg

• Number of cylinders: 4

• Maximum power: 18.5 kW

• Cooling method: liquid

• Engine oil capacity: 6 l
  Fuel consumption: 1.3–1.5 l/hour

• Maximum engine speed: 2300 rpm

• Fuel tank capacity: 45 l
  Hydraulic oil tank capacity: 40 l

• Hydraulic motor model: LTM03AX

• Drive motor model: LKC

• Swing hydraulic motor model: LKC

• Hydraulic oil flow: 99 l/min

• Rated pressure: 18 MPa

• Maximum pressure: 20 MPa

• General (L×W×H): 2921 mm × 1550 mm × 2485 mm

• Ground clearance: 522 mm

• Bucket width: 400 mm

• Blade width: 1550 mm

• Arm length: 1620 mm

• Track dimensions: 300×52.5×84

• Bucket capacity: 0.08 m³

• Travel speed: 0–1.8 / 0–2.8 km/h

• Gradeability: 0.3%
  Ground pressure: 36 kPa

• Maximum digging force: 27 kN

• Maximum digging reach: 4831 mm

• Maximum digging depth: 2827 mm

• Maximum digging height: 4563 mm

• Maximum dumping height: 3181 mm

• Maximum tilt angle: 110 degrees

Price includes the GG3500 excavator and a 400 mm bucket. The excavator has a 1-year factory warranty.
