Slewing ring with bearing fitted. New and unused., Orimattila

From stock — this is for sale. VE064A07 is a commonly used slewing ring sized as a standard product. It is not tied to a single machine brand; several manufacturers use it or fully compatible models (such as VE064A06) in their equipment. This slewing ring typically fits the following machine brands and types commonly found in Finland:

• Kesla: Several older and mid‑size Kesla loaders and cranes.

• Loglift / Jonsered (Hiab): Certain model series that use external gearing in the slewing mechanism.

• Palfinger Epsilon: Mid‑size log loaders.

• Farmi Forest: Slew plates for chippers and loaders. Forest Steel OÜ +2

2. Truck cranes (Hiab‑type)

• Hiab & Fassi: Used in many 10–20 tonne‑metre cranes where the boom slews on a dedicated slewing ring.

• Palfinger: Especially models designed for continuous slewing.

3. Industrial and agricultural machines

• Special trailers: Trailers with steering axles where the slewing ring acts as a turntable.

• Material handlers: For example smaller Mantsinen material handlers or similar port cranes.

• Crushers and screens: For directing feed conveyors or discharge chutes.

How to ensure compatibility? If you are replacing an old slewing ring, check the following on the existing part:

• Number of teeth: The VE064A07 model must have 105 teeth.

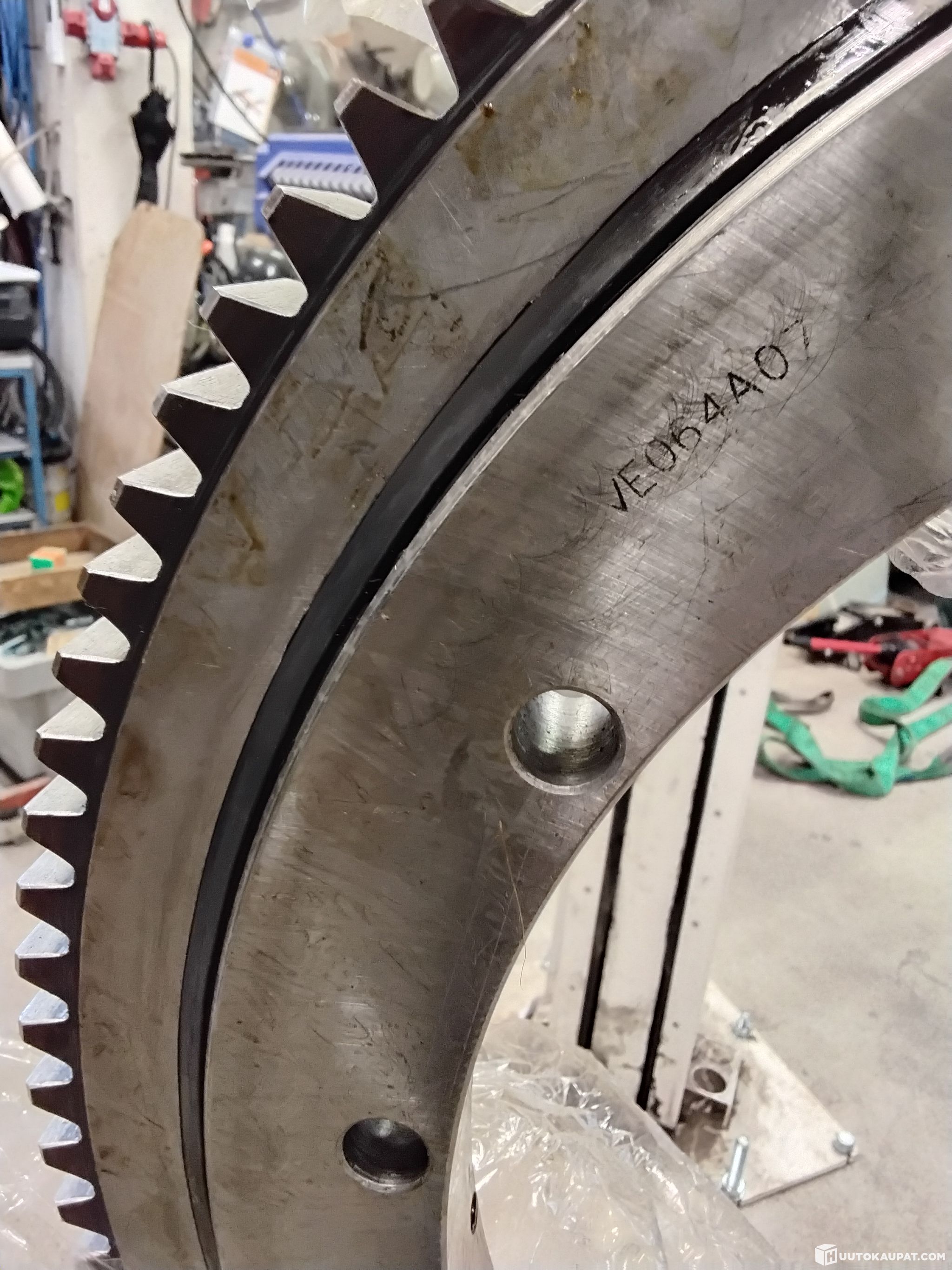

• Bolt hole pattern: Inner ring: 14 × M16 and outer ring: 14 × M12. Note: bolts only on the inner rim. See picture.

• Height: The overall height must be 56 mm.

• Technical installation dimensions (drawing) These dimensions let you confirm the part will fit your machine:
  Part — Dimension / Value
  Outer diameter (Da) 640 mm
  Inner diameter (di) 471 mm
  Overall height (H) 56 mm
  Number of teeth (z) 105 pcs
  Tooth module (m) 6
  Bolt holes (outer ring) 14 pcs Ø 13.5 mm (bolt M12)
  Bolt holes (inner ring) 14 pcs Ø 17.5 mm (bolt M16)
  Bolt circle diameter (inner) approx. 505 mm
  Bolt circle diameter (outer) approx. 605 mm

• I will confirm the exact measurements during this week.

• You can come and view the item at the weekend, but please call first: 040 354 5802
