NEW TKMACH TK12 1.2 t mini excavator, joystick controls, swing boom, thumb, 3 buckets, Lapua

NEW mini excavator for yard work, drainage ditches and small construction jobs. The machine is only 940 mm wide, so it fits through narrow access ways and into tight spaces where larger machines cannot go. The swing boom helps you dig alongside walls and fences. It comes with three buckets, a pre-installed quick hitch, mechanical thumb and dozer blade, so you can start work without further purchases. The machine has only been tested indoors and moved from the port to our warehouse; otherwise it is new. The machine is already in Finland, so the buyer will not incur customs duties or other import costs.

PLEASE NOTE BEFORE BIDDING

Cosmetic damage caused during transport: the machine is new, but it arrived in a sea container. Unfortunately, long transport can sometimes cause cosmetic damage, such as scratches, paint chips and minor dents. Some machines have less damage, others more. The machine has been tested indoors and works. The damage is cosmetic only and does not affect operation. The paintwork can be repaired by touching up and repainting.

The damage images in the listing are general examples showing what kind of marks may occur during transport. They may not be of this exact machine. Please take this into account before bidding, even though the machine is new.

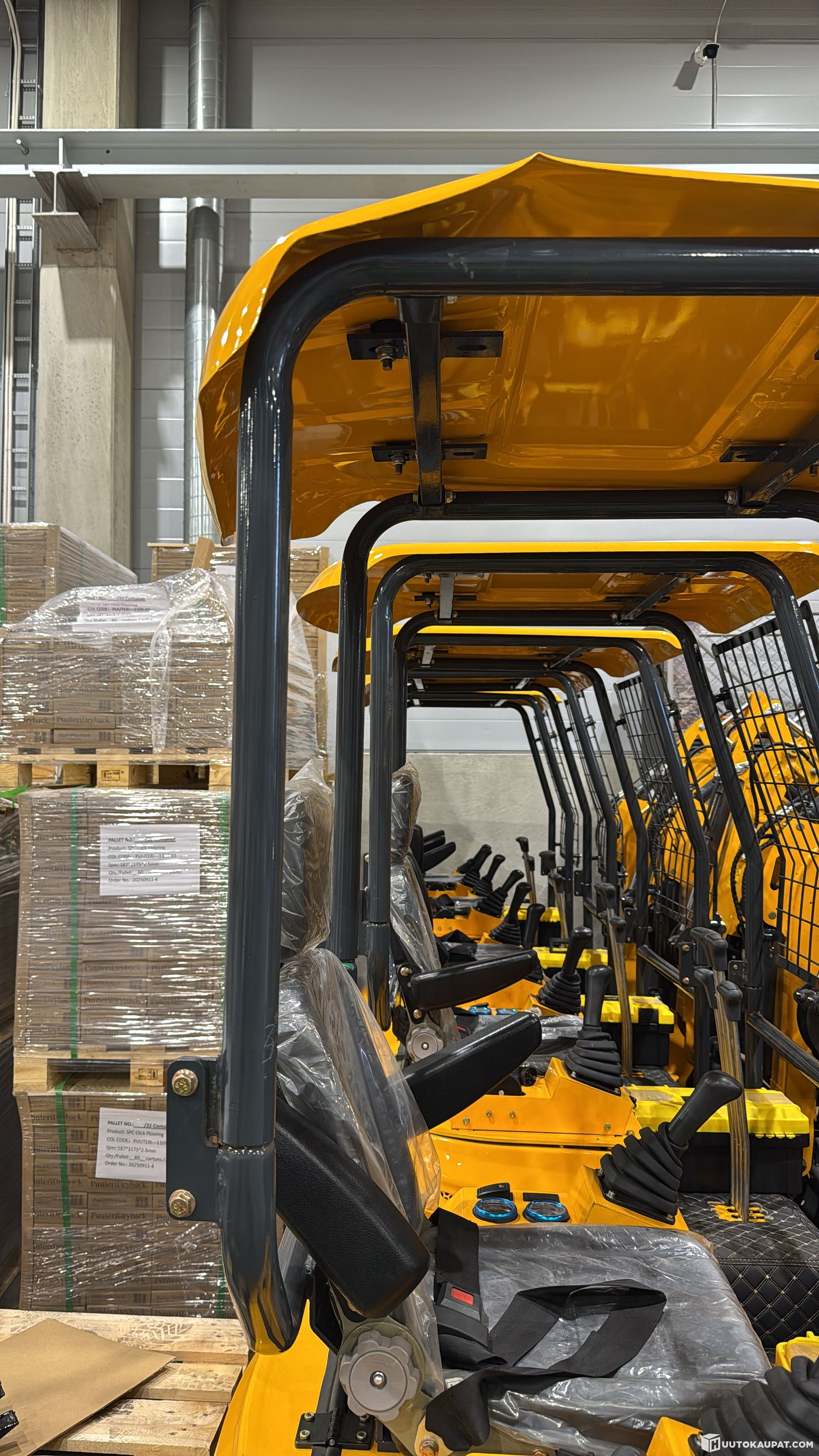

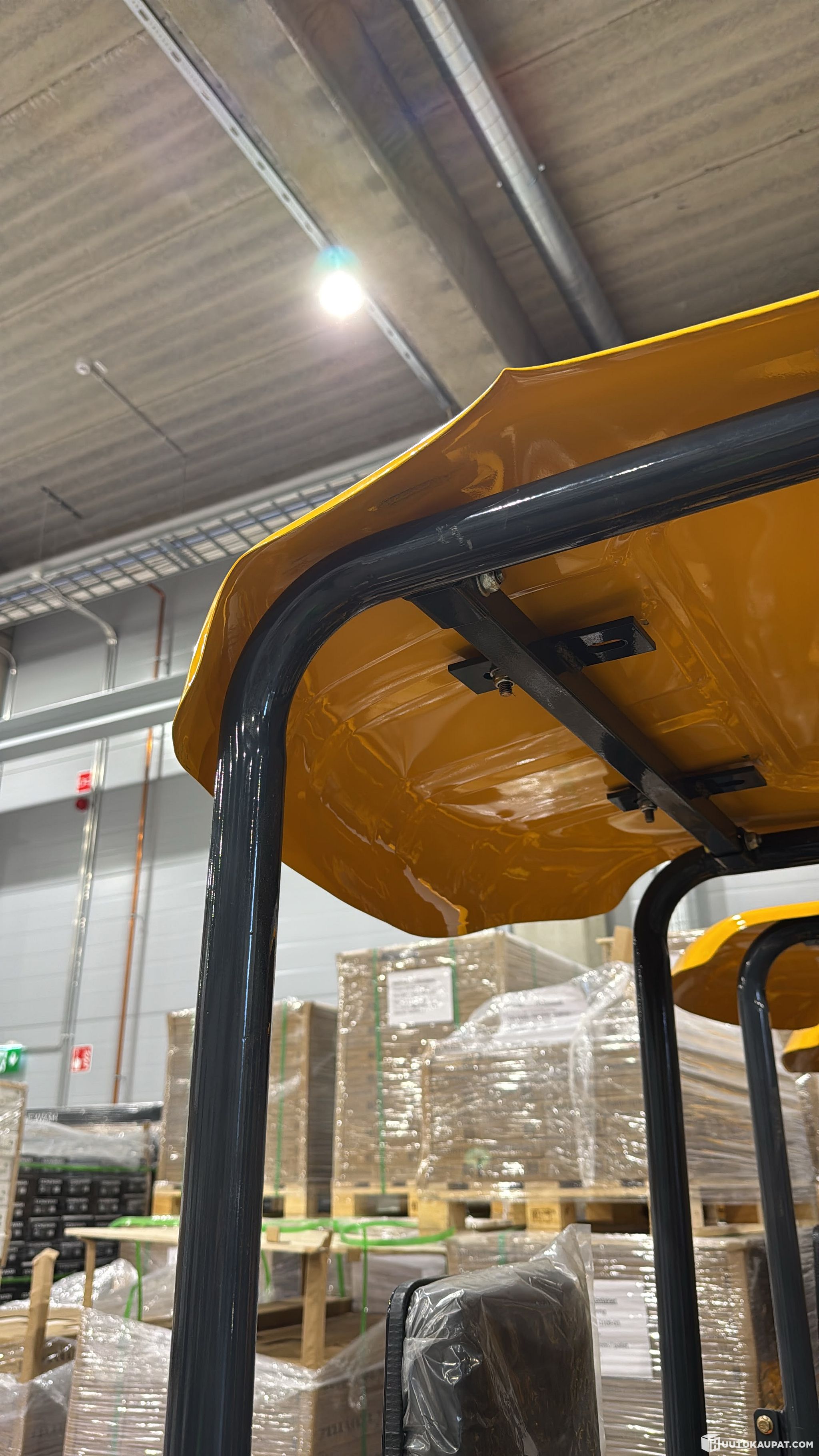

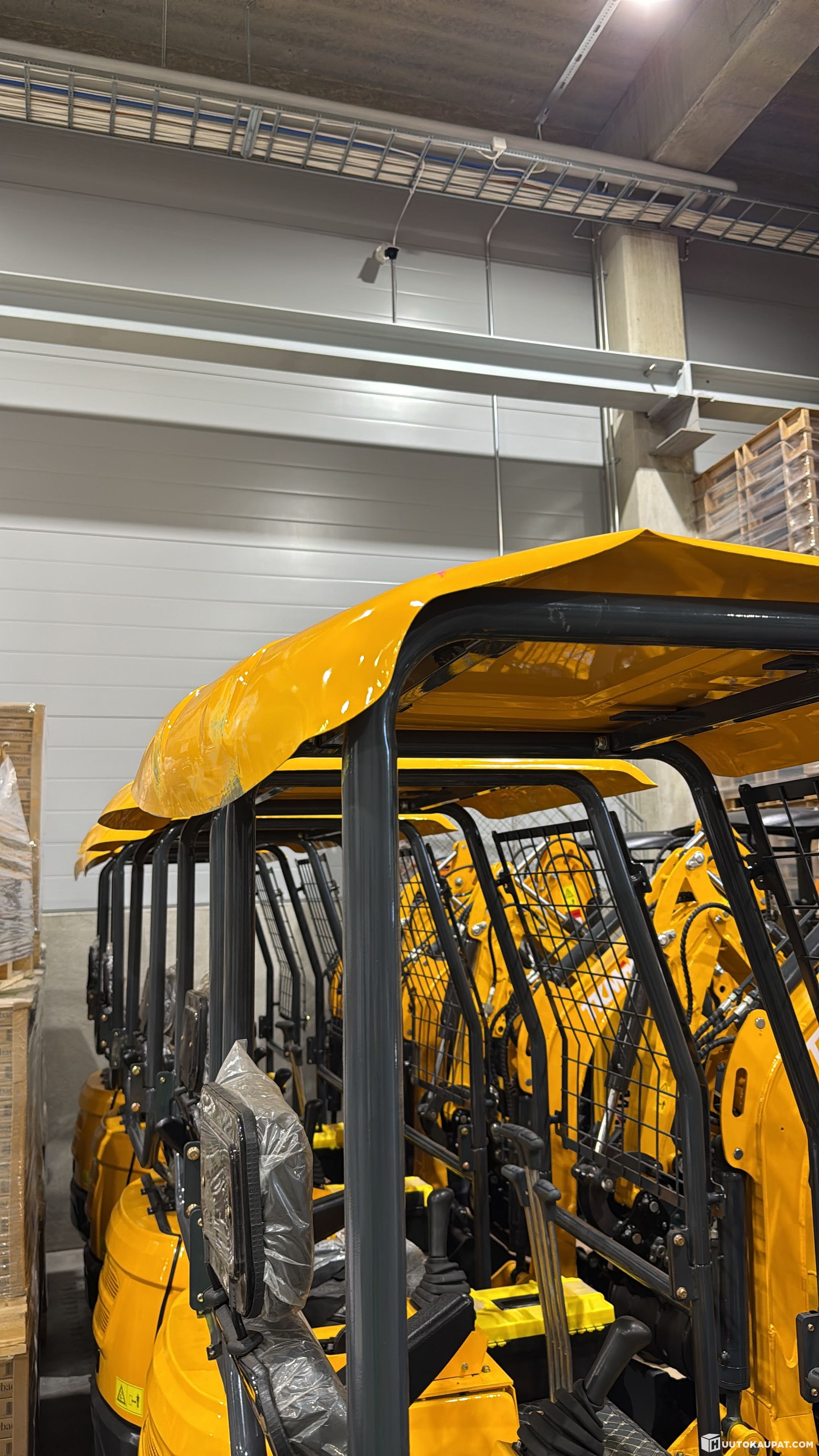

SEE THE PHOTOS, THE ROOF HAS BEEN HIT!!!

Why this machine?

• Ready package: three buckets, pre-installed quick hitch, mechanical thumb and dozer blade included

• Compact size: weight 1,200 kg and width only 940 mm, so the machine fits through narrow access ways

• Swing boom: the boom swings sideways (53° left and 40° right), allowing you to dig alongside walls and fences without moving the machine

• Clear controls: the mechanical joystick controls are ergonomically designed and the controls are clearly laid out, making the machine easy to learn

• Thumb: the mechanical thumb grips stones, stumps and branches

• Rubber tracks: protect paving and asphalt better than steel tracks

• New, no working use: only tested indoors and moved from the port to our warehouse; no maintenance backlog

• Tested: the machine has been checked and works

• Easy to maintain: engine service points are easily accessible, so daily checks are quick

• Spare parts from Finland: basic spare parts and service supplies are available in Finland

• Manufacturer’s warranty: 12 months from the delivery date, CE marked




Who is the machine suitable for?

• House and holiday-home owners with yard and excavation work

• Small-scale builders and renovators

• Earthworks contractors needing an auxiliary machine for confined spaces

• First-time users, as the machine is small and the controls are clear




What can the machine do?

• Dig land drains, rainwater and sewer trenches

• Dig trenches for electricity, water and fibre-optic cables

• Carry out yard work: planting areas, sub-bases for paving and kerbs, and landscaping

• Dig post holes for fences and gates

• Move stones and remove stumps with the thumb

• Fill and level ground with the dozer blade

• Dig alongside walls and in courtyards where a large machine will not fit




Included

• 200 mm digging bucket (narrow, for ditches and post holes)

• 400 mm digging bucket (general-purpose bucket)

• 600 mm digging bucket without teeth (for levelling and a neat base)

• Semi-automatic quick hitch, pre-installed on the machine (fast bucket changes)

• Mechanical thumb (grips stones, stumps and branches)

• Dozer blade

• Operating instructions




Good to know before buying

• The machine has mechanical controls, not hydraulic pilot controls

• The machine’s thumb is mechanical, not hydraulic

• The machine is new, but has been tested indoors and moved from the port to our warehouse

• The machine may have cosmetic transport damage (see note above)

• The machine has a four-post open canopy and protective mesh, not an enclosed cab

• The machine is orange-yellow

• The machine is CE marked




Cab and operation
The machine has ergonomically designed mechanical joystick controls. The control panel is directly in front of the operator and shows the hour meter and voltage meter. The machine has key ignition and work lights. An adjustable seat and seat belt make working comfortable even throughout a longer day.

Technical specifications

General

• Make and model: TKMACH TK12

• Country of manufacture: China

• Colour: orange-yellow

• Operating weight: 1,200 kg

• Bucket capacity: 0.025 m³

• Configuration: excavator, swing boom, rubber tracks, dozer blade

Engine

• Make: KOOP, diesel

• Power: 7 kW / 3,000 rpm (approx. 9.5 hp)

• Emissions class: Euro 5

• Fuel tank: 5 l

Performance

• Travel speed: 2.5 km/h

• Slew speed: 9.5 rpm

• Gradeability: 30°

• Tractive force: 15 kN

Hydraulics

• Controls: mechanical joystick controls

• Pump: gear pump

• Displacement: 0.719 l

• Flow rate: 24 l/min

• Hydraulic oil tank: 12 l

Undercarriage

• Tracks: rubber

• Track tension: grease cylinder

• Track width: 180 mm

• Ground contact length: 1,220 mm

• Ground clearance: 90 mm

Dimensions

• Length: 2,850 mm

• Width: 940 mm

• Height: 2,200 mm

• Minimum rear swing radius: 810 mm

Working range

• Maximum digging height: 2,600 mm

• Maximum dumping height: 1,750 mm

• Maximum digging depth: 1,750 mm

• Maximum reach: 3,250 mm

• Dozer blade lift height: 100 mm

• Dozer blade cutting depth: 170 mm




Documents and maintenance

CE marking: The machine is CE marked and meets the requirements of the EU Machinery Directive.

Operating instructions: The manufacturer’s general operating and maintenance manual is included in paper or PDF format.

Maintenance: The machine has a simple design. Regular maintenance consists of checking oils, fuel and lubrication points, as well as changing the oil.

Spare parts: Engine spare parts and wear parts (tracks, hoses, pins, etc.) are common and available from several Finnish spare-parts suppliers.

Frequently asked questions

Will the machine fit on a small plot?
Yes. The machine is 940 mm wide, so it fits through most gates and narrow gaps. It can still dig foundations, drainage ditches and carry out yard work.

What type of controls does the machine have?
The machine has ergonomically designed mechanical joystick controls. It does not have hydraulic pilot controls.

Is the thumb hydraulic?
No, the machine has a mechanical thumb. It is suitable for gripping stones, stumps and branches.

Can a first-time user operate it?
Yes. The machine is small and compact and the controls are clear, so it can be learned quickly.

Is the machine used?
The machine is new. It has only been tested indoors and moved from the port to our warehouse.

Does the machine have damage?
The machine is new and works, but transport in a sea container can cause cosmetic damage such as scratches and paint chips. This does not affect operation and can be repaired by repainting.

Who provides the warranty?
The warranty is provided by the manufacturer and is valid for 12 months from the delivery date.

What surfaces are the rubber tracks suitable for?
Paving, asphalt, concrete and tiles. They leave fewer marks than steel tracks.

What about maintenance and spare parts?
Basic spare parts and service supplies are available in Finland.

Is buying better value than hiring?
Owning a machine is often cheaper than hiring one.

When will the machine be delivered?
The machine will be delivered within 3–5 working days after payment has cleared on Huutokaupat.com. The delivery address can be other than your home address, such as a holiday home or rural property. Tell us if access to the site is restricted.

Can I drive the machine immediately?
The machine is supplied with engine oil and hydraulic oil. Check the oil levels and fuel before starting.

Will I receive a manual?
Operating instructions are supplied with the machine in paper or PDF format; you can request the electronic version from us.

Are accessories available?
Tell us what work you need the machine for and what accessories you need, and we will see what we can do.
