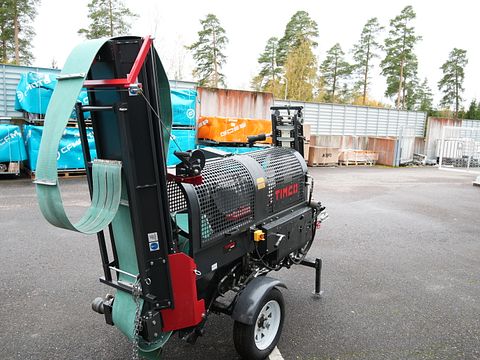

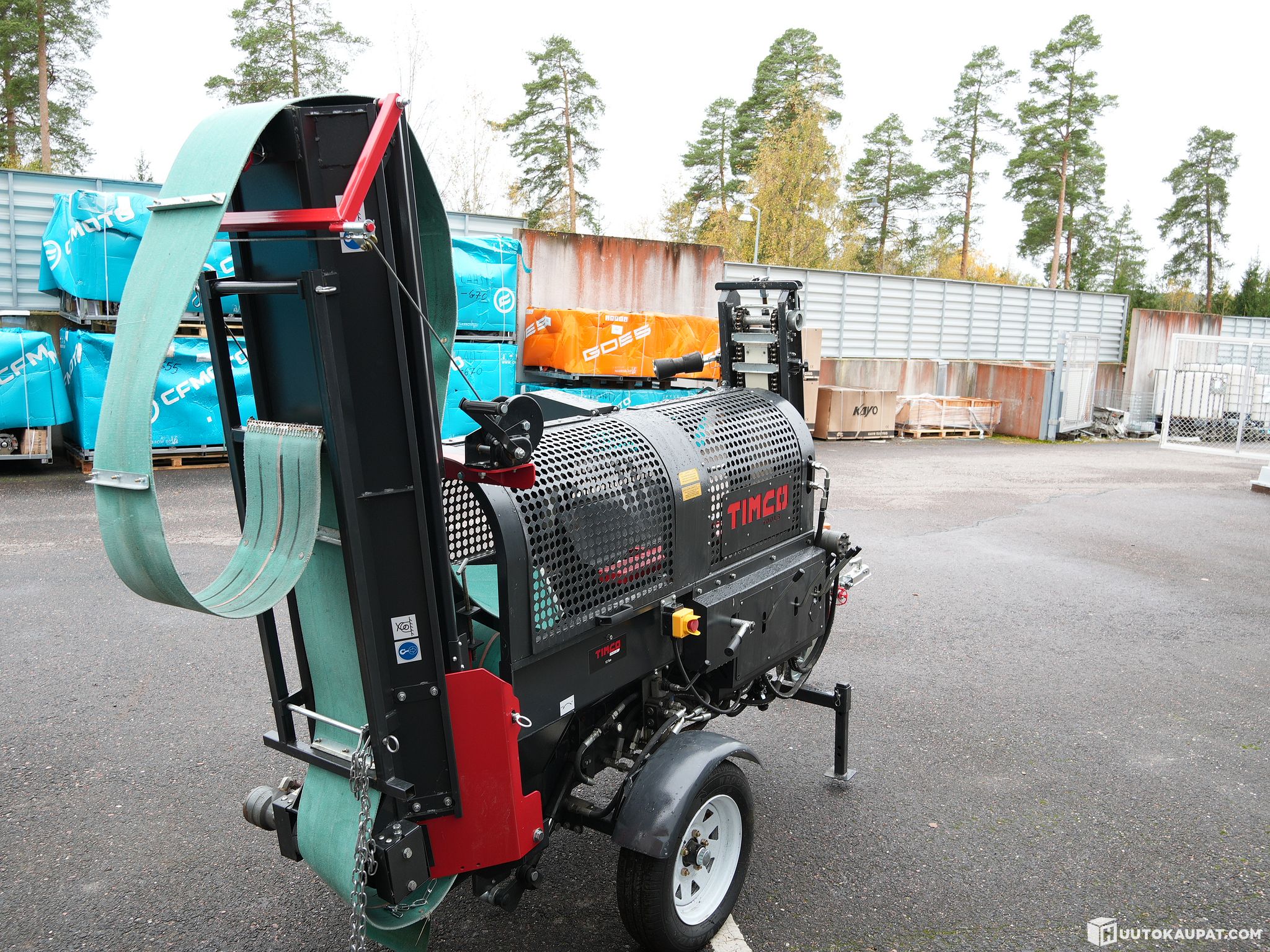

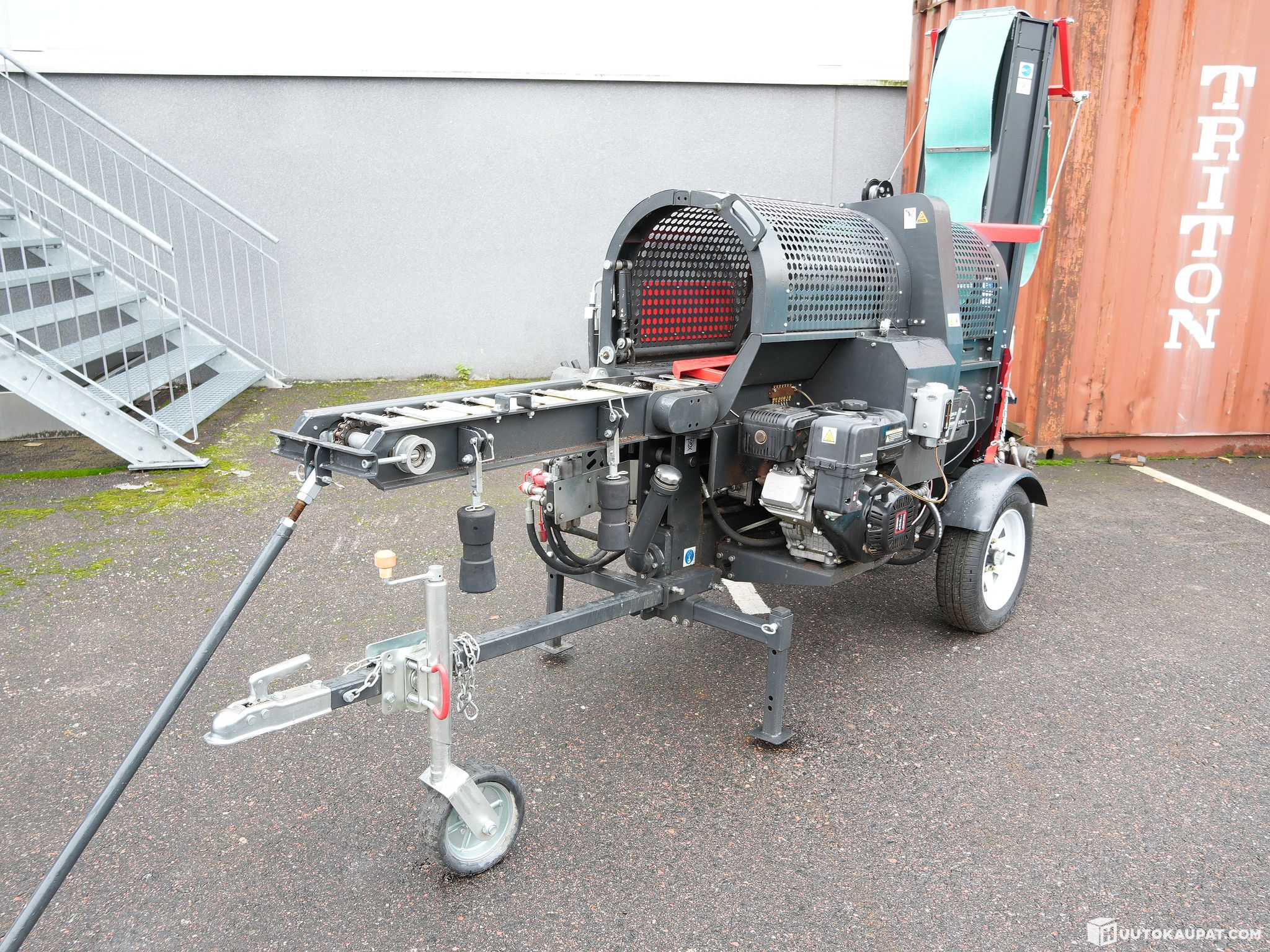

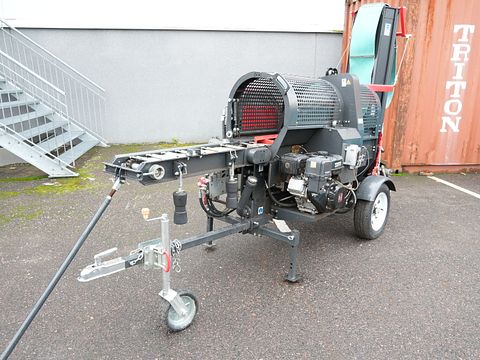

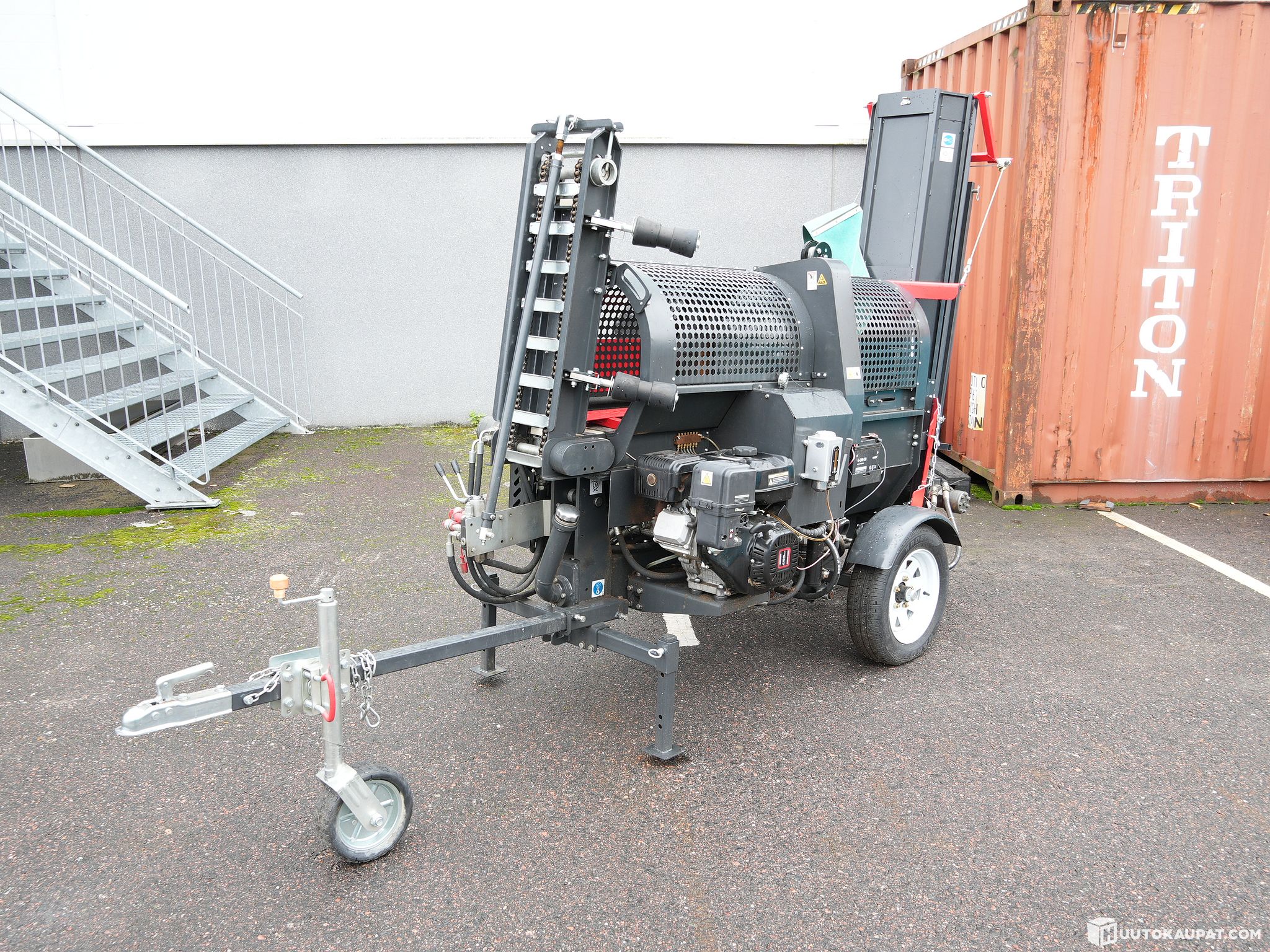

Timco 12TA log splitter with belt conveyor, Lahti

Timco 12TA log splitter for repair / spare parts.

The drive engine runs and turns; otherwise, the machine has more or less problems. At least the hydraulic hose connections

leak, and a gear has come off the conveyor, etc. It may be possible to make the machine operational by rebuilding it.

NOTE! The machine weighs approximately 900 kg. Delivery method: collection only.




The Timco 12T log splitter with automatic sawing and belt conveyor performs four separate operations in one package. It conveys, cuts, splits and transfers logs directly into a bag or storage area.

An 18-inch automatic cross-cut saw with levers, a 3.2 m long extra-wide 250 mm belt conveyor, a 12T splitting cylinder and a 90 cm hydraulic conveyor ensure professional and efficient operation. The standard equipment also includes easy hydraulic height adjustment for the cross-splitter for logs of different sizes.

The machine can be conveniently moved from place to place using a vehicle equipped with a tow bar, thanks to the tyres and 50 mm ball coupling. Not road-registered; towing is permitted only in enclosed areas and off-road.

Technical specifications:

• Shipping weight: 900 kg

• Overall assembled length: 6.5 m

• Wheelbase: 1,180 mm

• Tyre size: 12”

• Engine: Loncin G460F 16.5 HP four-stroke

• Engine oil: 10W-30 (not included)

• Hydraulic oil tank capacity: 22 litres

• Oil type: 32S hydraulic oil (not included)

• Cross-cut saw: automatic 18”

• Chain oil tank: supplied from the hydraulics, infinitely adjustable

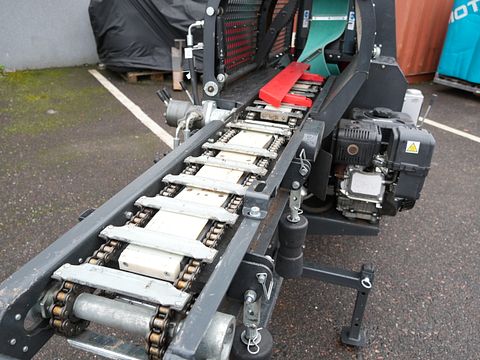

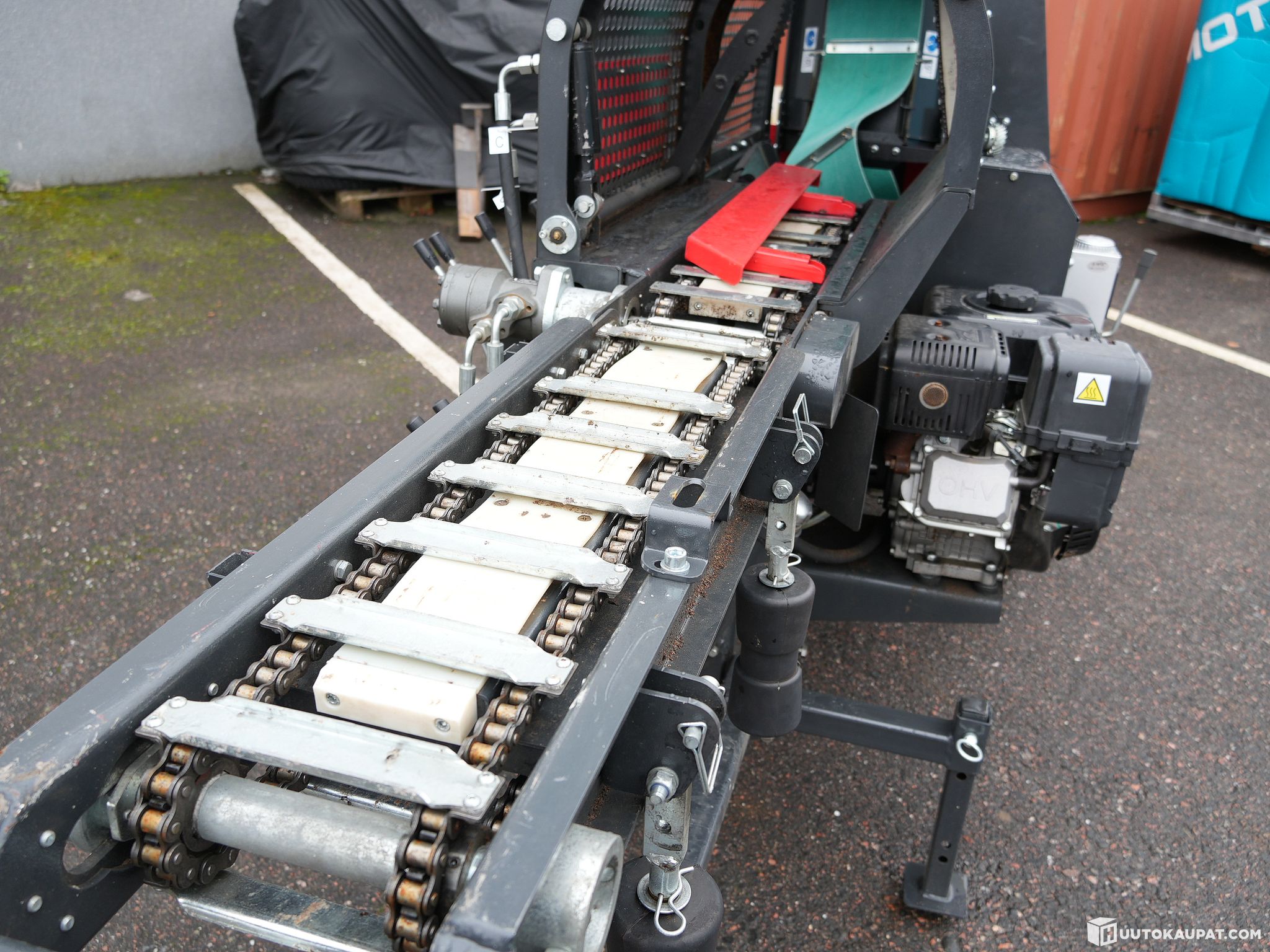

• Feed table: 900 mm, hydraulic

• Splitting blade: standard 4-in-1 cross-splitting blade

• Splitting blade height adjustment: hydraulic, infinitely adjustable

• Splitting speed: 5 s

• Log length for splitting: 25–55 cm

• Maximum wood diameter for splitting: ø 38 cm

• Splitting force: 12 tonnes

• Belt conveyor: length 3.2 m, width 250 mm
