Lillevilla Kulovesi Garden Sauna, Grade 2, Seinäjoki

Traditional garden sauna!

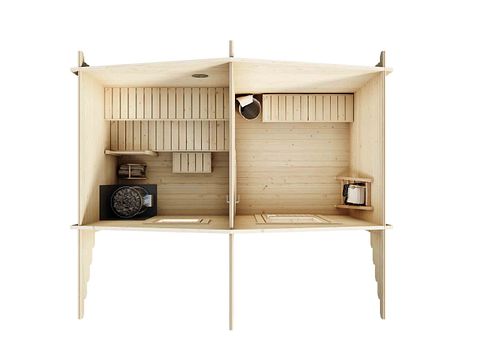

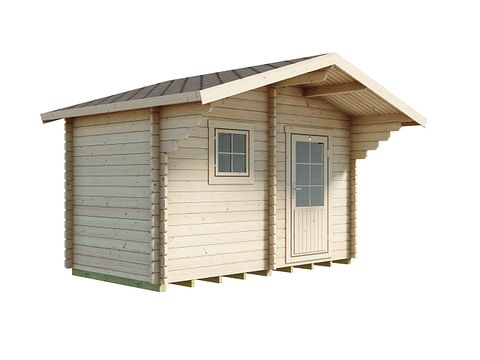

The Lillevilla Sauna Kulovesi model has a separate changing room and sauna room. The floor area of this model is 7.6 square metres. The sauna is 3.8 metres wide and 2.0 metres deep. The ridge height of this model is 2.9 metres, and the wall thickness is 44 mm.

Delivery contents

In addition to the logs, door and window, and floor and roof boards, the product package includes fittings, nails and screws. Threaded rods to be installed in the corners are also included in the delivery. The floor boards are 21 mm thick.

Roofing material is not included in the delivery. We do not recommend tile roofing. The roofing material must be installed immediately after the building has been erected.

Note! The sauna stove, flue and benches are not included in the delivery.

The cabin components have been machine-worked at the factory. However, this is a construction project, so have common tools available for assembly, such as a tape measure, spirit level, hammer, saw, screwdriver and drill.

Surface treatment

The building must be surface-treated without delay immediately after erection, when the weather and conditions permit. Breathable surface treatment products intended for log surfaces must be used. Paint that forms a non-breathable plastic film must not be used.

The reason for the Grade 2 classification is that the product has suffered moisture damage.

Floor area (m²)

7.6

Floor dimensions (mm x mm)

3800 x 2000

Wall thickness (mm)

44

Ridge height (mm)

2915

Side wall height (mm)

2225

Roof area (m²)

15

Roof size (mm x mm)

4450 x 3340

Door

Insulating safety glass CE 4/6/4 mm, Type C (897 × 1820), safety glass, CE 4 mm, Type O3 (648 × 1772)

Window

Insulating safety glass CE 4/6/4 mm, Type A (640 × 640)

Floor board

21 mm

Roof board

16 mm

Package dimensions (mm) and weight

4600 x 850 x 1150 / 1325 kg
