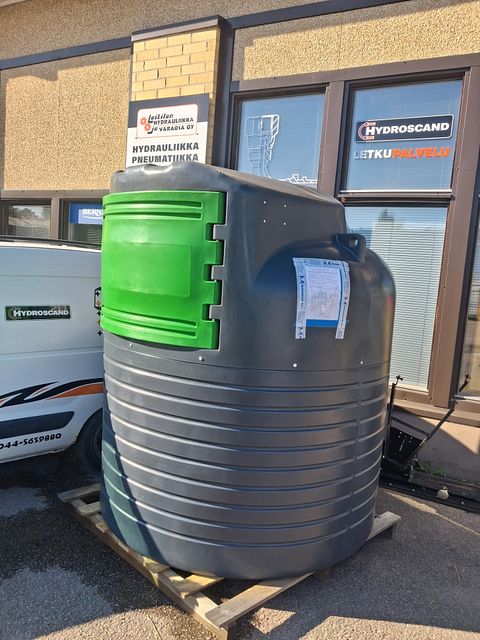

Fortis ECO Fuel Filling Station 230 V, 2,500 L Double-walled 230 V fuel filling station for heating oil or diesel., Laitila

Fortis ECO Fuel Filling Station 230 V, 2,500 L

Double-walled 230 V fuel filling station for heating oil or diesel. Also suitable as-is for outdoor installation in groundwater areas, UV-protected structure. Manufactured in accordance with EN13341-1, CE marked.

PE inner and outer tank: Corrosion-free, fully double-skin / tank with 110% bund capacity.
The plastic tank does not condense water like steel tanks, nothing leaches from the tank, resulting in cleaner oil.
The outer protective bund effectively protects the inner tank from mechanical wear and is UV-protected.
The manufacturer's 10-year leak-tightness warranty and 2-year warranty on the equipment provide peace of mind.
The tank can be installed without a roof or concrete slab; a gravel bed is a sufficient base (you can confirm this with the local environmental authority).

The tank has lifting lugs/holes and can be lifted and moved easily from one site to another if needed, always when empty.
The largest technical compartment door on the market, making access to the equipment easy and effortless.

Standard equipment

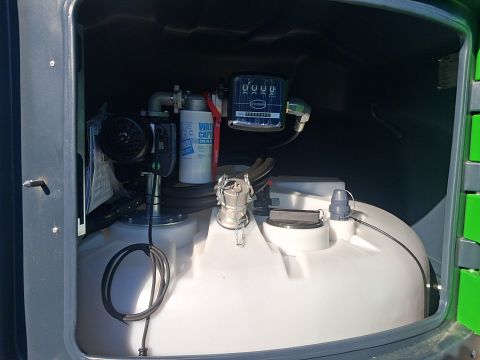

• The tanks come as standard with a 6 m refuelling hose DN19 (3/4″), A60 automatic nozzle, anti-siphon device, water-separating WaterCaptor fuel filter (metal housing) or, as an option, a ClearCaptor filter with water drain plug (incl. 1 replacement cartridge); the hose is connected to the pump with Piusi’s rotating/folding swivel fitting, which protects the hose and makes use comfortable.

• Includes connection for dryer/oil burner, incl. suction hose and shut-off valve (flow & return connection)

• There are 2 flow meter options: mechanical RENSON or digital PIUSI K24

• Pointer-type wire gauge for fuel level (2,500 L) and remotely monitored Watchman Sonic interstitial leak alarm (5,000 L)

• Inspection hatch approx. 120 mm (2,500 L) or 400 mm (5,000 L) on top of the inner tank

• Includes a padlock for the cabinet door, but you can easily replace it with your own keyed-alike lock

• A hose reel can be fitted later by yourself; it is installed on the rear of the tank and only requires lifting off the top protective cover

• Camlock tanker connection 2″ and overfill prevention device fitted as standard in all models

• Capacity: 2,500 l

• Dimensions: 180 x 180 x 209 cm

• Weight: 160 kg

Double-walled 230 V fuel filling station for heating oil or diesel. Also suitable as-is for outdoor installation in groundwater areas, UV-protected structure. Manufactured in accordance with EN13341-1, CE marked.

PE inner and outer tank: Corrosion-free, fully double-skin / tank with 110% bund capacity.
The plastic tank does not condense water like steel tanks, nothing leaches from the tank, resulting in cleaner oil.
The outer protective bund effectively protects the inner tank from mechanical wear and is UV-protected.
The manufacturer's 10-year leak-tightness warranty and 2-year warranty on the equipment provide peace of mind.
The tank can be installed without a roof or concrete slab; a gravel bed is a sufficient base (you can confirm this with the local environmental authority).

The tank has lifting lugs/holes and can be lifted and moved easily from one site to another if needed, always when empty.
The largest technical compartment door on the market, making access to the equipment easy and effortless.

Standard equipment

• The tanks come as standard with a 6 m refuelling hose DN19 (3/4″), A60 automatic nozzle, anti-siphon device, water-separating WaterCaptor fuel filter (metal housing) or, as an option, a ClearCaptor filter with water drain plug (incl. 1 replacement cartridge); the hose is connected to the pump with Piusi’s rotating/folding swivel fitting, which protects the hose and makes use comfortable.

• Includes connection for dryer/oil burner, incl. suction hose and shut-off valve (flow & return connection)

• There are 2 flow meter options: mechanical RENSON or digital PIUSI K24

• Pointer-type wire gauge for fuel level (2,500 L) and remotely monitored Watchman Sonic interstitial leak alarm (5,000 L)

• Inspection hatch approx. 120 mm (2,500 L) or 400 mm (5,000 L) on top of the inner tank

• Includes a padlock for the cabinet door, but you can easily replace it with your own keyed-alike lock

• A hose reel can be fitted later by yourself; it is installed on the rear of the tank and only requires lifting off the top protective cover

• Camlock tanker connection 2″ and overfill prevention device fitted as standard in all models

• Capacity: 2,500 l

• Dimensions: 180 x 180 x 209 cm

• Weight: 160 kg

• Free delivery within a 100 km radius and elsewhere by agreement; if needed, we can also remove your old tank.
