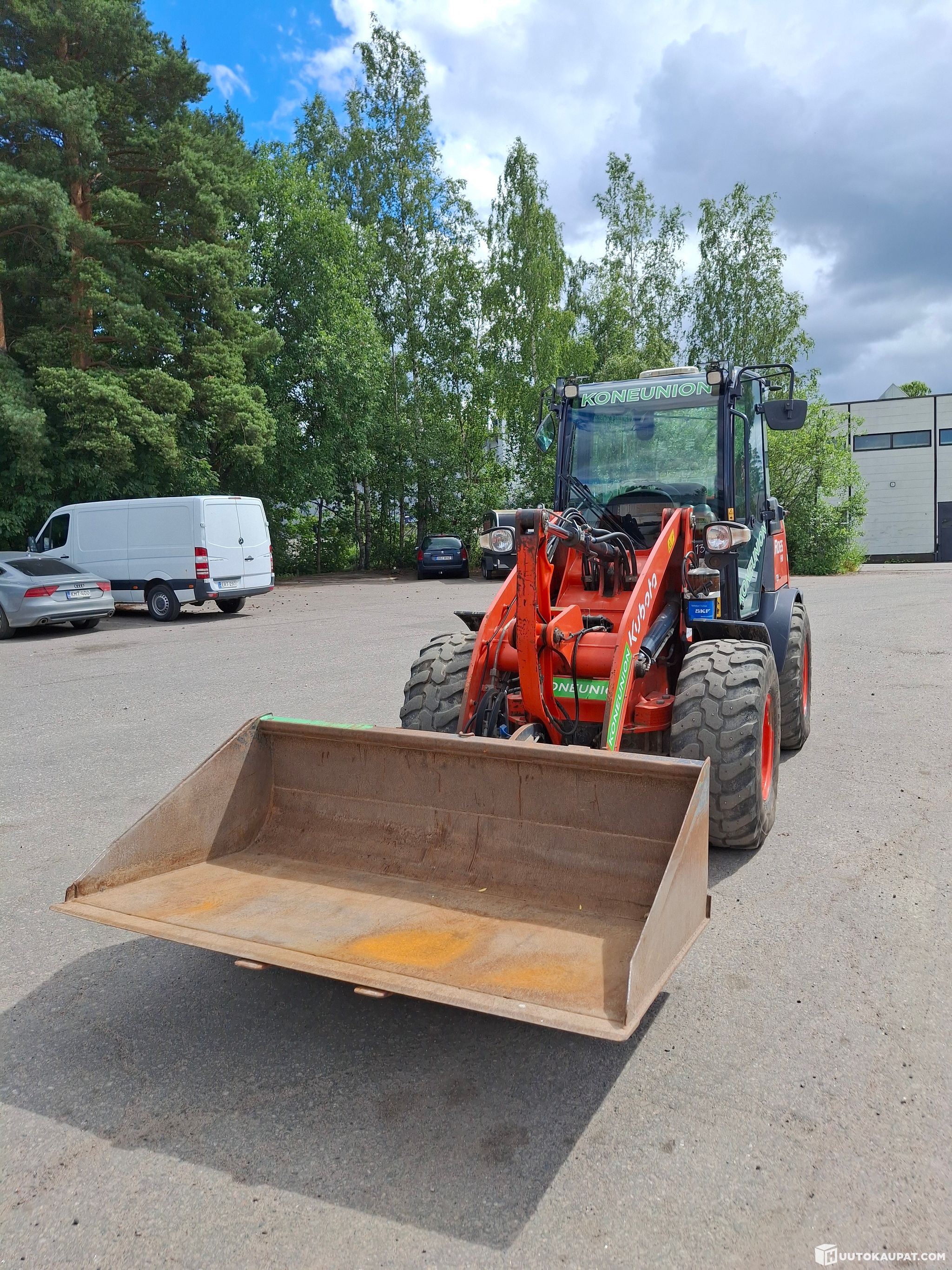

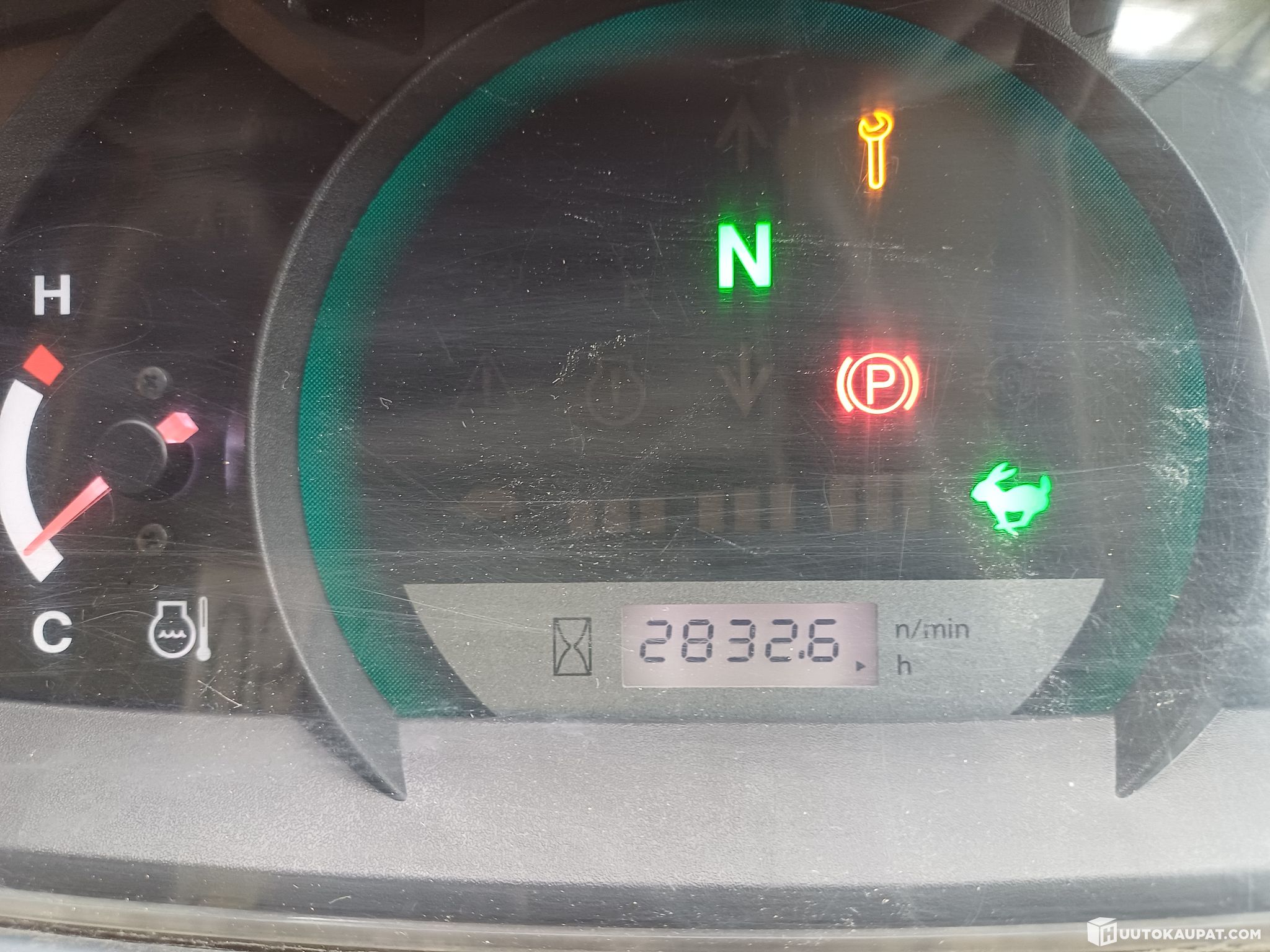

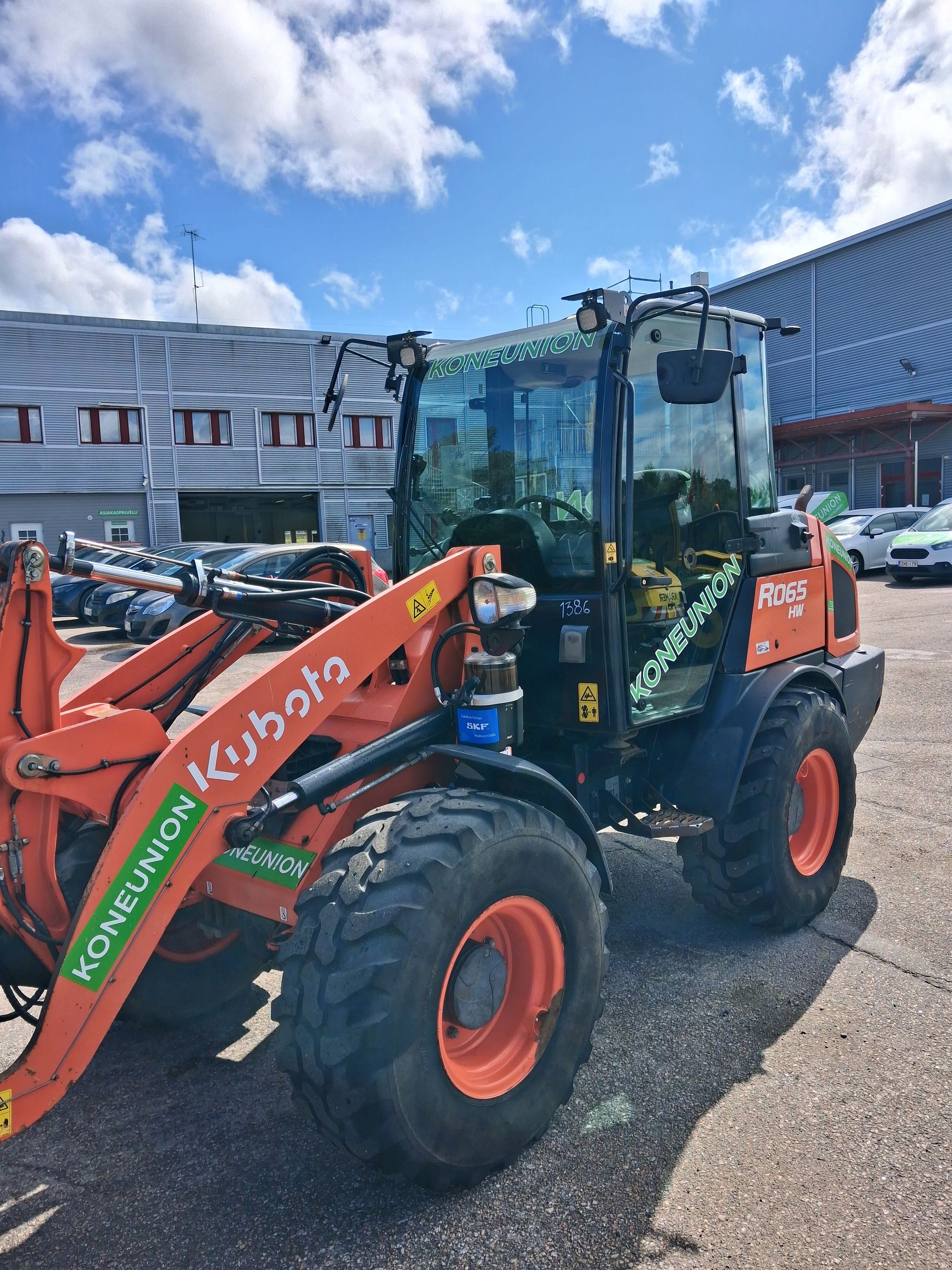

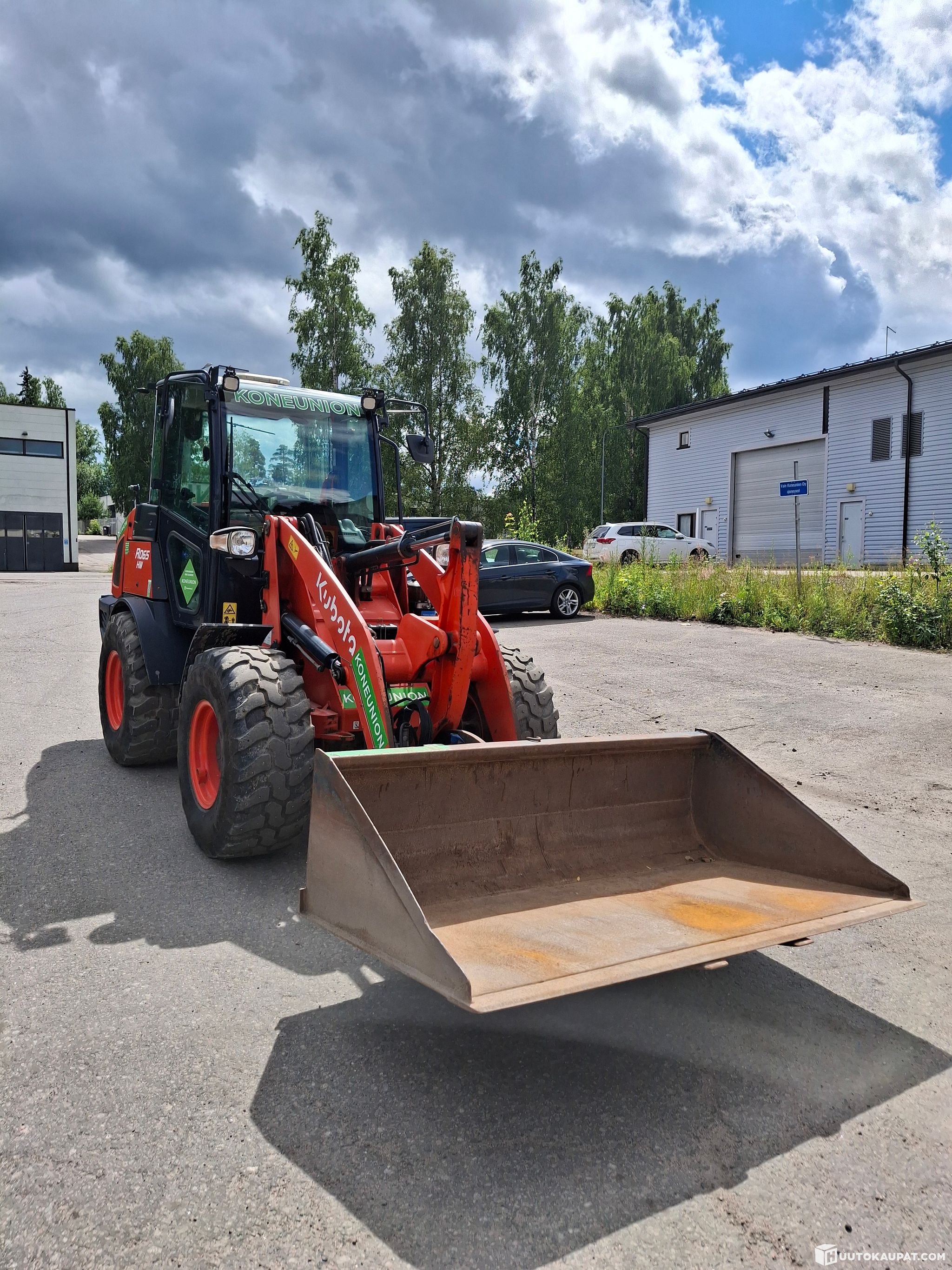

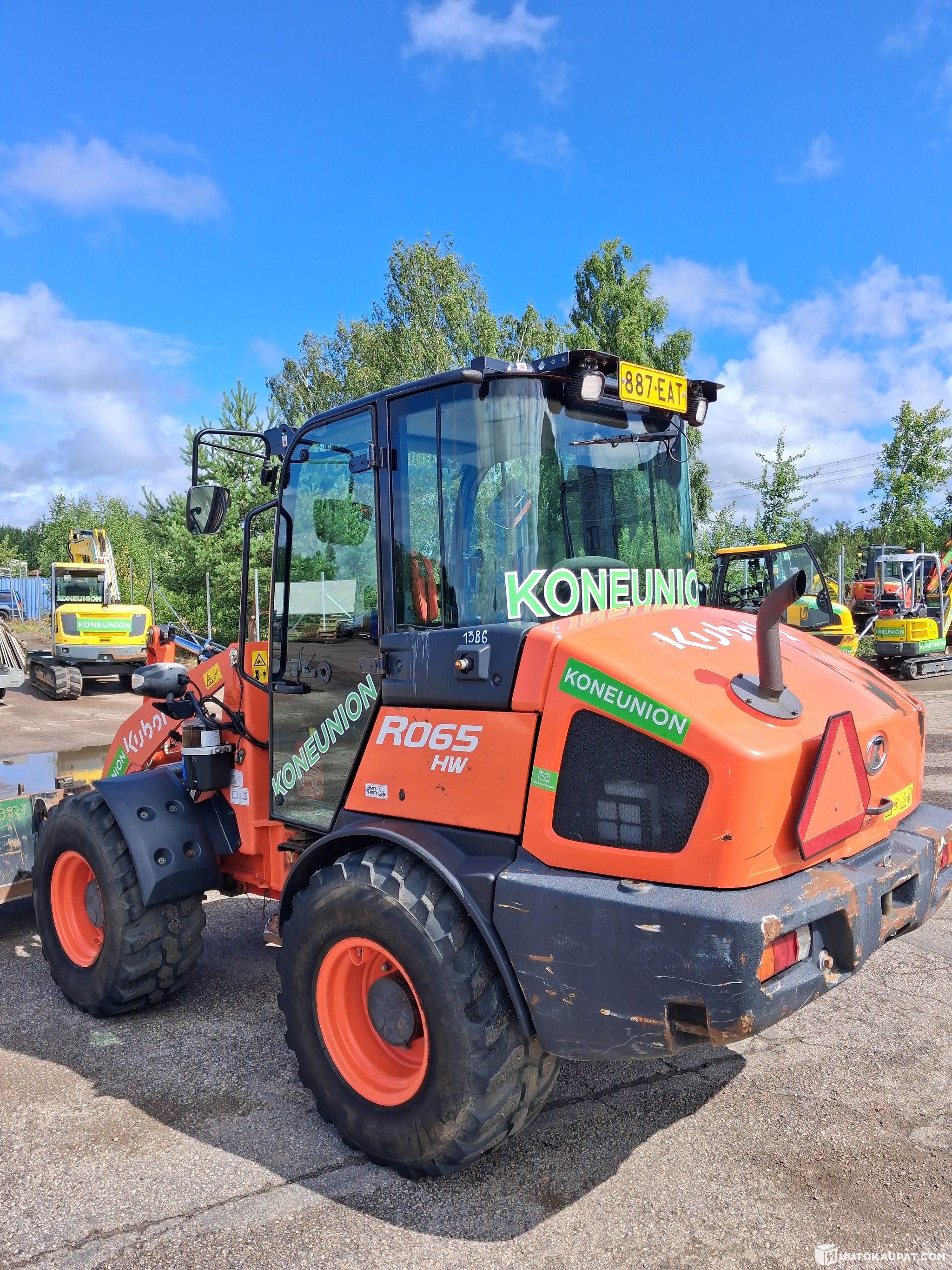

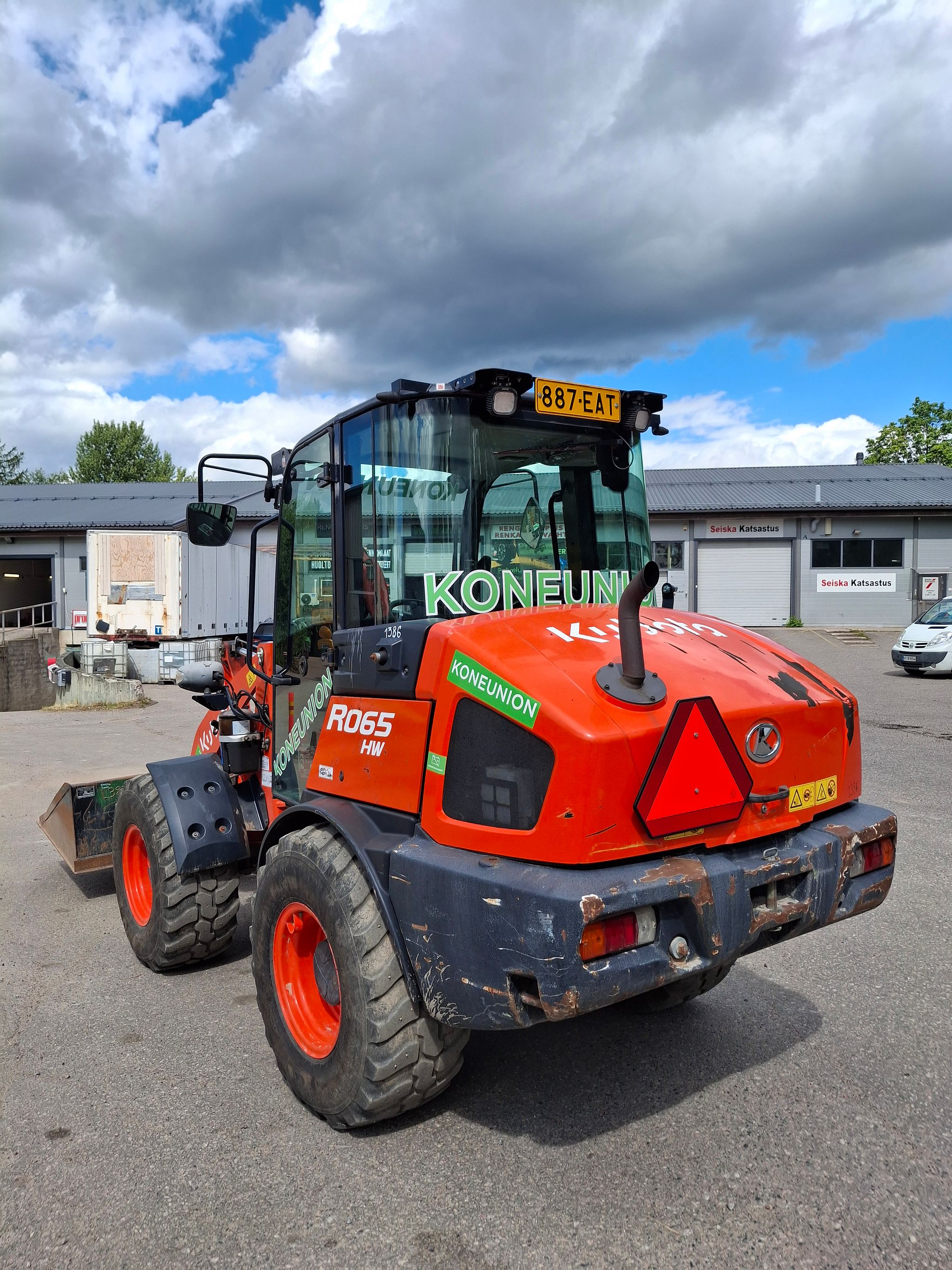

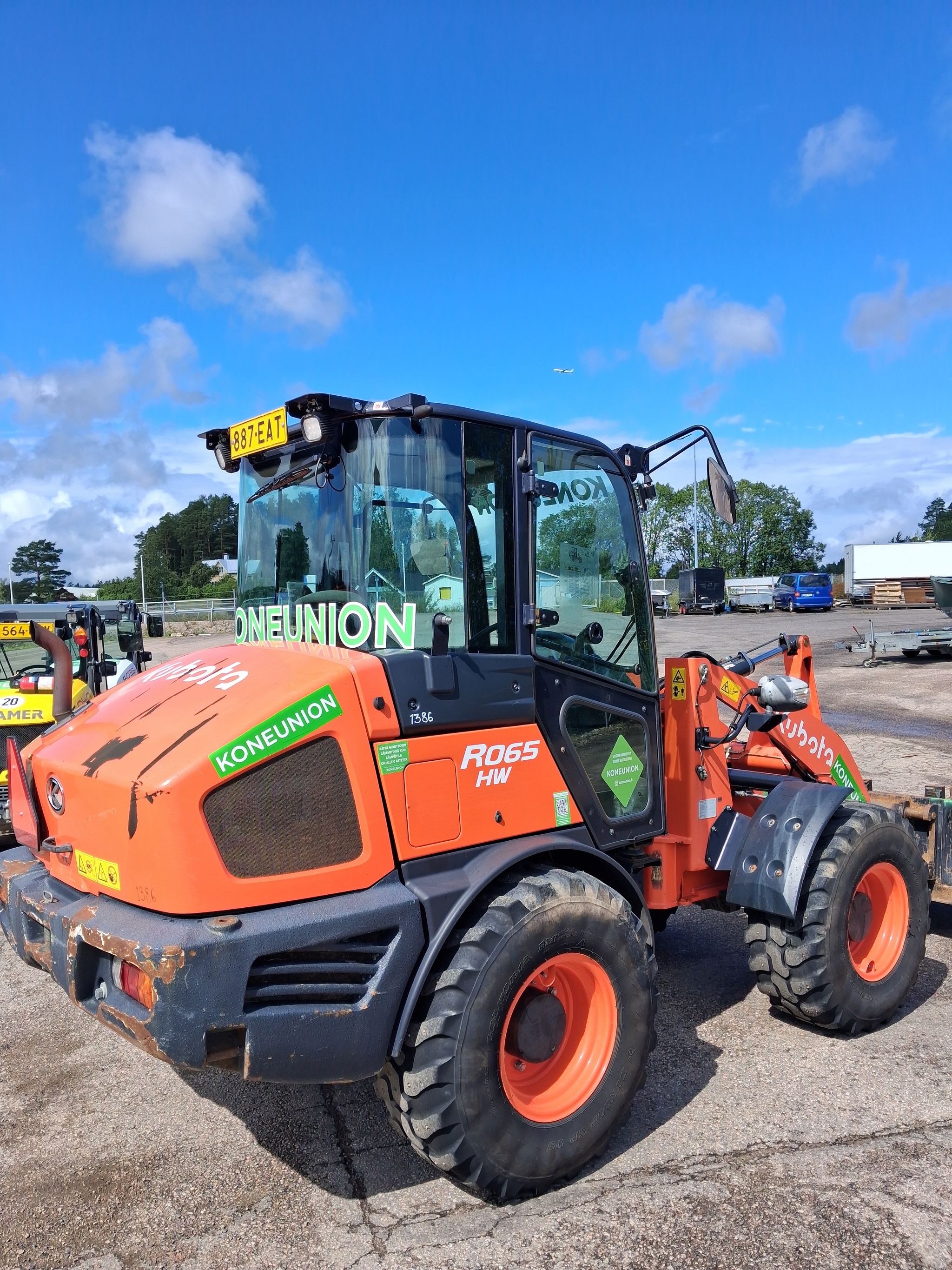

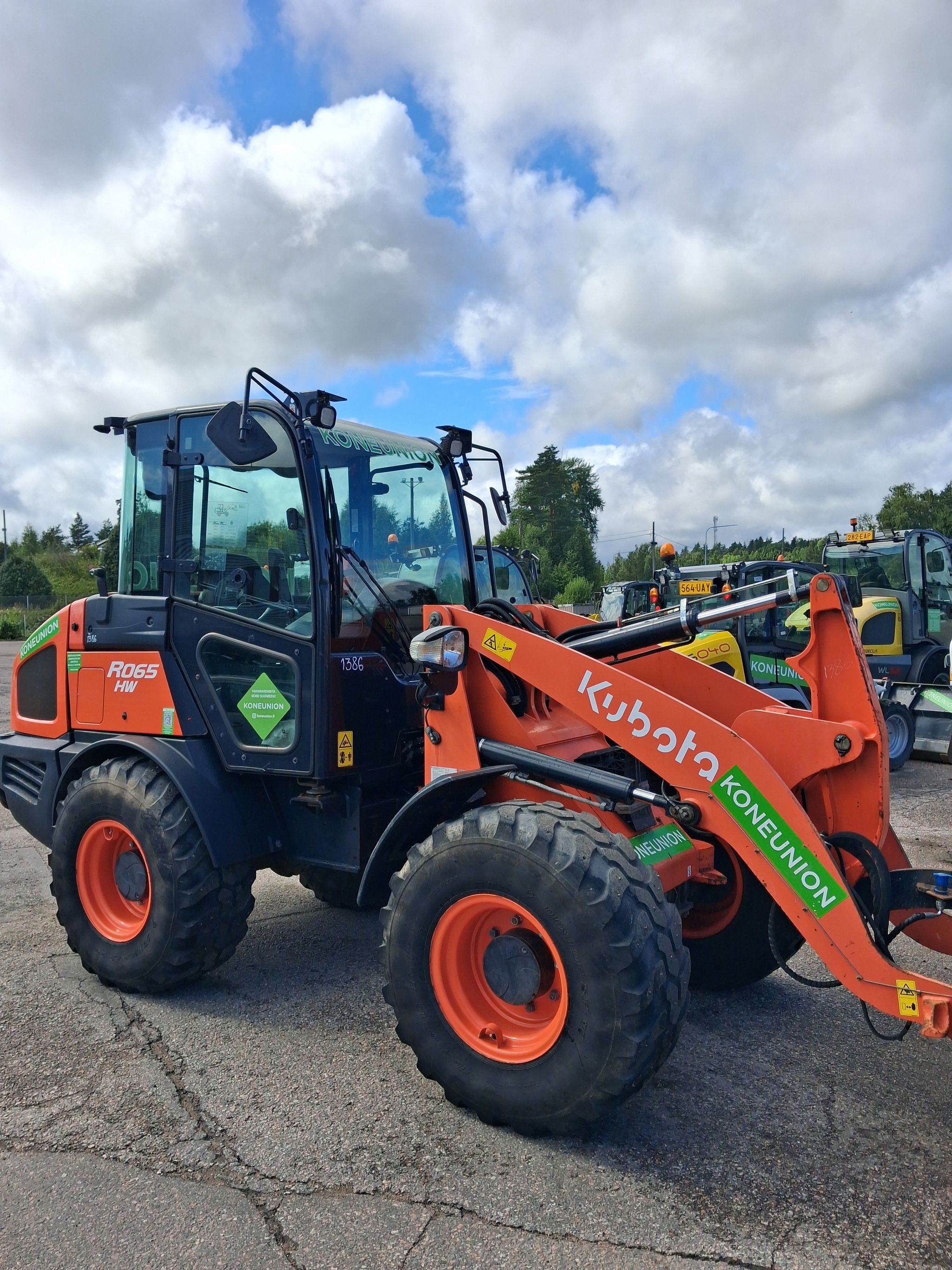

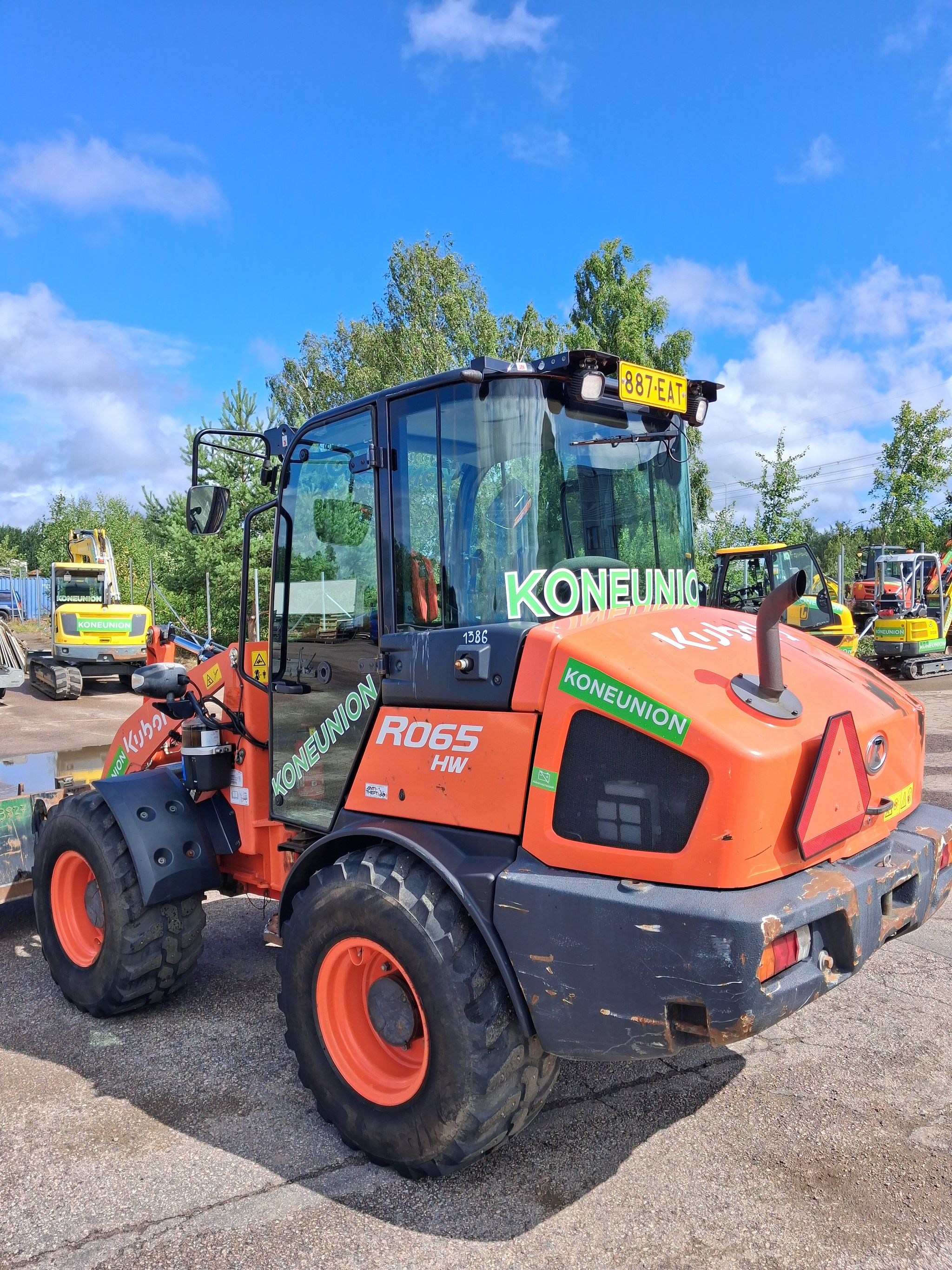

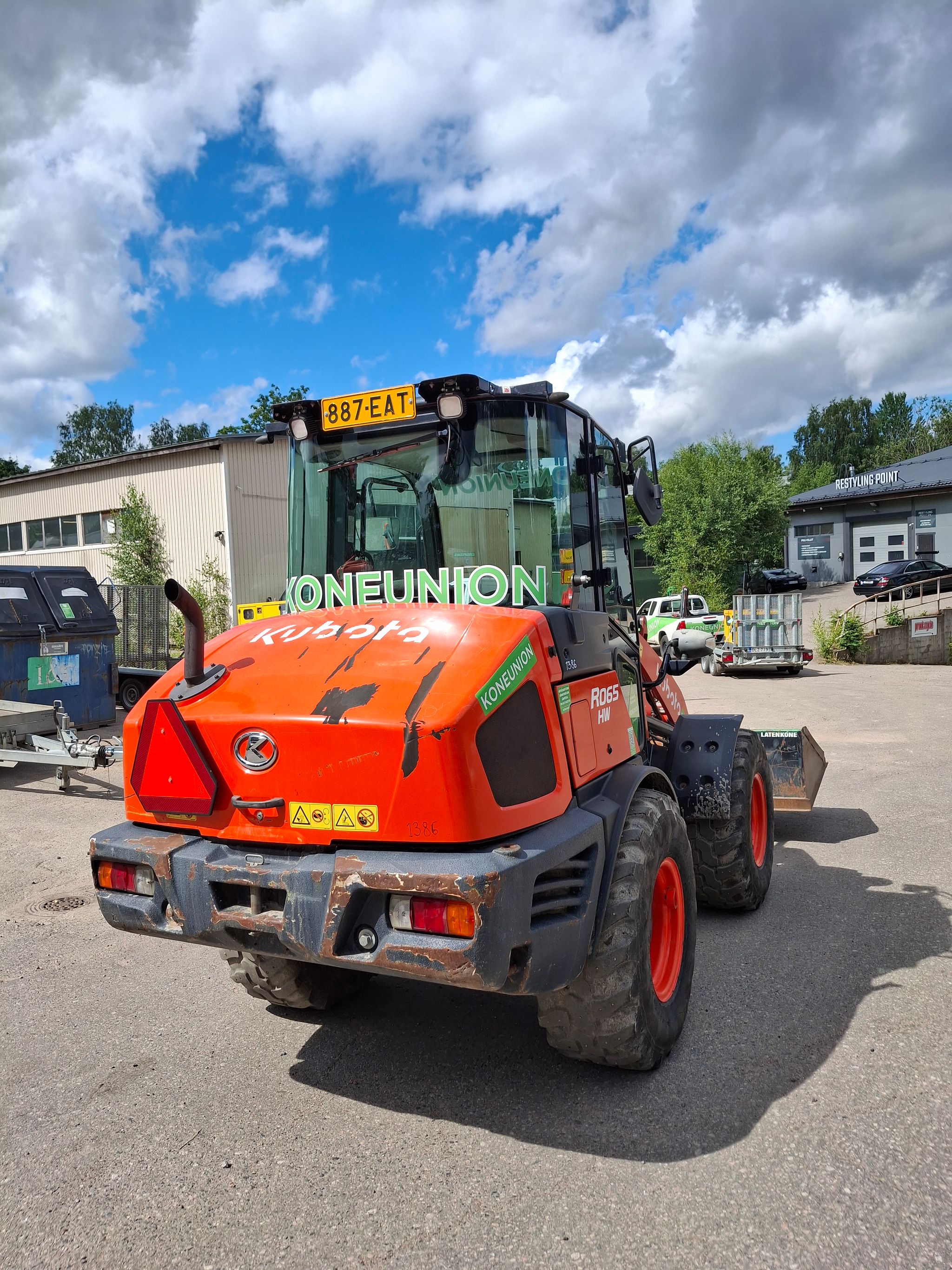

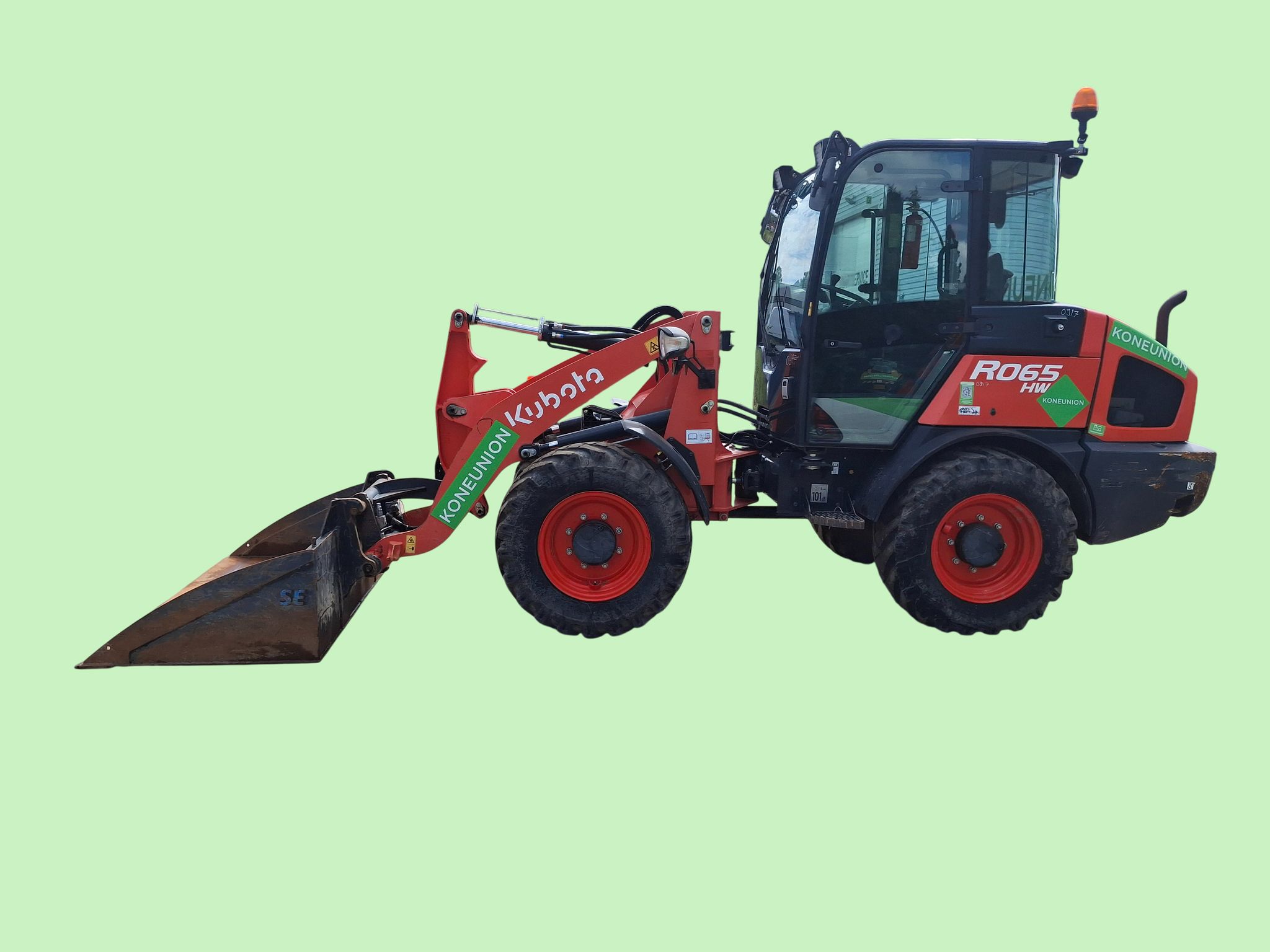

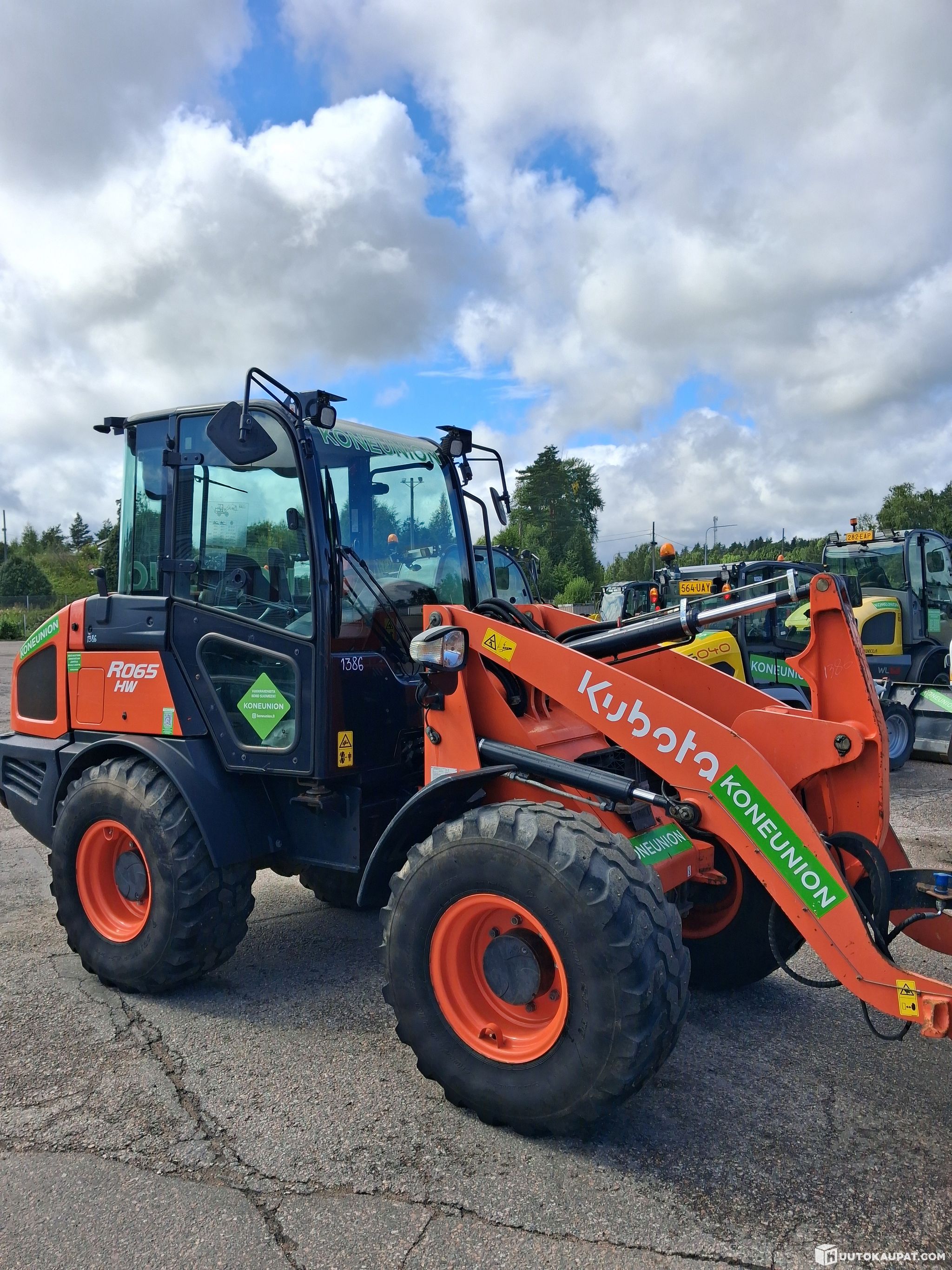

Wheel loader Kubota R065 HW | 2019 | 2,900 h | Winter work26, Espoo

Clean Kubota R065 HW!

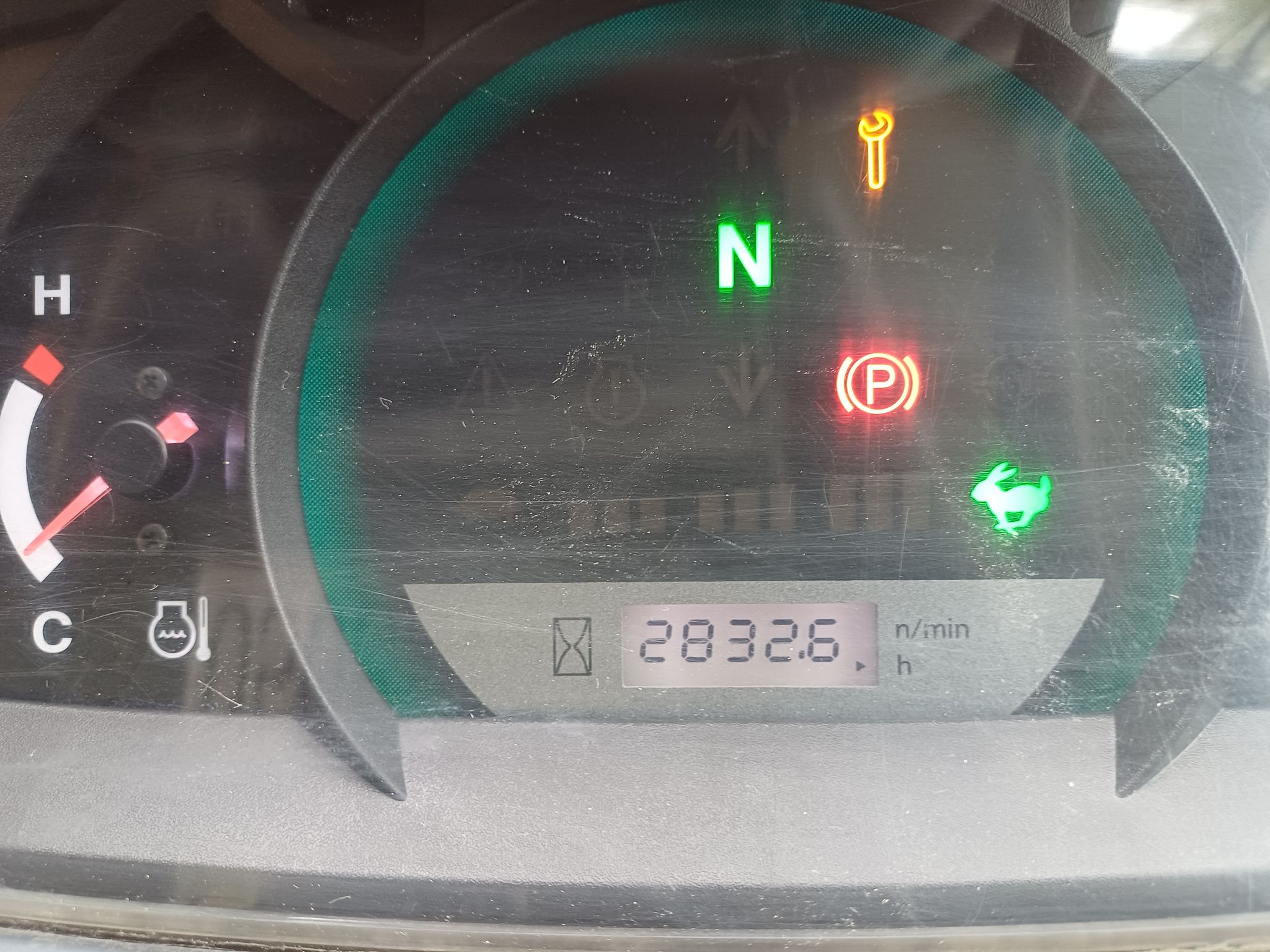

2019 | 2,900 h | Volvo L30 attachment | Grease system | Auxiliary hydraulics | Studded tyres |


Engine and emissions

• Make and model: Kubota V2607-DI-E3 (or V2607-Di-E3 / V2607-DI-E3-WL), water-cooled, 4-cylinder, direct injection, no turbo.

• Power: 34.8 kW / 47.3 PS (ISO 9249) @ 2400 r/min (gross power SAE J1995 approx. 36.5 kW / 48.9 hp).

• Displacement: 2,615 cm³.

• Emission class: Stage IIIA / Tier 3a (no DPF, no AdBlue/SCR)

• Fuel: Diesel / heating oil.

• Fuel tank: 70 litres.

Dimensions and weight (standard bucket + 12.5-18 tyres)

• Length: 5,195 mm (close to user’s 5,159 mm).

• Width: 1,680 mm (outside tyres) / bucket width 1,750 mm.

• Height: 2,480 mm (cab)

• Wheelbase: 1,950 mm.

• Ground clearance: 330 mm.

• Operating weight: 4,675 kg

• Turning radius (outside): 3,385 mm.

Performance

• Bucket capacity: 0.65 m³ (standard), options 0.60–0.68 m³.

• Lifting force / breakout force: 41.8 kN.

• Tipping load: straight approx. 2,880–3,450 kg (cab/canopy), at full turn approx. 2,240–2,340 kg (ISO 14397-1).

• Lift height (pivot pin): 3,230 mm.

• Loading/dumping height: approx. 2,605 mm

• Speed: 0–30 km/h (two-stage hydrostatic, forward and reverse).

• Tractive force: approx. 29.1 kN.

• Hydraulics: max flow 53.8 l/min, pressure 18.6 MPa (190 bar). Auxiliary hydraulics: 1 pc

Drivetrain and chassis

• Hydrostatic transmission, 4WD.

• 100% differential lock on request (front + rear).

• Standard tyres: 12.5-18.

• Steering: articulated steering (KL).

Oils and fluids

• Engine oil: approx. 9 litres

• Hydraulic oil: ISO VG 46, tank 39 l / total system approx. 55 l.

• Axle oils: 80W-90 LS (Limited Slip), front/rear approx. 4–4.5 l per axle.




Equipment

• Bucket lock: hydraulic (hydraulic quick coupler standard).

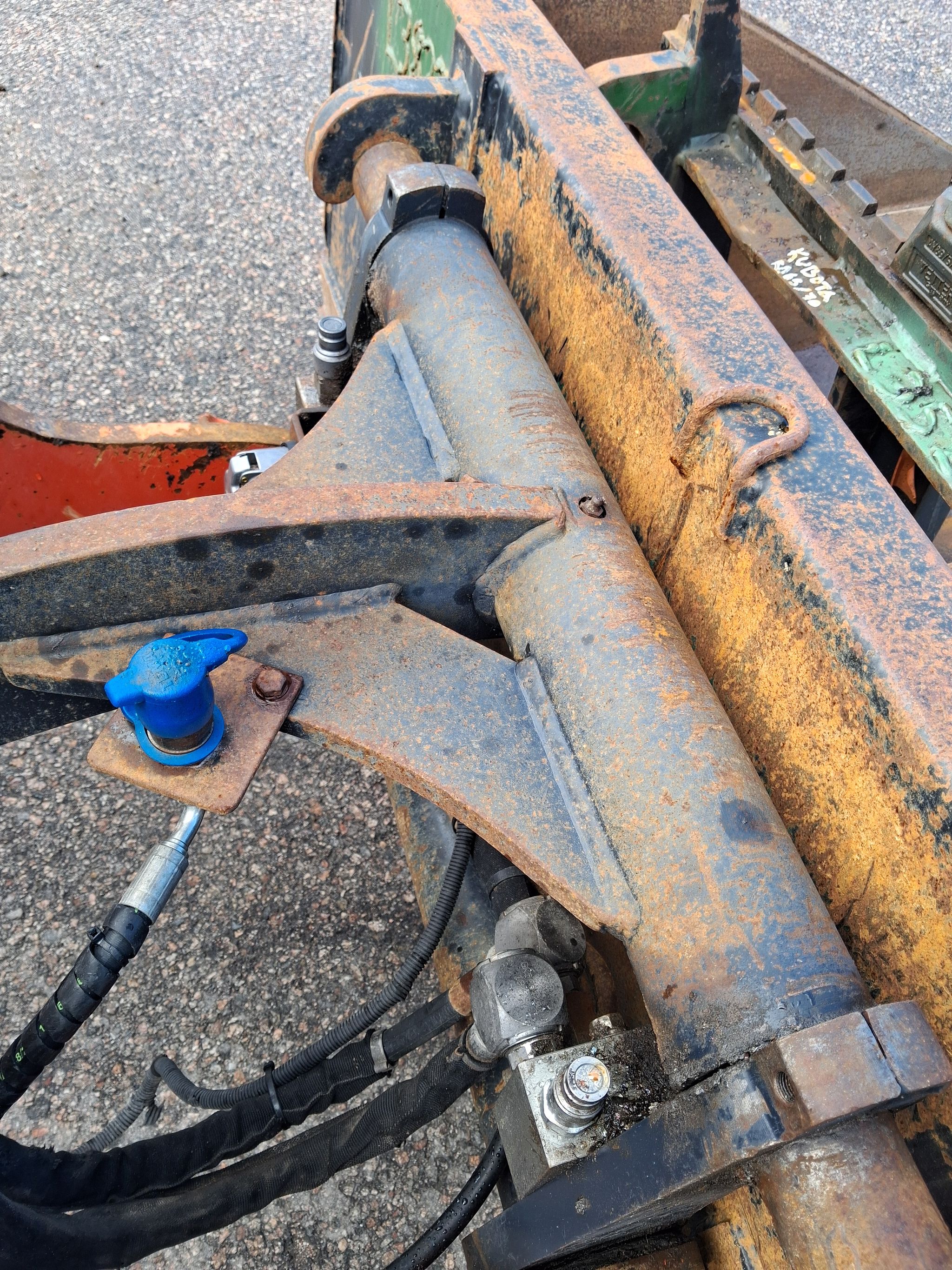

• Attachment: Volvo L30

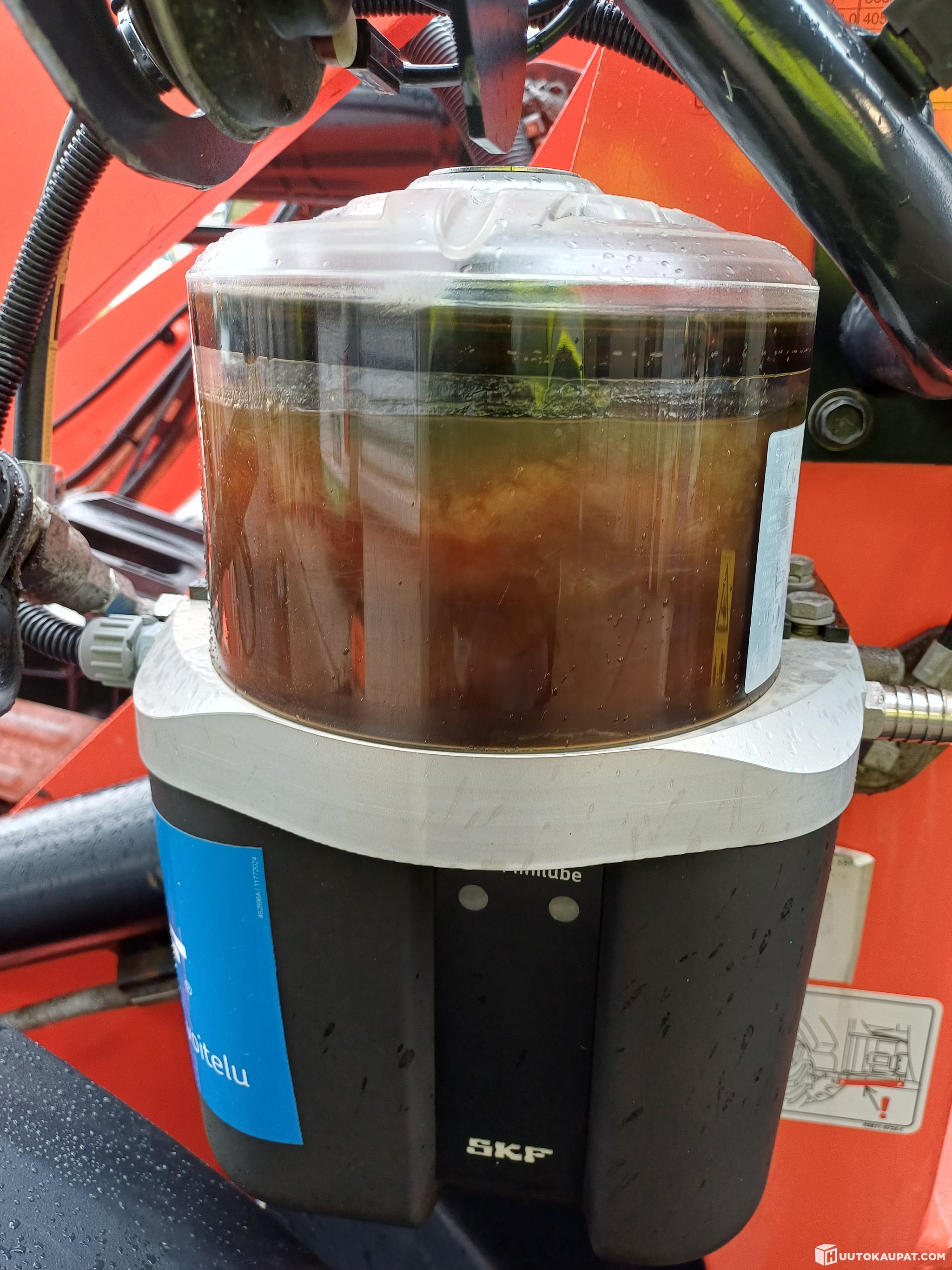

• Central greasing: Yes.

• AdBlue: No.

• Boom type: ZX (Z-bar).
