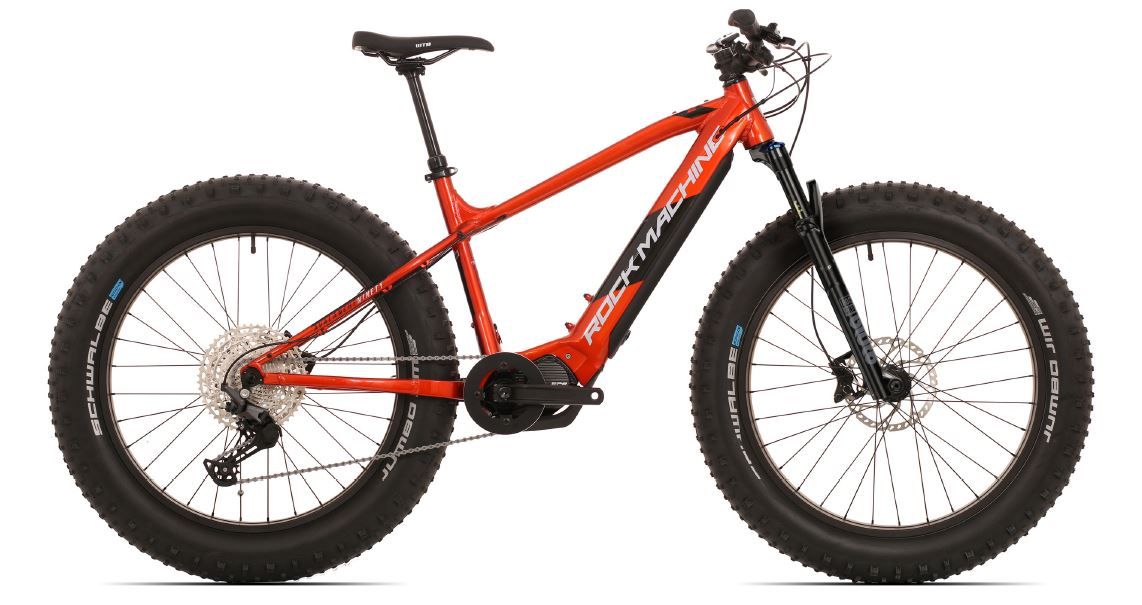

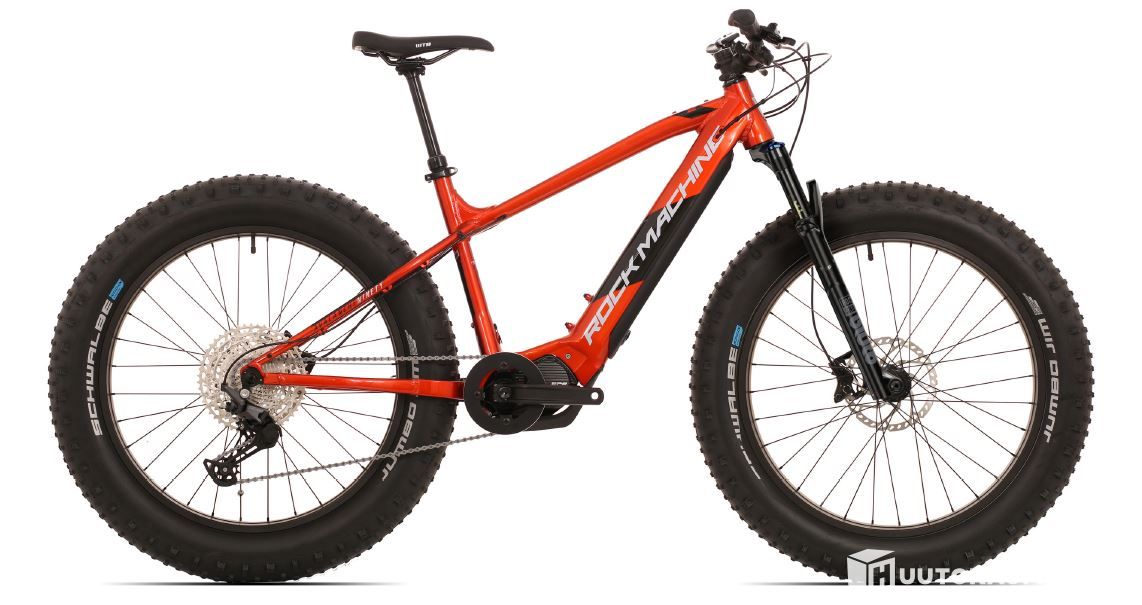

ROCK MACHINE VYÖRY E90 e-fat bike FRAME SIZE: 19.0" (L) 2023/2024 model, Pietarsaari

ROCK MACHINE VYÖRY E90 ORANGE  (Demo bike, ridden 45 km)

Rock Machine Vyöry E90 - the flagship model of electric fat bikes! Thanks to the modern Fat Fun frame geometry, it is an incredibly capable and fun bike. The Vyöry has a high-quality hydroformed frame that withstands greater loads and rolls easily everywhere - on trails, rocky terrain or snow.

Designed for off-road adventures with Shimano EP6 technology, this is an incredibly fun and versatile bike. The powerful motor with 85 Nm torque makes hills feel small, and the large fully integrated 504Wh battery is also suitable for longer rides. Darfon battery integration keeps the centre of gravity as low as possible. Fast charging for the next ride with the 4A Smart Plus charger.

Designed for more demanding mountain biking, the Microshift Advent 1x10 drivetrain with Xpress shifters shifts quickly and precisely even in the toughest conditions. Hydraulic disc brakes stop the bike effectively even in tight situations. The suspension fork smooths out the ride on rough terrain, and a dropper post is included as standard!

High-quality tubeless-ready rims are a perfect match for a bike designed for demanding adventures. Excellent grip, carrying capacity and ride comfort with Maxxis Minion 26 x 4.8 tyres! Easy customisation for your own adventures thanks to numerous mounting points. This high-performance Finland Edition electric mountain bike is ready for all your adventures!

SHIMANO STEPS

The Shimano Steps EP6 electric assist system is among the very best on the market! Steps is an extremely light, compact and reliable electric assist system. The centrally mounted motor with torque sensor is optimally balanced and follows the rider's movements seamlessly, providing a light and natural riding feel.

The low weight, low centre of gravity and narrow Q-factor allow efficient pedalling off-road. Shimano Steps takes you easily and reliably to places you have not been able to reach before! Darfon batteries are extremely long-lasting. The Darfon battery is easy and quick to remove even in winter conditions.

FRAME: Alloy Al-6061 T6 Custom tubing, Smooth welding, Fat Fun Geometry, Shark Spine EVO 26er Fat, SHIMANO STEPS DU hanger, 2nd Gen. battery integration, Tapered Head Tube, Fat Boost 197x12, Disc Brake Post Mount, Replaceable RD Hanger, Inner Cable Routing, Kick stand and Dropper post ready, RC 470mm
HEADSET: ACROS AZX-251, Zero Stack, 1-1/8“x1.5“, BlockLock
FORK: Manitou Mastodon Comp 100mm, 150x15 Thru axle
COLOUR: Metallic Orange
FRAME SIZE: 19.0" (L)

DRIVETRAIN

GEARS: 1x10
SHIFTERS: microSHIFT AdventX SL-M9505-R
REAR DERAILLEUR: microSHIFT AdventX RD-M6205GM
CRANKSET: Samox ET39-F40-SHP80 165mm 34T
CASSETTE: microSHIFT AdventX CS-H104 11-48
CHAIN: KMC X10e EPT
PEDALS: Marwi SP-160

COMPONENTS

HANDLEBAR: ONE1 Alloy, MTB AL-3520BT, 6° upsweep, 9° backsweep, 20mm rise, 760mm, 35mm barbore
STEM: ONE1 TDS-D607 Alloy, 35xE35mm, 0°
GRIPS: Velo VLG-1879D2, Ergo Grip
BRAKES: Clarks Clout+, 180/180 rotor, hydraulic disc brake, Semi-Metallic pads
SADDLE: WTB Volt Sport
SEATPOST: ONE1 Alloy, MT171, dropper post 150&170mm travel, 30.9x440mm&480mm

TYRES: Maxxis Minion FBF/FBR 26x4.80", 120TPI, EXO/TR
WHEELS: ONE1 light weight, Tubeless ready, 26", 32H, 15x150, 12x197, 6 bolts

ELECTRIC ASSIST SYSTEM

MOTOR: SHIMANO STEPS EP6, 36V, 250W, 85Nm
BATTERY: DARFON 504 Wh, in-frame mount
DISPLAY: SHIMANO SC-E5003, Clamp band
CHARGER: Darfon 4A, charging time up to 4.5 hours

WEIGHT: 24.1 kg (M)

The bicycle warranty is valid for 24 months in accordance with the manufacturer's warranty terms.
