MIG welding machine ESAB Aristo Mig 4004i Pulse + Aristo Feed 3004w, Salo

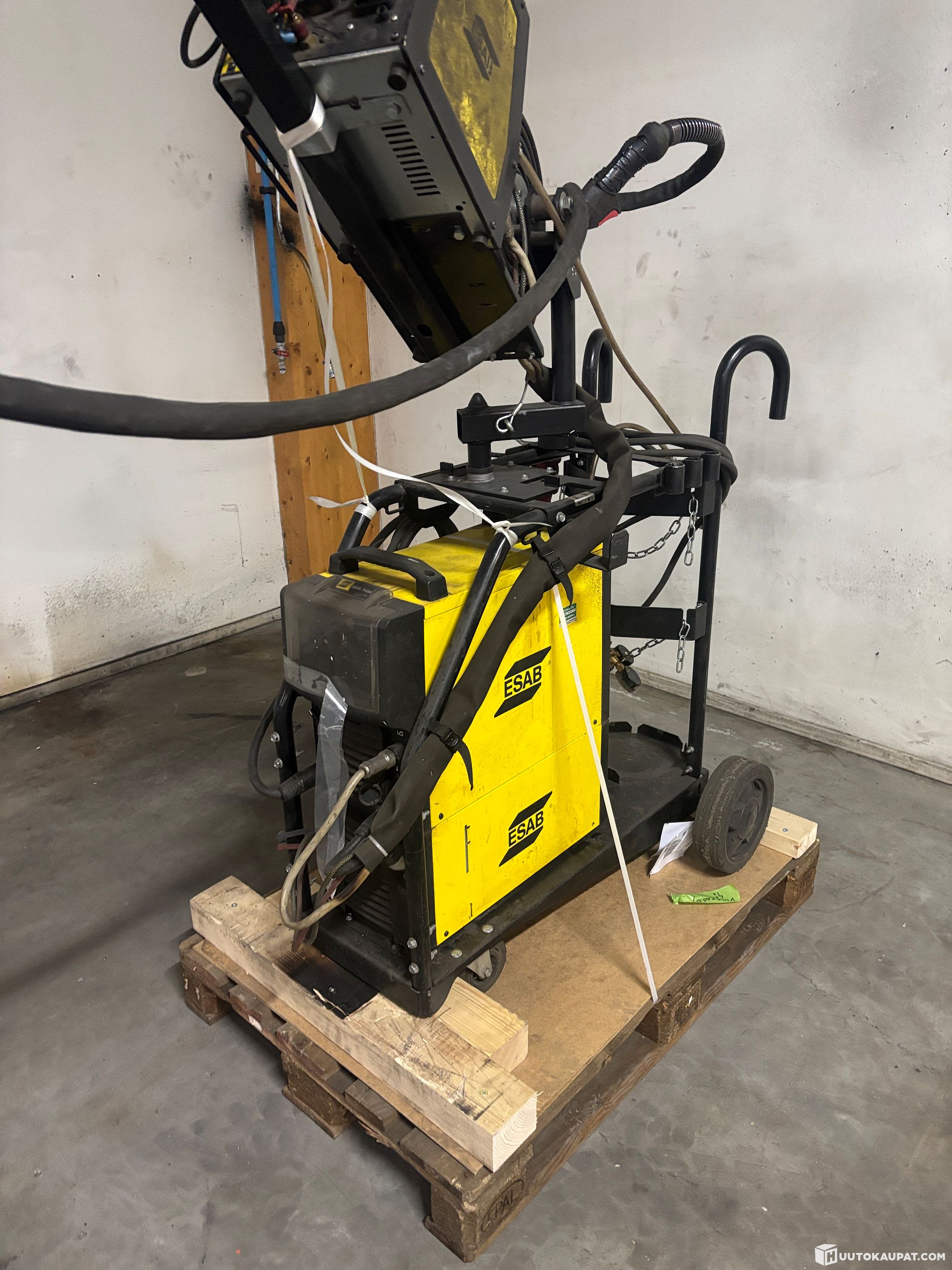

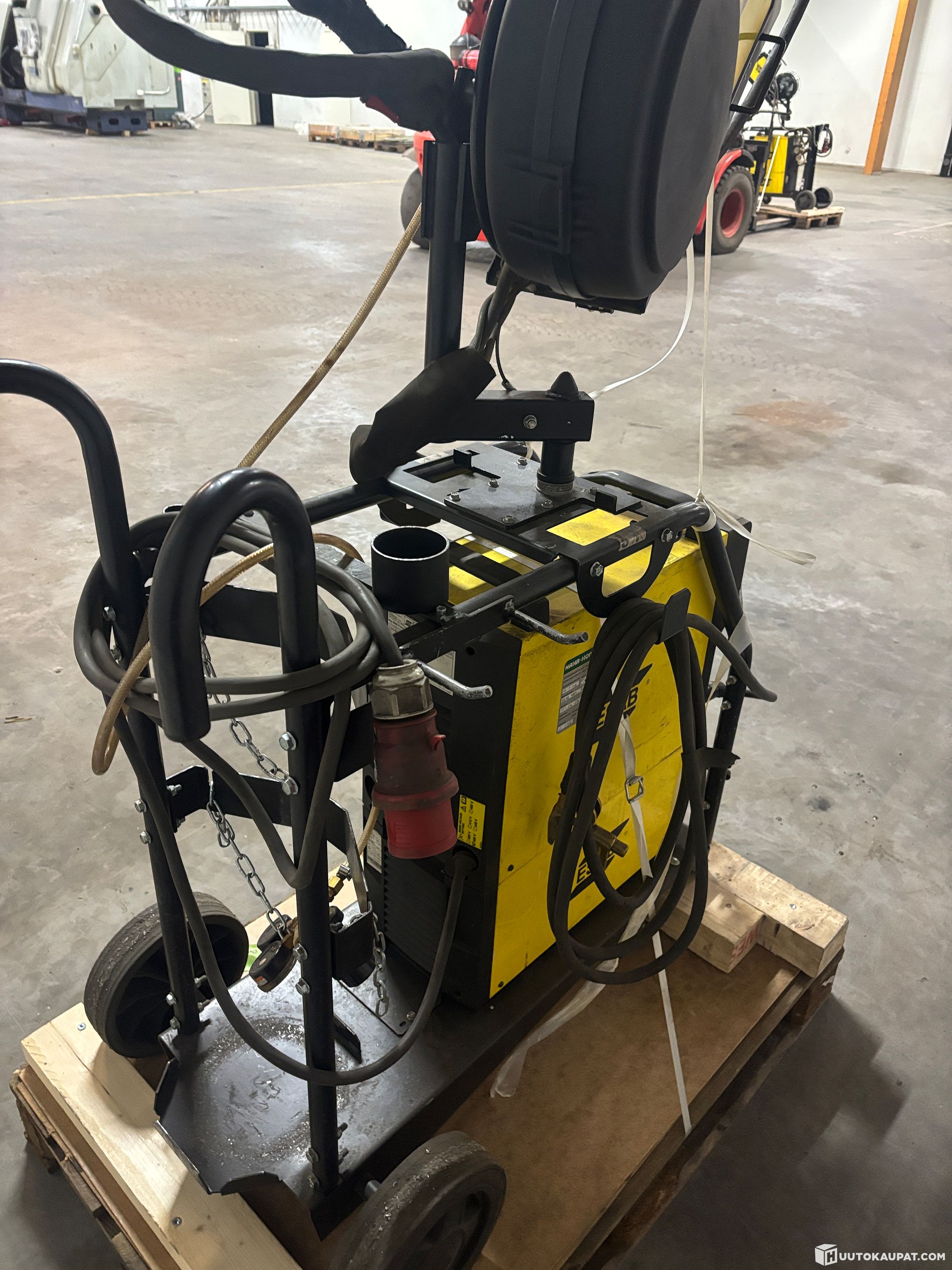

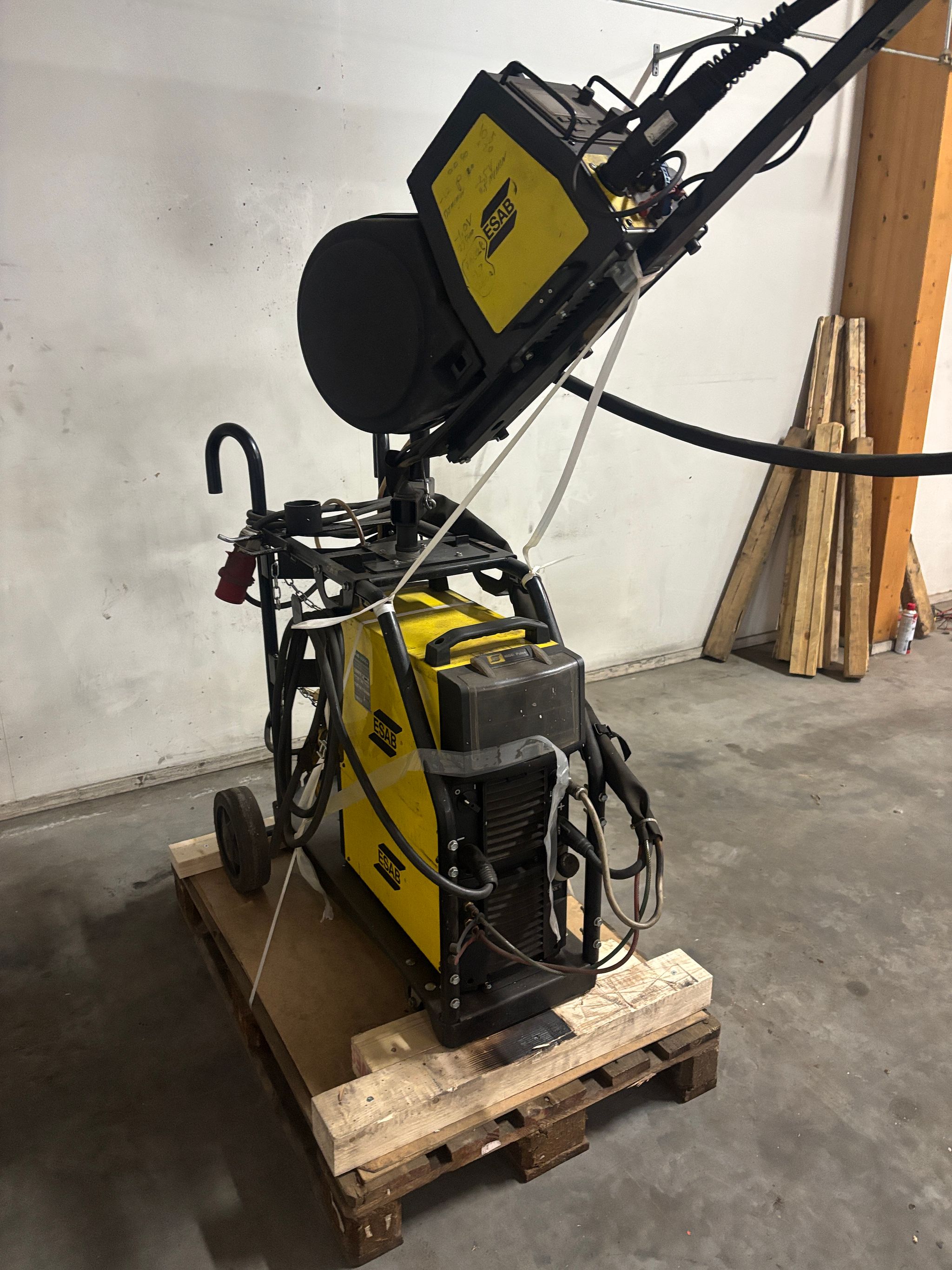

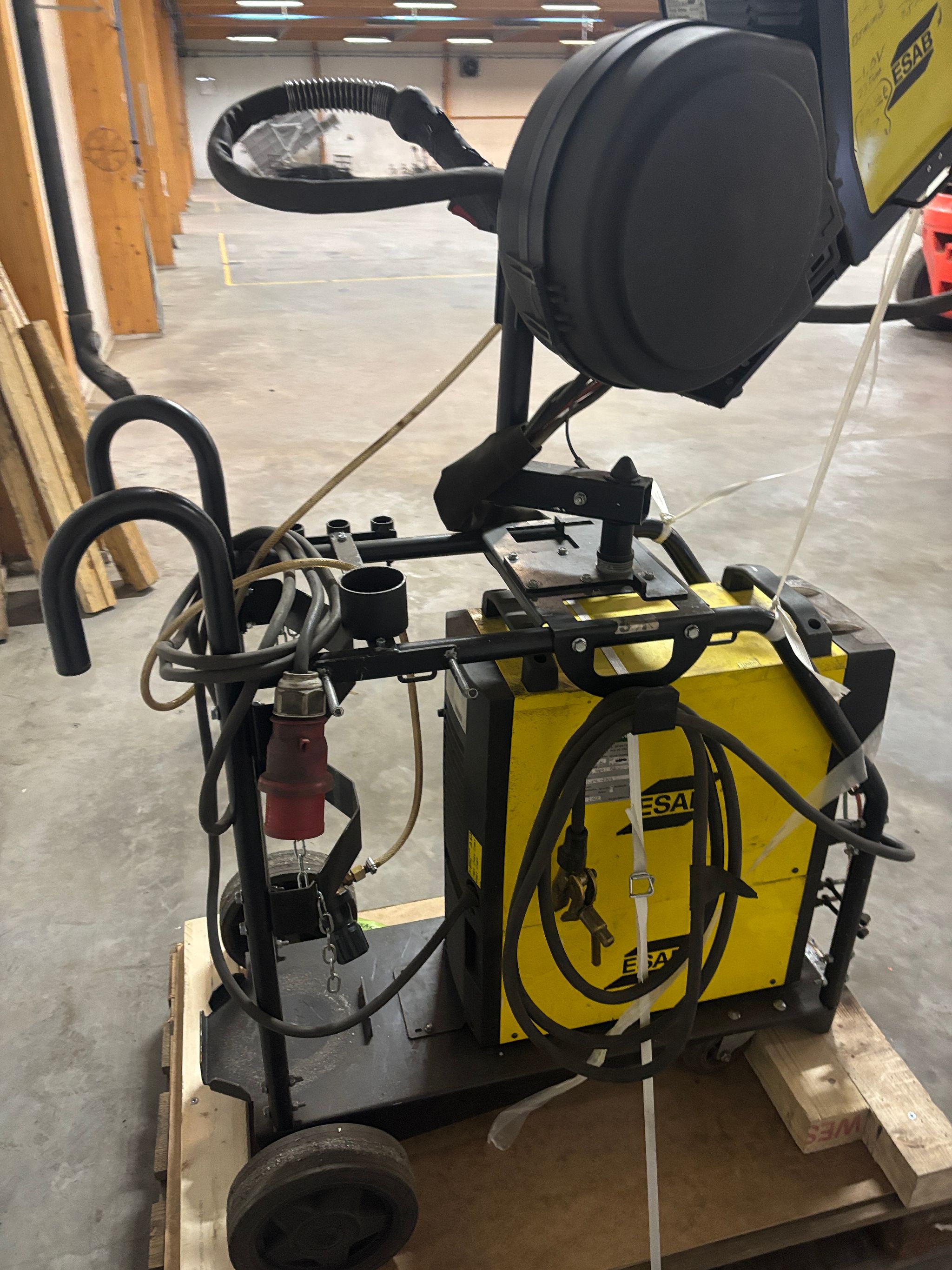

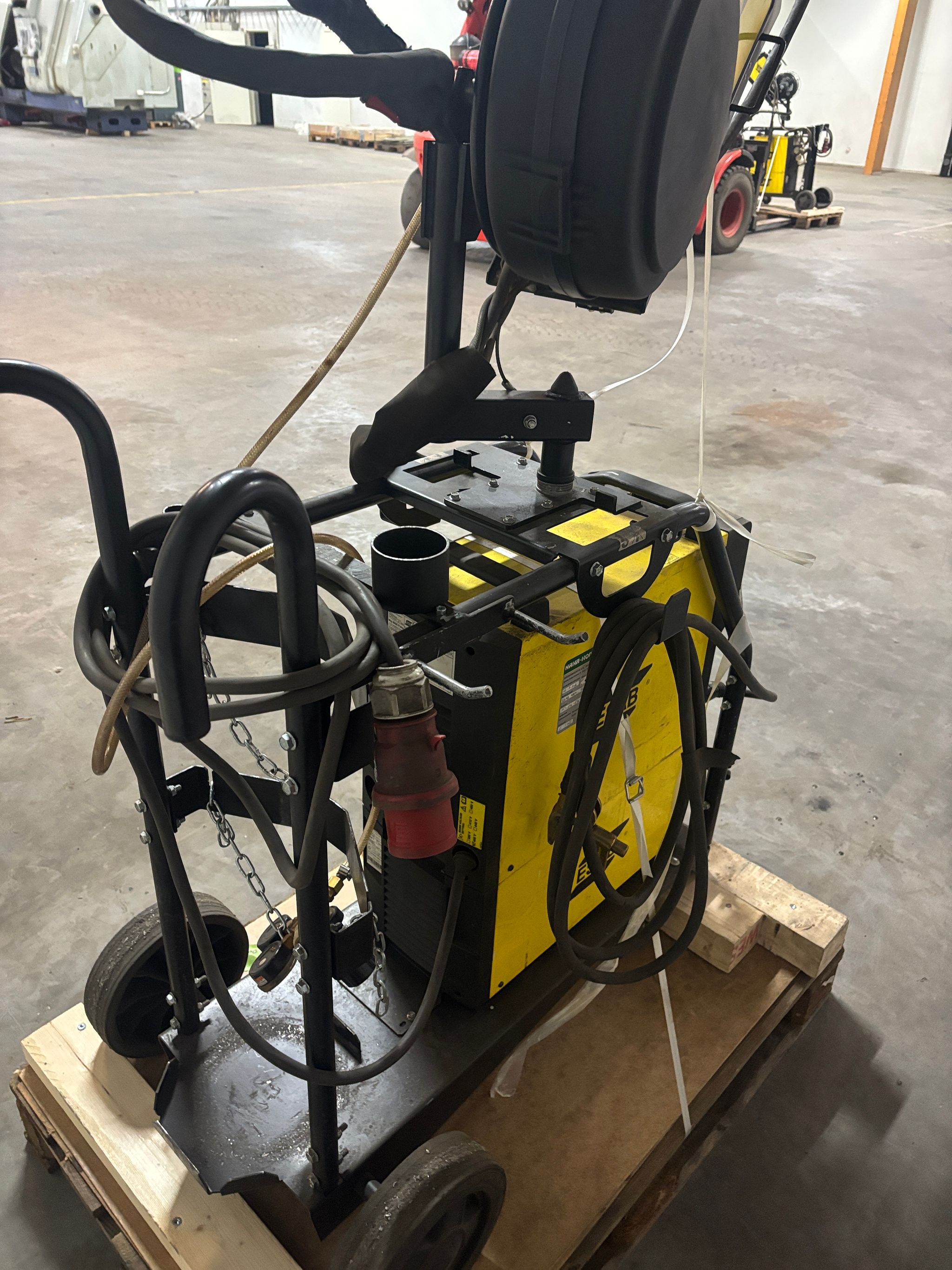

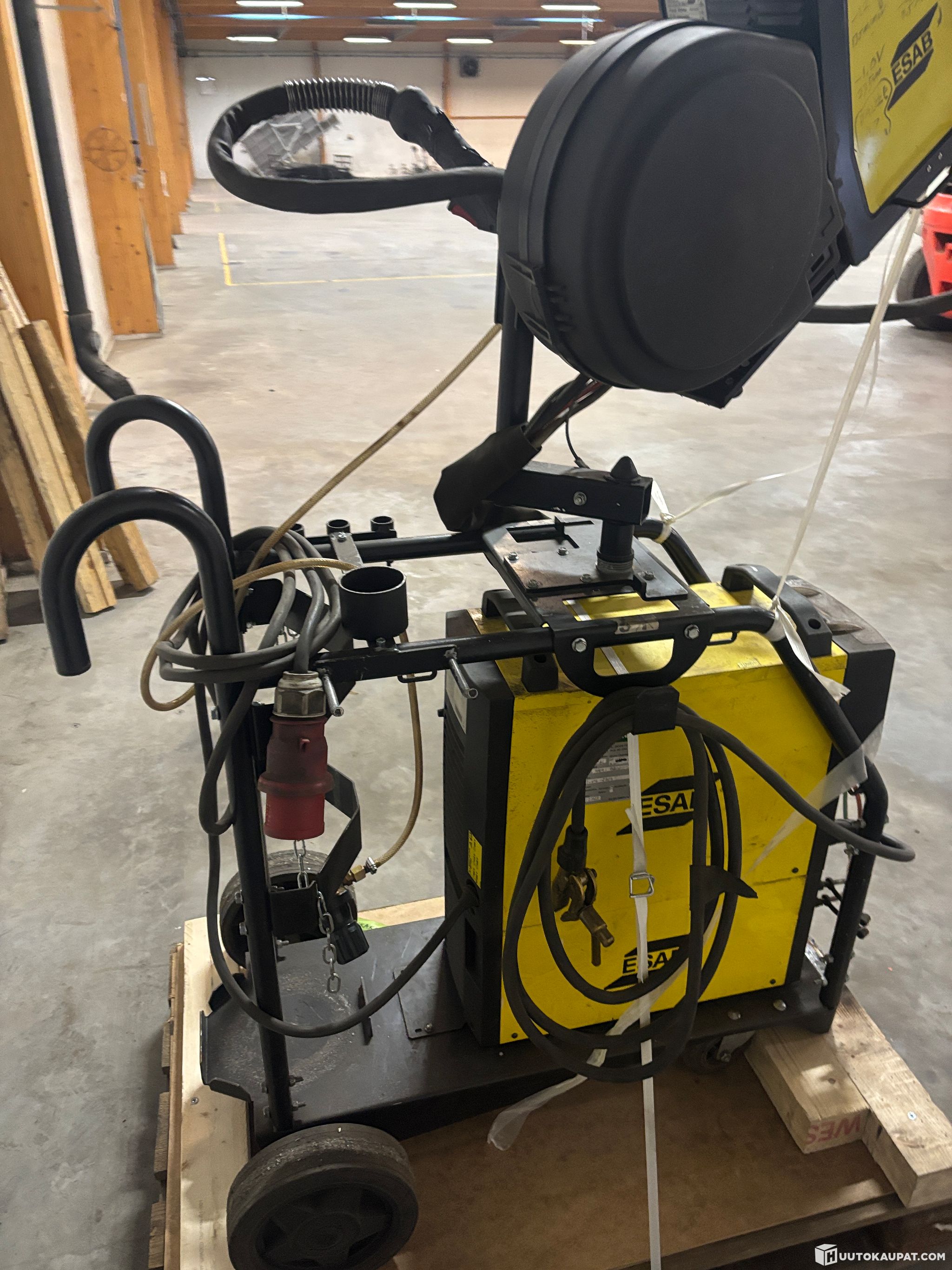

ESAB Aristo Mig 4004i Pulse + Aristo Feed 3004w

For sale: a high-quality industrial ESAB Aristo Mig 4004i Pulse welding power source together with an ESAB Aristo Feed 3004w wire feeder. This inverter-based MIG/MAG welding system is designed for professional use and is especially suitable for demanding production, machine shops and welding of steel, stainless steel and aluminium. The package is known for a stable arc, good pulse welding performance and a high duty cycle. According to ESAB, the 4004i Pulse is a multi-process inverter power source with a high duty cycle, wide mains voltage tolerance and pre-programmed synergic lines for various materials and filler wires.

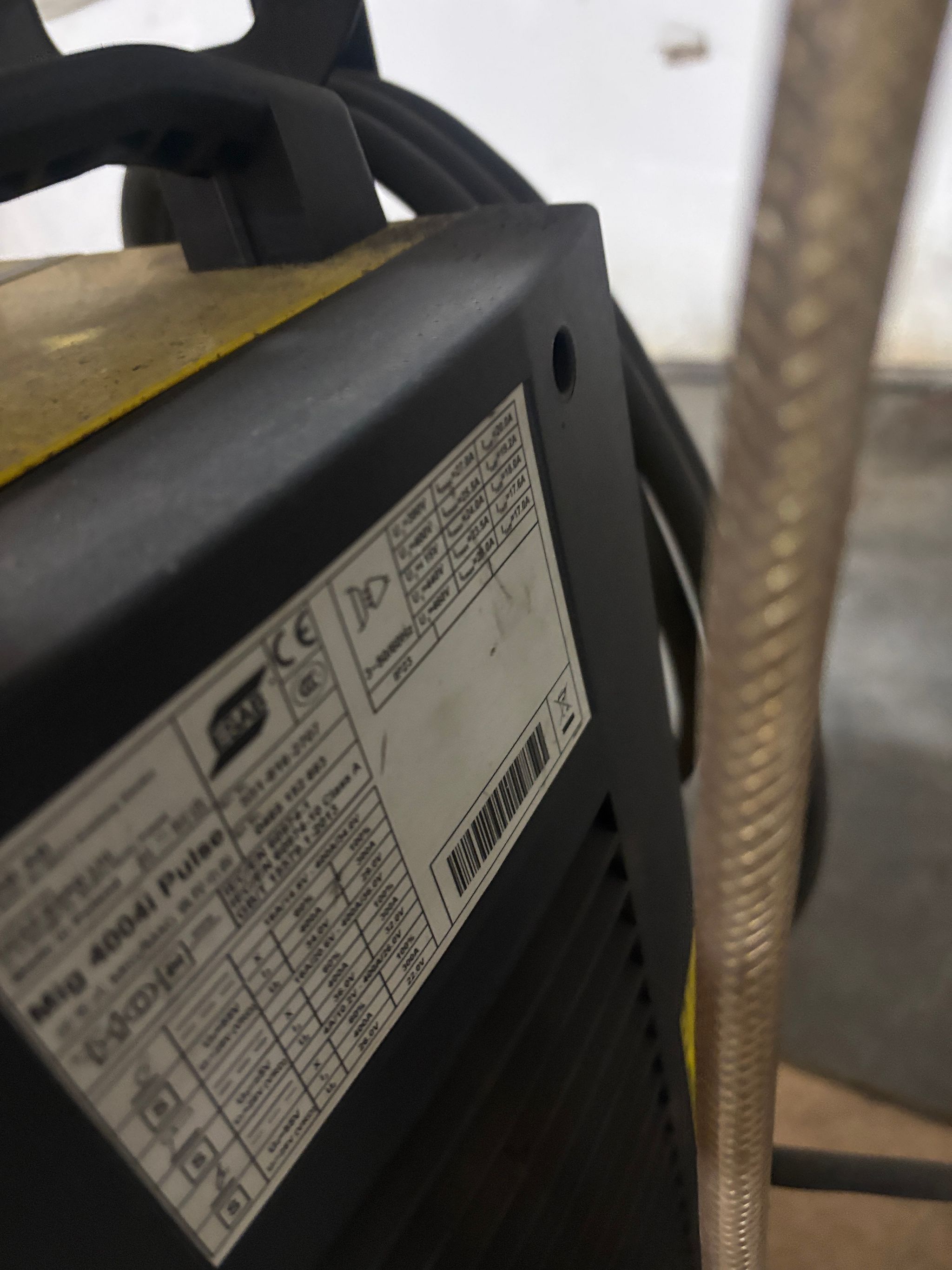

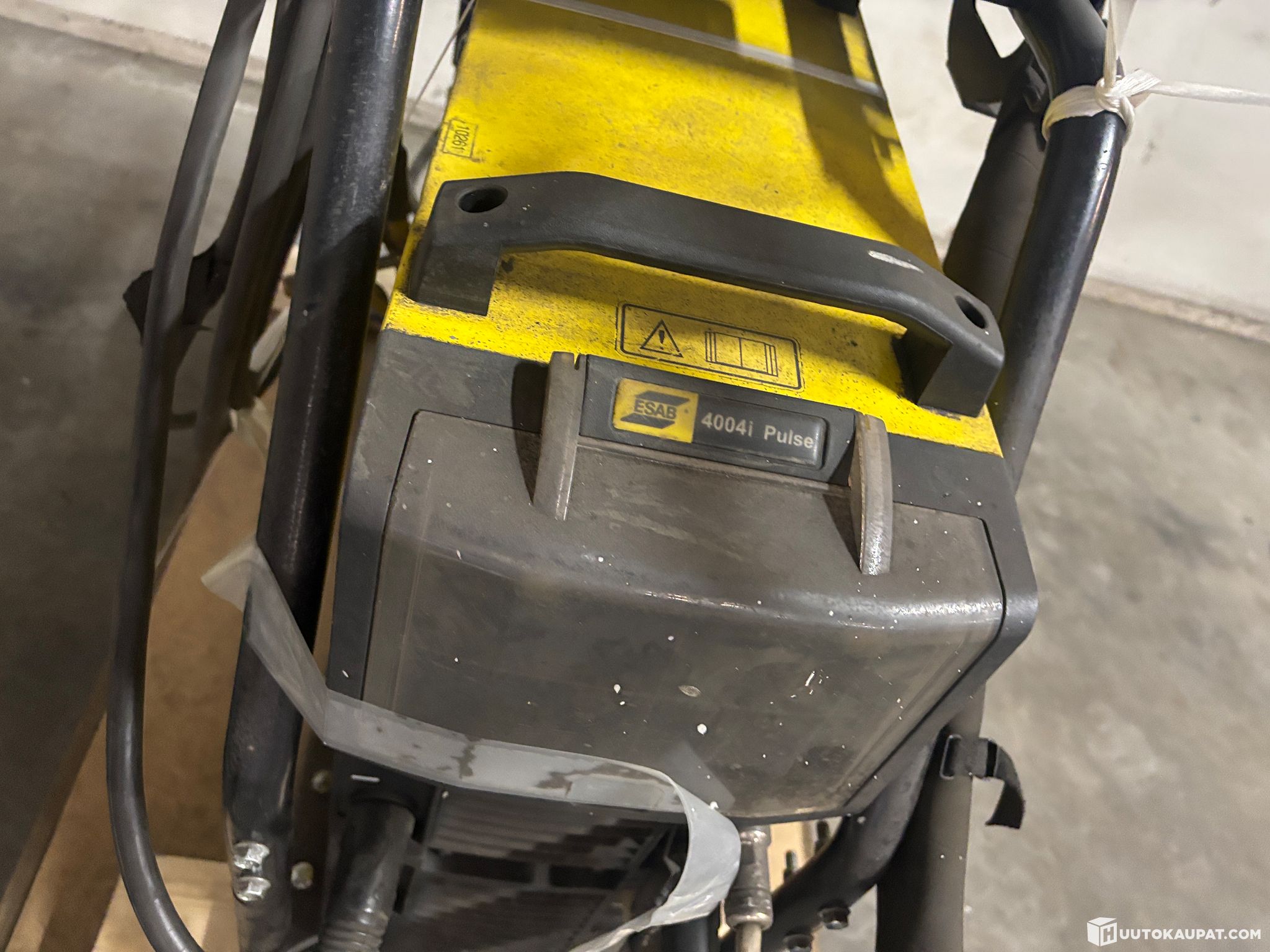

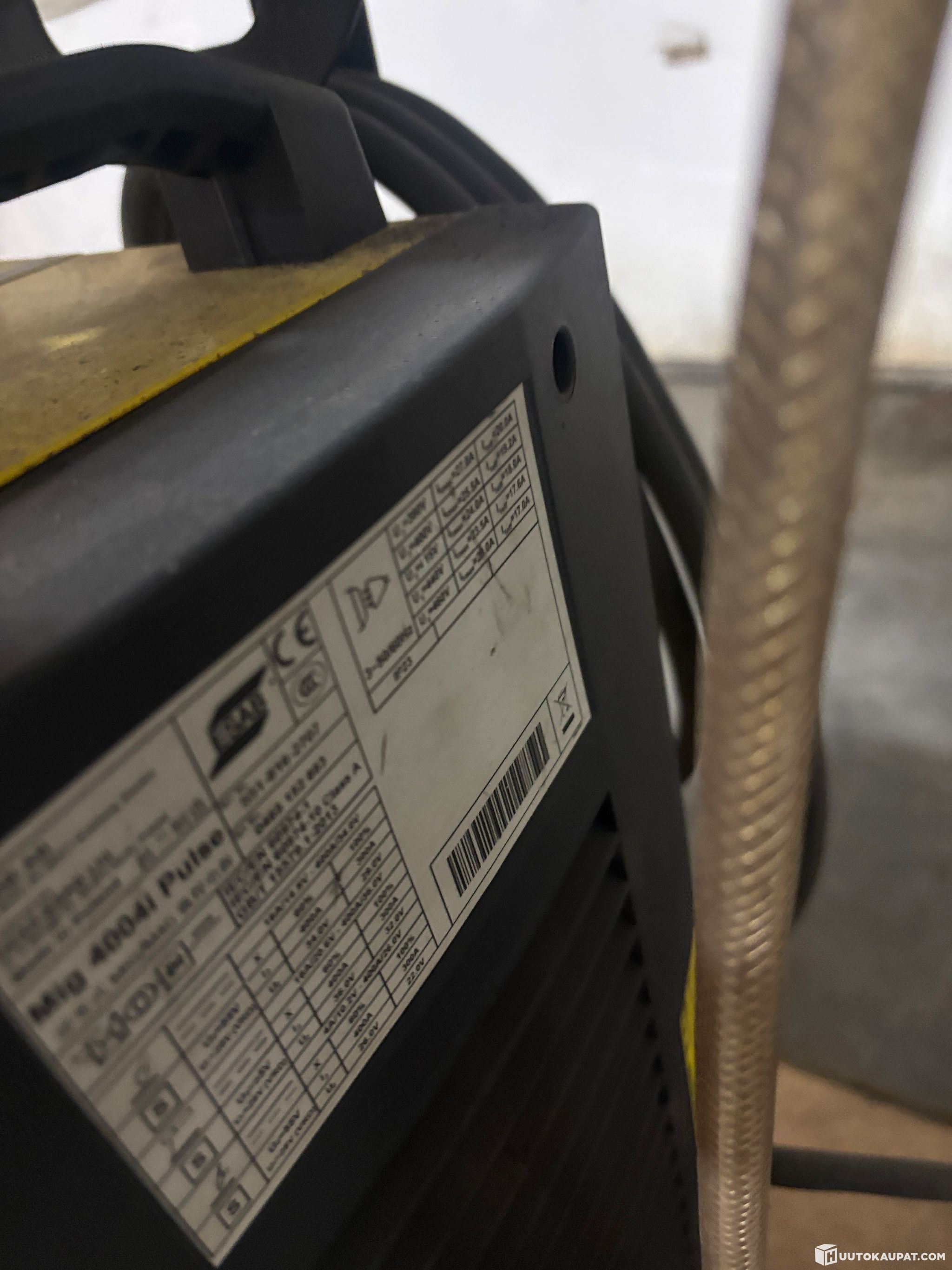

Technical data, power source ESAB Aristo Mig 4004i Pulse

• Supply voltage: 380–460 V

• Phases: 3~

• Frequency: 50/60 Hz

• Slow-blow fuse: 20 A

• Welding ranges:

  • MIG/MAG: 16–400 A

  • MMA: 16–400 A

  • TIG: 4–400 A

• Duty ratings:

  • 300 A / 29 V @ 100% duty cycle

  • 400 A / 34 V @ 60% duty cycle

• Open-circuit voltage: 55 V

• Rated power: 25.2 kVA

• Efficiency at maximum current: 89.5%

• Power factor at maximum current: 0.95

• Dimensions: 610 x 250 x 445 mm

• Weight: 58 kg with cooling unit / 44.5 kg without cooling unit

• Enclosure class: IP23

• Operating temperature: -10…+40 °C

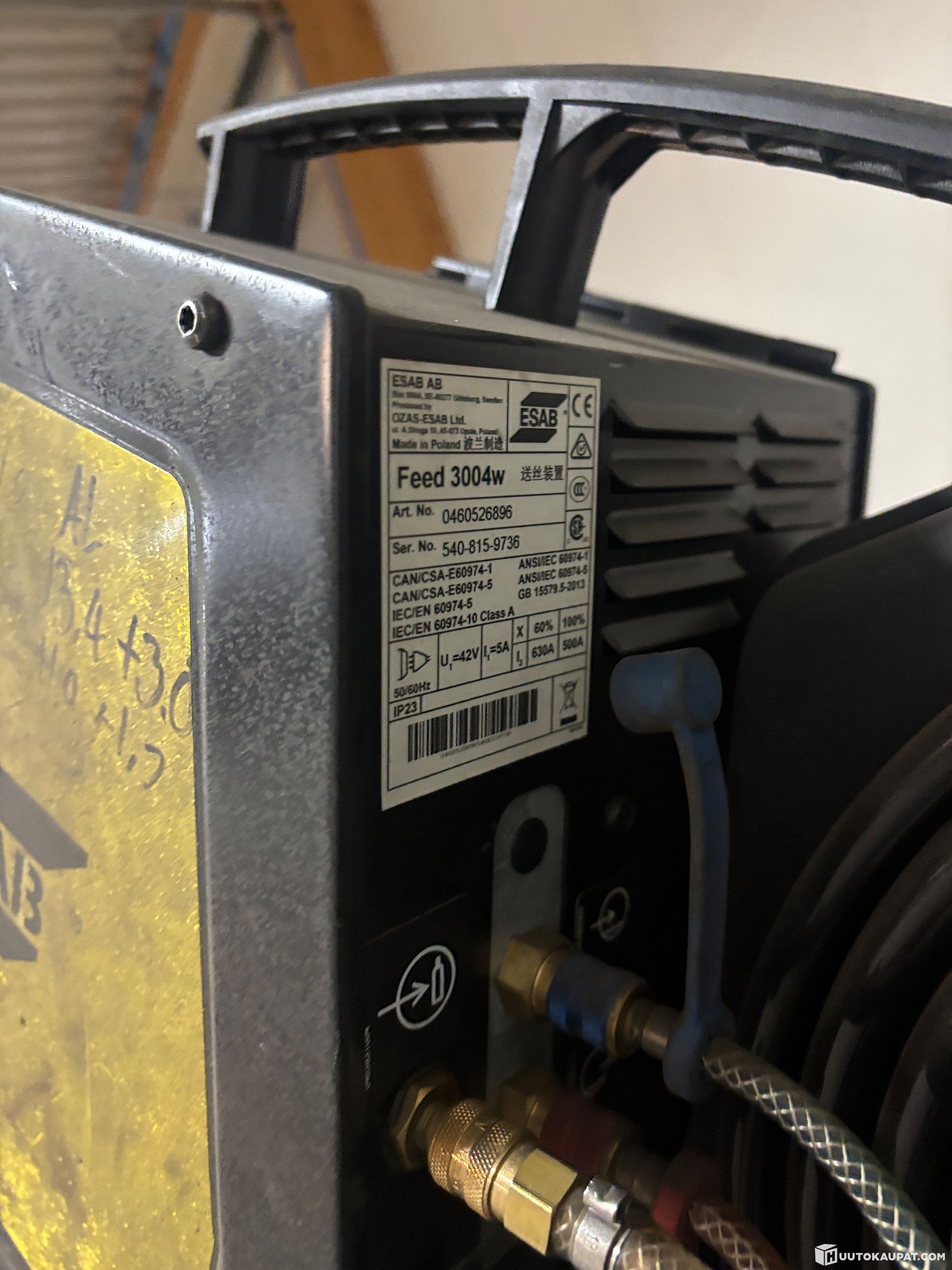

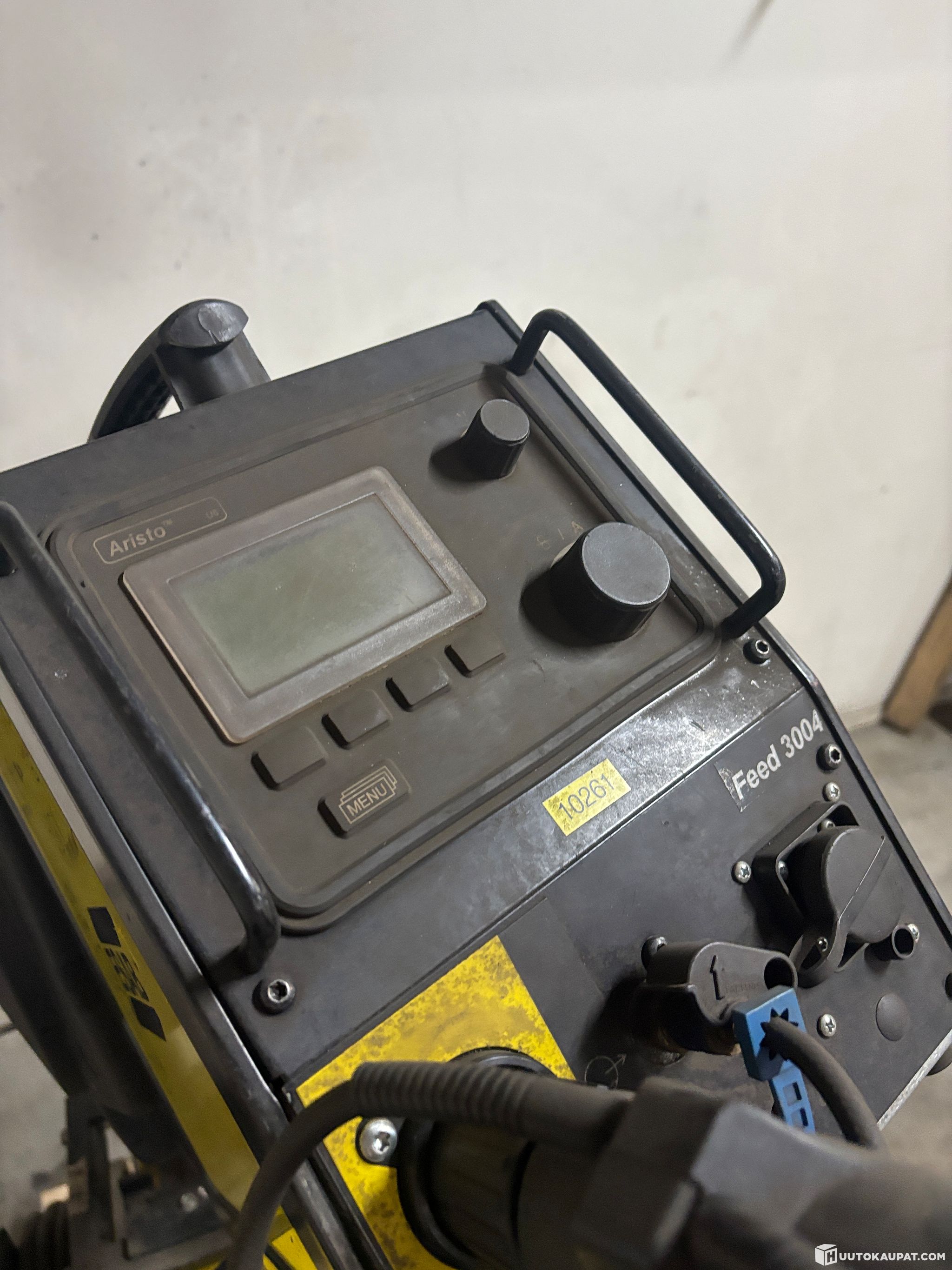

Technical data, wire feeder ESAB Aristo Feed 3004w

• Supply: 42 V AC, 50/60 Hz

• Wire feed speed: 0.8–25.0 m/min

• Max. spool diameter: 300 mm

  • in some configurations up to 440 mm with an adapter

• Spool capacity: 18 kg

  • in certain versions up to 30 kg

• Wire diameters:

  • steel: 0.6–1.6 mm

  • stainless steel: 0.6–1.6 mm

  • aluminium: 1.0–1.6 mm

  • flux-cored: 0.9–1.6 mm

• Dimensions: 690 x 275 x 420 mm

• Weight: 15 kg

• Water-cooled version, 3004w

Features

• Pulse welding, which reduces heat input and spatter

• Pre-programmed synergic lines for multiple material, wire and gas combinations

• QSet™ function for intelligent parameter adjustment

• TrueArcVoltage™ measures the actual arc voltage more accurately when used with a compatible torch

• Memory slots for welding programmes, depending on the control panel

• Suitable for long welding cycles thanks to a high duty cycle

• Generator compatible according to the manufacturer

• Standby / energy save function for reduced energy consumption

Applications
This package is well suited for:

• machine shops

• manufacturing industry

• repair welding

• welding stainless steel and aluminium

• applications requiring a neat weld finish and stable pulse characteristics
