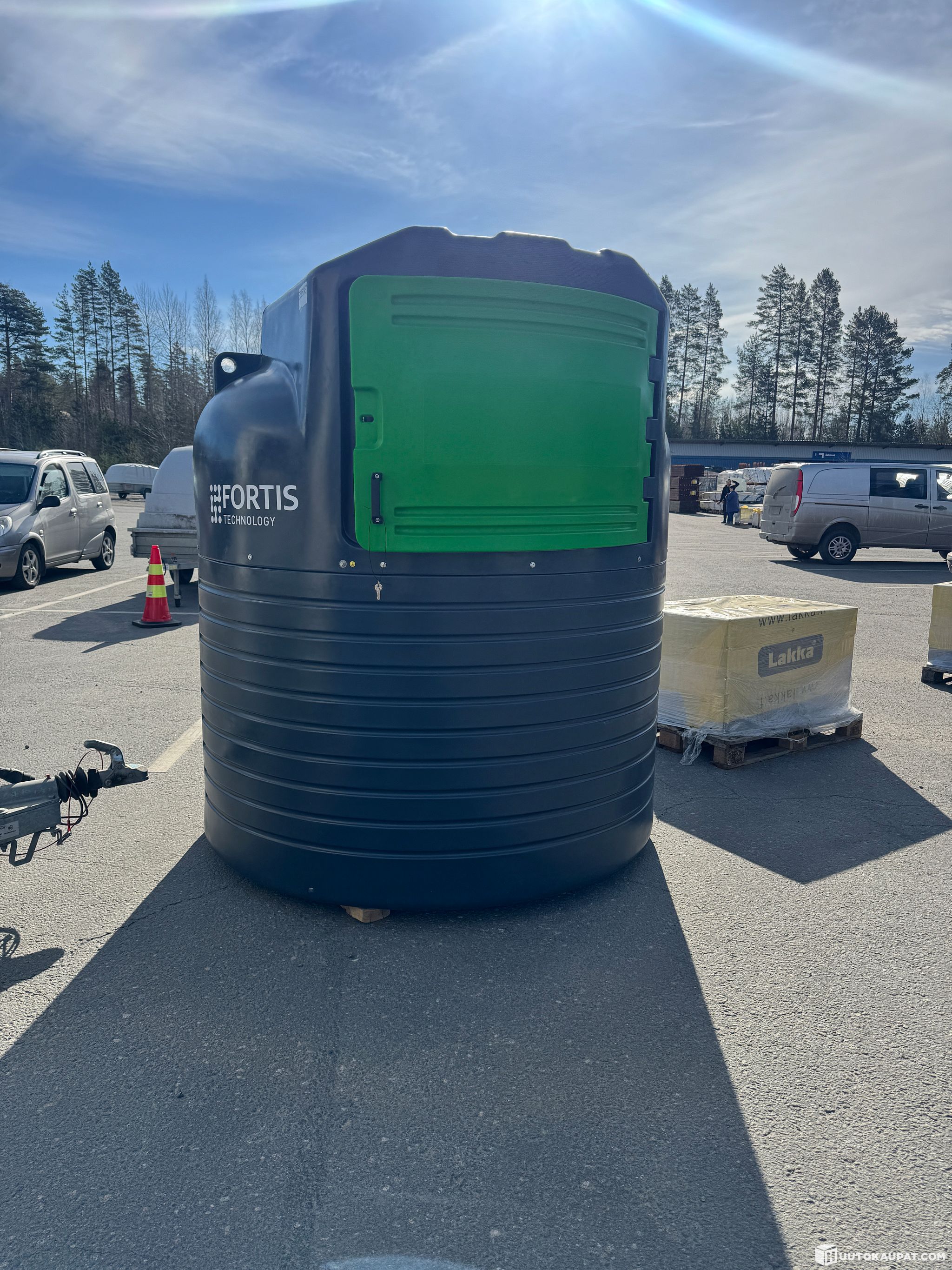

Fuel dispensing station 2,500 L, Joutsa

New Fortis ECO 2,500 L with mechanical RENSON flowmeter and Piusi Panther 56 pump. 180 x 180 x 209 cm, 160 kg. Double-walled 230 V dispensing station for heating oil or diesel. Also suitable as-is for outdoor installation in groundwater protection areas; UV‑protected construction. Manufactured to standard EN13341-1, CE‑marked.

PE inner and outer tank: Corrosion‑free, fully double‑walled / 110% spill basin tank. The plastic tank does not condense water like steel tanks, nothing leaches from the tank, giving cleaner fuel. The outer protective basin effectively shields the inner tank from mechanical wear and is UV‑protected. Manufacturer leak‑tightness warranty of 10 years for the tank and 2 years for the technical components provides peace of mind. The tank can be installed without a roof or concrete slab; a gravel bed is a sufficient base (check with local environmental authorities). The tank has lifting lugs/holes and can be lifted and moved easily between sites if necessary, always when empty.

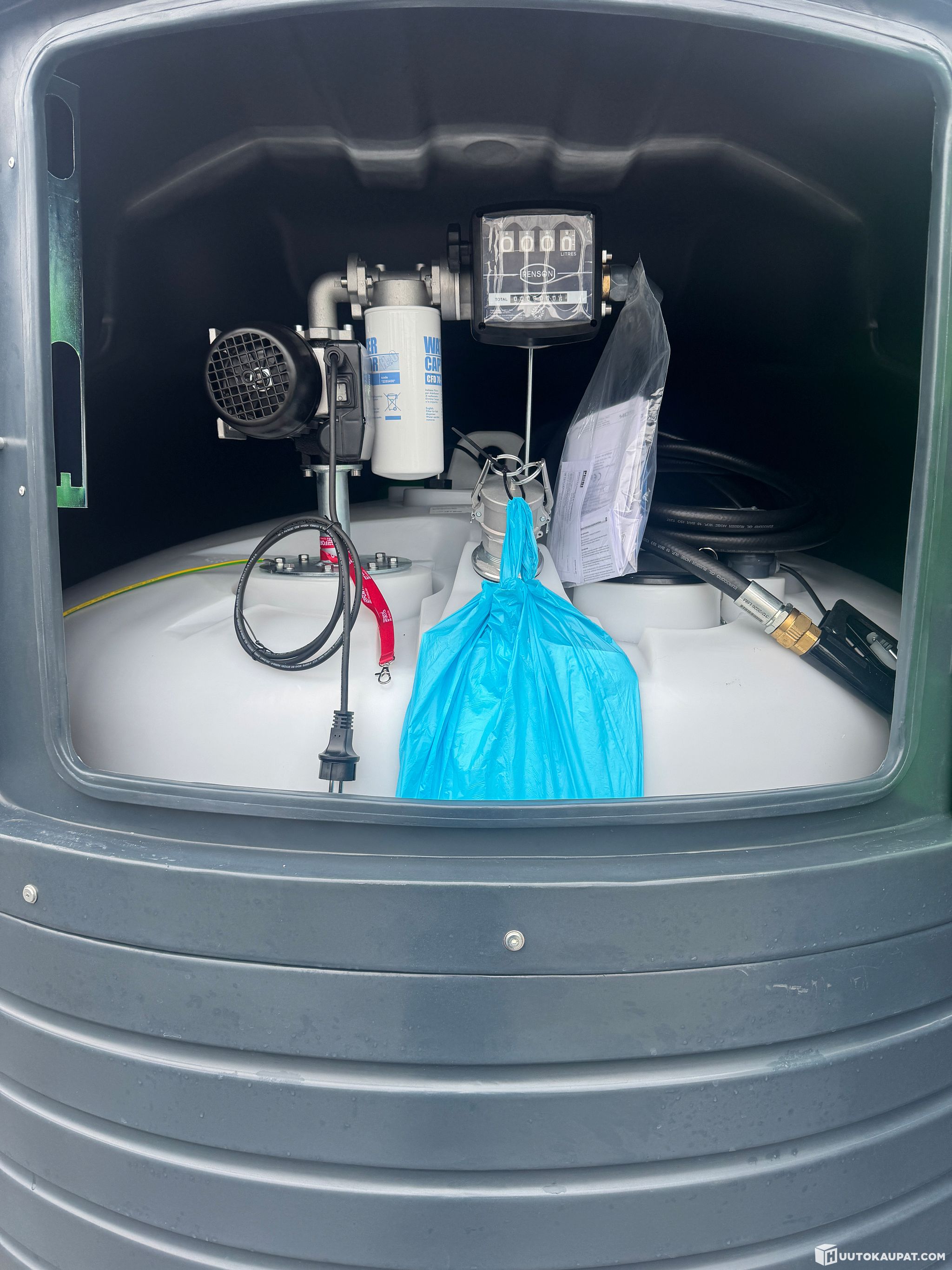

Standard equipment:

• Kamlock tanker coupling 2" and an overfill preventer fitted as standard in all models, mounted in the pump module

• Technical equipment: 230 V pump, filter, hose etc. are easily accessible for the user in all weather

• Dial gauge to indicate fuel level

• Approx. 120 mm inspection hatch on top of the tank

• Standard 6 m refuelling hose DN19 (3/4"), A60 automatic nozzle, anti‑drip, water‑separating WaterCaptor fuel filter (metal housing) or optional ClearCaptor water‑removal filter with drain plug (incl. 1 replacement cartridge). Hose connected to the pump with a Piusi rotating/folding swivel, which saves the hose and makes use more comfortable

• Mechanical RENSON flowmeter

• 230 V Piusi Panther 56 pump; output measured at the pump's 1" outlet: 56 L/min

• Padlock supplied for the cabinet door, but you can easily replace it with your own keyed lock

• POB DRYER / OIL BURNER CONNECTION INCLUDED AS STANDARD!
