MIG 200A FLUX MMA TIG LIFT Welding Machine, Isokyrö

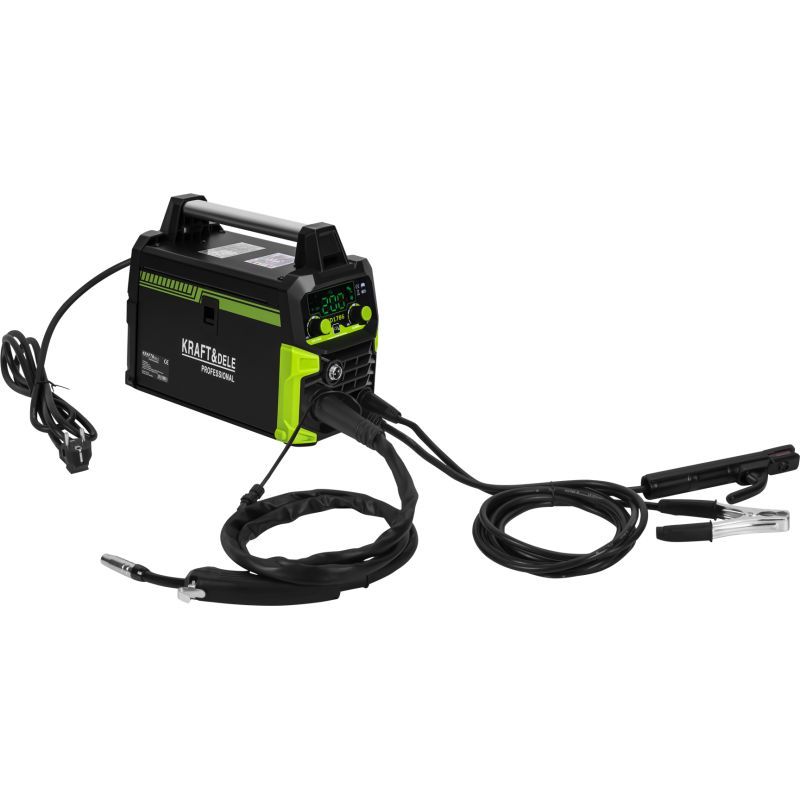

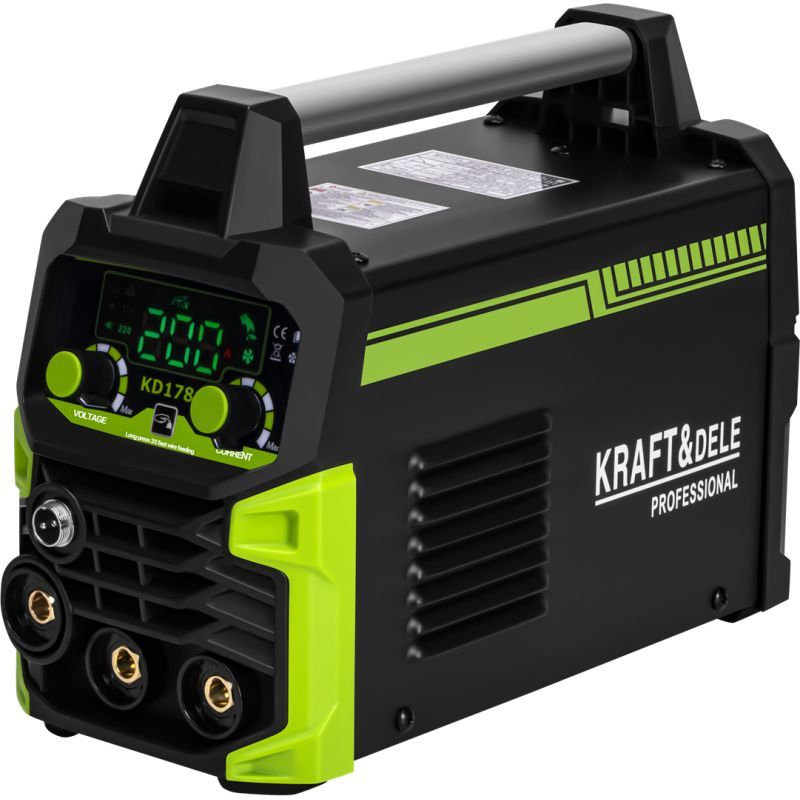

MIG / MMA / TIG LIFT 200A WELDING MACHINE

A modern MIG welding machine designed for a wide range of uses – from workshop and maintenance work to field jobs and indoor repairs. The unit combines a compact design with high performance and offers stable and precise operation in several welding modes.

The welder uses powerful IGBT transistors that convert 50/60 Hz to 20 kHz and then – using PWM technology – produce a high power output voltage. This solution significantly reduces the size and weight of the transformer while increasing the unit's efficiency by up to 30%. The advanced electronic control system allows precise control of current parameters, resulting in high-quality welds.

This model stands out for its stable wire feed speed, energy efficiency and lack of electromagnetic interference. Continuous and stable operation at low current makes the unit ideal for welding thin low-carbon, alloy and stainless steel sheets. Automatic compensation for supply voltage variations, low spatter levels, a stable welding arc and a high duty cycle ensure comfort and safety even during prolonged use.

PRODUCT FEATURES:

✅ MIG FLUX / MMA / TIG LIFT inverter welder

✅ Modern IGBT technology – high efficiency and stable operation

✅ Compact design and light weight – easy to transport

✅ Stable wire feed speed and smooth welding arc

✅ Energy-saving operation and no electromagnetic interference

✅ Automatic compensation for supply voltage variations ±15 %

✅ Protection against overvoltage, overcurrent and overheating

✅ Perfect for welding low-carbon, alloy and stainless steels

✅ High duty cycle and good welding quality

TECHNICAL SPECIFICATIONS:

⚙️ Voltage: 220 V AC

⚙️ Frequency: 50/60 Hz

⚙️ Rated input capacity: 6.1 kVA

⚙️ Output current: 30–200 A

⚙️ No-load voltage: 16–24 V

⚙️ Duty cycle: 60 %

⚙️ Wire speed: 3–15 m/min

⚙️ Gas flow: 15–20 L/min

⚙️ Dimensions: 325 × 153 × 237 mm

⚙️ Weight: 6.0 kg
