Log splitter 22T 4.85 kW (6.5 hp) Professional 650 mm, Juuka

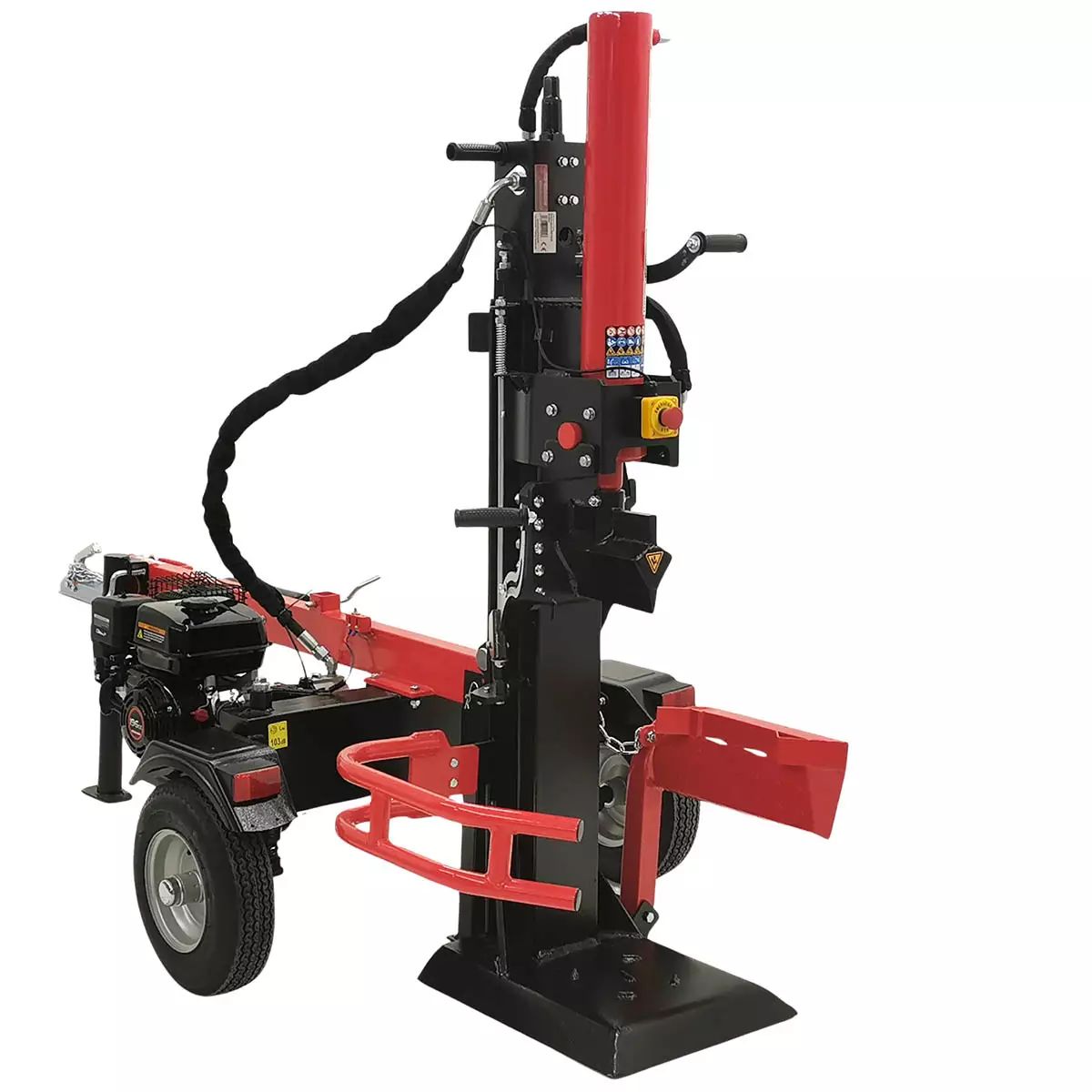

Log splitter 22T vertical

Powerful 22T petrol-engine log splitter quickly produces firewood at home, the cottage or in the forest - without mains power.

The Rosendhål log splitter provides a robust 22-tonne splitting force and reliable performance for demanding use. It efficiently splits logs up to 650 mm long, so large volumes are handled quickly.

Portable splitter that goes straight to the worksite

The tow hitch makes the splitter easy to take to the woodpile by ATV or tractor. You don't need mains power - work where the wood is.

16-inch pneumatic tyres and a sturdy frame make moving easy and keep the machine stable on uneven ground.

Power and efficiency for demanding use

The reliable 4.85 kW (6.5 hp) Loncin 4-stroke engine delivers steady power even in tough conditions. A 2-stage hydraulic pump and a strong cylinder ensure effective and controlled splitting.

Logs up to 650 x 400 mm are split easily - this machine suits active firewood production for home, cottage or farm.

Ergonomic and safe operation

The vertical splitter reduces heavy lifting and makes work smoother. A support stand, lifting support and log clamp ease handling of large logs and increase safety.

Work remains controlled and stable even during longer shifts.

Technical specifications

• Splitting force: 22 tonnes

• Engine: 4.85 kW (6.5 hp), 4-stroke, 3600 rpm

• Hydraulic cylinder: 10 x 6 cm (4" x 23-1/4" )

• Cycle time: 12.5 s

• Hydraulic pump: 41.6 l/min, 2-stage

• Hydraulic reservoir: 14.5 l (add oil before first use)

• Maximum pressure: 25 MPa (3600 psi)

• Max log size: 650 x 400 mm (max split gap 660 mm)

• Towing speed: max 72 km/h

• Tyre size: 4.80-8 (16")

• Dimensions: 228 x 114 x 122 cm

• Weight: 218 kg

• Ball coupling: 50 mm

• Standards: EN 609, CE

• Engine oil: SAE 10W-30 (not included)
