TrailerMate 753TM350L185-0.4, 2021, Vantaa

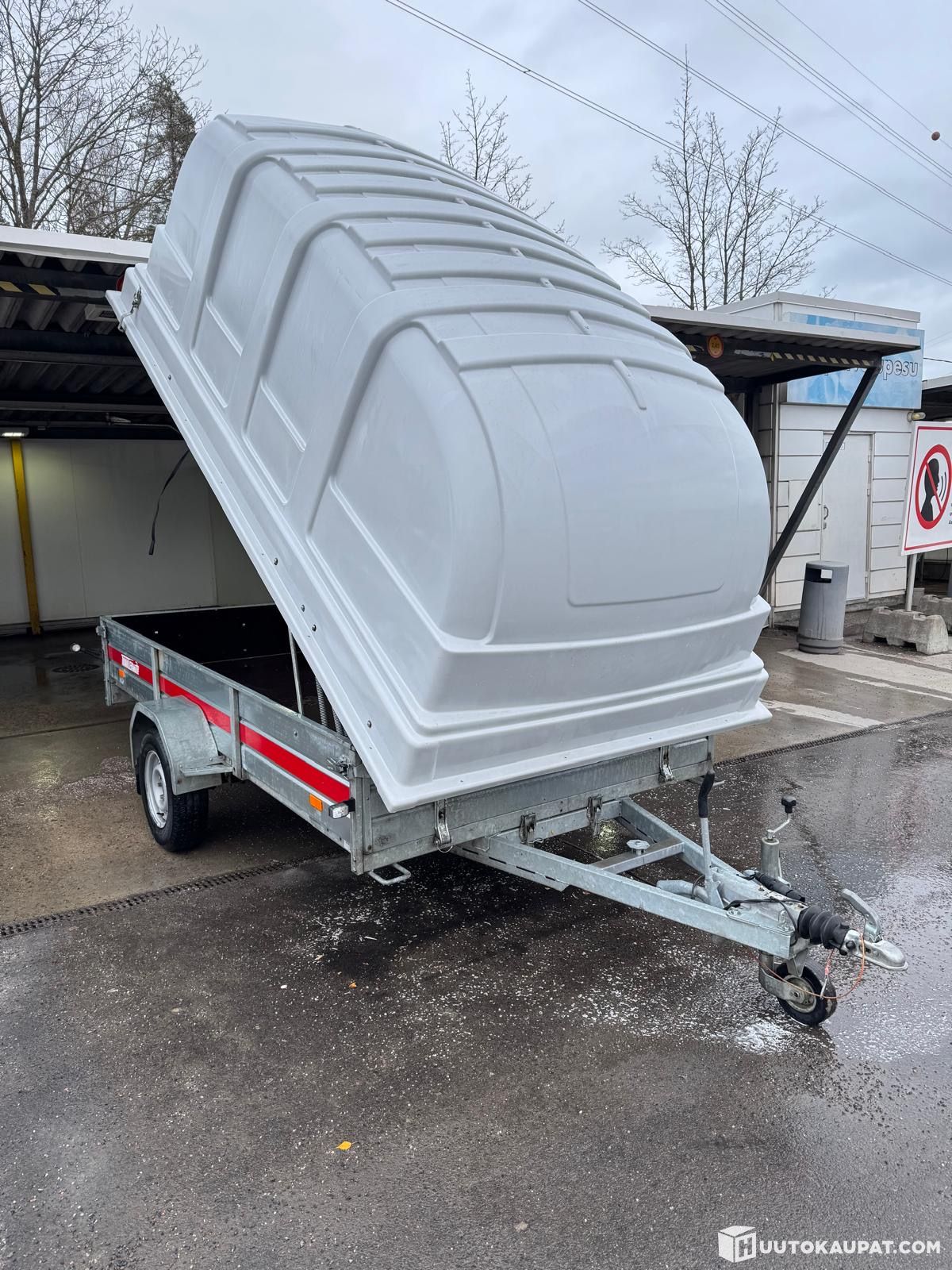

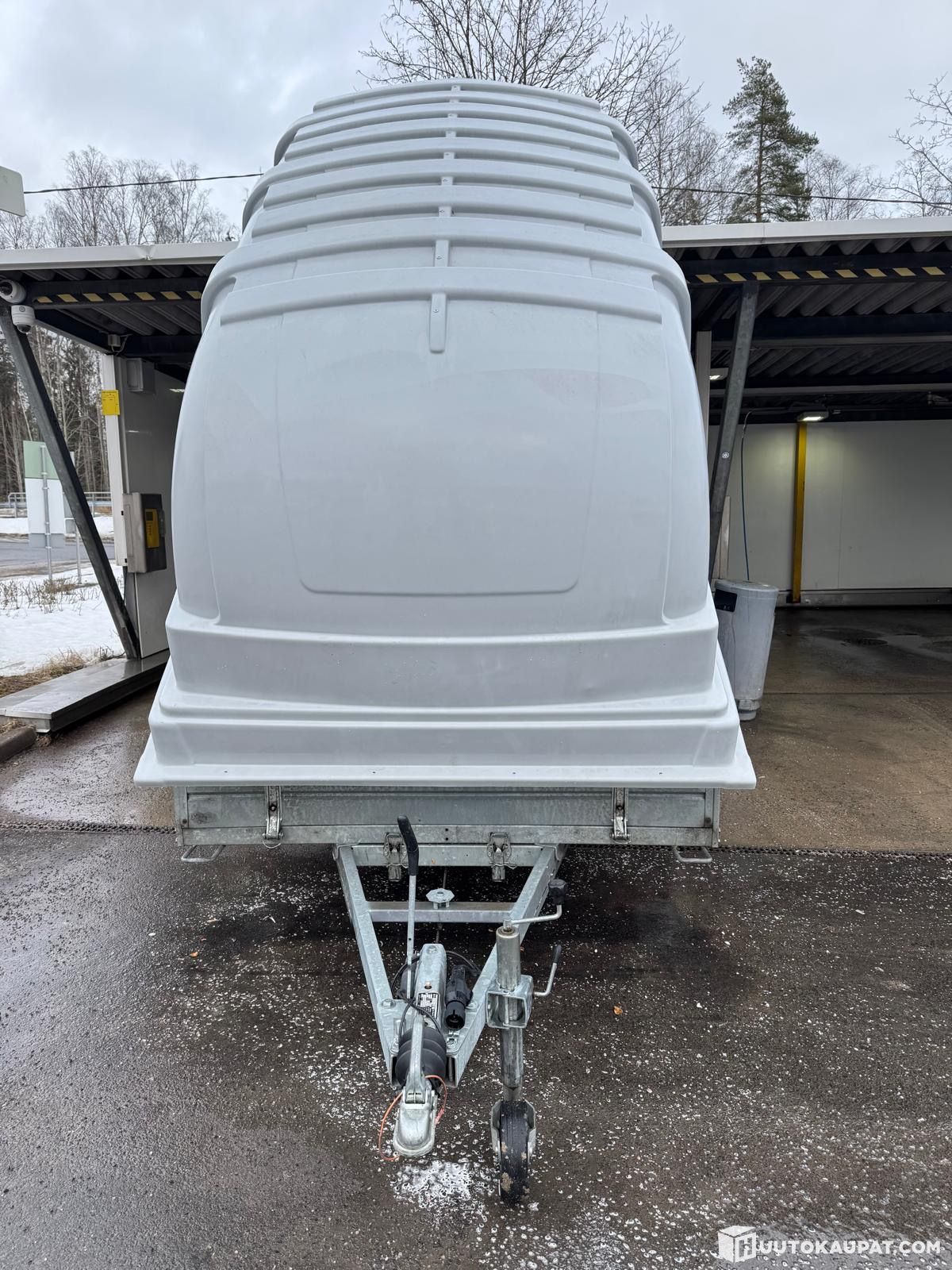

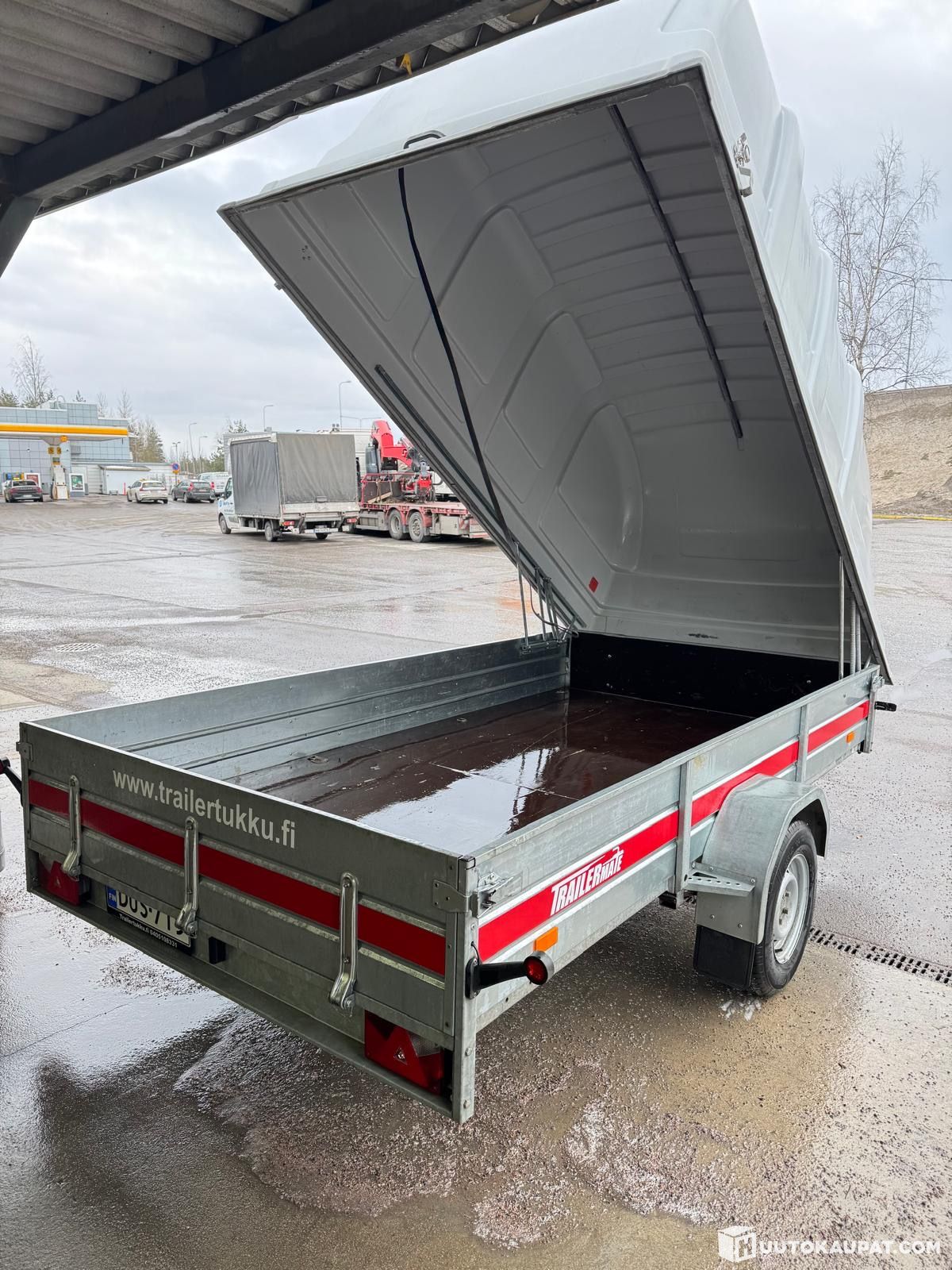

TRAILERMATE single-axle 1,600 kg (350 x 185 cm) tarpaulin trailer

Includes a tipping screw. TRAILERMATE single-axle 1,600 kg (350 x 185 cm) tarpaulin trailer. Buyers considering a more heavy-duty tarpaulin trailer should pay attention to this braked Trailermate — despite its simple first impression it is full of features that set it apart from competitors. This is not just seller talk. Leaf springs and shock absorbers ensure excellent load capacity and ride comfort. Both the front and rear gates are reinforced with plywood. The floor has 8 load-securing rings and there are 6 welded rings on the outside. The versatile trailer’s tailgate also works as a loading aid.

Trailermate single-axle 1,600 kg (350 x 185 cm)

SPECIFICATIONS

Make

Trailermate

Model

TM SERIES (braked)

Included

Tipping screw

Internal dimensions

350 x 183 x 38 cm

Overall dimensions

504 x 229 cm

Gross weight

1,600 kg

Load capacity with tarpaulin

1,116 kg

Unladen weight with tarpaulin

484 kg

Tarpaulin weight/dimensions

96 kg (3,560 x 1,916 x 1,250 mm)

Internal height

163 cm

Side height

38 cm

Brakes

Braked

Axles

Single axle

Frame

Welded / hot-dip galvanised

Gates

Front and rear gates reinforced with plywood; rear gate doubles as a ramp

Tyres

185 R14C 5×112

Bed size

3-metre

Gross vehicle mass

751–1,600 kg

STANDARD EQUIPMENT

• Jaxal tarpaulin 96 kg (3,560 x 1,916 x 1,250 mm), grey

• Tipping screw

• Fixing rings bolted through the frame rather than riveted to the side – a more durable solution

• Strong hinges on the sides, withstands driving machines onboard

• Side sheet also beaded, not just flat sheet metal

• Welded and hot-dip galvanised box-profile frame – built to last decades

• Electrical wiring protected inside the frame

• Rear lights protected during loading

• Light housings made of durable welded, hot-dip galvanised material

• LED side lights

• Reinforcement bar across the drawbar with a bracket for the spare wheel

• Plywood-reinforced front and rear gates

• 38 cm high sides

• Durable, frame-through bolted tie‑down points (8 pcs)

• Fixing rings also under the bed

• 12 mm plywood floor

• Double-thick front and rear gate hinge pins

• Rear gate works as a ramp when the trailer is tilted

• Jockey wheel as standard

• Steps as standard

• Mudflaps as standard

• 13‑pin plug and 7‑pin adapter included

• Spare wheel carrier on the drawbar

• Strong side locks

• Drawbar is a chassis beam with a central welded reinforcement bar

• Front and rear gates removable

• Front gate can be opened even with the tarpaulin fitted

The vehicle must be collected within 7 days of the auction closing unless otherwise agreed - Huutokaupat.com.
