ARKISTO 2000 mobile shelving system (handle-operated)., Tampere

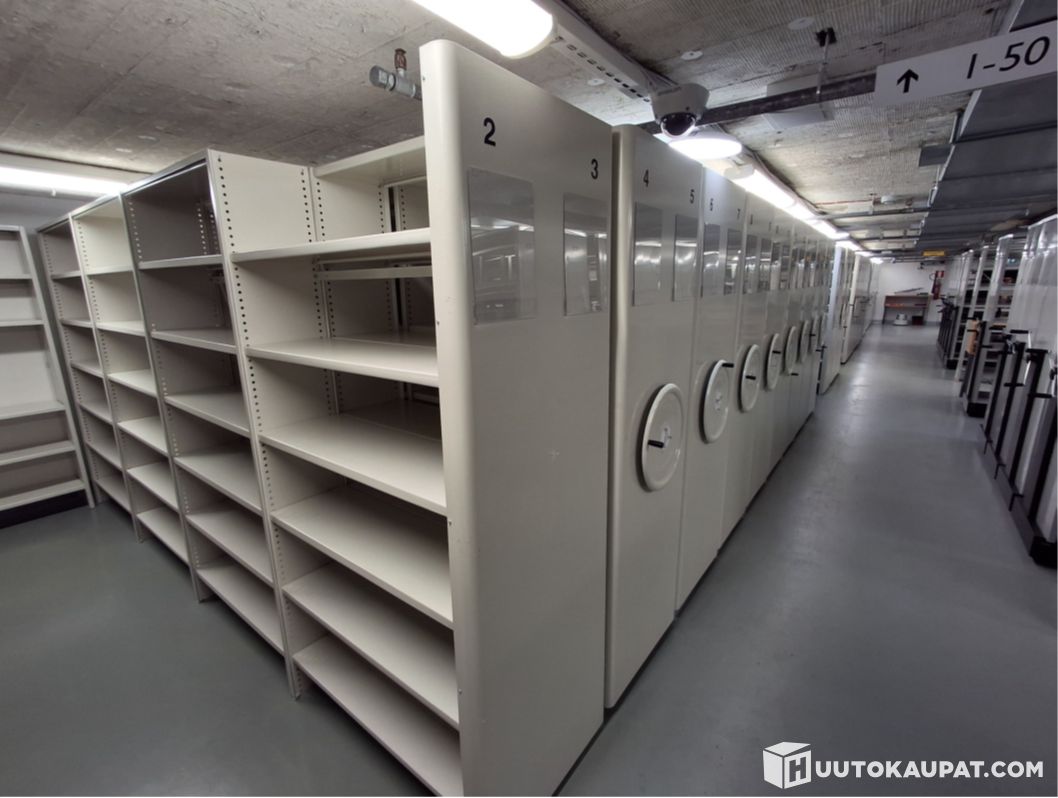

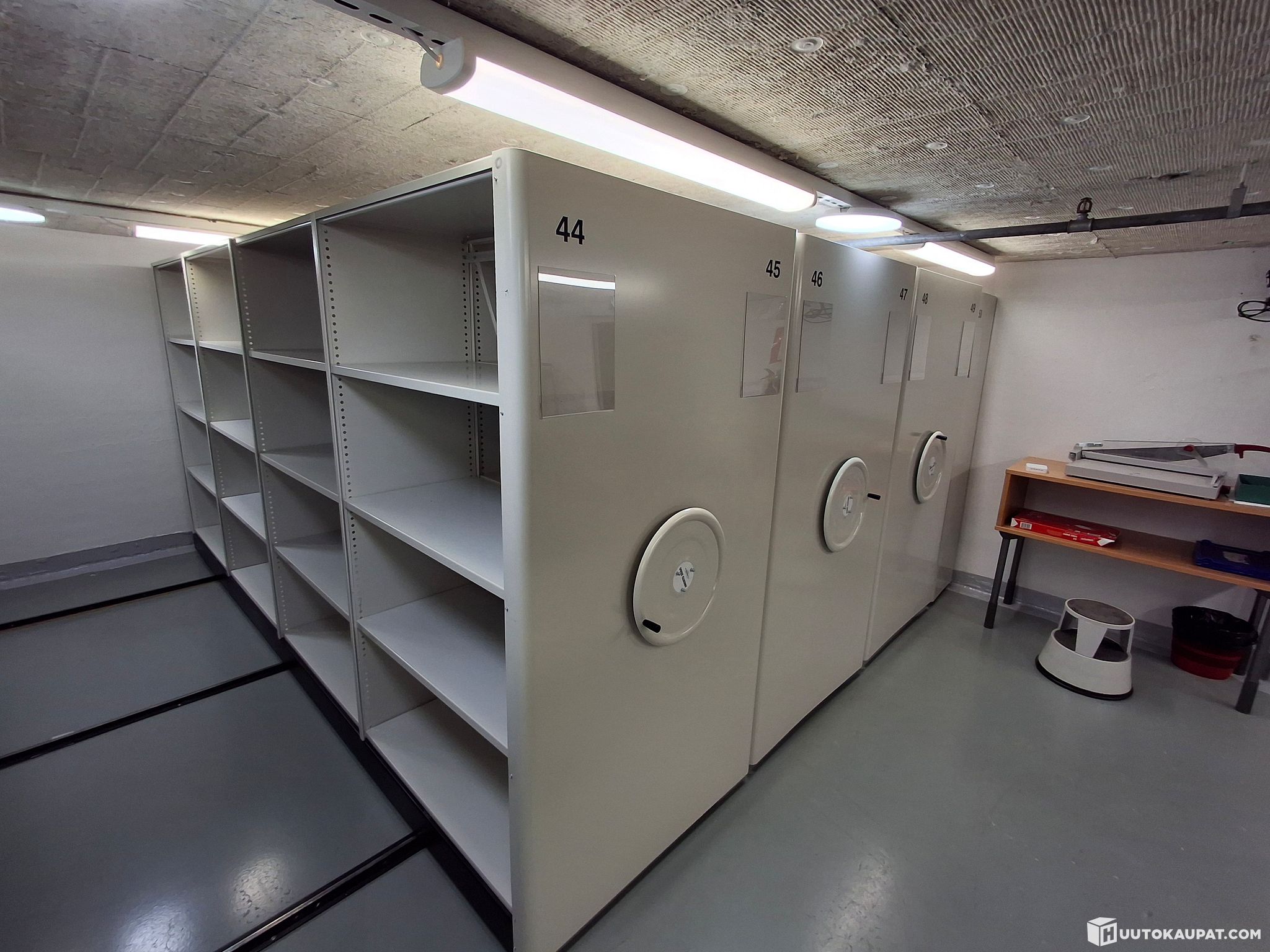

An in-use ARKISTO 2000 mobile archive shelving system (handle-operated) is available in Tampere.

Shelf levels, length 1000 mm and depth 300 mm = 1008 pieces

Shelf levels, length 1000 mm and depth 490 mm = 140 pieces

Total height from floor approx. 2.0 m

Shelves run on surface-mounted rails.

Sold to the highest bidder. The buyer is responsible for dismantling the shelves with their rails and arranging transport.

The shelves are sold as a whole; we will not accept offers for smaller parts.

Dismantling to be agreed separately. Shelves and rails must be dismantled and removed by the end of April.

Arkisto 2000 mobile shelving allows an efficient storage system even in small spaces. Converting fixed shelving into mobile units can yield up to twice the usable shelf metres.

The end-plate design of the mobile shelving maximises usable space. There are no gaps at shelf ends where papers could fall. Frames are factory-welded for a durable, stable structure.

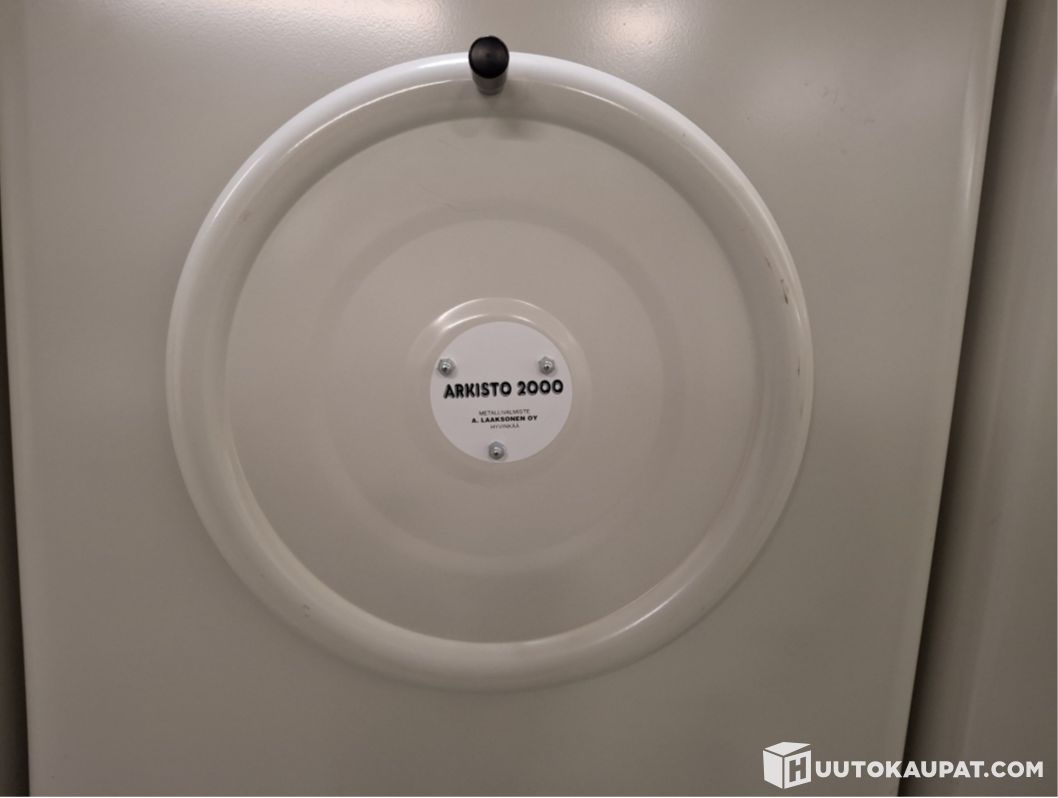

In electric and crank-operated mobile shelving the drive is always at both ends; in longer units it is also in the centre. This ensures smooth, stable movement. The drive system and wheels are ball-bearing. Maintenance needs are low and service life long. Large steel wheels, 130 mm diameter, and correct gearing give the shelving light manoeuvrability.

• shelf thickness 30 mm

• shelf height adjustable in 25 mm increments

• load capacity 80 kg uniformly distributed per shelf

• horizontal and diagonal braces (diagonal brace fixes the shelf to the trolley)

• standard colour RAL 9002, trolley and rails black

Other notes:

• lighting should run along the rails

• mobile shelving must be installed at least 50 mm away from the rear wall or other projections

The Arkisto 2000 shelving frame can be modified to fit a customer’s existing fixed shelving or other cabinets from other manufacturers.
