Demo unit from Lauttasaari store! Garmin ECHOMAP Ultra 122sv chartplotter with GT56UHD-TM transducer, Helsinki

Now on auction: 1 unit of the Lauttasaari store's warranty-serviced DEMO UNIT!

All the tools for a successful boating experience, fishing and navigation

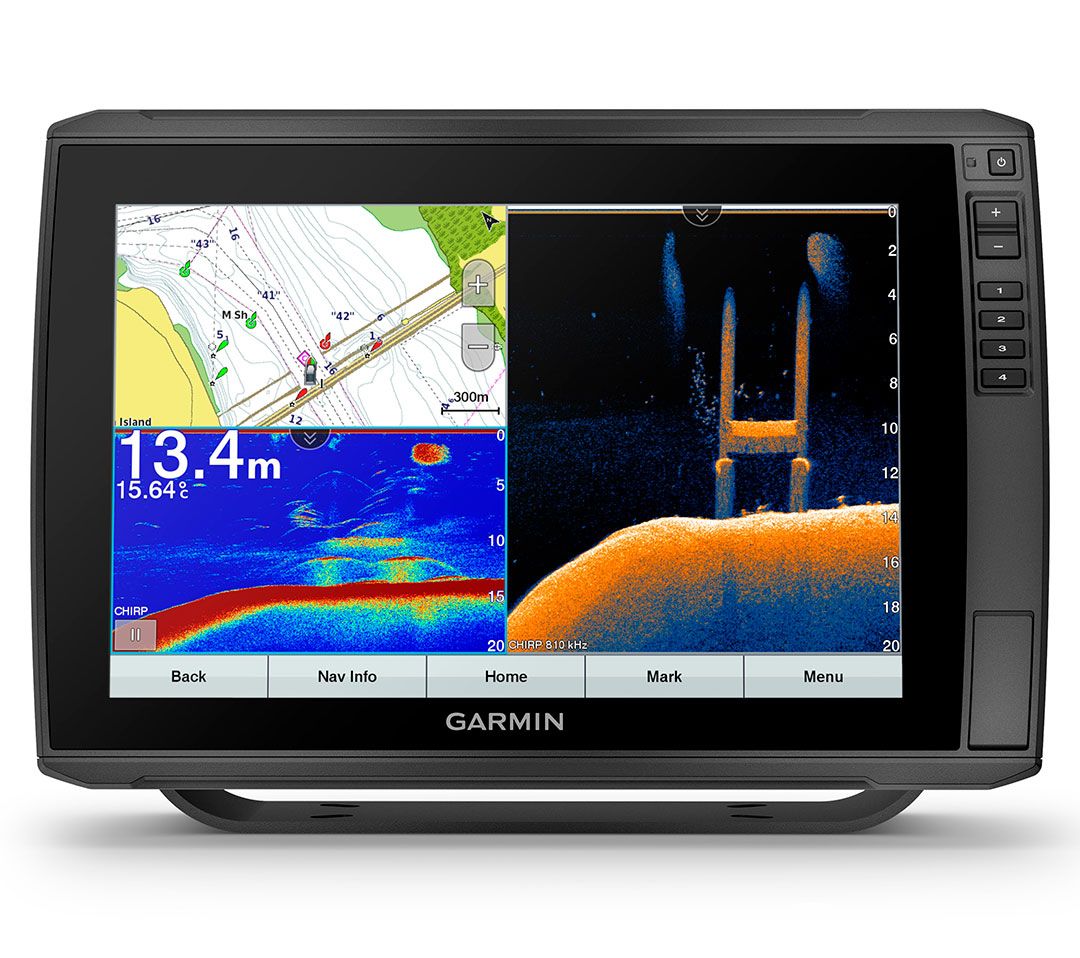

The 12" sunlight-readable touchscreen chartplotter/fishfinder combines our worldwide base map with a transducer package including a traditional CHIRP sonar and high-resolution scanning sonars.

LiveScope sonar support

ECHOMAP Ultra 122sv supports many Garmin transducers, including Panoptix™ transducers and the scanning Panoptix LiveScope™ LVS12 system (sold separately).

Built-in UHD sonar

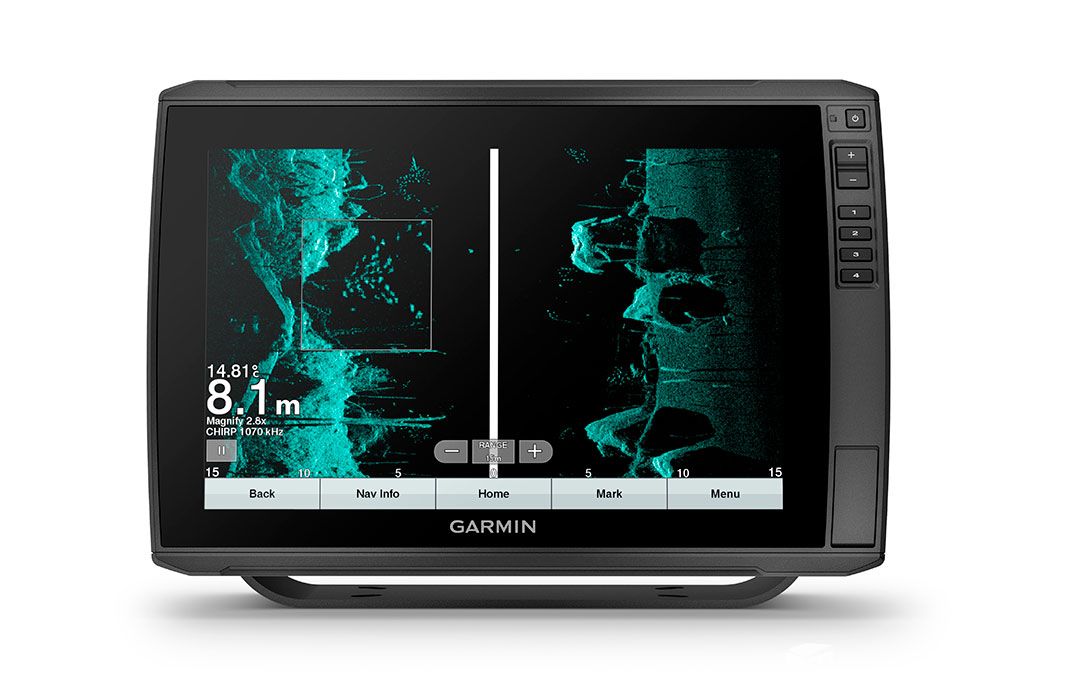

The supplied GT56 transducer includes a traditional Garmin CHIRP sonar and high-resolution ClearVü and SideVü scanning sonars. You get excellent results at all depths thanks to three scanning sonar frequencies and our UHD SideVü with 20% larger coverage.

More charts

Experience unmatched coverage and detail with optional BlueChart g3 charts, which include Navionics® data and Auto Guidance technology.

Quickdraw Contours

Create your own fishing maps on-screen with contours every 0.3 metres. Keep the data private or share it with Garmin’s Quickdraw™ community via the Garmin Connect™ app.

Network support

If your boat has multiple compatible 10" and 12" ECHOMAP Ultra or 7" and 9" ECHOMAP Plus/UHD units, you can share data between them, such as sonar, user data and charts.

NMEA 2000® network compatibility

From the same display you can connect to compatible autopilots, digital switching, instruments, Fusion-Link™ audio systems, media devices, VHF and AIS systems, engine data and directional sensors such as the SteadyCast™ sensor.

ActiveCaptain app

Connect over the internal Wi‑Fi® to the free, full-featured mobile app for OneChart™ features, smart notifications, software updates and Garmin QuickDraw community content.

FORCE bow motor support

Control the market-leading bow motor, create routes to waypoints, track routes and more directly from the chartplotter display.

Power-Pole shallow-water anchor

When you connect Garmin chartplotters to a Force® bow motor and a compatible shallow-water Power-Pole anchor system over the network, you gain advanced boat management features4 on your plotter, such as smart anchor auto-deploy, smart anchor repositioning, automatic stow, anchor drag detection and automatically guided1 anchoring at the end of a route. Focus on fishing, not finding your position.

Power-Pole CHARGE integration

The Power-Pole CHARGE Marine Power Manager integrates with compatible Garmin chartplotters so battery power lasts longer on the water. You can charge batteries underway, monitor power consumption, select power targets, manage emergency starts and even transfer power between backup sources directly on the chartplotter display.

Take it with you

Keep the ECHOMAP Ultra secure. Cables can be connected directly to the quick-release mounting bracket for faster installation and removal.

Engine connections

This chartplotter can be connected to many engines, including Mercury and Yamaha® models, so you can view RPM, fuel flow, temperature and trim at a glance. Additional accessories may be required; check with the engine manufacturer.

Specifications

Dimensions: 34.1 x 22.9 x 9.8 cm
Water rating: IPX7
Mounting options: Dash or flush
Antenna: Internal or external on NMEA 2000 network
Receiver: 10 Hz
Display size, W×H: 26.1 x 16.3 cm, diagonal 30.7 cm
Display resolution, W×H: 1280 x 800 pixels
Weight: 2.5 kg
Display type: WXGA display

Charts and navigation

Supports memory cards: 2 microSD™ cards
Track log: 50,000 waypoints, 50 saved tracks
Routes: 100

Features

Maximum depth: 700 m at 77 kHz; freshwater 335 m at 77 kHz (depth capability depends on water, bottom type and other conditions)Wireless remote compatible: NoDual-frequency sonar: YesTransmit power: 600 W (RMS) / 4,000 W (peak-to-peak)Polarised support: YesWater temperature log and chart: YesSupports FUSION-Link™ radios: YesPower consumption: 26 WNMEA 0183 output ports: 1NMEA 2000 compatible: YesBottom lock: YesCHIRP sonar technology: Yes (built-in)NMEA 0183 compatible: Yes
Output frequencies:

• High-frequency, wide-beam CHIRP: 150–240 kHz

• Ultra-high-resolution ClearVü: 800 kHz (760–880 kHz)

• CHIRP ClearVü: 455 kHz (425–845 kHz)

• Ultra-high-resolution SideVü: 1,200 kHz (1,060–1,170 kHz)

Number of transducer pins: 1 – LVS transducer, 1–12-pin scanning transducerAIS compatible: YesGSD™ black box sonar support: NoGCV™ black box sonar support: YesSonar history rewind: YesSideVü: Yes via CHIRP (built-in)ActiveCaptain compatible: YesGRID™ compatible: NoCompatible with Garmin radar: NoDSC compatible: YesGarmin Marine Network ports: 2 (large connector)Compatible with Garmin transducer: YesNMEA 0183 input ports: 1Wireless connections: YesWireless mouse compatible: NoSonar recording: YesDual-beam sonar: YesWaypoints: 5,000Garmin SmartMode: NoCompatible with Garmin Meteor: NoClearVü: Yes via CHIRP (built-in)Sailing features: YesTide tables: Yes

IN THE BOX

• ECHOMAP Ultra 122sv

• GT56UHD-TM transducer

• Power/data cable

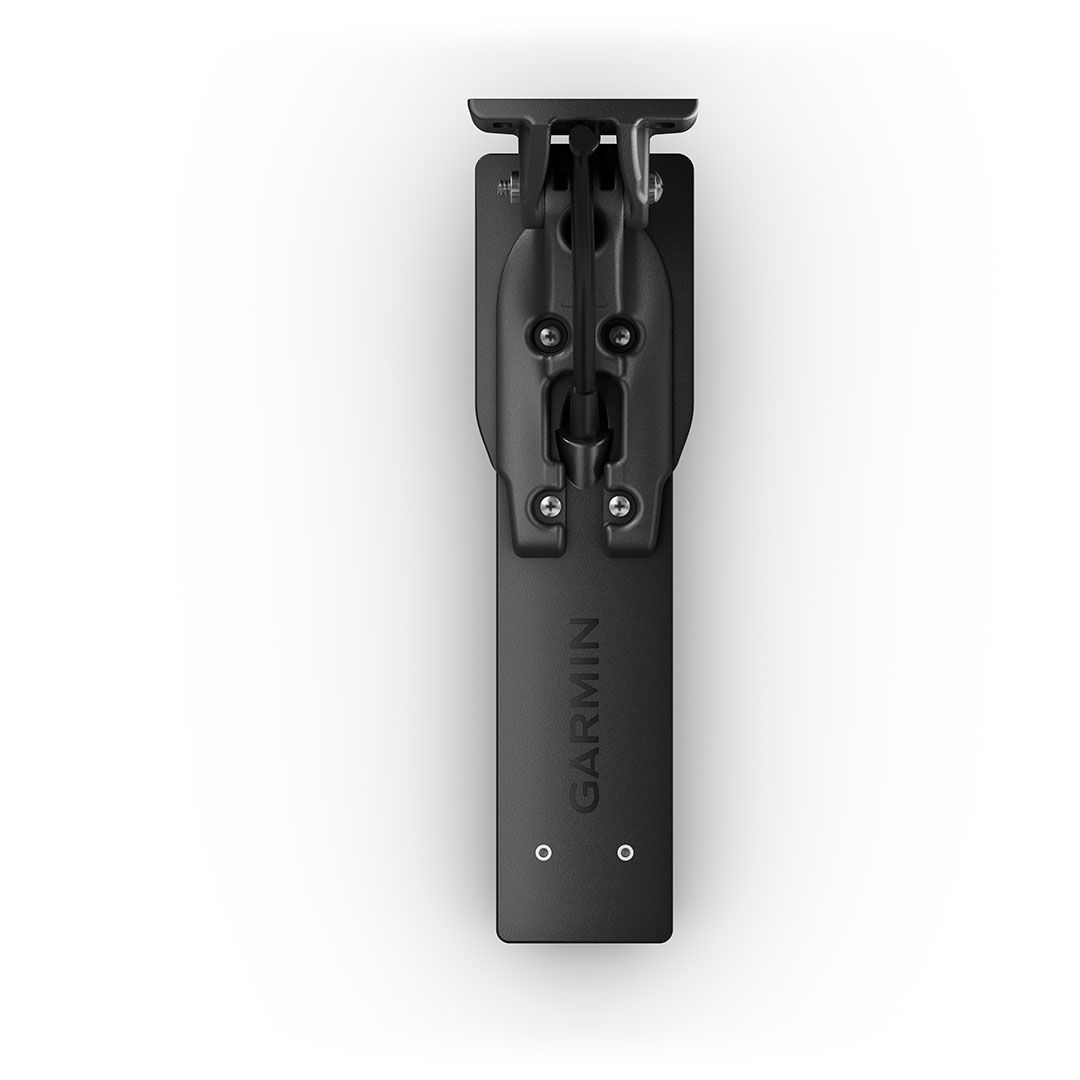

• Tilt mount with quick-release bracket

• Flush mount kit

• Protective cover

• Hardware

• Manuals

WARRANTY 2 YEARS FOR PRIVATE CUSTOMERS!

WARRANTY 1 YEAR FOR BUSINESSES!
