Demo unit at Herttoniemi store! Simrad GO12 XSE chartplotter with Active Imaging 3-in-1 transducer!, Helsinki

One demo unit available at the Herttoniemi store.

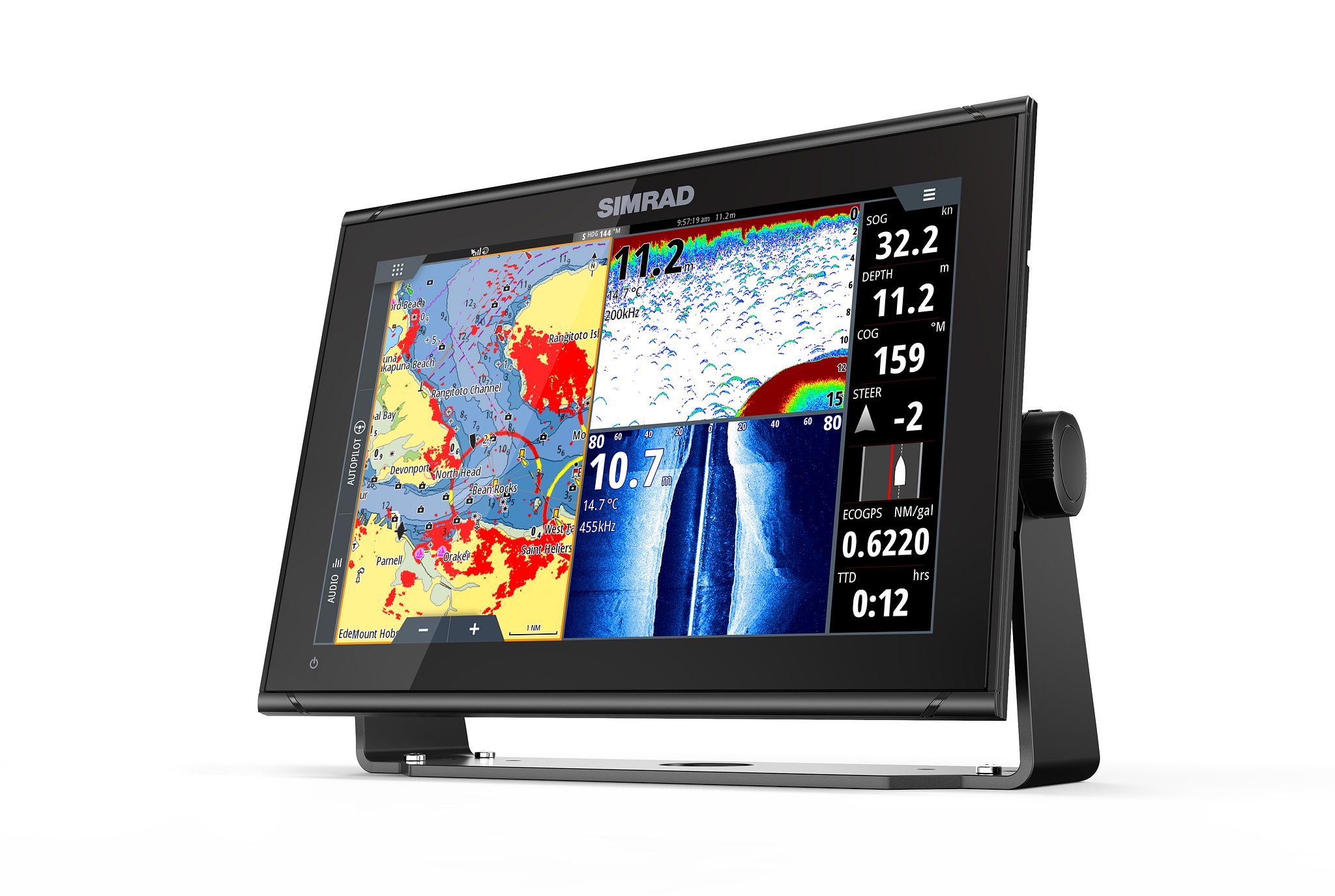

Boat electronics are easy to manage with the GO12 XSE. This touchscreen chartplotter is ideal for sports, leisure and centre-console boats. It features an internal sonar, radar capability and integrates seamlessly with autopilots, entertainment systems and many other accessories. With wireless control from mobile devices you can stay in touch with the system from anywhere on board.

Get more out of your day on the water

The Simrad GO series displays help you make the most of your time on the water. Designed specifically for speedboats, dayboats and centre-console craft, these high-visibility widescreens combine a built-in GPS receiver, sonar, wireless connectivity and industry-standard NMEA 2000® networking. Navigate, connect to mobile devices, control accessories such as an onboard audio system, and use many built-in sonar options. Radar features (available on GO7 and later) provide extra safety and situational awareness.

Tablet-style control on a multi-touch screen

The GO system offers easy, intuitive touchscreen control familiar to smartphone and tablet users. Customise the home screen with your most-used functions and see everything at a glance with adjustable split-screen views. Mark waypoints on the chart with a single tap and assign names and symbols for quick retrieval when planning your next trip.

A chartplotter with a GPS receiver to keep you on course

Every GO-series display is a chartplotter with an integrated GPS receiver. GO displays are compatible with C-MAP and Navionics® charts and many other optional chart sets. You can also use advanced chart-specific features such as C-MAP Easy Routing and Navionics Autorouting to make planning your next trip as simple as planning a drive.

Extend the display beyond the wheelhouse with wireless and wired connectivity

Built-in wireless lets you view your display on a compatible smartphone or tablet and access charts and functions from anywhere on the boat. Wireless also makes online software updates simple via any hotspot. The industry-standard NMEA 2000® connection offers a range of integration and expansion options: monitor vessel performance and fuel consumption, control a Simrad autopilot or your entertainment system from the GO display.

Turn your display into a sonar

Choose from a range of sonar options to suit your boat, from CHIRP sonars to traditional single-beam transducers. The Active Imaging 3-in-1 transducer provides all sonar functions in a single unit. Active Imaging delivers excellent clarity and CHIRP target separation. With SideScan and DownScan Imaging it reveals reefs, drop-offs and wrecks in remarkable detail.

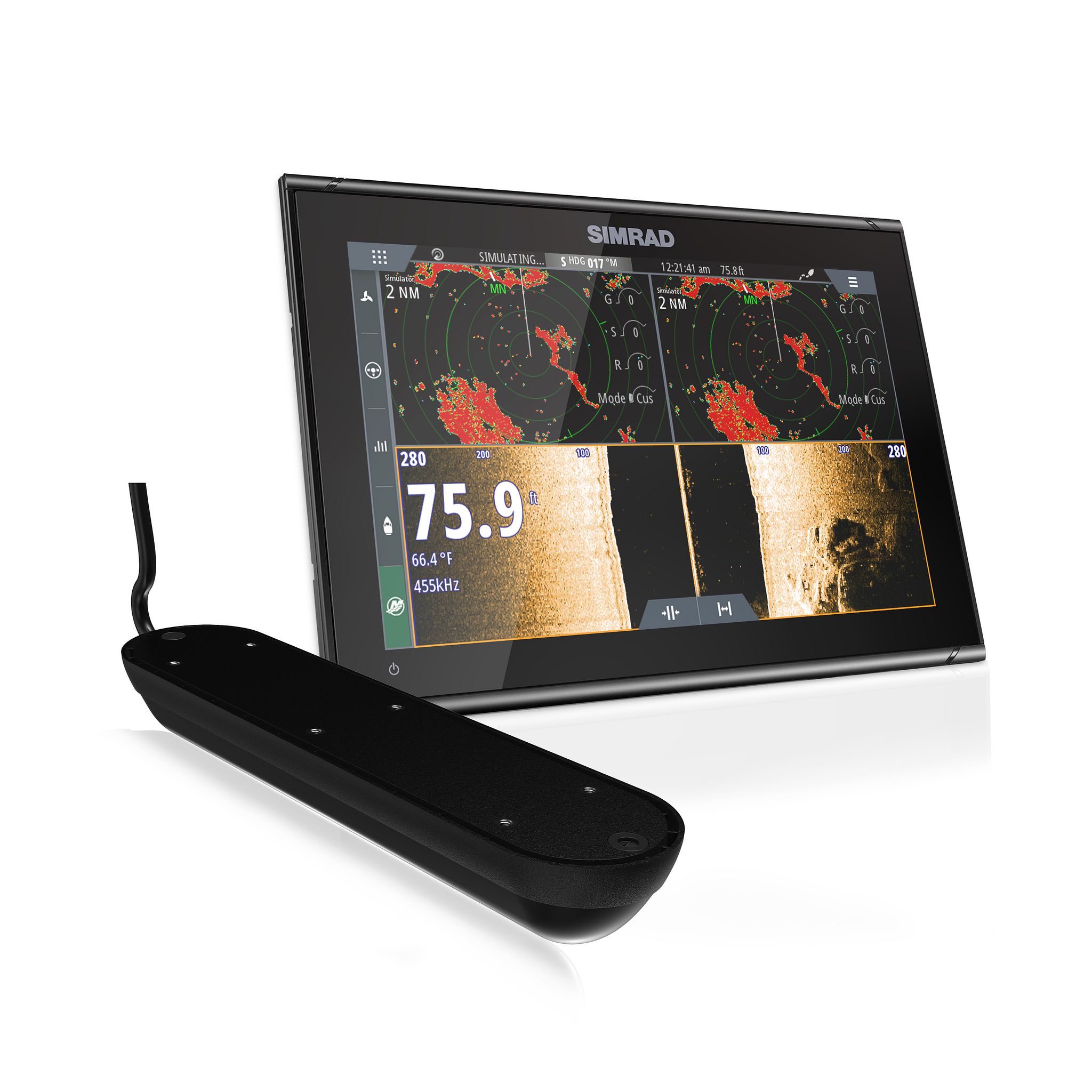

Active Imaging 3-in-1 transducer

The Active Imaging 3-in-1 transducer combines CHIRP, SideScan and DownScan imaging with FishReveal technology for detailed structure views and extended range. Its high clarity, target separation and detail help you find more fish by identifying hiding places — see rocks, reefs, weedbeds and wrecks at greater range. Get the best CHIRP views and DownScan images with the intelligent FishReveal overlay that helps you identify fish on precise DownScan imagery.

Optional revolutionary HALO24 and HALO20+ pulse-compression radars deliver industry-leading 360° sweeps every second at short range, helping to prevent collisions with static and fast-moving targets. These versatile dome antennas provide high-quality short-, medium- and long-range detection so targets remain visible in demanding conditions.

Key features:

• Bright LED-backlit widescreen display

• Easy to use with simple, tablet-style touchscreen controls

• Compatible with Broadband 3G/4G and HALO radars (GO7 and later)

• Supports comprehensive C-MAP chart options and many other charts

• View and control your display from a compatible smartphone or tablet

• Built-in CHIRP sonar support, StructureScan® HD or ForwardScan®: just add a compatible transducer

• Compatible with the WM-3 SiriusXM satellite weather module (GO7 and later, North America only)

Technical specifications:

• Display: 30.5 cm, TFT multi-touch widescreen, 1280 x 800 px, 1200 nits

• Internal memory: 90 MB

• Memory card slot: 2 x microSD, up to 32 GB (cards over 32 GB must be formatted NTFS)

• Bluetooth

• Wi‑Fi

• Internal GPS, 10 Hz, WAAS, MSAS, EGNOS

• AIS data via NMEA 2000 only

• 6000 waypoints, 500 routes with 100 waypoints each, 50 tracks with 12,000 points

• Control modes: Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, Wind, Wind NAV (sailboats)

• Connections: 1 x 1 Mbps Ethernet (for radar or Sirius satellite weather module), 1 x NMEA 2000 Micro-C connector

• Compatible with Broadband 3G/4G and HALO radars

• Supports comprehensive C-MAP chart options and many other charts

• Built-in CHIRP sonar support, StructureScan® HD or ForwardScan®: just add a compatible transducer

• Default language pack: English (US), English (UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, Swedish

• IPX7 rating

• Dimensions: 31.0 (W) x 21.9 (H) x 8.3 (D) cm

• Weight: 2.42 kg

• Operating voltage: 12 V DC (10–17 V)

• Typical power consumption: 24 W

• Maximum power consumption: 30 W

• Operating temperature: -15°C to 55°C

• Recommended fuse: 3 A

Package contents:

• Simrad GO12 XSE chartplotter

• Active Imaging 3-in-1 transducer

• GO12 dash-mount kit

• Sun cover, GO12

• Trim bezel

WARRANTY 2 YEARS!
