Demo unit from Herttoniemi store! Raymarine Element 9 HV with sonar, GPS and Northern Europe LightHouse chart., Helsinki

Now up for auction: 1 demo unit from the Herttoniemi store.

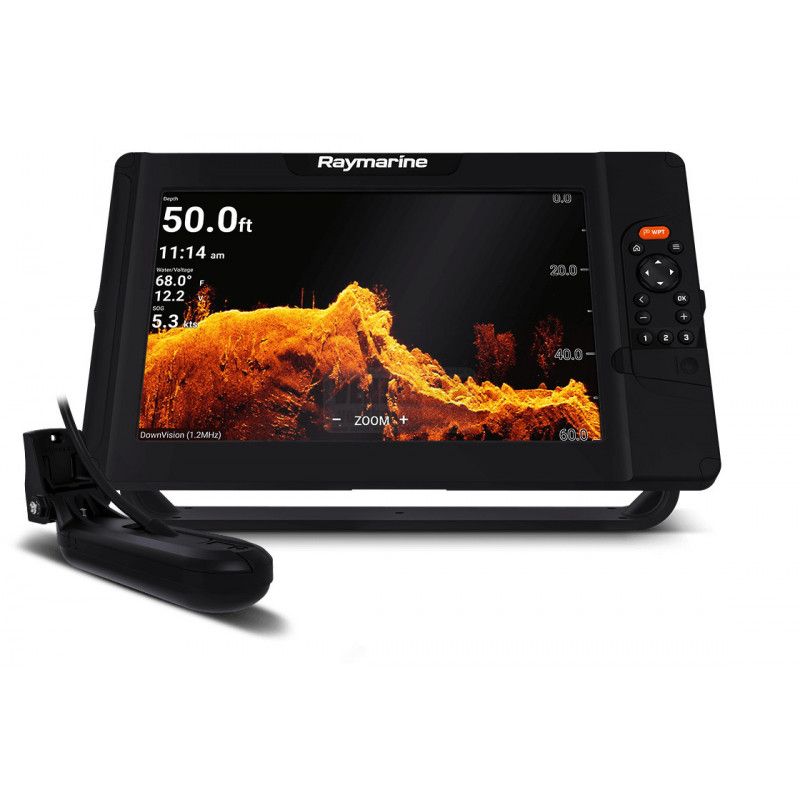

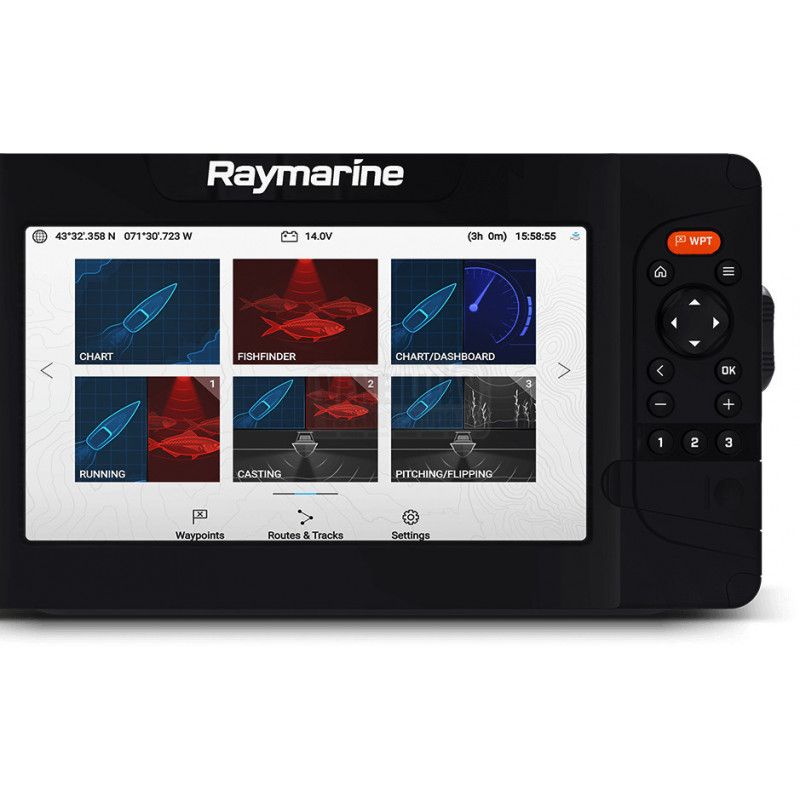

A 9" (approximately 23 cm) chartplotter/sonar multi‑display aimed especially at anglers, controlled by buttons. Improved 1.2 MHz sonar technology - HyperVision. A fast quad‑core processor ensures a smooth user experience, e.g. with a real‑time moving chart.

ELEMENT HV - FEATURES

• Bright and durable - sunlight‑readable displays with integrated GPS/GNSS receiver.

• Superior HyperVision™ - 1.2 MHz CHIRP sonar technology delivers a much clearer image than traditional side and down imaging sonars.

• Built‑in RealVision™ 3D - accurately detect shoals, channels and other bottom‑shape changes.

• Fast quad‑core processor - enables immediate map updates and clear 3D imaging.

• All‑in‑one transducer - combines HyperVision, DownVision, SideVision, RealVision and traditional CHIRP sonar channels into a single simple installation.

IMPROVE RESOLUTION WITH HYPERVISION™

• HyperVision uses very high frequencies (1.2 MHz) and CHIRP technology, raising the resolution of DownVision, SideVision and RealVision 3D imaging to a new level.

• The 1.2 MHz HyperVision mode is optimised for very high‑resolution imaging up to 30 m.

• Enable the 350 kHz CHIRP wideband sonar for high‑resolution imaging up to 180 m.

• The Element’s advanced CHIRP sonar also operates at the higher 200 kHz band for fish detection and high‑speed bottom tracking to depths of up to 270 m.

TECHNICAL SPECIFICATIONS

• Display: 9" (approx. 23 cm) optical LCD (non‑touch)

• Display resolution: 800 x 480

• Brightness: 1500 nits

• Viewing angle: Top 50° / Bottom 60° / Left 70° / Right 70°

• Dimensions: 287 x 161 x 62 mm

• Water resistance: IPx6 and IPx7

• Power: 12 V

• Power consumption: 20 W

• Sonar built‑in: CHIRP DownVision (Standard and Hyper), SideVision (Standard and Hyper), RealVision™ 3D (Standard and Hyper)

• Connectivity: NMEA2000, SeaTalk (requires adapter cable), Wi‑Fi, Bluetooth 4.0

• Charts: Navionics, C‑Map, LightHouse





  IN THE PACKAGE





  Mounting bracket with fittings




  Flush‑mount kit with fittings




  Sun cover




  Power/NMEA2000 cable, 1.5 m




  Documentation




  Charting (optional)




  Transom‑mount bracket with fittings




  P‑clips with fittings (x 5)




  Mounting plate with fittings

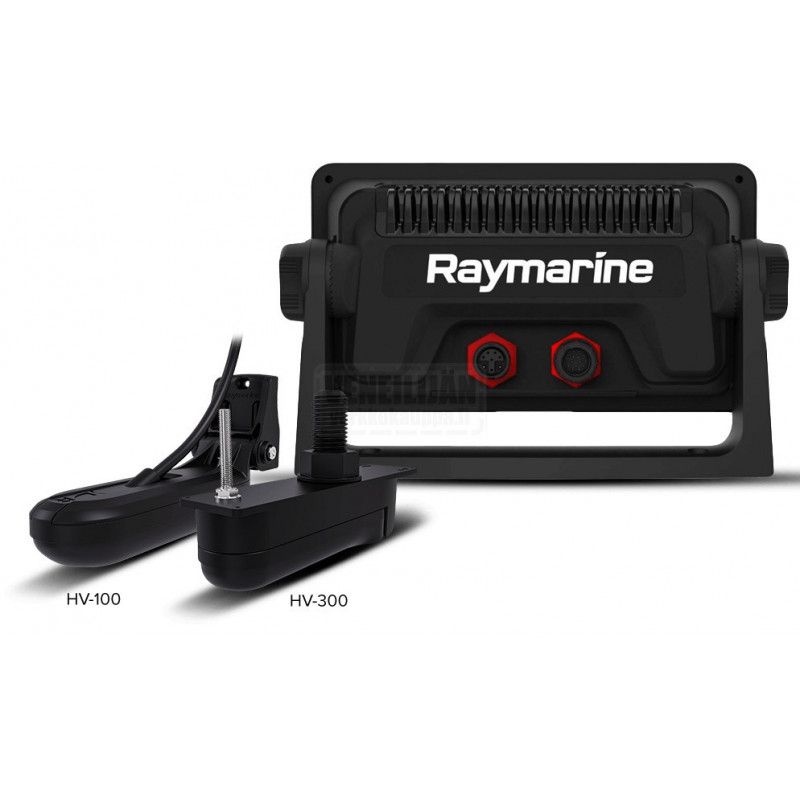

  TRANSDUCER SOLD SEPARATELY.

  WARRANTY 2 YEARS!
