Herttoniemi store demo unit! Garmin GPSMAP 8410 Chartplotter (World map), Helsinki

One demo unit from the Herttoniemi store is now up for auction.

This easy-to-use, easy-to-install chartplotter/sonar combo performs like an MFD of the same size.

• Full HD IPS (in-plane switching) touchscreen provides wide viewing angles and excellent clarity.

• Supports Garmin’s top navigation charts.

• High-end networking lets you expand your boat’s electronics easily.

• With internal sonar features you can see under and around the vessel (transducers sold separately).

• The unit supports numerous connection methods, including ANT® technology and Wi‑Fi® networks.

• SmartMode™ gives you the information you need quickly with a single tap.

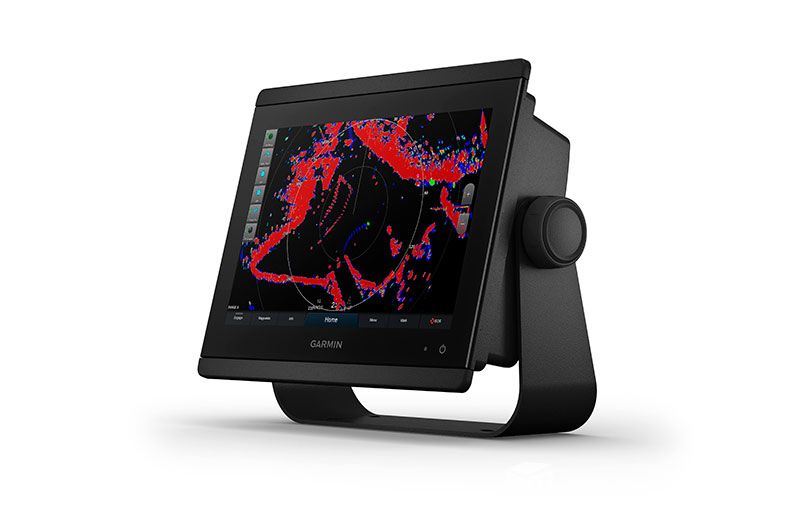

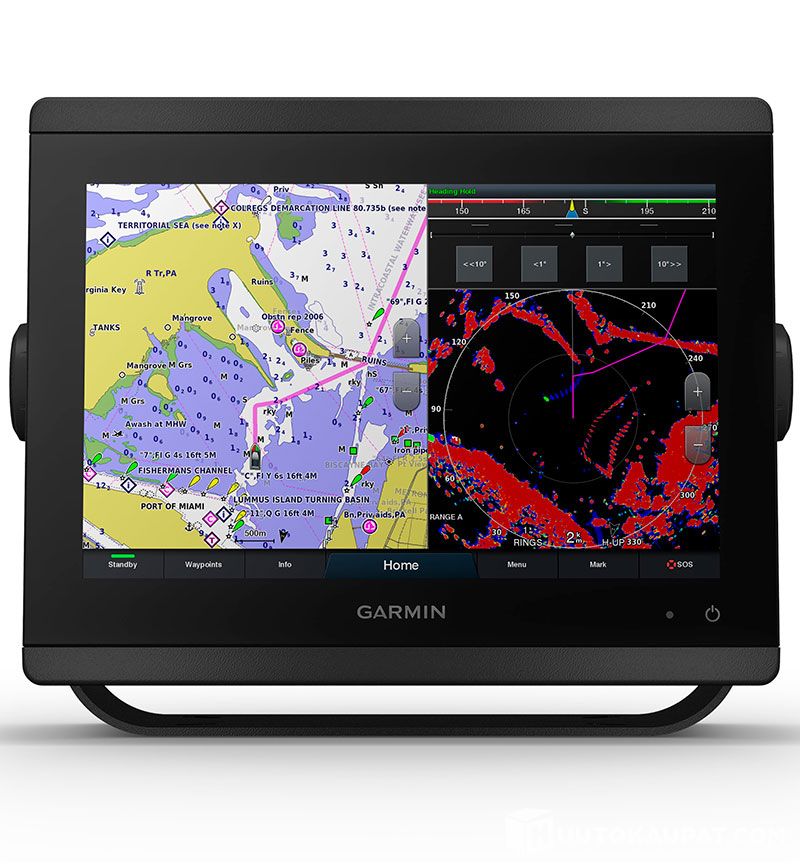

The GPSMAP 8410 chartplotter has a 25.7 cm Full HD IPS touchscreen, ensuring wide viewing angles, excellent clarity and readability in sunlight even with polarised sunglasses. Multiple displays can be flush-mounted side‑by‑side in a glass display format or installed inset. It also supports normal USB touch control, allowing use as a touchscreen on Windows® and Mac® systems.

Build your boat system

Using NMEA 2000 and the Garmin Marine Network you can easily assemble a full marine electronics suite, including radar, autopilot, cameras and forward‑facing sonar that can be controlled from the chartplotter and shared across displays. Our unique OneHelm™ system coordinates many third‑party marine products so you can control systems such as digital switching, lighting and stabilization conveniently from the chartplotter screen.

Full connectivity

The GPSMAP® 8410 chartplotter has a high‑performance processor that enables fast map drawing, excellent networking and video distribution. Built‑in Wi‑Fi lets you pair the unit with the free ActiveCaptain® app to access OneChart™ data, smart notifications1 and Garmin Quickdraw™ Community content. You can also stream video wirelessly from the GC™ 100 camera and VIRB® action cameras. Built‑in ANT wireless connects directly to a quatix® marine smartwatch, gWind™ Wireless 2 wind sensor and wireless remotes.

SmartMode station control

Networked sonars, radars, cameras, recorders and digital switching can be used individually or combined with SmartMode station control. SmartMode lets you access the information you need quickly with one touch, helping in stressful situations such as berthing.

The best of Garmin and Navionics®

To keep charts as detailed, clear and concise as possible, the GPSMAP® 8410 has expandable memory so you can buy additional charts (such as BlueChart® g3 and BlueChart® g3 Vision), which include Navionics data. Charts also include autorouting that displays route suggestions to a destination2 based on the vessel’s specifications.

Relax and take the helm

You don’t need to stand at the wheel for hours. The optional easy‑to‑use GRID™ 20 remote lets you control your entire Garmin marine system intuitively. It has a 360‑degree joystick with a twist knob and select button, which help you operate and fine‑tune chartplotter menus/settings even in the toughest conditions.

Dedicated sailing features

Garmin SailAssist provides key sailing information and includes pre‑start guidance for racing. Other sailing features include laylines, enhanced wind rose, bow‑to‑course and heading‑to‑bottom lines, true wind fields and a tide/current/time slider. Instrument pages display necessary data at a glance, such as true and relative wind angles, current direction and speed, real or apparent wind speed, horizontal and vertical graphs and a configurable data bar.

Top app for boating

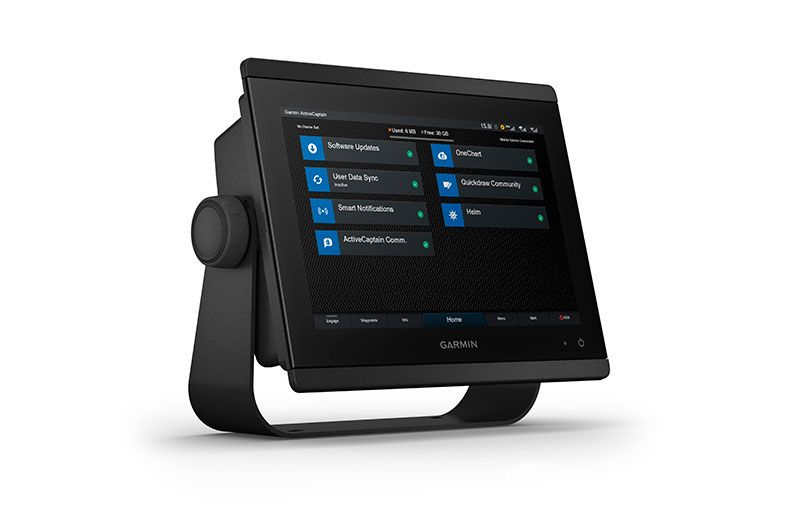

Download the ActiveCaptain app to your smartphone or tablet to manage your boating experience from anywhere — from trip planning and fishing preparation to software updates and chart purchases.

Physical data and performance

• Dimensions 25.9 x 20.5 x 7.5 cm

• Water rating IPX7

• Mounting options Flush, surface or inset (Garmin does not supply accessories for flush mounting; professional tools and skills are required.)

• Antenna Internal or external on NMEA 2000 network

• Receiver 10 Hz GPS/GLONASS/Galileo

• Display size, W×H 21.8 cm × 13.7 cm; 25.7 cm diagonal

• Display resolution, W×H WUXGA; 1920 × 1200 px

• Weight 2.4 kg

• Display type IPS touchscreen (anti‑glare surface)

Charts and navigation

• Supports memory cards

• 2 SD™ cards (at the rear of the unit)

• Track log 50,000 waypoints, 50 saved tracks

• Routes 100 (250 waypoints each)

Features

• Supports spoken audio alerts

• Wireless remote compatible Yes

• J1939 Compatible Yes

• Dual‑frequency sonar Yes (with compatible black‑box sonar)

• XM WX weather radio in the US and Canada Yes

• Polarised support Yes

• Supports FUSION‑Link™ radios Yes

• Power consumption 2.0 A

• NMEA 0183 output ports 1 differential

• NMEA 2000® compatible Yes

• CHIRP sonar technology Yes (when connected to a compatible sonar)

• NMEA 0183 compatible Yes

• AIS compatible (ability to track target vessel positions) Yes

• GSD™ black‑box sonar support Yes

• GCV™ black‑box sonar support Yes

• Video inputs 1 × BNC composite, 1 × HDMI (HDCP compatible)

• SideVü Yes (with compatible black‑box sonar)

• ActiveCaptain compatible Yes

• GRID™ (Garmin Remote Input Device) compatible Yes

• Compatible with Garmin radar Yes

• DSC compatible (shows DSC‑capable VHF radio position reports) Yes

• Garmin Marine Network™ ports 2

• Compatible with Garmin sonar Yes

• NMEA 0183 input ports 1 differential

• Wireless connections Yes (with separately sold GCV™ black‑box)

• Wireless mouse compatible No

• Dual‑beam sonar Yes (with compatible black‑box sonar)

• Waypoints 5,000

• Garmin SmartMode compatible (customisable display presets) Yes

• Video output ports 1 HDMI

• Compatible with Garmin Meteor™ audio system No

• ClearVü Yes (with separately sold GCV™ black‑box)

• Garmin Helm™ compatible Yes

• Sailing features Yes

• Tide tables Yes

IN THE BOX

• GPSMAP® 8410

• Power cable

• NMEA 2000® device cable

• NMEA 2000 T‑connector

• Knobbed mount

• Inset mounting kit

• Sun hood

• Snap‑on trim covers

• Manuals

WARRANTY 2 YEARS!
