Demo unit at Lauttasaari store! Garmin GPSMAP 723xsv chartplotter with sonar!, Helsinki

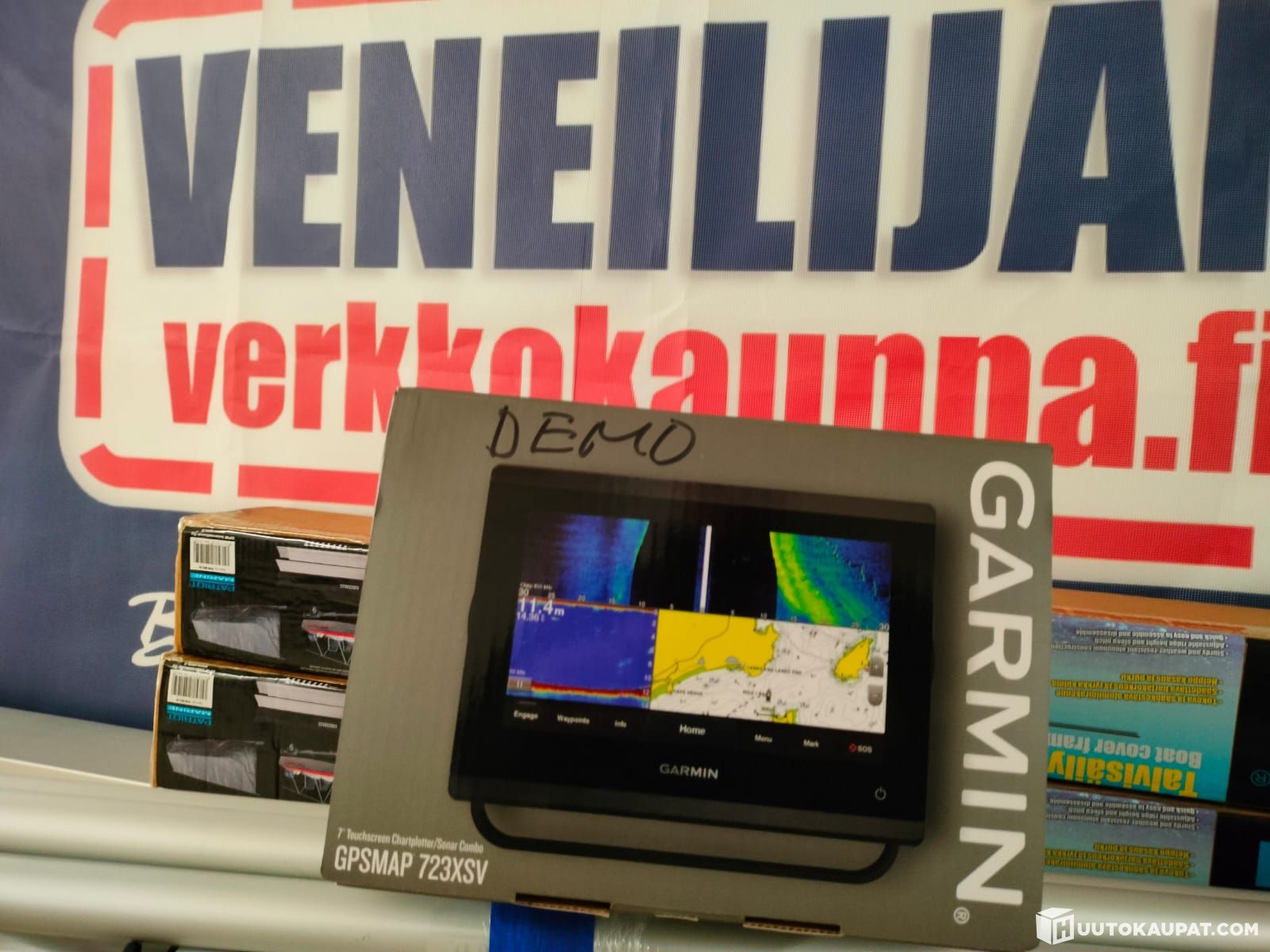

Now up for auction: 1 demo unit from our Lauttasaari store!

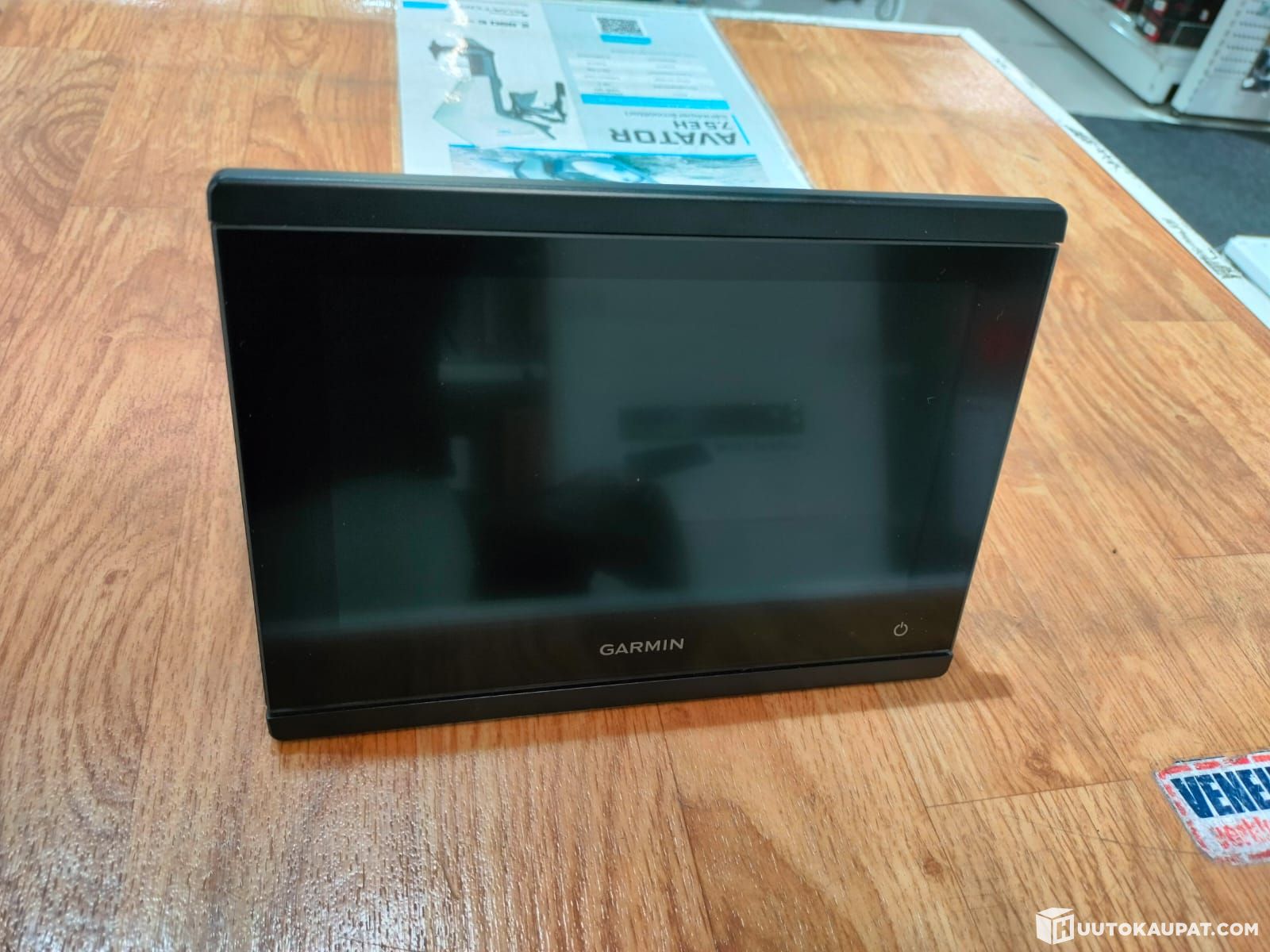

The unit has been on display on our demo counter.

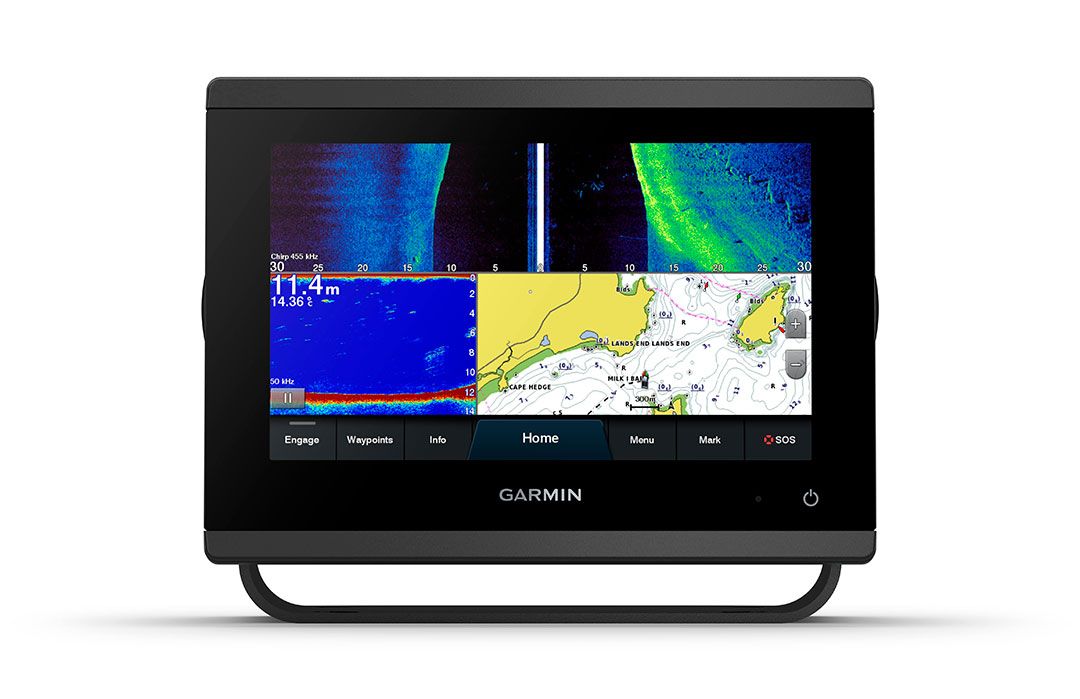

A stylish 7-inch chartplotter with excellent performance and an updated IPS screen, it integrates seamlessly with your Garmin marine system.

Garmin GPSMAP 723xsv, SideVü, ClearVü and traditional CHIRP sonar with a worldwide basemap.

• 7" touchscreen multifunction display

• powerful and fast operating system

• brighter and sharper screen than the echoMAP series

• broader connectivity to accessories and even third-party devices

• sonar optional (transducer sold separately)

• mounting bracket included

• charts sold separately

VERY HIGH-RESOLUTION SCANNING SONAR

You get internal high-resolution scanning SideVü and ClearVü sonars with vivid, high-contrast colours that make fish stand out from structure. In addition, the GPSMAP® 723xsv supports a 1 kW traditional CHIRP sonar.

PANOPTIX SONAR SUPPORT

Pair Panoptix or Panoptix LiveScope™. With an easy-to-interpret real‑time sonar (transducer sold separately) you can view the entire surroundings of your boat in real time.

FASTER, SHARPER, SMARTER

With increased processing power, a new streamlined shape, edge-to-edge glass and compact size, this 7" plotter is easy to retrofit into a variety of dashboards.

IMPROVED DISPLAY OPTICS

The new high-resolution 7" display is easy to read even in sunlight. It has 60% more pixels than previous-generation 7" GPSMAP devices.

OPTIONAL BLUECHART® G3 VISION® CHARTS

These optional charts include Garmin and Navionics® premium navigation data, autorouting technology and other top-tier navigation features.

OPTIONAL RADAR PACK

If you want to avoid bad weather and busy traffic on the water, a compact 4 kW GMR™ 18 HD+ dome radar is available with the GPSMAP chartplotter/sonar package.

SHALLOW-WATER POWER-POLE® ANCHOR

When you connect Garmin chartplotters to a Force® bow motor and a compatible shallow-water Power‑Pole anchor system over the network, you get advanced boat control features in the plotter6, such as smart anchor drag detection, automated anchor retraction, smart anchor relocate, automatic retraction, automatic anchor guidance at the end of a route and smart anchor auto‑calculate. Focus on fishing, not finding position.

GARMIN SAILASSIST™ SAILING FEATURES

View laylines, race start guidance, enhanced wind rose, heading and bearing to the bottom, true wind data fields, tide/current/time sliders, wind angle, current direction and speed and wind speed.

SAILING POLARS

The polar plot lets you view key information such as required speeds at certain wind angles and speeds – so you know if you need to trim your sails.

GARMIN MARINE NETWORK

If you have multiple Garmin devices on your boat, you can share data between them such as charts, user data, radar and IP cameras.

NMEA 2000® AND NMEA 0183 NETWORKS

Connect, for example, to autopilots, digital switching, weather services, FUSION‑Link™ audio systems, media files, VHF radios and AIS devices on the same display.

ACTIVECAPTAIN® APP

Connect via built‑in Wi‑Fi® to the free, comprehensive mobile app to access features such as OneChart™, smart notifications, software updates and digital Garmin Helm™ integration. Garmin Quickdraw™ community data and more.

BUILT‑IN ANT® TECHNOLOGY

Connect to your favourite devices such as quatix® marine smartwatches, wireless gWind™ 2 sensors, GNX™ Wind instruments and wireless remotes.

J1939 CONNECTION

You can now connect your chartplotter to various engines, for example Yamaha engines.

ONEHELM™ FEATURE

This unique feature combines functions and features of certain third‑party devices, such as digital EmpirBus™ switching, into the same display.

Physical data and performance

• Dimensions 19.2 x 14.0 x 7.4 cm

• Water rating IPX7

• Mounting options Bracket, flush or surface

• Antenna Internal or external when on NMEA 2000 network

• Receiver Very sensitive (10 Hz)

• Display size, W x H 15.4 x 9.1 cm, diagonal 17.8 cm

• Display resolution, W x H 1024 x 600 pixels

• Weight 1.3 kg

• Display type WSVGA

Charts and navigation

• Supports memory cards 2 microSD™ cards (rear of unit)

• Track log 50,000 waypoints, 50 saved tracks

• Preloaded maps Worldwide basemap

• Routes 100

Features

• Maximum depth 1,524 metres at 1 kW (depth capability depends on water and bottom conditions)

• Wireless remote compatible Yes

• J1939 compatible Yes

• Dual‑frequency sonar Yes

• Transmit power 1 kW traditional, 1 kW CHIRP

• XM WX weather radio in the US and Canada Yes

• Polarised support Yes

• Water temperature log and graph Yes

• Supports FUSION‑Link™ radios Yes

• Power consumption

• Maximum power usage (10 Vdc): 17.6 W

• Typical current draw (12 Vdc): 1.1 A

• Maximum current draw (12 Vdc): 1.5 A

• NMEA 0183 output ports 1 (differential)

• NMEA 2000® compatible Yes

• Bottom lock (shows sonar view from the bottom up) Yes

• CHIRP sonar technology Yes (built‑in)

• NMEA 0183 compatible Yes

• Frequencies supported Traditional: 50/77/83/200 kHz

• CHIRP (low, mid, high)

• ClearVü (260/455/800 kHz)

• SideVü (260/455/800 kHz)

• UHD ClearVü / SideVü (800/1000/1200 kHz) (depending on transducer)

• Transducer pin count 12‑pin (orange)

• AIS compatible (can track target vessel position) Yes

• GSD™ black box sonar support Yes

• GCV™ black box sonar support Yes

• Sonar history rewind Yes

• Video inputs 1 BNC

• SideVü Yes via CHIRP (internal)

• ActiveCaptain compatible Yes

• GRID™ (Garmin Remote Input Device) compatible Yes

• Compatible with Garmin radar Yes

• DSC compatible (shows position data from a DSC‑capable VHF radio) Yes

• Garmin Marine Network™ ports 1

• Compatible with Garmin sonar Yes (internal)

• NMEA 0183 input ports 1 (differential)

• Wireless connectivity Yes

• Wireless mouse compatible No

• Sonar recording Yes

• Dual‑beam sonar Yes

• Waypoints 5,000

• Garmin SmartMode compatible (customisable screen presets) Yes

• ClearVü Yes via CHIRP (internal)

• Sailing features Yes

• Tide tables Yes

IN THE BOX

• GPSMAP 723xsv chartplotter

• microSD™ card preinstalled

• Power cable

• NMEA 2000® T‑connector

• NMEA 2000 device cable (2 metres)

• 8‑pin transducer and 12‑pin transducer adapter cable

• Mounting bracket kit and knobs

• Flush‑mount kit and gasket

• Protective cover

• Snap‑on trim covers

• Manuals

WARRANTY 2 YEARS!
